BMW AG Motorcycle (K1100LT, K1100RS). Manual - part 19

18.1

Contents

Page

18

Removing and installing exhaust system

........................................................................3

Removing and installing oxygen sensor

..........................................................................4

18 Exhaust system

18.2

18.3

18

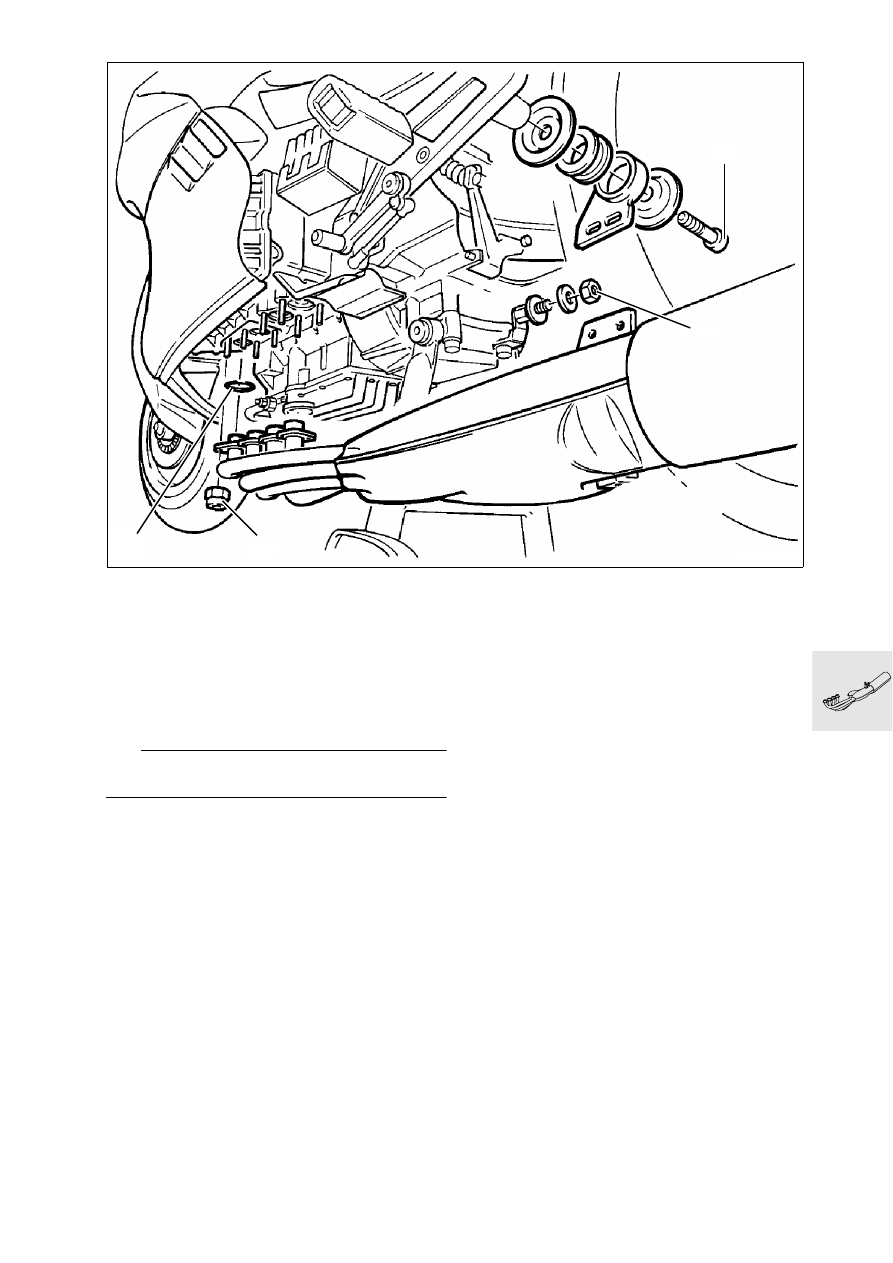

Removing and installing exhaust
system

•

Release mounting (1) on cylinder head.

•

Release mounting (2) on transmission.

•

Release mounting (3) on footrest plate.

•

[CAT]

 - Detach plug connection for oxygen

sensor.

L

 Note:

Use new sealing rings (4) during installation.

X

Tightening torques :

Exhaust system to cylinder head

.................. 21 Nm

Front silencer (muffler)

................................. 12 Nm

Exhaust system holder to footrest plate

....... 33 Nm

Exhaust system to holder/footrest plate

......... 9 Nm

Retaining bracket to gearbox

....................... 41 Nm

LT180010

4

2

3

1

18.4

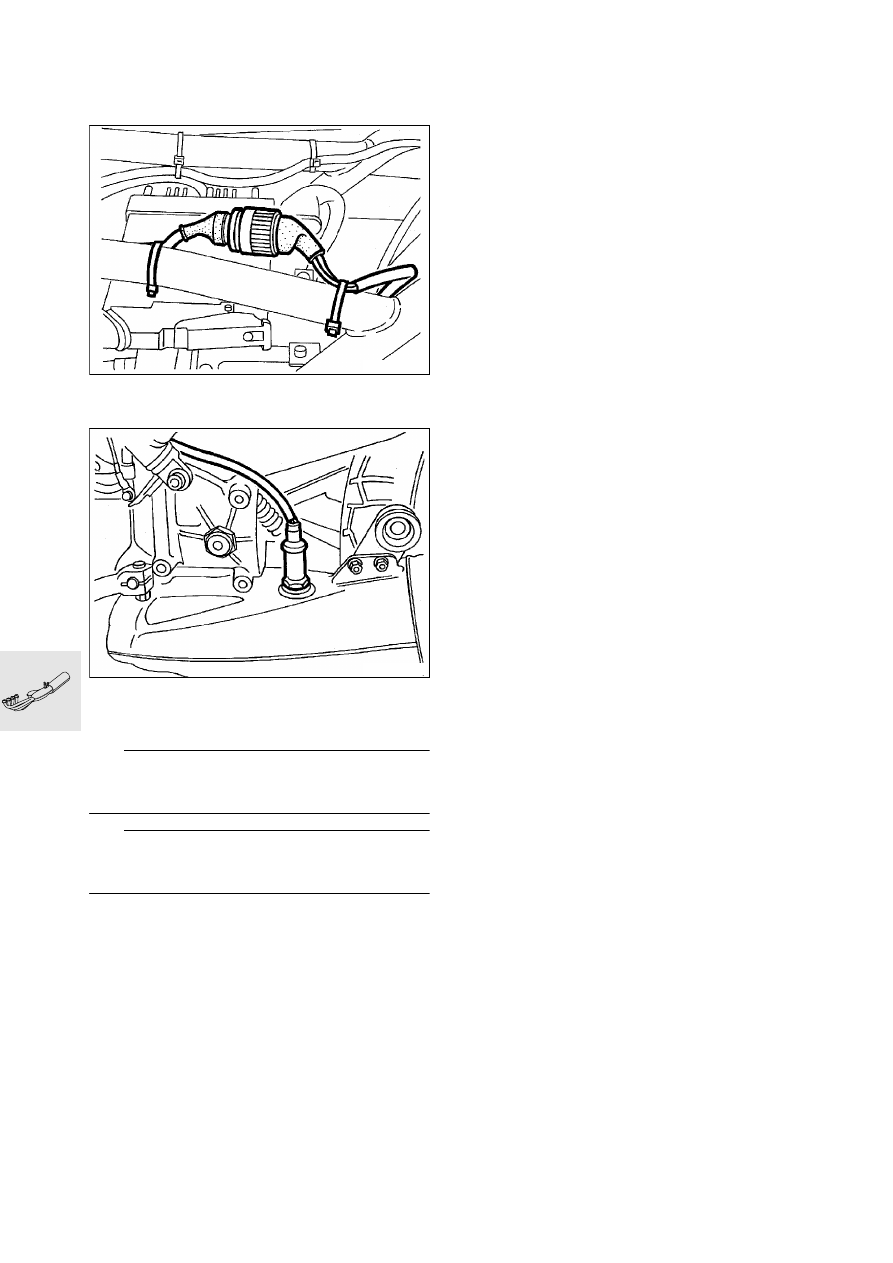

Removing and installing oxygen
sensor

•

Separate plug connection for oxygen sensor.

•

Remove left footrest plate.

•

Unscrew oxygen sensor at hexagon.

L

 Note:

Before installing, coat thread of oxygen sensor with
Optimoly TA.

e

 Caution:

Read out Motronic defect code memory after test
run!

X

Tightening torque:

Oxygen sensor ........................................ Hand-tight

LT180030

LT180020

21.1

Contents

Page

21

Technical Data

............................................................................................................................... 3

Removing clutch

...........................................................................................................................5

Removing clutch housing

........................................................................................................7

Installing clutch housing

..........................................................................................................8

Installing clutch

.............................................................................................................................9

Adjusting clutch clearance

...................................................................................................11

Removing and installing clutch thrust bearing

..........................................................12

Removing and installing clutch control rod

.................................................................13

Removing and installing clutch release lever

.............................................................14

Troubleshooting

..........................................................................................................................15

21 Clutch

21.2

21.3

21

Technical Data

K 1100 LT

K 1100 RS

Type of clutch

Single dry plate clutch with diaphragm spring

Outside

-ø

of

diaphragm spring

mm (in) 180 (7.0866) ± 1 (0.039379)

Total thickness of driving disc
(disc and lining)

mm (in) 5.3 (0.20866) ± 0.25 (0.00984)

Minimum thickness of driving disc

mm (in) 4.5 (0.177165)

Clutch clearance at handlebar lever

mm (in) 4.0 (1.5748) ± 0.5 (0.19685)

Operating cable length at clutch release
lever

mm (in) 75 (2.95275) ± 1 (0.03937)
