Motorcycle BMW R1150RT. Manual - part 57

32.11

32 72

Removing and installing brake

piston in handlebar fitting

e

 Attention:

Do not allow brake fluid to come into contact with
painted parts of the motorcycle - brake fluid de-
stroys paint.

•

Integral ABS Drain front control circuit
(

a

34.19).

•

Remove throttle twistgrip cover.

•

Back off the adjuster screw for the throttle cable
and disengage the cable.

•

Remove guide of throttle cable.

•

Remove the lower section of the grip unit.

•

Release multi-function switch from grip unit.

•

Remove the handlebar weight.

•

[Heated grips] Release cable from right
handlebar.

e

 Attention:

[Heated grips] Make sure there is no tensile strain
on the cable of the heated grip.

•

[Heated grips] Turn throttle twistgrip all the way
forward and pull the grip slightly out.

•

[Without heated grips] Turn throttle twistgrip all
the way forward and remove.

•

Release throttle-cable relay from grip unit, pull
grip slightly out and turn it.

•

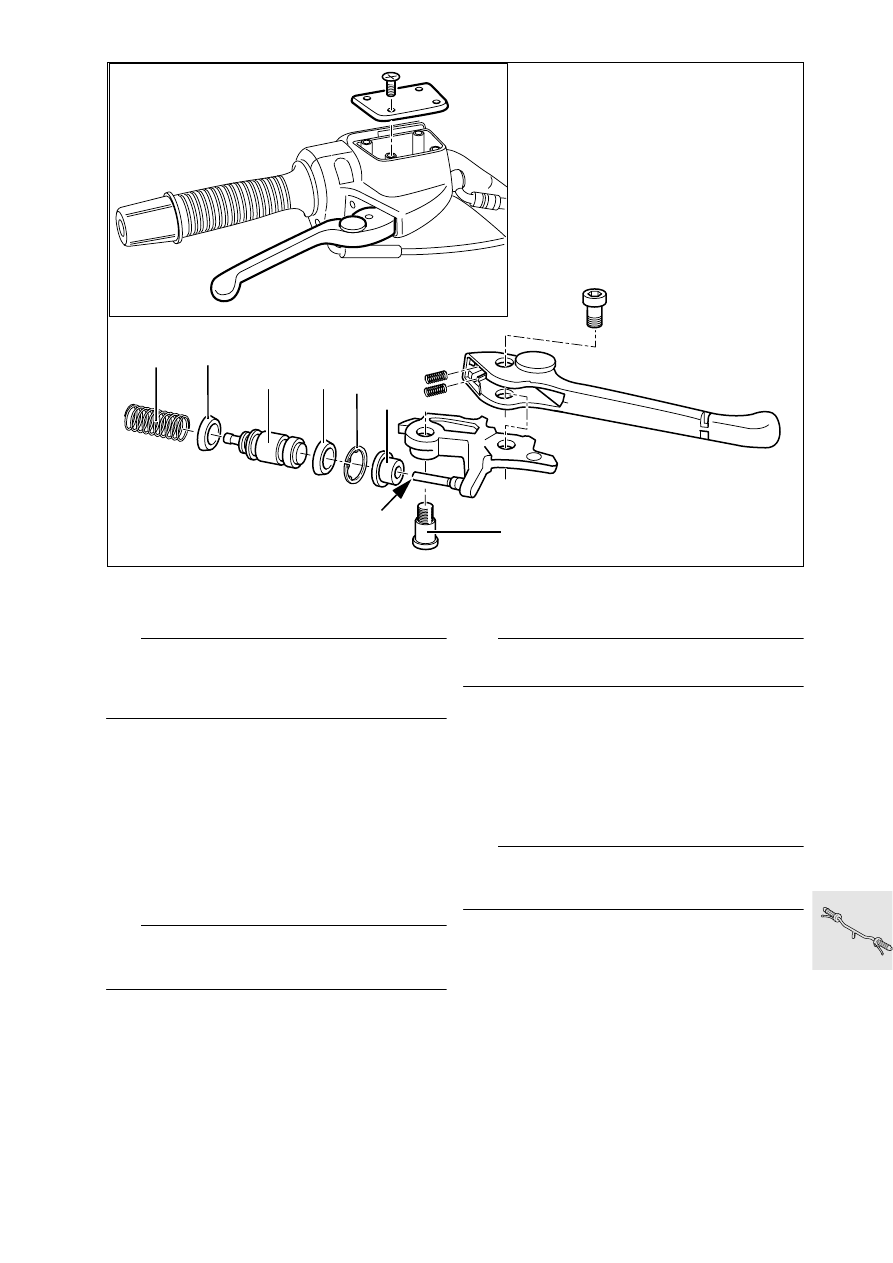

Remove pivot screw (1) for lever.

•

Remove rubber boot (2).

e

 Attention:

Note that brake piston (3) is spring-loaded.

•

Carefully press back brake piston (3) using an Al-
len key with T-bar handle, for example, and re-
move retaining ring (4).

•

Remove brake piston (3) with spring (5).

•

Installation is the reverse of the removal proce-
dure: pay particular attention to the following.

•

Prior to installation, coat the piston and the
boots (6) with brake fluid.

e

 Attention:

Sealing lips of the boots (6) toward the pressure
chamber.

R22320070

1

5

2

3

4

6

6

32.12

•

Prior to installation, carefully press back the
brake piston using an Allen key with T-bar han-
dle, for example.

•

Use cranked-tip snap-ring pliers to install the re-
taining ring, and check that the ring is seated
correctly.

•

Apply a light coat of Optimoly MP 3 to the pres-
sure pin (arrow) on the lever.

e

 Attention:

When installing the brake lever, make sure that the
metal tab on the brake-light switch is correctly posi-
tioned (otherwise switch will not work).

•

Integral ABS Fill and bleed front control circuit
(

a

34.20).

•

Adjust blow-by clearance at handlebar fitting for
brake.

•

Fully assemble the fitting.

X

Tightening torque:

Hand lever bearing screw............................. 11 Nm
(Tuflok Blue thread-locking compound; screw can
be released and tightened a number of times)

Adjusting blow-by clearance at handlebar fitting
for brake

•

Remove cover from throttle-cable relay.

•

Remove the lower section of the brake lever fit-
ting.

•

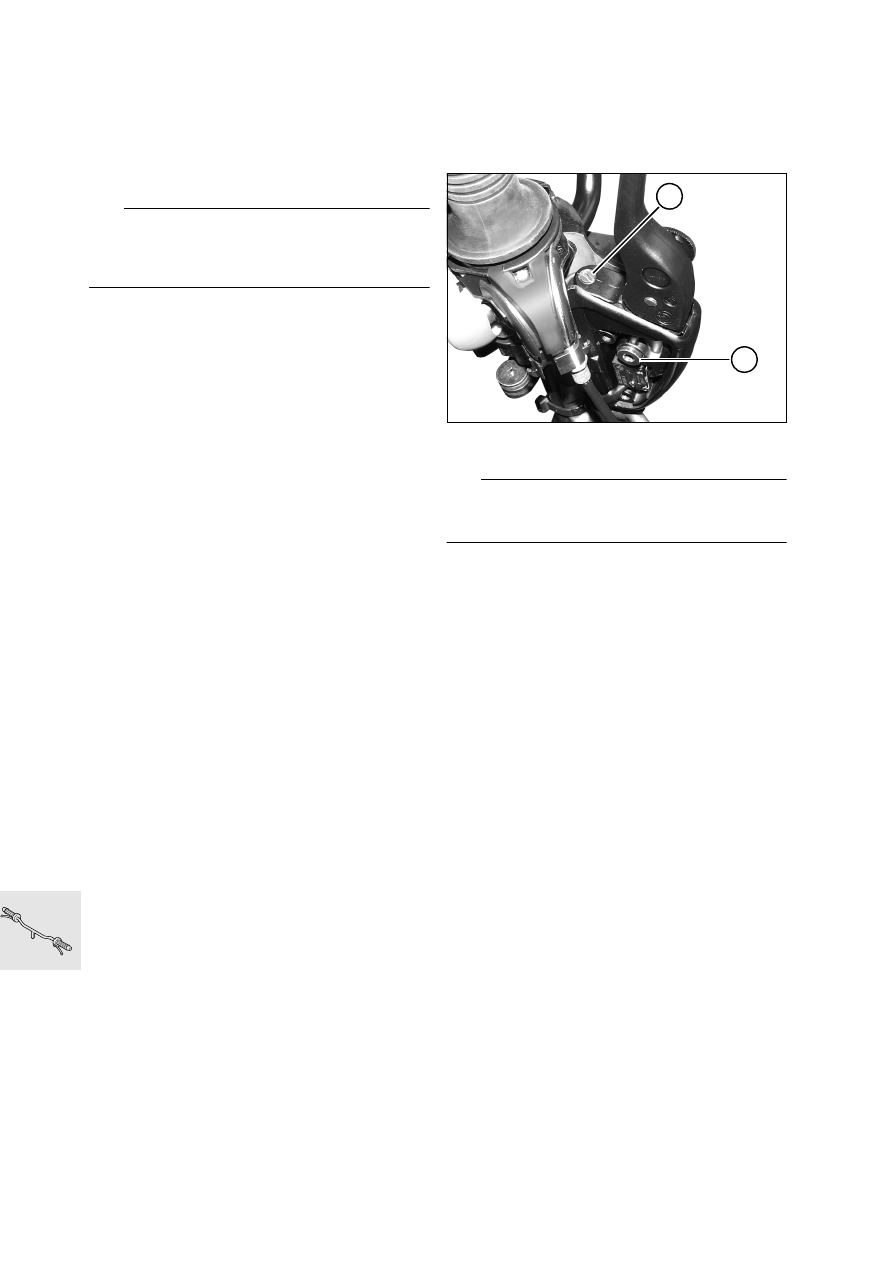

Back off adjusting screw (1).

L

 Note:

Thread is secured with Loctite, if necessary heat
slightly prior to facilitate removal.

•

Remove pivot screw (2) of lever and remove the
lever.

•

Clean and degrease the threads of the adjusting
screw.

•

Coat the threads of the adjusting screw with
Loctite 648 or Loctite 270 and screw it a few
turns into the lever.

•

Apply a light coat of Optimoly MP 3 to the pres-
sure pin of the adjusting screw.

•

Install the lever, making sure that the metal tab
on the microswitch is correctly positioned.

•

Tighten the adjusting screw until the lever has
zero play.

•

Tighten the adjusting screw another full turn.

•

Apply sealing lacquer to the adjusting screw.

•

Fully assemble the fitting.

X

Tightening torque:

Hand lever screw bearing (2)  ....................... 11 Nm
(Tuflok Blue thread-locking compound; screw can
be released and tightened a number of times)

R21340050

1

2

32.13

32 71 165

Removing and installing

handlebars

32 71 150

Removing and installing left

handlebar

d

 Warning:

Do not disassemble the handlebars.

•

Remove the lower section of the left grip unit.

•

[Radio] Remove handlebar remote-control unit.

•

Release left multi-function switch from grip unit.

•

[Heated grips] Remove left heated grip.

•

Release fastener securing left handlebar to fork
bridge.

e

 Attention:

To prevent air from entering the hydraulic system,
keep the grip unit horizontal.

•

Slacken left handlebar grip unit.

•

Remove left handlebar, remove grip unit and
keep it horizontal.

•

Installation is the reverse of the removal proce-
dure.

•

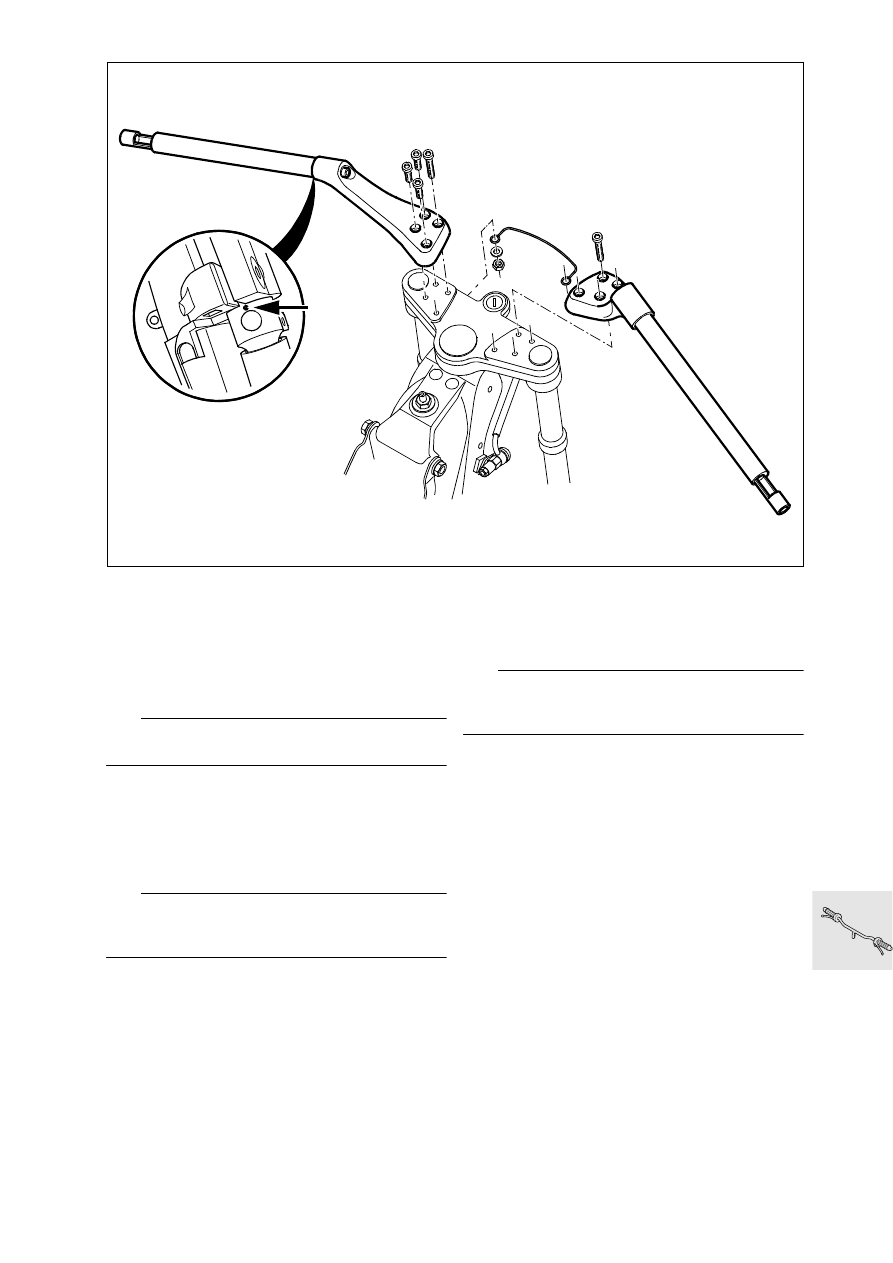

Align the grip unit with the punch mark (arrow) on
the handlebar.

e

 Attention:

Make sure that all lines and cables are correctly
routed.

X

Tightening torque:

Handlebar weight to handlebar .................... 21 Nm
Handlebars to fork bridge............................. 21 Nm

R22320040

32.14

32 71 160

Removing and installing right

handlebar

d

 Warning:

Do not disassemble the handlebars.

•

Remove the lower section of the right grip unit.

•

Release right multi-function switch from grip
unit.

•

[Heated grips] Remove right heated grip.

•

Release fastener securing right handlebar to fork
bridge.

e

 Attention:

To prevent air from entering the hydraulic system,
keep the grip unit horizontal.

•

Slacken right handlebar grip unit.

•

Remove right handlebar, remove grip unit and
keep it horizontal.

•

Installation is the reverse of the removal proce-
dure.

•

Align the grip unit with the punch mark (arrow) on
the handlebar.

e

 Attention:

Make sure that all lines and cables are correctly
routed.

X

Tightening torque:

Handlebar weight to handlebar..................... 21 Nm
Handlebars to fork bridge............................. 21 Nm
