- Installation is reverse of removal.

Roof end strip, removing and installing (Golf
wagon/Jetta wagon)



Removing



- Open tailgate.

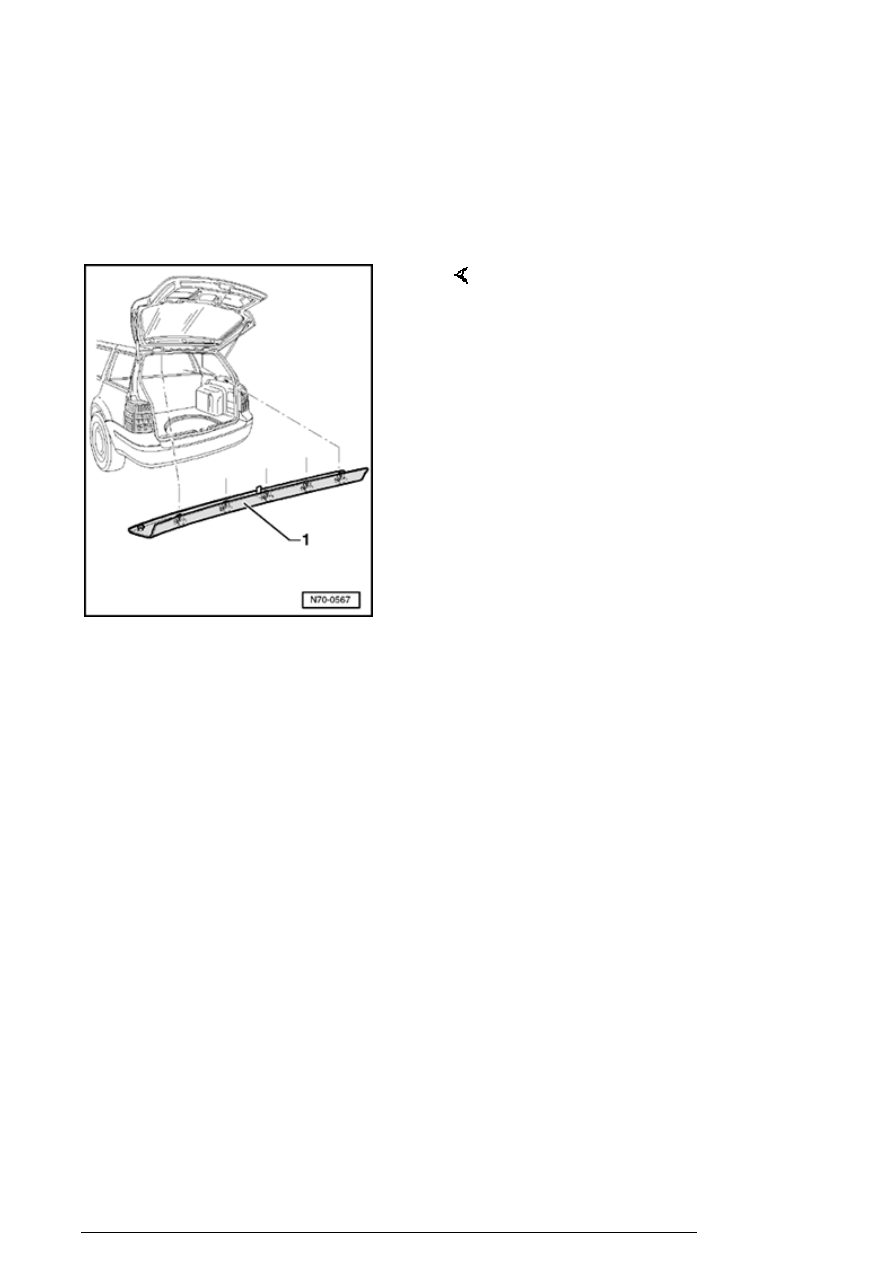

- Remove roof end strip - 1 - downward out of mounts in
roof crossmember.

Installing



- Installation is reverse of removal.

Molded headliner, removing and installing
(Vehicles with sunroof)



Note:

n

Slight changes may have to be made to removal and
installation procedures, depending upon equipment
installed in vehicle.



n

Before disconnecting battery, see note in Owners
Manual concerning radio.



n

Obtain radio anti-ft code before disconnecting battery.



Removing



Headliner

13/2/2005

Caution!



Disconnect battery ground (GND) strap before working
on electrical system.

- Switch ignition off.

- Remove upper A pillar trim:

n

with side curtain protection



70-3, Upper A-pillar

trim, removing and installing (Vehicles with side
curtain protection )

 .



n

without side curtain protection



70-3, Upper A-pillar

trim, removing and installing (Vehicles without side
curtain protection )

 .



- Remove upper B-pillar trim:

n

with Side curtain protection   04.01

70-3, Upper B-

pillar trim, removing and installing (Vehicles with side
curtain protection 04.01)

 .



n

with Side curtain protection 05.01

70-3, Upper B-

pillar trim, removing and installing (Vehicles with side
curtain protection 05.01 )

 .



n

without Side curtain protection



70-3, Upper B-pillar

trim, removing and installing (Vehicles without side
curtain protection )

 .



- Remove roof end strip:

n

Golf



70-6, Roof end strip, removing and installing

(Golf)

 .



n

Golf wagon/Jetta wagon



70-6, Roof end strip,

removing and installing (Golf wagon/Jetta wagon)

 .



- Loosen upper C-pillar trim:

n

Golf with Side curtain protection



70-3, Upper C-

pillar trim, removing and installing (Golf with side
curtain protection)

 .



n

Golf without Side curtain protection



70-3, Upper C-

pillar trim, removing and installing (Golf without side
curtain protection)

 .



n

Jetta with Side curtain protection



70-3, Upper C-

pillar trim, removing and installing (Jetta with side

Headliner

13/2/2005





curtain protection )

 .



n

Jetta without Side curtain protection



70-3, Upper C-

pillar trim, removing and installing (Jetta without side
curtain protection)

 .



n

Golf wagon/Jetta wagon with Side curtain protection

 04.01



70-3, Upper C-pillar trim, removing and

installing (Golf wagon/Jetta wagon with side curtain
protection 04.01)

 .



n

Golf wagon/Jetta wagon with Side curtain protection
05.01



70-3, Upper C-pillar trim, removing and

installing (Golf wagon/Jetta wagon with side curtain
protection 05.01 )

 .



n

Golf wagon/Jetta wagon without Side curtain
protection



70-3, Upper C-pillar trim, removing and

installing (Golf wagon/Jetta wagon without side
curtain protection)

 .



- Remove upper D-pillar trim (Golf wagon/Jetta Wagon):



70-3, Upper D-pillar trim, removing and installing (Golf
wagon/Jetta wagon)

 .

- Remove sun visor



68-2, Sun visor, removing and

installing

 .

- Remove center sun visor



68-2, Center sun visor,

removing and installing

 .

- Remove grab handle (roof)



68-2, Grab handle,

removing and installing (Roof)

 .

- Remove door inner seals at top.

- Unclip trim - 1 - in direction of - arrow - and remove.

Headliner

13/2/2005

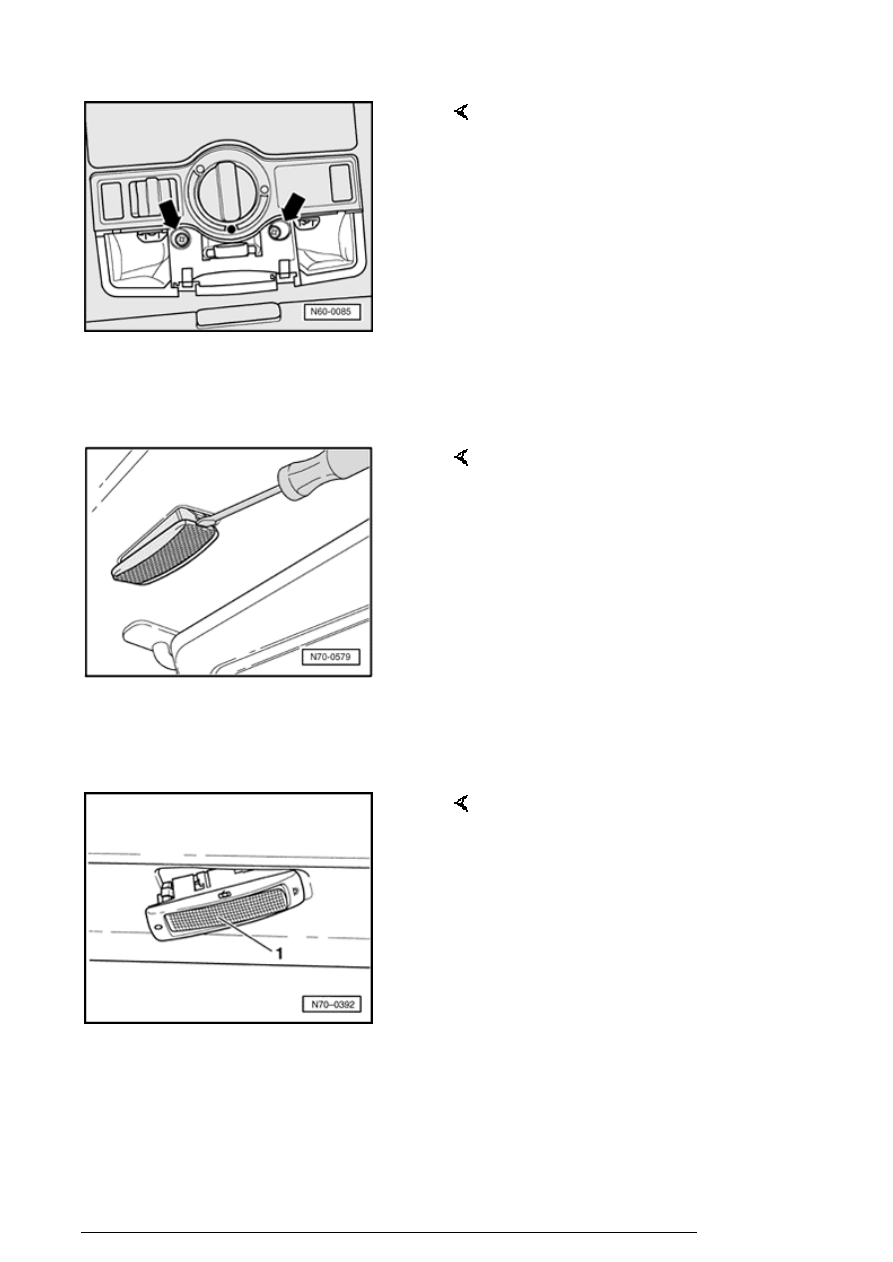

- Remove bolts - arrows - and remove automatic rotary
switch.

- Unclip and disconnect harness connector.

- Remove light for make-up mirror using a small
screwdriver.

- Disconnect harness connector.

- Remove interior light - 1 - and disconnect harness
connector.

Only Golf wagon/Jetta wagon

- Unclip caps - 1 - and - 6 - .
