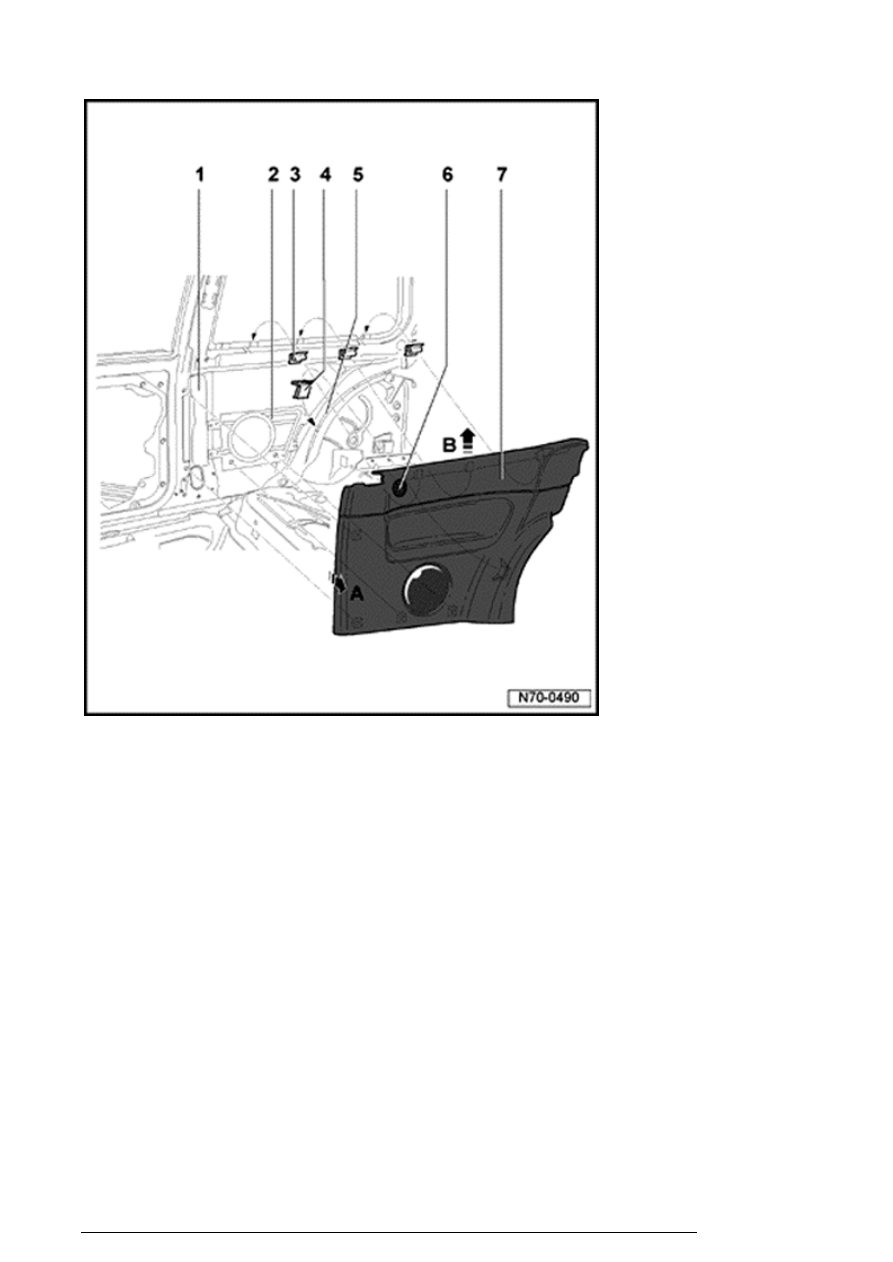

Pillar and side trim

13/2/2005

70 - 4



Luggage compartment trim

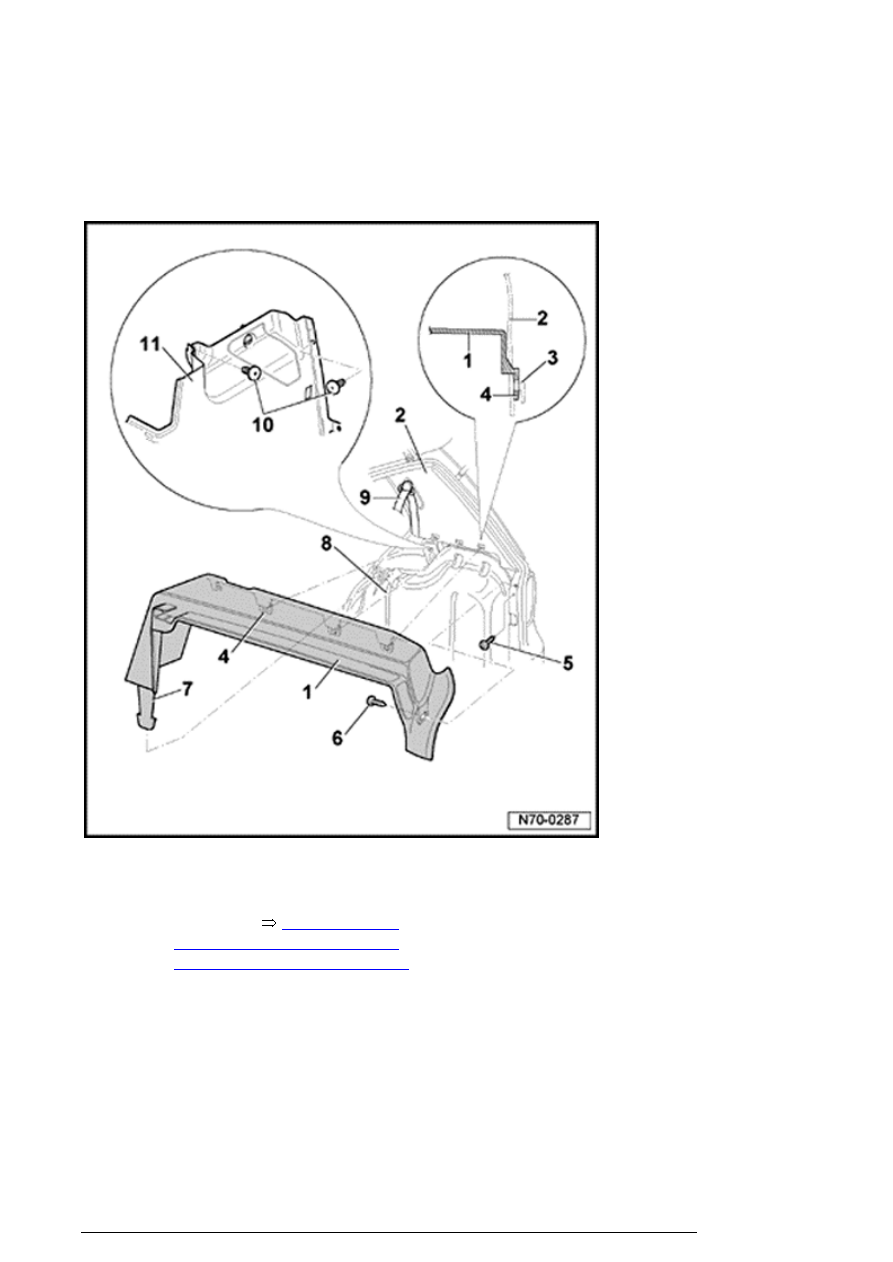

Luggage compartment cover support ,
assembly overview (Golf)



1. Luggage compartment cover

support

¡

Removing



70-4, Luggage

compartment cover support,
removing and installing (Golf)





2. C-pillar trim

3. Locking lug on C-pillar

4. Hook on support

5. Bolt

6. Bolt

Luggage compartment trim

13/2/2005

7. Locking pin

8. Wheelhousing

9. Seatbelt

10. Clips

¡

Qty. 2



11. Luggage compartment trim

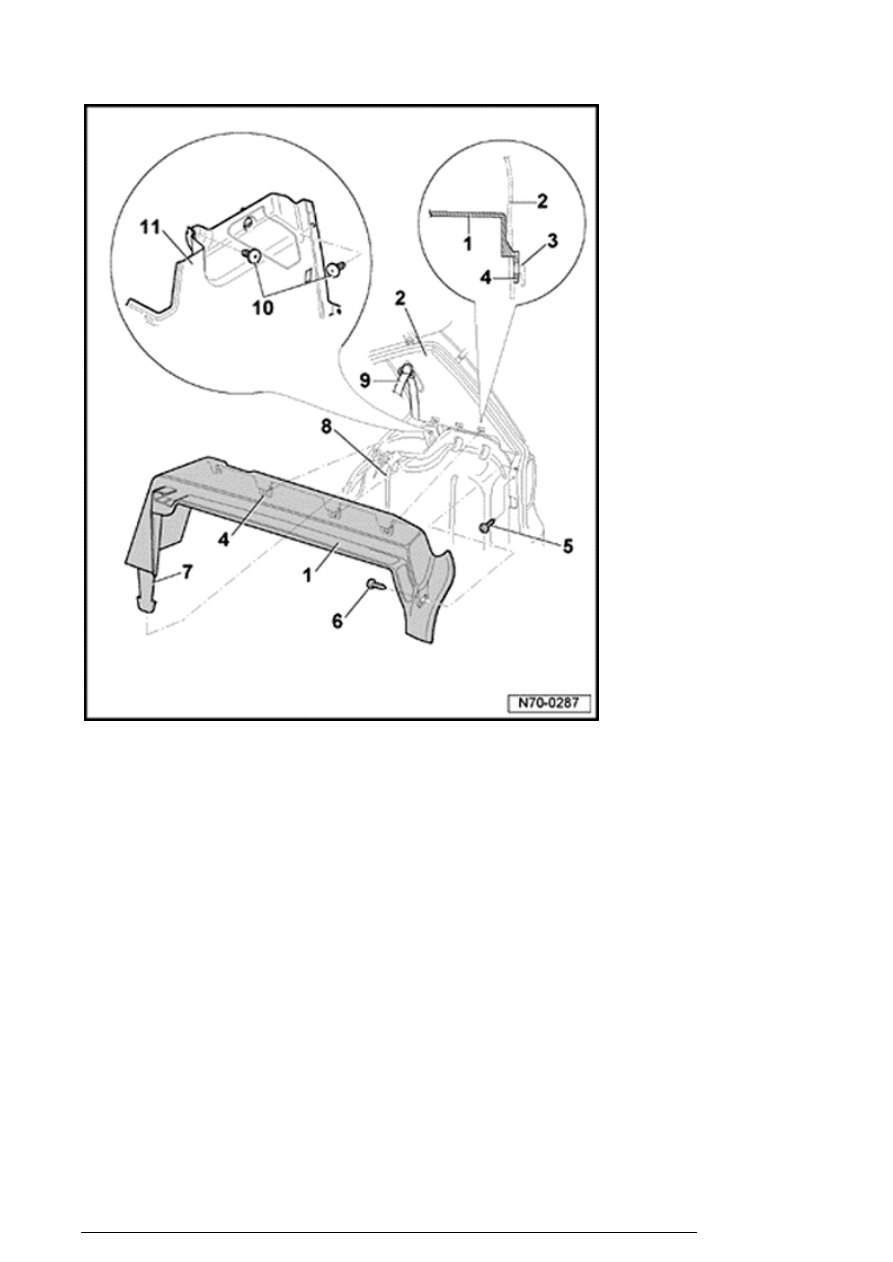

Luggage compartment cover support,
removing and installing (Golf)



Note:

n

Removal and installation is described for right side of
vehicle. same instructions apply for removal and
installation for left-hand side.



Removing



- Remove luggage compartment cover.

- Remove bolt - 5 - .

- Unclip lock carrier trim from C-pillar and
remove clips - 10 - .

- Remove bolt - 6 - .

- Remove support - 1 - upward, starting at
rear.

Luggage compartment trim

13/2/2005



- Remove support - 1 - with locking pin - 7
- from out of wheel housing - 8 - .

Installing



Installation is reverse of removal.

Luggage compartment cover retraction
spool, removing and installing



Removing



- Remove luggage compartment cover  - 1
- .

- Remove three locking lugs - arrows -
using a small screwdriver.

- Remove retraction spool - 2 - out of
mount using a small screwdriver.
