Volkswagen Golf / Golf GTI / Jetta. Manual - part 705

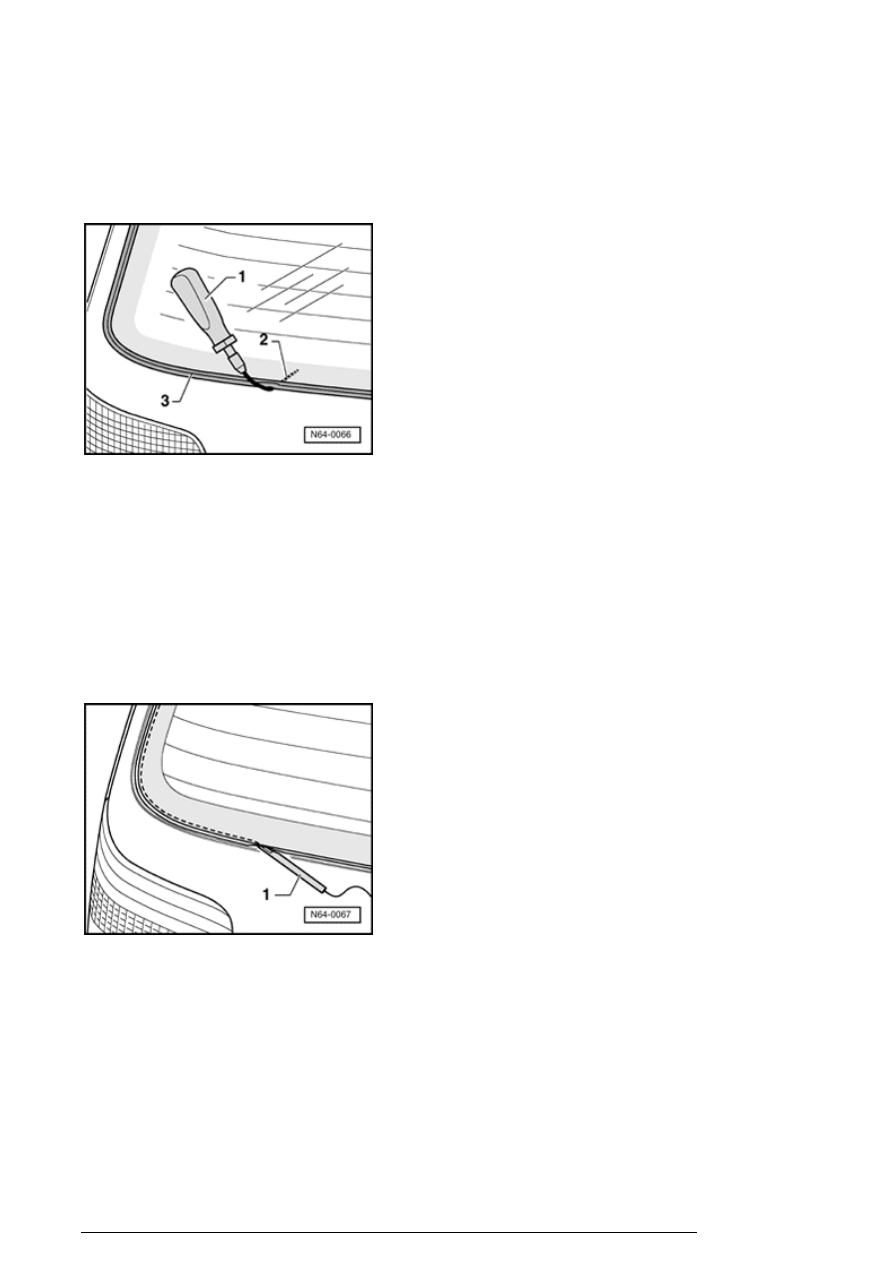

- Insert guide needle - 2 - under sealing lip - 3 - using
handle - 1 - and knock through adhesive bead (use side
area on lower edge of rear window).



Hold guide needle as close to glass as possible.

- Remove handle and thread cutting cord through eye of
needle.

- Using pliers and wearing gloves, pull one end of cutting
cord into vehicle interior.

- Using small tube - 1 - , guide in cutting cord between lip
and window flange.

- For very narrow gap dimensions, guide cutting cord from
outside and press under lip using plastic wedge.

Flush-bonded windows

13/2/2005

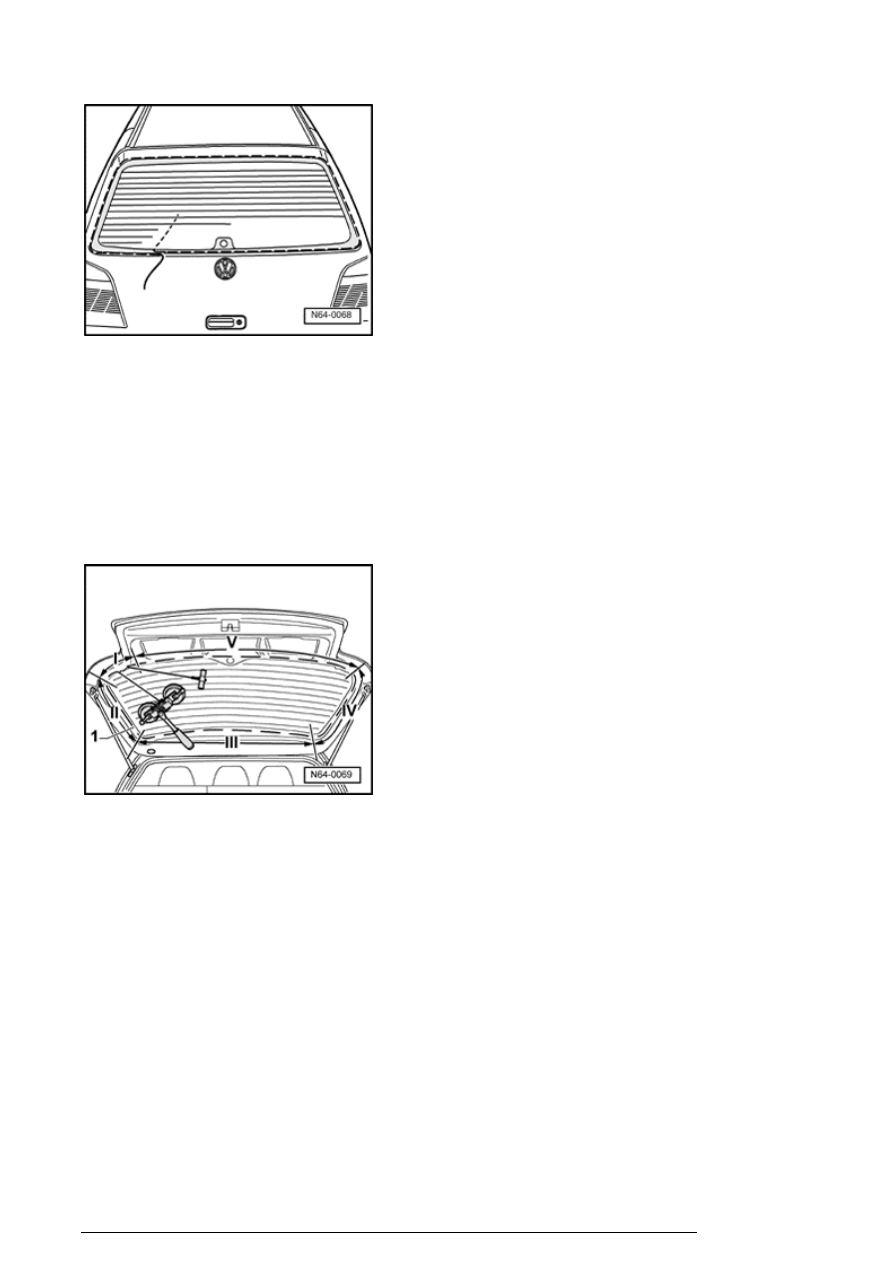

- Place cutting cord around window as shown.

Note:

Press in cutting cord far enough to prevent damage to
lip/spacer.


- Pull through outer cord end inward and secure to Pulling
grip V.A.G1351/1 to counterhold.

- Apply cloth-reinforced adhesive tape to window flange on
inside - 1 - .

- Secure cord end to spooling tool.

- Set Spooling tool V.A.G1654 into "Position I" .

- Move spooling tool according to position required and cut
windshield free.

- While cutting free, press cutting cord against window
using plastic wedge in order to have clearance from
window flange.

Damaged rear window, removing



- Protect body and interior from glass splinters.

Flush-bonded windows

13/2/2005



- Remove glass pieces up to adhesive material.

- Remove connectors for glass defroster and antenna.

- Bond flange - 2 - all around with fabric reinforced
adhesive tape.

- Remove adhesive material (with glass residue) from

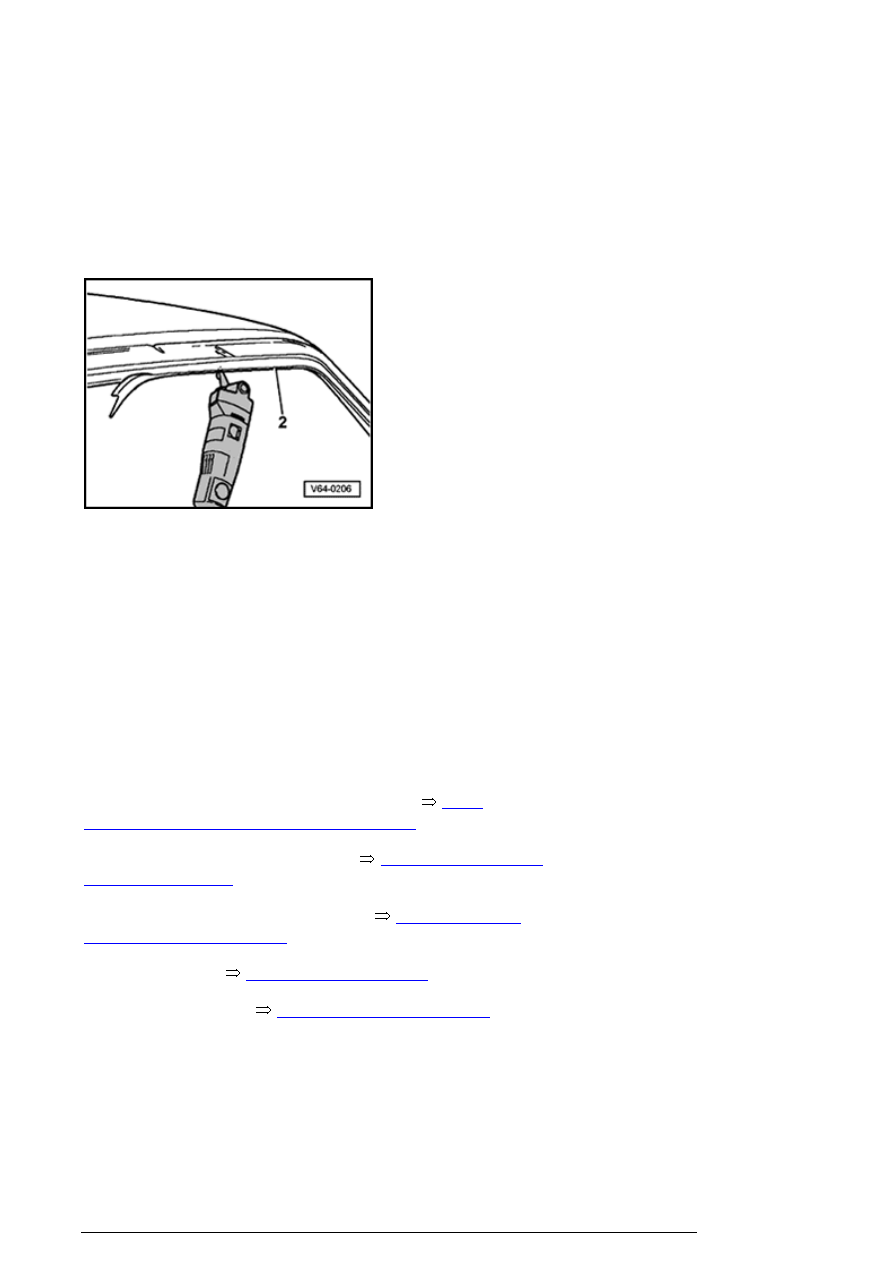

window opening using electric cutter and  Knife
V.A.G1561/10 (with stopper roll).

Warning!



Always wear protective goggles and leather gloves.

Rear window, installing



Preparing undamaged window for glazing



64-1,

Preparing undamaged window for glazing

 .

Preparing new window for glazing



64-1, Preparing new

window for glazing

 .

Preparing window flange for glazing



64-1, Preparing

window flange for glazing

 .

Installation notes



64-1, Installation notes

 .

Minimum curing time



64-1, Minimum curing time

 .

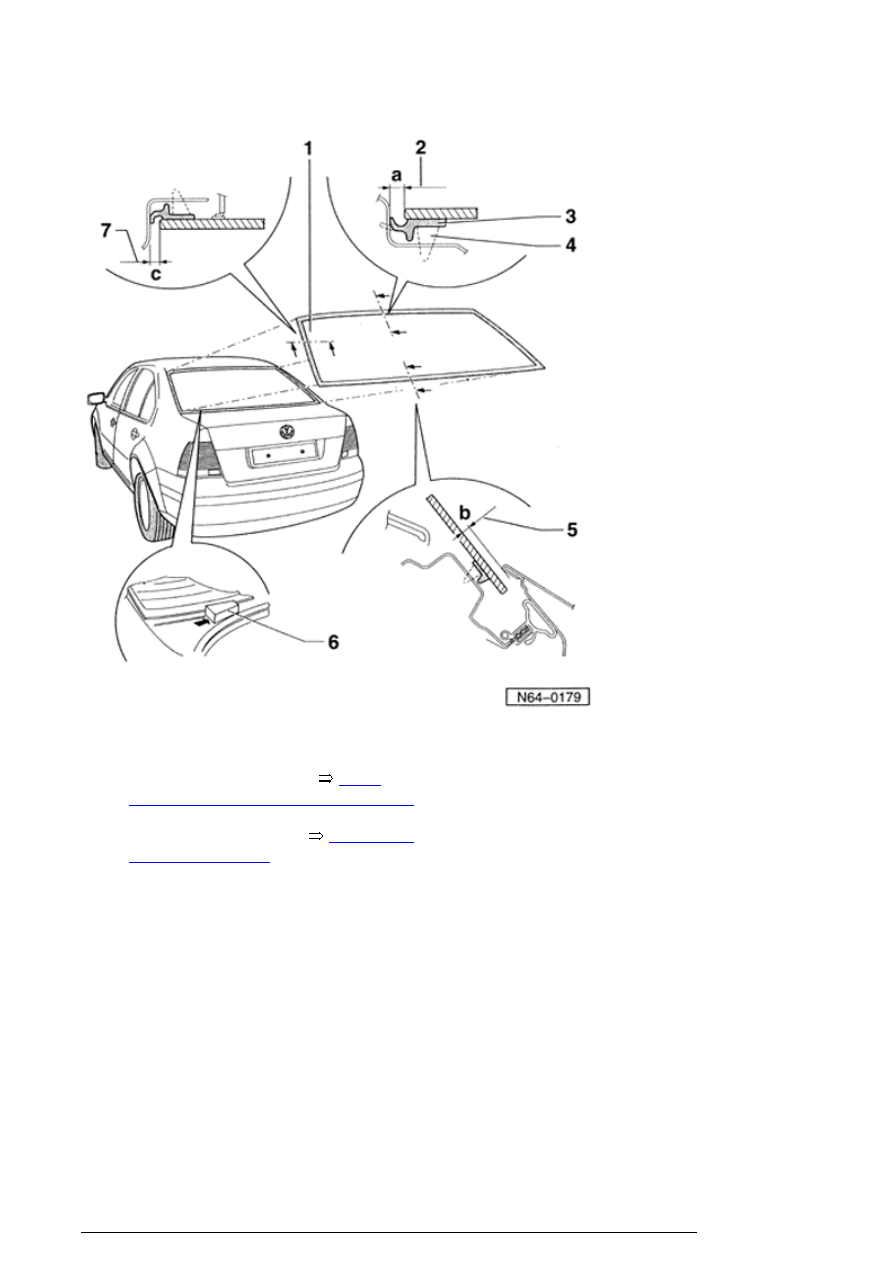

Rear window (Jetta), assembly overview



Flush-bonded windows

13/2/2005



1. Rear window

¡

Removing rear window



64-1,

Undamaged rear window, removing



¡

Installing rear window



64-1, Rear

window, installing





2. Gap dimension - a - = 3 mm

3. Sealing lip (component part of

pre-coating)

4. PUR adhesive sealant

¡

Bead cross section:

Width = 7 mm

Height = 11 mm (including pre-coating,
residual material on window glass and
window flange)

Flush-bonded windows

13/2/2005
