- If equipped, remove covers - 7 - for headlight cleaning
system from bumper cover and unclip.

- Remove bolts - 5 - securing bumper cover - 1 - to
wheelhousing - 4 - .

- Unclip left air guide grille - 9 - and right air guide grille - 11
- .

- Remove bolts connecting bumper cover - 1 - to sound
insulation on left and front underbody.

- Remove bolts - 2 - .

- Remove bumper cover - 1 - from guide pieces - 3 - (left
and right).

- Disconnect connector from temperature sensor.

- Remove spoiler - 8 - if necessary

Installing

Installation is performed in reverse order of removal.

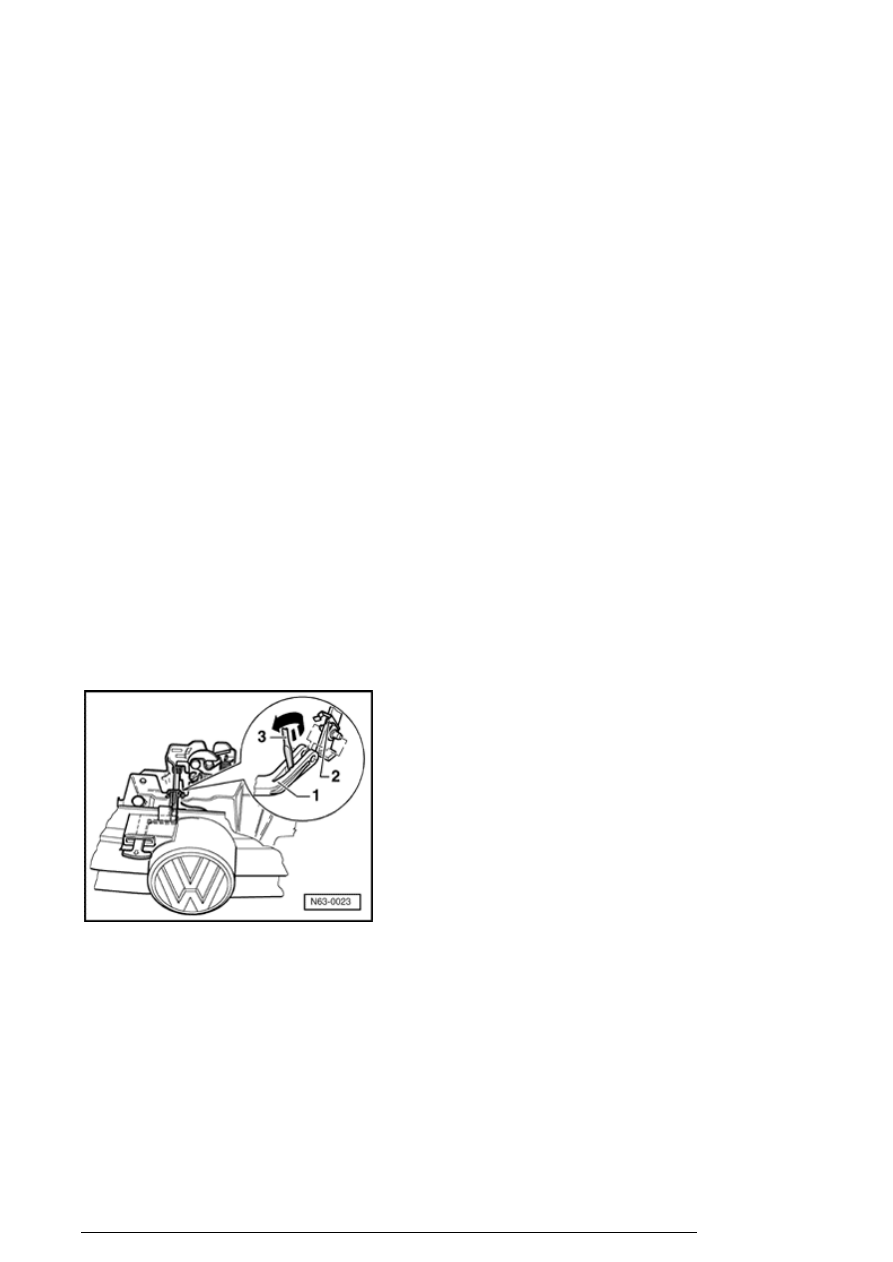

Release lever, removing

- Remove locking clamp - 2 - upward.

- Spread release lever - 1 - using a screwdriver - 3 - and
remove from lid lock.

- Remove release lever - 1 - with guide out of lock carrier.

Bumper carrier, assembly overview

Front bumper

13/2/2005

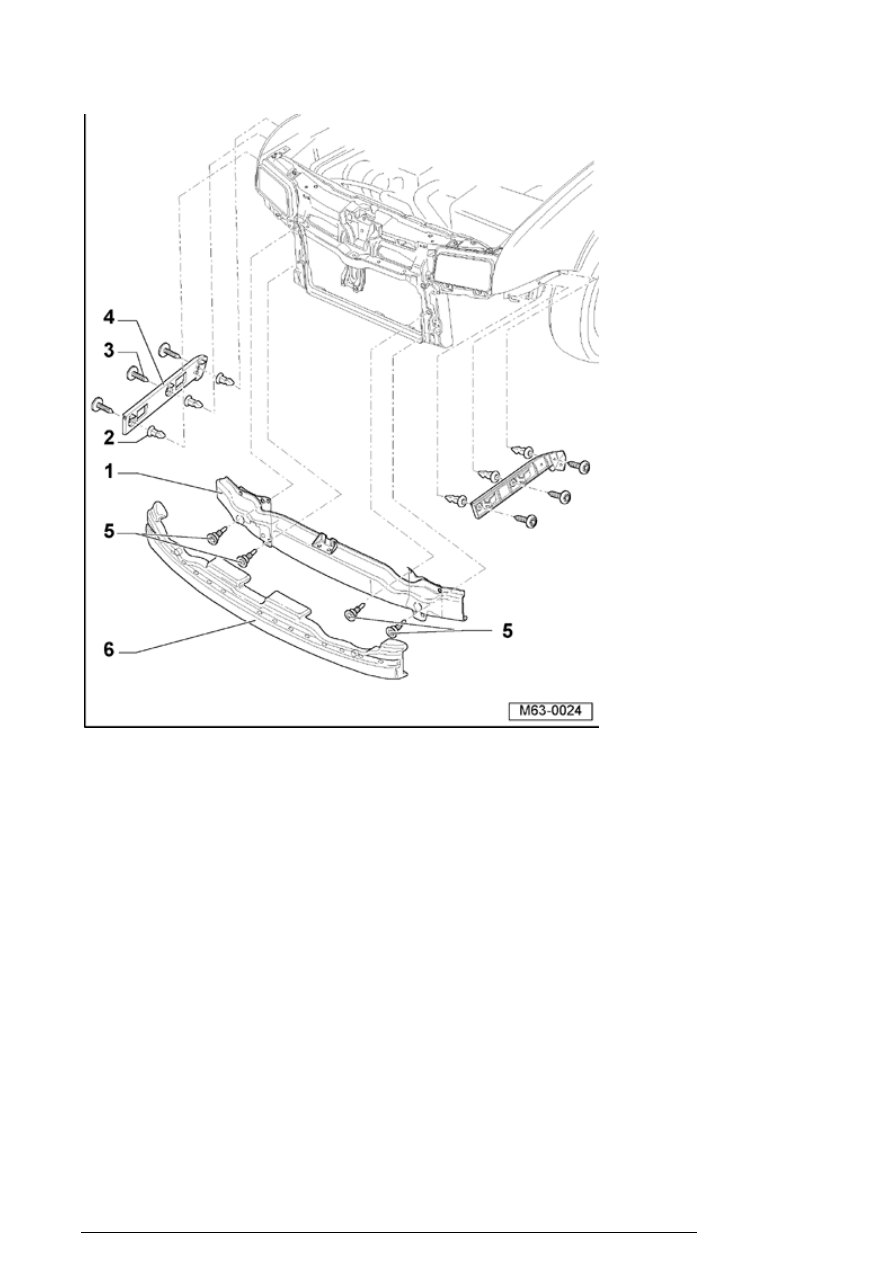

1. Bumper carrier

2. Expanding nut

Qty. 6

3. Screw

Qty. 6

1.5 Nm

4. Guide piece

To remove and install, pull out/slide
in bumper cover parallel out of
guide pieces (left and right sides)

5. Bolt

Front bumper

13/2/2005

Qty. 4

8.5 Nm

6. Damping

Connected to bumper carrier - 1 -

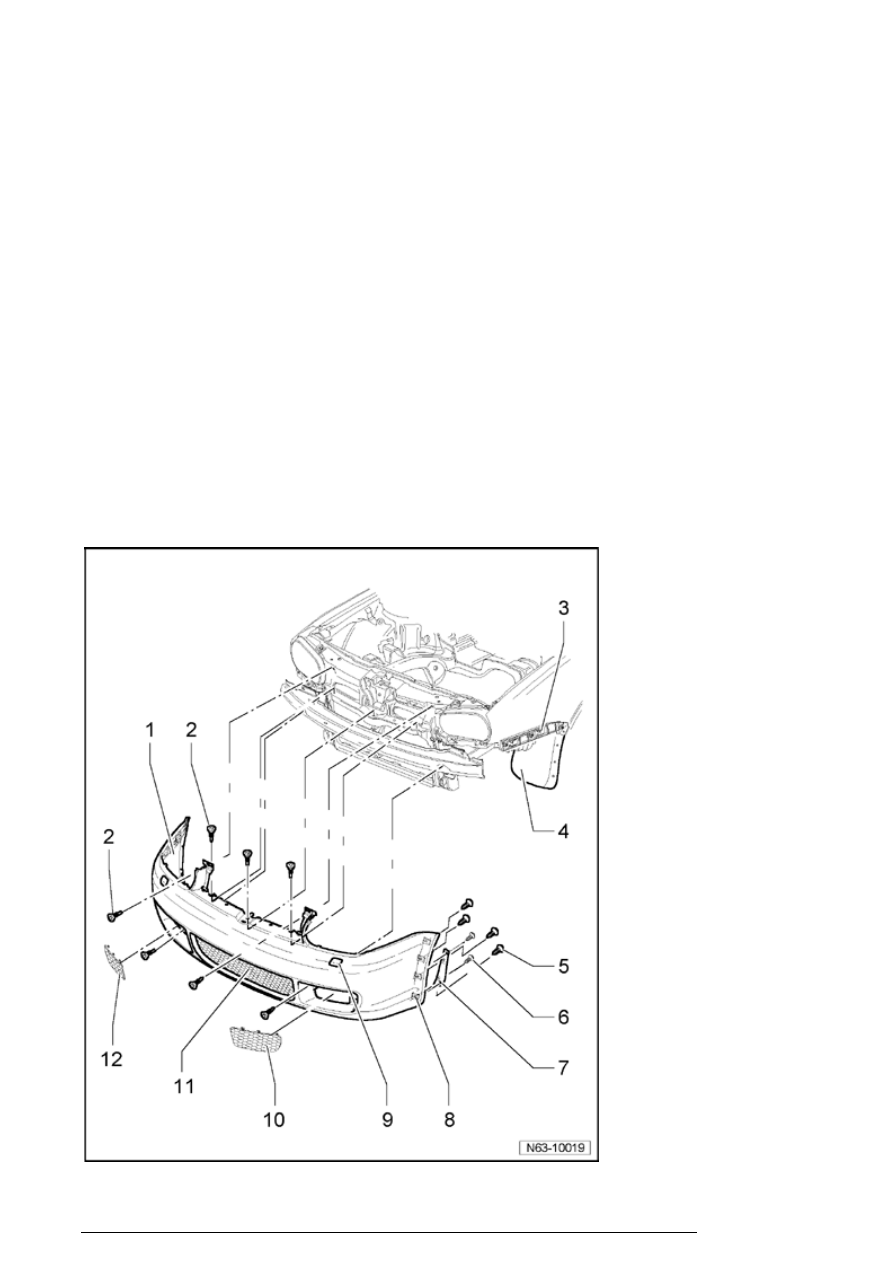

Bumper cover (Golf R32), assembly
overview

Note :
Slight changes may have to be made to
removal and installation procedures,
depending upon equipment installed in
vehicle.

Front bumper

13/2/2005

1. Bumper cover

Material - PP/EPDM

Removing

63-1, Bumper cover

(Golf R32), removing and installing

2. Bolt

Qty. 7

6.6 Nm

3. Guide piece

To remove and install, pull out/slide
in bumper cover parallel out of
guide pieces (left and right sides).

4. Wheelhousing liner

5. Bolt

Qty. 8

1.5 Nm

6. Bolt

Qty. 2

1.5 Nm

7. Adapter part

With 2 speed nuts

Remove wheelhousing liner before
removing adapter part

Removing and installing

63-1,

Adapter part (Golf R32), removing
and installing

8. Speed nut

Qty. 8

9. Cover for headlight cleaning

Front bumper

13/2/2005
