Volkswagen Golf / Golf GTI / Jetta. Manual - part 649

53-86





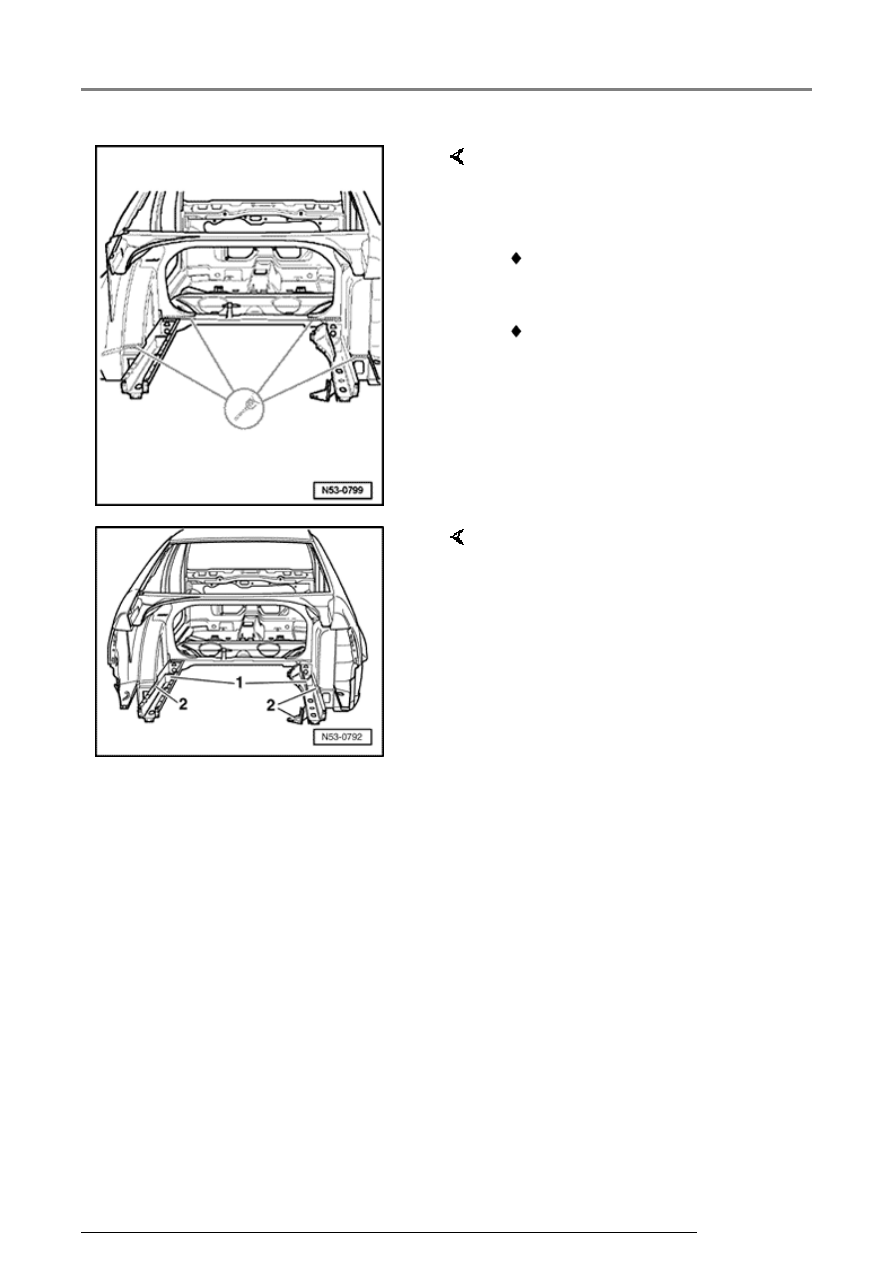

Note:

-  Make additional holes for SG-plug

weld 7 mm dia. (0.27 in.)

 SG-spot weld should be placed

15mm (0.59 in.) apart to maintain
factory produced integrity.

 SG-spot welds should be made

from the outside for optical
reasons.



CAUTION!



New part must be welded with in
30 min., otherwise adhesion
properties are affected.



-  Bond deadener -1- with Butyl

bead all around and press in long
member.

-  Apply adhesive -2-.

53 80 55 50 Spare wheel well, replacing (Jetta)

13/2/2005

53-87



   Welding in

place

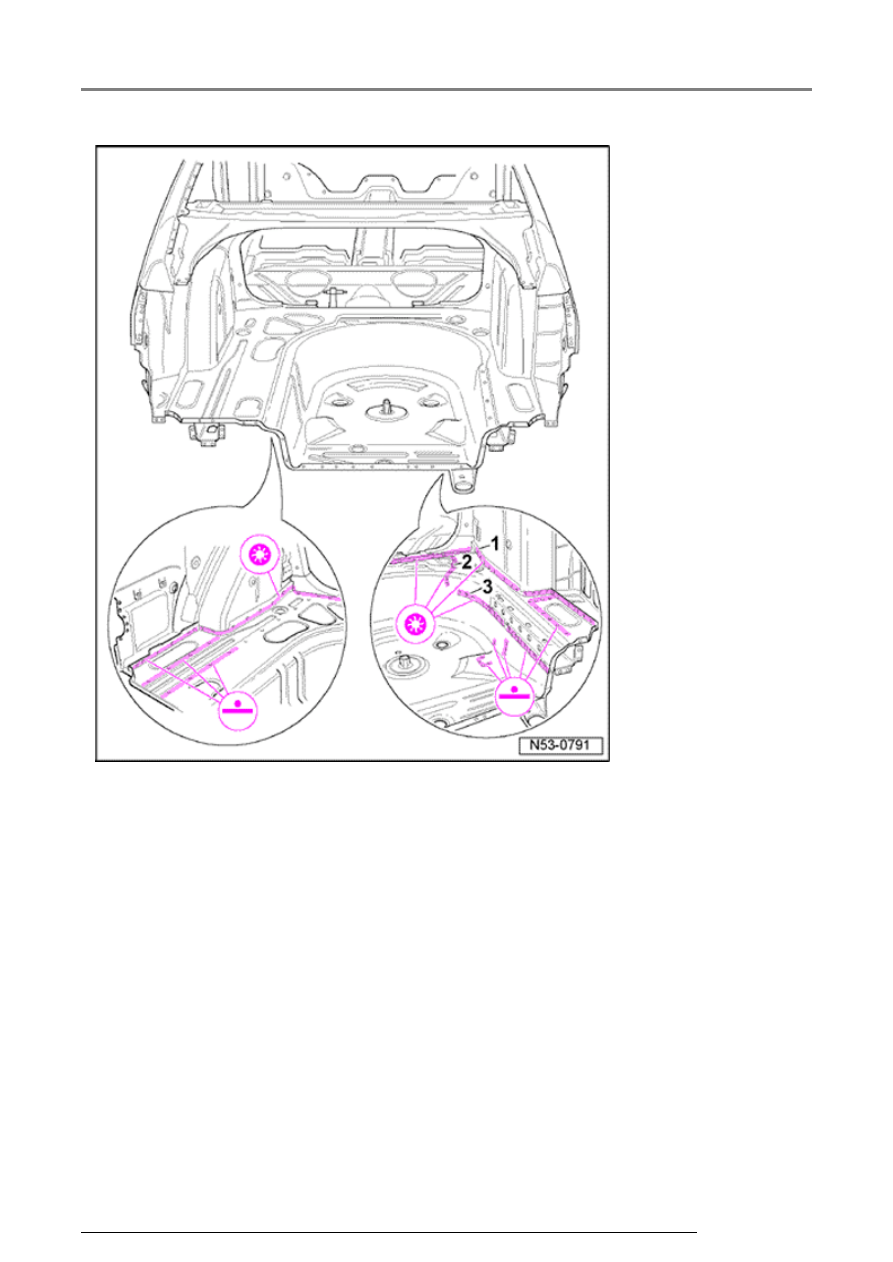

Note:

Begin SG-spot
welding -1-, -2-
, and -3- from
the outside

-  Install and

secure new
part with
vehicle on
wheels or
fixture.

-  Check

gaps/mating
lines.

-  Weld

quarter
panel, RP-
spot weld
seam.

53 80 55 50 Spare wheel well, replacing (Jetta)

13/2/2005
