Volkswagen Golf / Golf GTI / Jetta. Manual - part 548

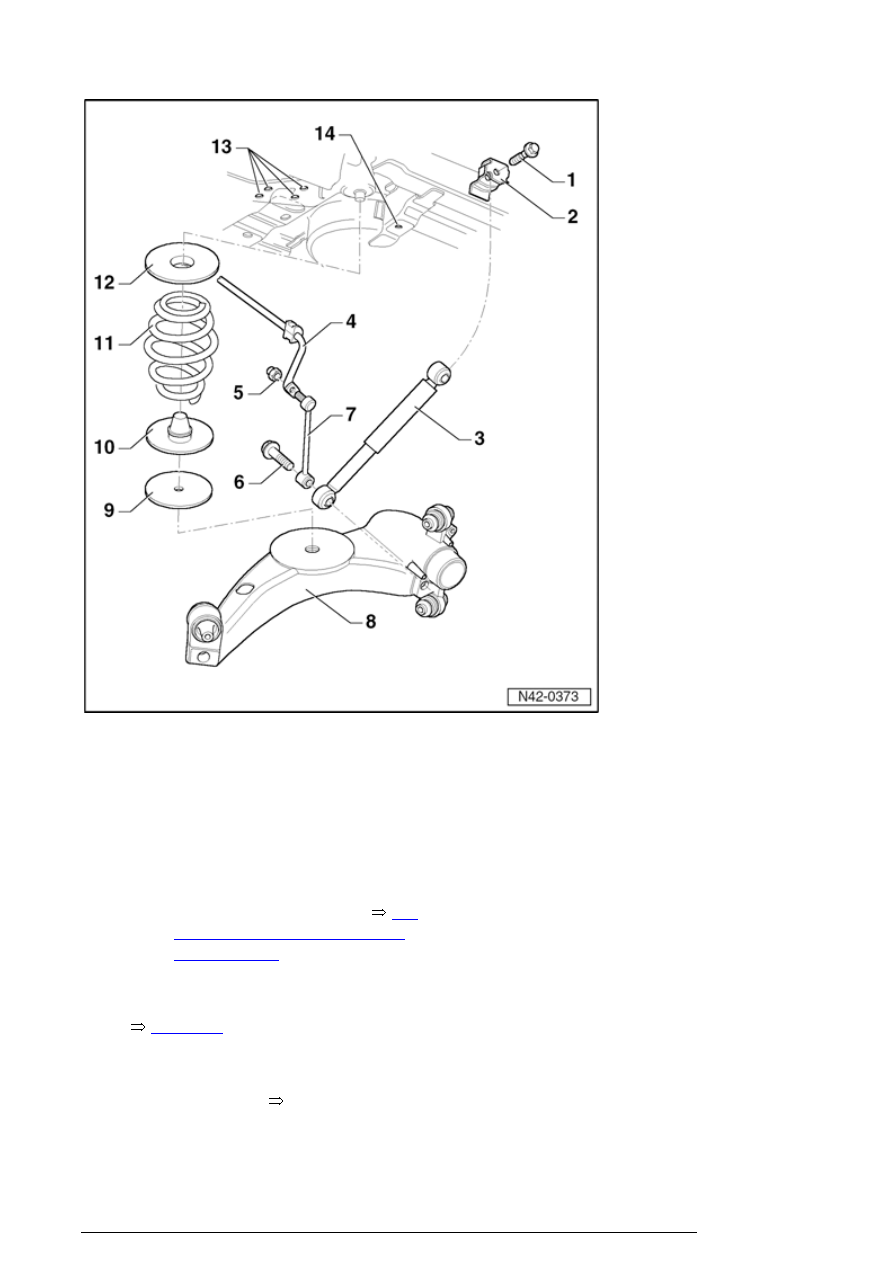

1. Hex bolt, 60 Nm

Always replace

2. Shock absorber mounting bracket

3. Gas filled shock absorber

Removing and installing

42-

4, Shock absorber, removing
and installing

Can be replaced individually

Application

See Parts

Catalog

Function check

Item - 1 -

Rear axle, servicing (all wheel drive vehicles)

4. Stabilizer bar

5. Self-locking nut, 25 Nm

Always replace

6. Hex bolt, 110 Nm

M 14 x 1.5 x 90

Always replace

7. Connecting Link

8. Trailing arm

9. Spacer

Installed to vehicles with
heavy-duty suspension only

10. Bump stop

10 Nm

11. Coil spring

Examine for paint damage and
repair paint damage if
necessary

Observe color coding

Different versions

Application

See Parts

Catalog

Removing and installing

42-

4, Spring, removing and
installing

12. Washer

13. Threads in longitudinal member

If weld nut threads are damaged,
threads can be repaired using
Heli-Coil thread inserts.

Servicing thread in longitudinal

Rear axle, servicing (all wheel drive vehicles)

14. Thread in cross-member

member

40-3, Threads in

longitudinal member, servicing

If welded nut threads in the
cross member are damaged,
threads can be repaired using
Heli-Coil thread inserts.

Servicing thread in cross
member

40-3, Threads in

longitudinal member, servicing

Rear axle, servicing (all wheel drive vehicles)

42 - 5

Trailing arm and transverse links (all-
wheel drive vehicles), assembly
overview

Note:

Never load the wheel bearing when
the drive axle is removed.

When the vehicle is on its wheels
and to be moved, an outer joint from
a drive axle must be installed.

Welding and straightening
operations are not permitted on
load-bearing or wheel-controlling
components.

Always replace self-locking nuts.

Always replaced corroded
bolts/nuts.

Trailing arm and transverse links (all-wheel drive vehicles), assembly overview
