The coil spring end must lie against stop  - arrow - .

- Set spring with spring compressor V.A.G1752/1 .

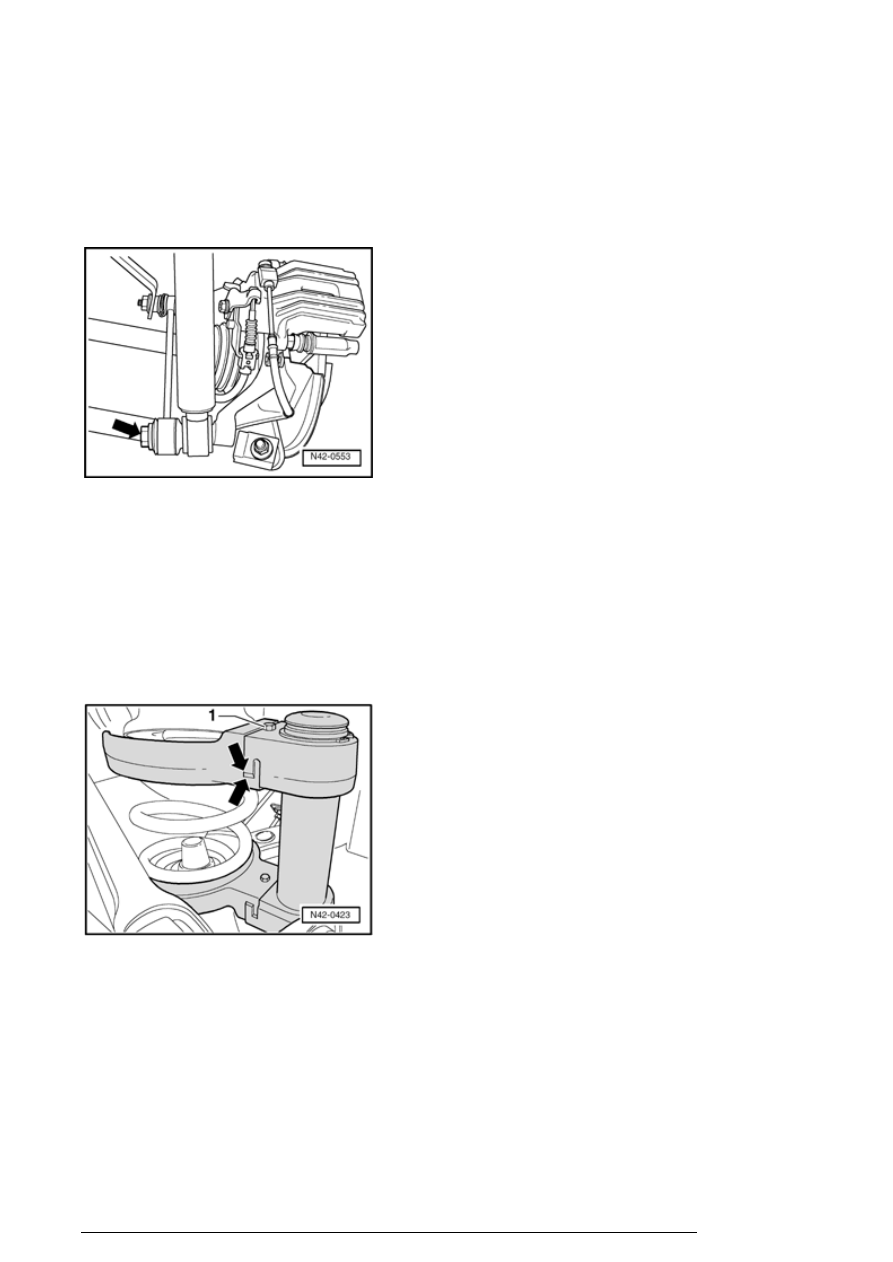

- Screw lower bolt - arrow - to shock absorbers.

- Release spring tension by turning spindle clockwise.

- After releasing spring tension, check installation position

- Do not use an impact wrench or similar!

If you turn spindle too far, the spring holders block
themselves!

- Remove nut - 1 - off and remove screw with spring holder.

- Take spring compressor off spring.

Shock absorber, removing and installing

Special tools, testers and auxiliary items required

Rear axle, servicing (all wheel drive vehicles)





n

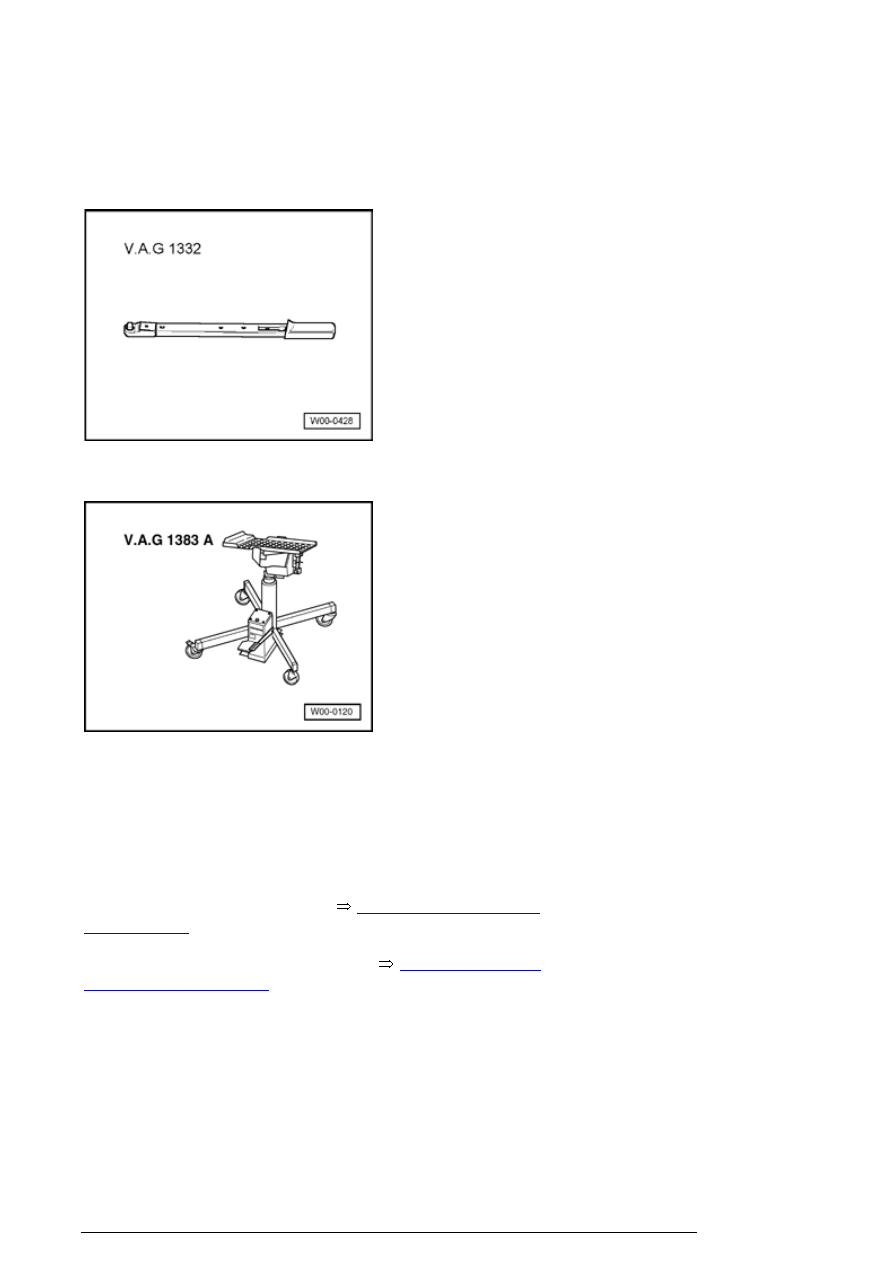

Torque wrench V.A.G1332



n

Engine/transmission jack V.A.G 1383 A with universal
transmission mount V.A.G1359/2



Removing



- First remove spring

Spring, removing and installing



42-4, Spring, removing

and installing

 .

Removing and installing spring R32,



42-4, Spring R32,

removing and installing



- Remove wheel.

- Unclip wire for wheel speed sensor from retainer.

Rear axle, servicing (all wheel drive vehicles)







- Partially loosen wheel housing liner.

- Support rear axle with engine/transmission jack
V.A.G1383A .

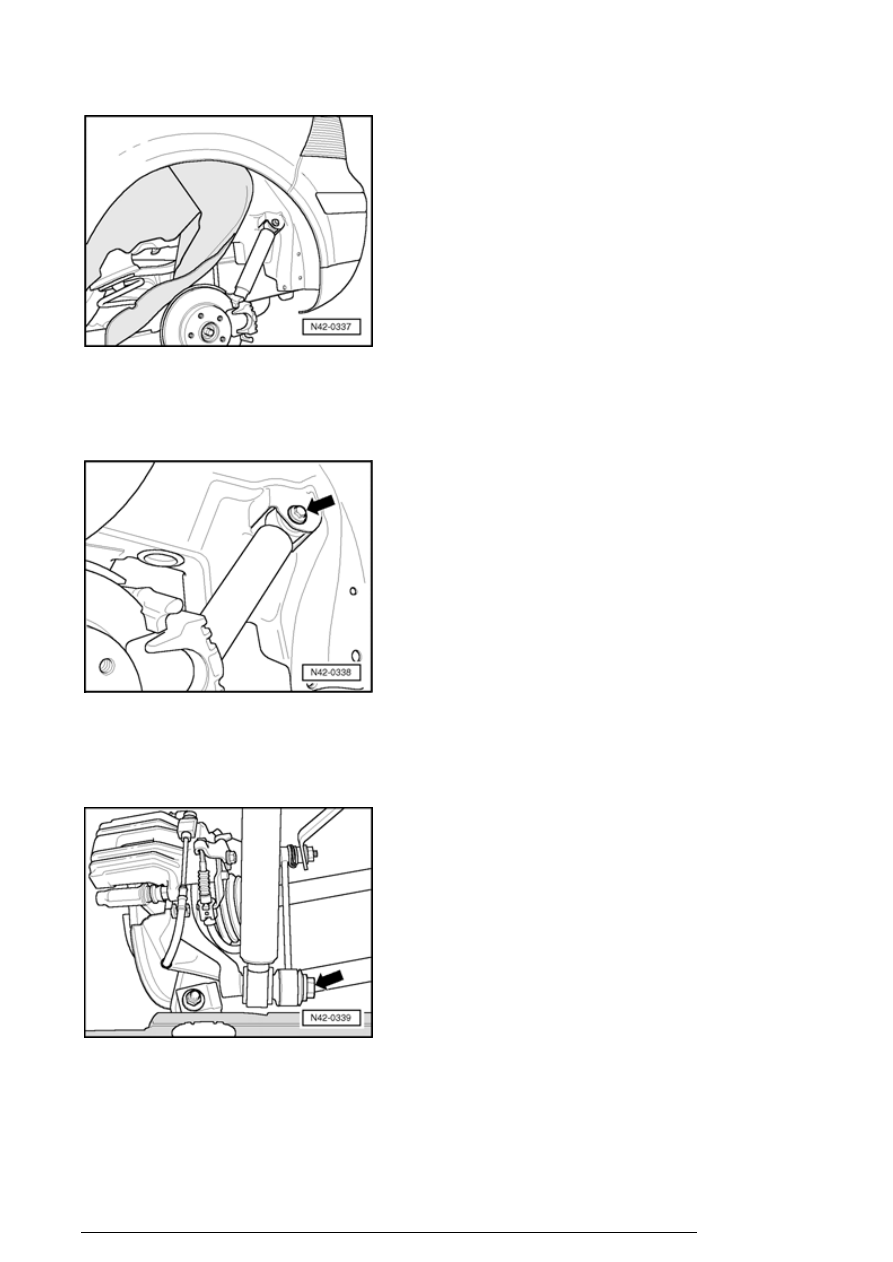

- Remove shock absorber upper bolt - arrow - .

- Lower trailing arm slowly using engine/transmission jack
V.A.G1383A .

- Remove lower bolt - arrow - from shock absorbers.

- Remove absorber out of vehicle.

Installing



Rear axle, servicing (all wheel drive vehicles)

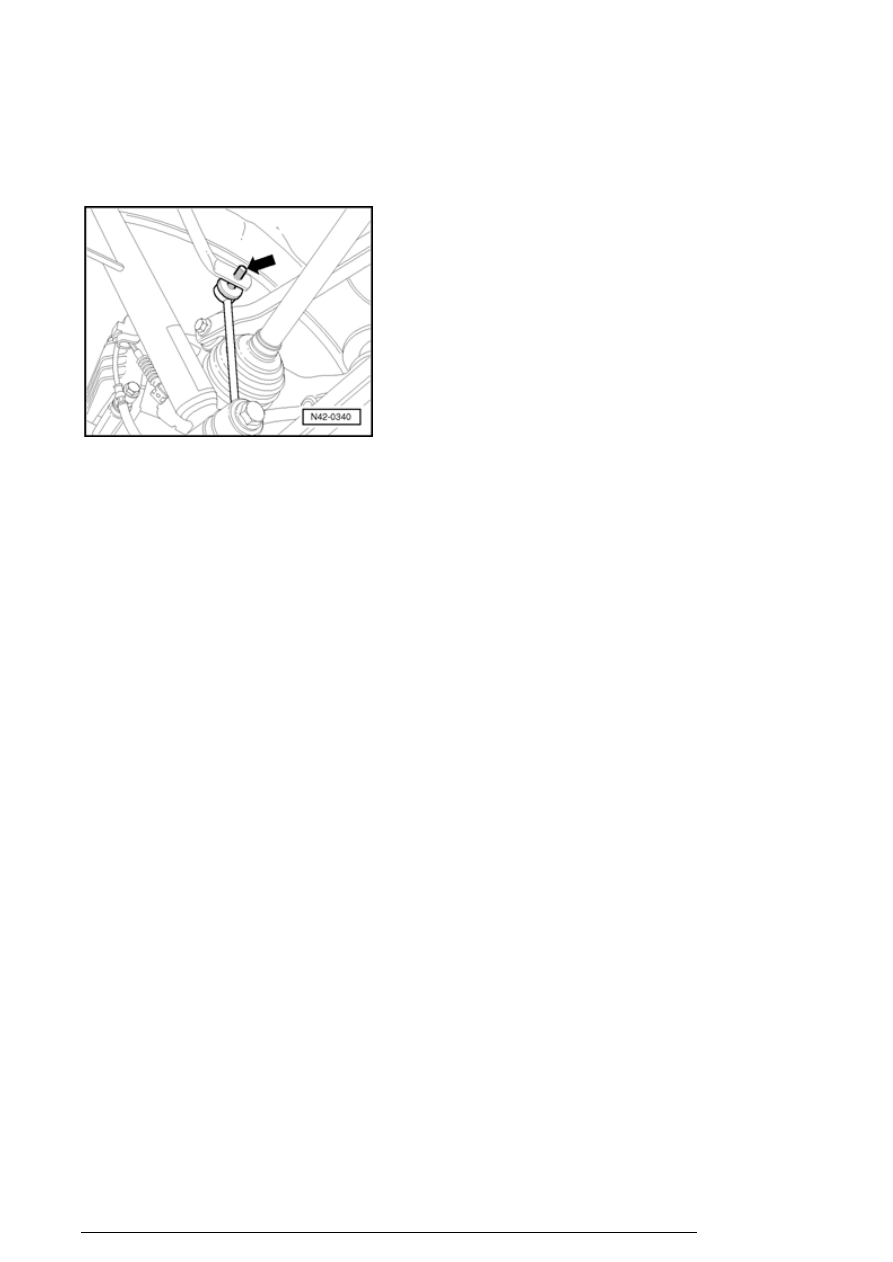

- Disconnect coupling rod from stabilizer bar - arrow - if
necessary.

This eases installation of the shock absorber lower
bolt.

Further installation in reverse order

Fastener/location

Tightening torques

Shock absorber to body
Use new bolts!

60 Nm

Shock absorber to trailing arm

110 Nm

Spring and shock absorbers on vehicles
with all-wheel drive, assembly overview
