Greasing bonded rubber bushing
- Grease bonded rubber bushing kidney shaped cavity with
assembly paste G 052 150 A2 before installing rear axle.
If rear axle is not "lubricated" when installed, it will be
noisy when driving.

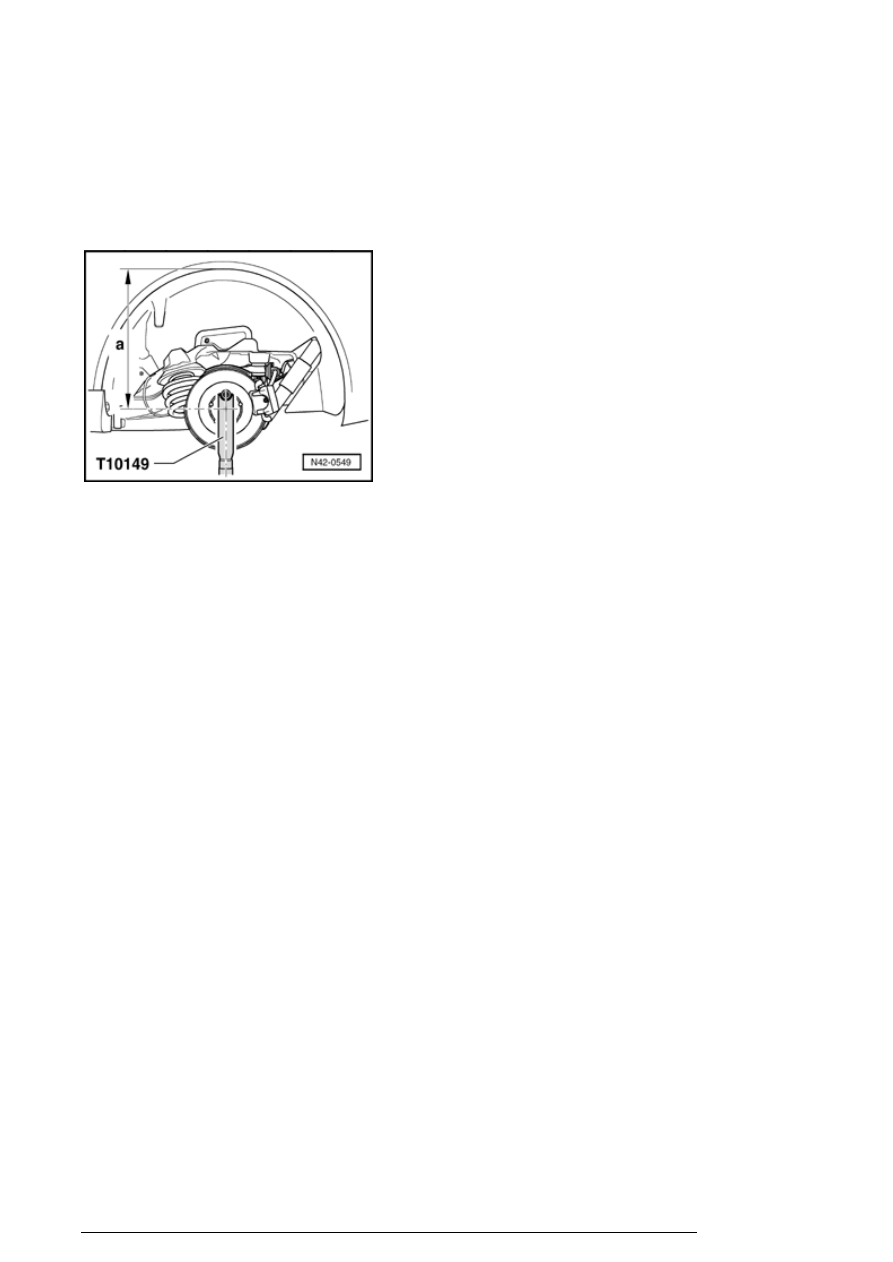

Tightening bearing bracket is only possible, when the
measured value - a - from middle of wheel hub to lower
edge bordering wheel housing is reached.
Otherwise the bonded rubber bushing will be distorted,
resulting in reduced service life.
- Turn wheel hub until one of the holes for wheel bolts is at
12 o'clock position.
- Install wheel hub support T10149 with a wheel bolt.
- Raise wheel bearing housing using the
engine/transmission jack until dimension - a - is reached.
Caution!
n
Do not raise or lower vehicle while
engine/transmission jack is under vehicle.
n
Do not leave engine and transmission lift under
the vehicle longer than necessary.
- Tighten bolts from bearing bracket to rear axle with
tightening torque.
Installation is continued in reverse sequence
After installing check position of steering wheel during a test
drive.
If steering wheel is not in straight ahead position the front
axle alignment must be checked!

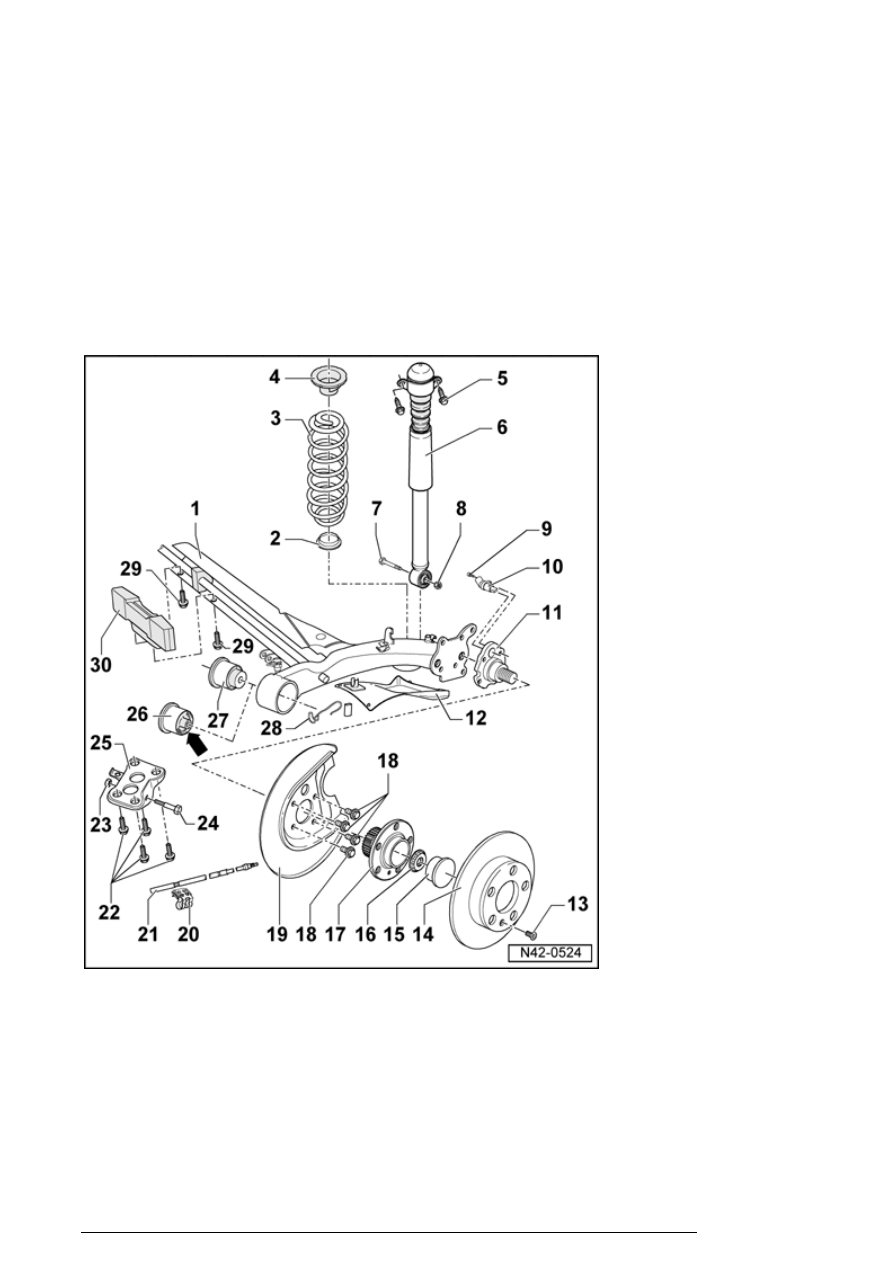

Rear axle, servicing
