34-34





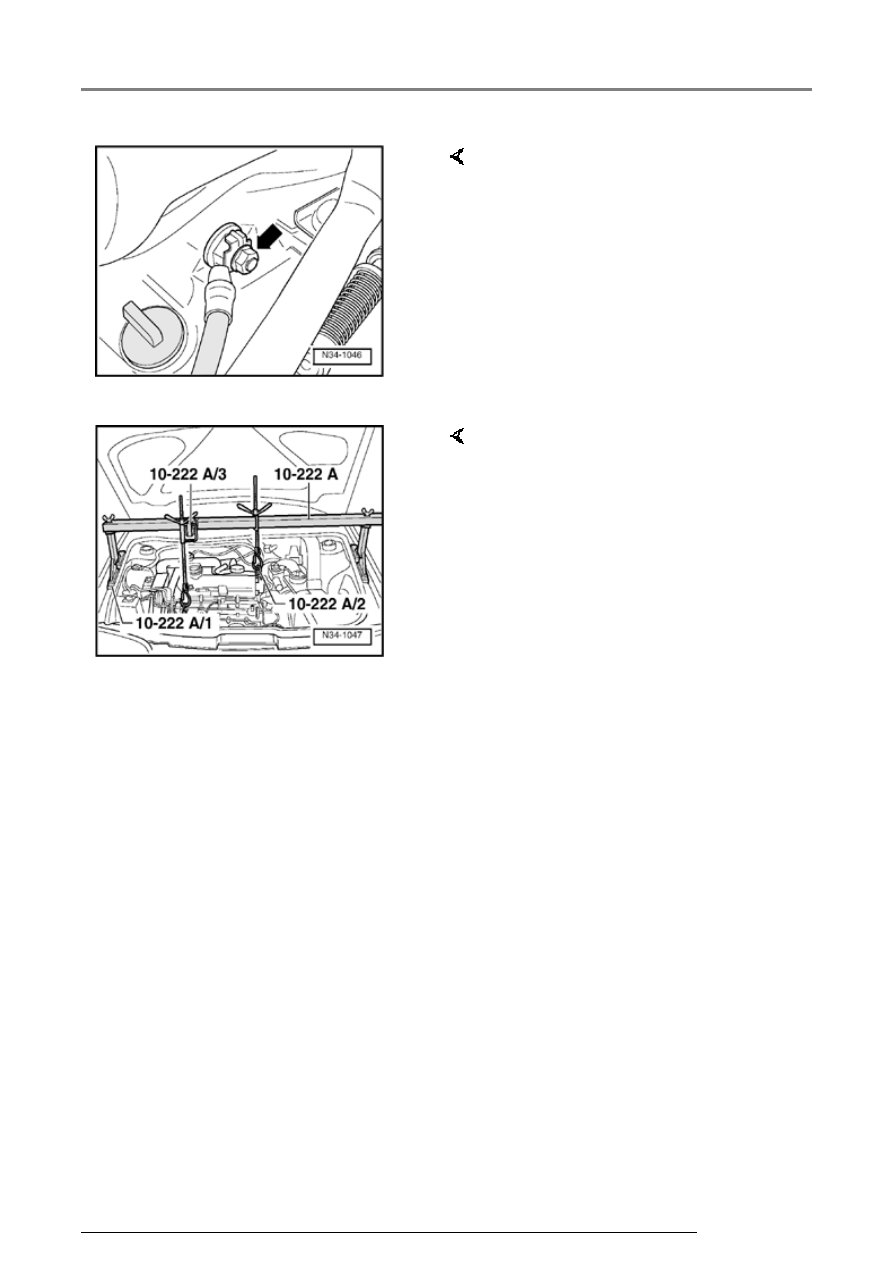

Vehicles with 4-Cyl. engines

-  Remove ground strap at

engine/transmission upper
securing bolt.

-  Remove engine/transmission

upper securing bolts.

-  Remove hoses and cable

connections in area of engine
mounting eye for support 10-
222A.



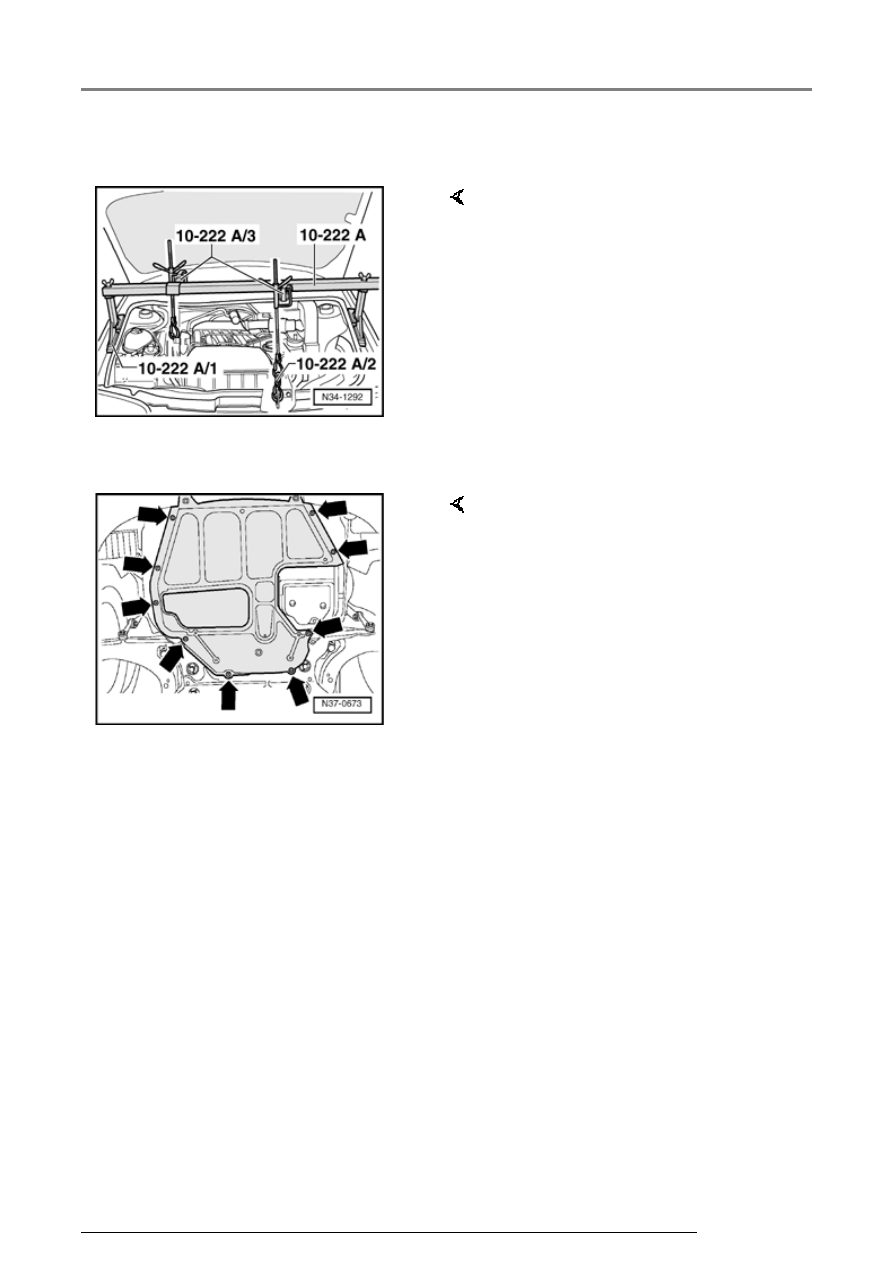

-  Install support bar 10-222A

together with legs 10-222 A/1,
special hook 10-222 A/2 and
adapter 10-222 A/3.

Transmission, removing and installing

34-35







Vehicles with 6-Cyl. engines



Continued for all vehicles

-  Install support bar 10-222A

together with legs 10-222 A/1,
special hook 10-222 A/2 and
adapter 10-222 A/3.

-  Take weight of

engine/transmission assembly on
spindles.

-  Turn wheels fully onto left lock.

-  Raise vehicle



-  Remove sound insulation tray

(arrows).

Transmission, removing and installing

34-36





Vehicles with Diesel and 1.8 ltr.
Turbo engines


Continued for all vehicles

 Repair Manual, Engine

Mechanical, Repair Group 26

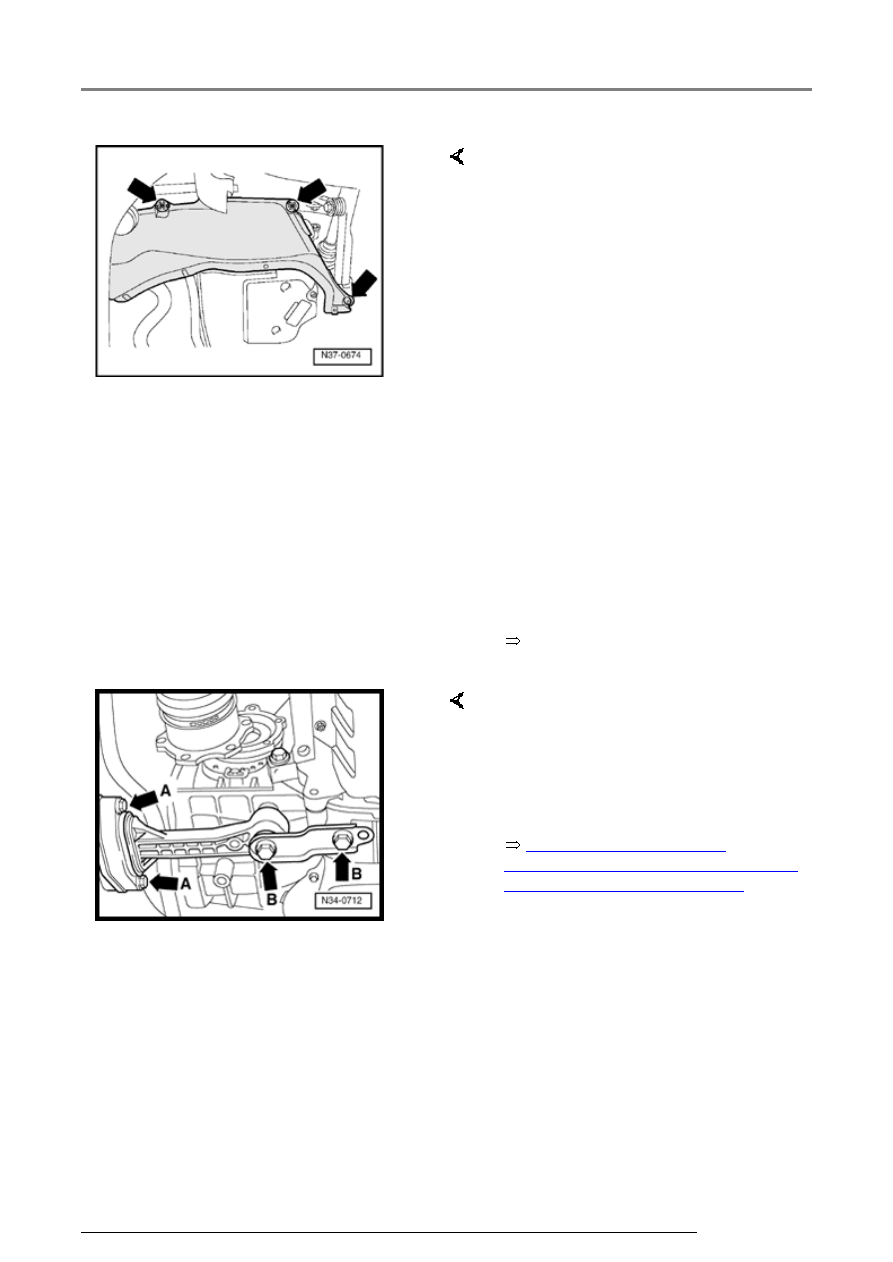

-  Remove left sound insulation

(arrows).

-  Remove charge air line between

charge air cooler and
turbocharger.

-  Remove right sound insulation.

-  Disconnect axle shafts from

flanged shafts and tie up as high
as possible. When tying up shafts
do not damage body surface
protection.

-  Separate exhuast system and if

necessary remove from
subframe.





Repair Manual, Electrical

Equipment, Repair Group 27; Starter
motor, removing and installing



-  Remove pendulum support

(arrows -A- and -B-).

-  Remove power steering line from

starter and transmission.

-  Remove starter.

Transmission, removing and installing

34-37





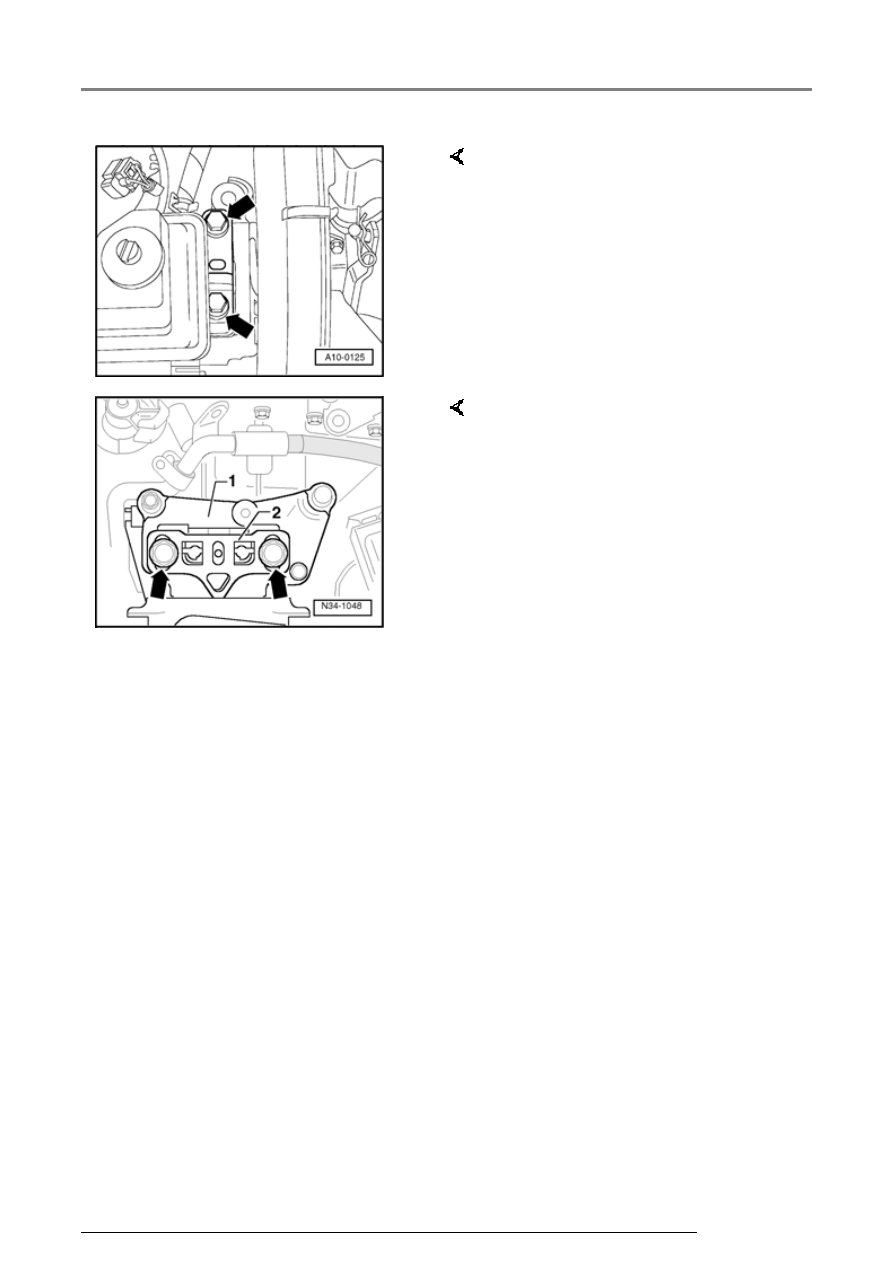

-  Unbolt engine side of assembly

mounting from engine carrier from
above (arrows).



-  Remove left assembly mounting -

2- hex bolts (arrows) from left
mount -1-.

-  Carefully tilt engine and

transmission by lowering left side
spindle approx. 60 mm on support
bar 10-222 A.

Transmission, removing and installing
