28-44







-  Check misfire detection status in display zone

4.





   Specification: "activated"





-  Check display zones 1 to 3 for detected misfires

in cylinders cylinders 4 to 6.





   Specification: 0





-  Press

button.





-  Press buttons -0- and -6- for function "End

output" and confirm entry with -Q- button.





-  Switch off ignition.



   If the specifications are not obtained:





-  Evaluate display group 15 and display group 16



Page 01-207



Ignition system, servicing

Select a topic



Transmission identification



Code letters, application, ratios, capacities



Code letters, assembly application, ratios, capacities



Transmission layout



Calculating overall ratio "i"



General repair instructions



30 - Clutch



Clutch mechanism, repairing



Pedal cluster assembly, overview



Over-center spring, removing and installing



Clutch pedal, removing and installing



Hydraulic components, assembly overview



Clutch master cylinder, removing and installing



Clutch system, bleeding



Clutch release mechanism, servicing



Clutch, servicing



34 - Manual Transmission - Controls, Housing



Gear selector mechanism, servicing



Installed position of gear selector mechanism



Shift lever knob and cover, removing and installing



Shift lever and shift lever housing, servicing



Selector cables, assembly overview



Gear selector mechanism, removing and installing



Gear selector mechanism, adjusting



Transmission, removing and installing



Transmission gear oil, checking



Transmission, disassembling and assembling



Component overview



Assembly overview



Transmission housing and selector mechanism, removing and
installing



Input shaft, output shafts (pinion shafts), differential and selector
rods, disassembling and assembling



Assembly sequence



Transmission housing, servicing



Clutch housing, servicing



5 & 6 Spd. Manual Transmission 02M

Transmission selector mechanism, disassembling and
assembling



Selector forks, disassembling and assembling



35 - Manual Transmission - Gears, Shafts



Input shaft, disassembling and assembling



Input shaft, adjusting



Table of adjustment shims



Measurement check



Output shaft, 1st-4th gear, disassembling and assembling



Output shaft for 1st-4th gears, adjusting



Output shaft for 5th, 6th and reverse gear, disassembling and
assembling



Output shaft for 5th, 6th and reverse gear, adjusting



39 - Final drive, Differential



Oil seals for flanged shafts, replacing



Oil seal for left flanged shaft, replacing



Oil seal for right flanged shaft, replacing



Differential, disassembling and assembling



Adjustment overview



Differential, adjusting



5 & 6 Spd. Manual Transmission 02M

00-1







Transmission identification





The 02M manual transmission is installed as a 5
or 6-speed transmission in conjunction with a 4
or 6-cylinder engine in the Golf from 1998 and
Jetta from 1999.





Application



Page 00-2

 .

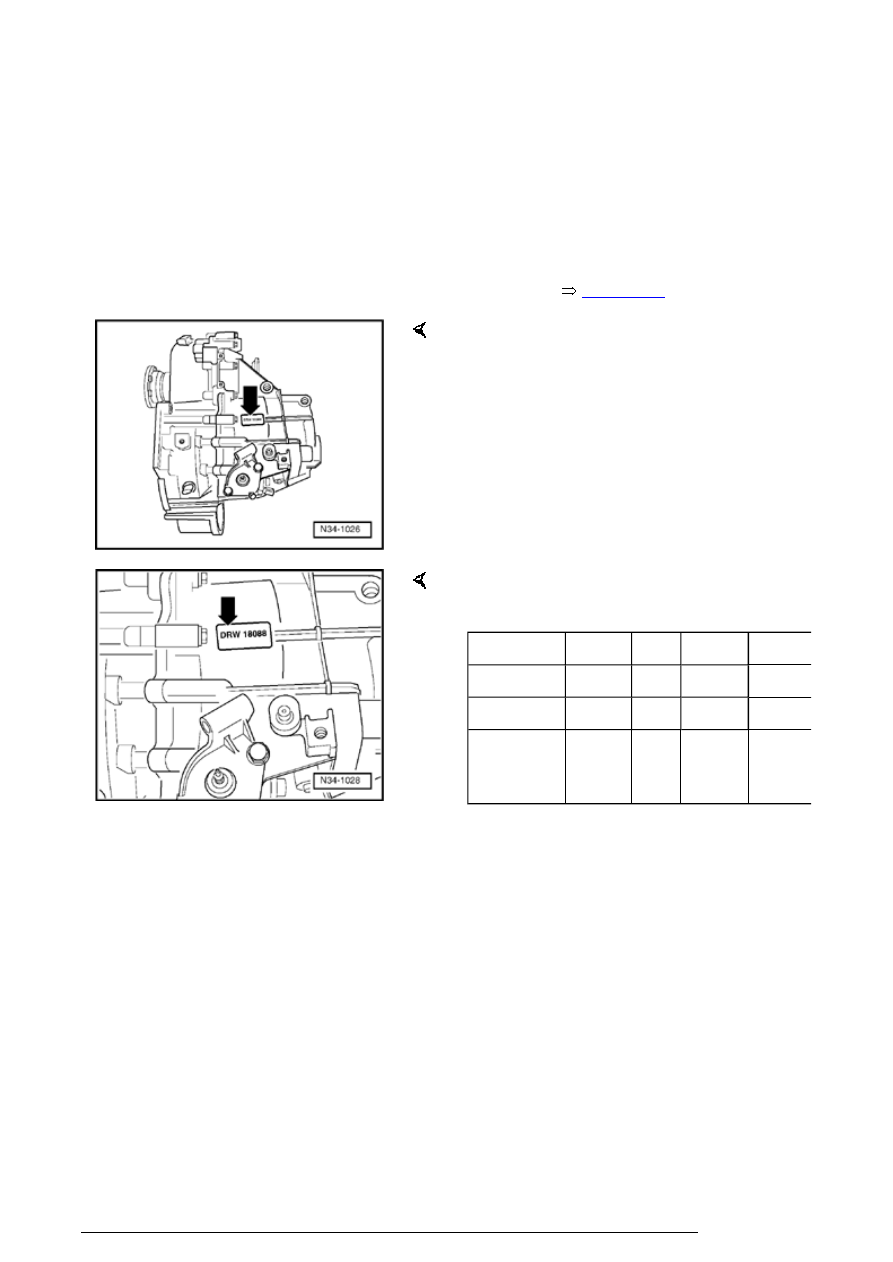

     Location on transmission

Code letters and date of manufacture (arrow)

     Code letters and date of transmission

manufacture (arrow)

Additional data depends on manufacture.

Note:

The transmission code letters are also shown on
the vehicle identification plates.

Example:   DRW   18

08

8



I

I

I

I



I

I

I

I



Code

letters

Day   Month   Year (1998)

of

manufacture

Transmission identification
