If the specifications are obtained:



If the specification is not obtained:

If the specification is obtained:

If the specification is not obtained:

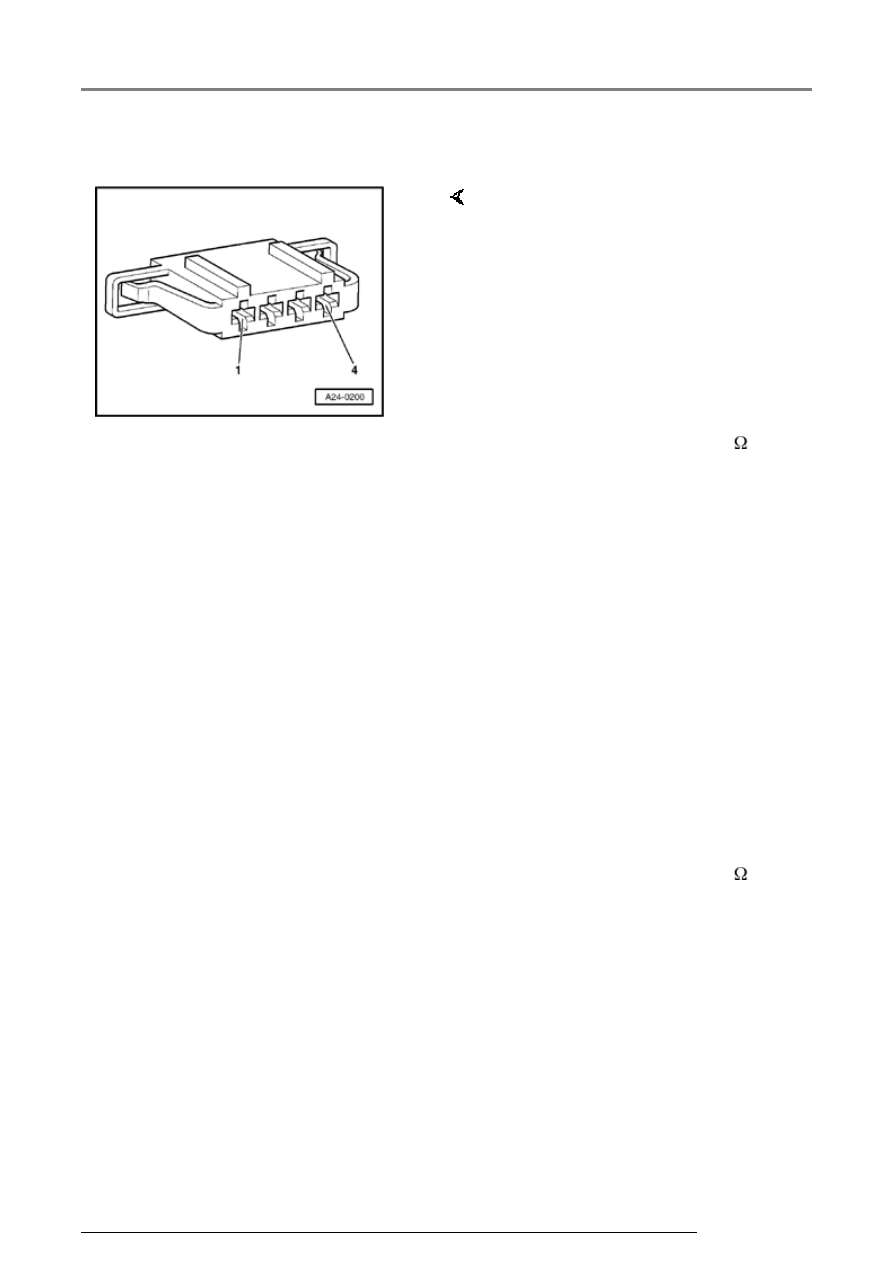

-  Connect multimeter to measure

voltage between terminal 1 and
Ground (GND).

   Specification: at least 11.5 V

-  Check wiring connections to fuse

holder for open circuit referring to
Electrical Wiring Diagrams.

   Wire resistance: max. 1.5



-  Connect multimeter to measure

voltage between terminal 2 and
Ground (GND).

-  Switch on ignition.

   Specification: at least 11.5 V

-  Switch off ignition.

-  Check wire for open circuit

between 4-pin connector terminal
2 and Fuel Pump (FP) Relay -
J17- referring to Electrical Wiring
Diagrams.

   Wire resistance: max. 1.5



Additional signals, checking

24-211







If the specification is obtained:





-  Remove wiper arms and cowl

panel:







Repair Manual, Electrical

Equipment; Repair Group 92





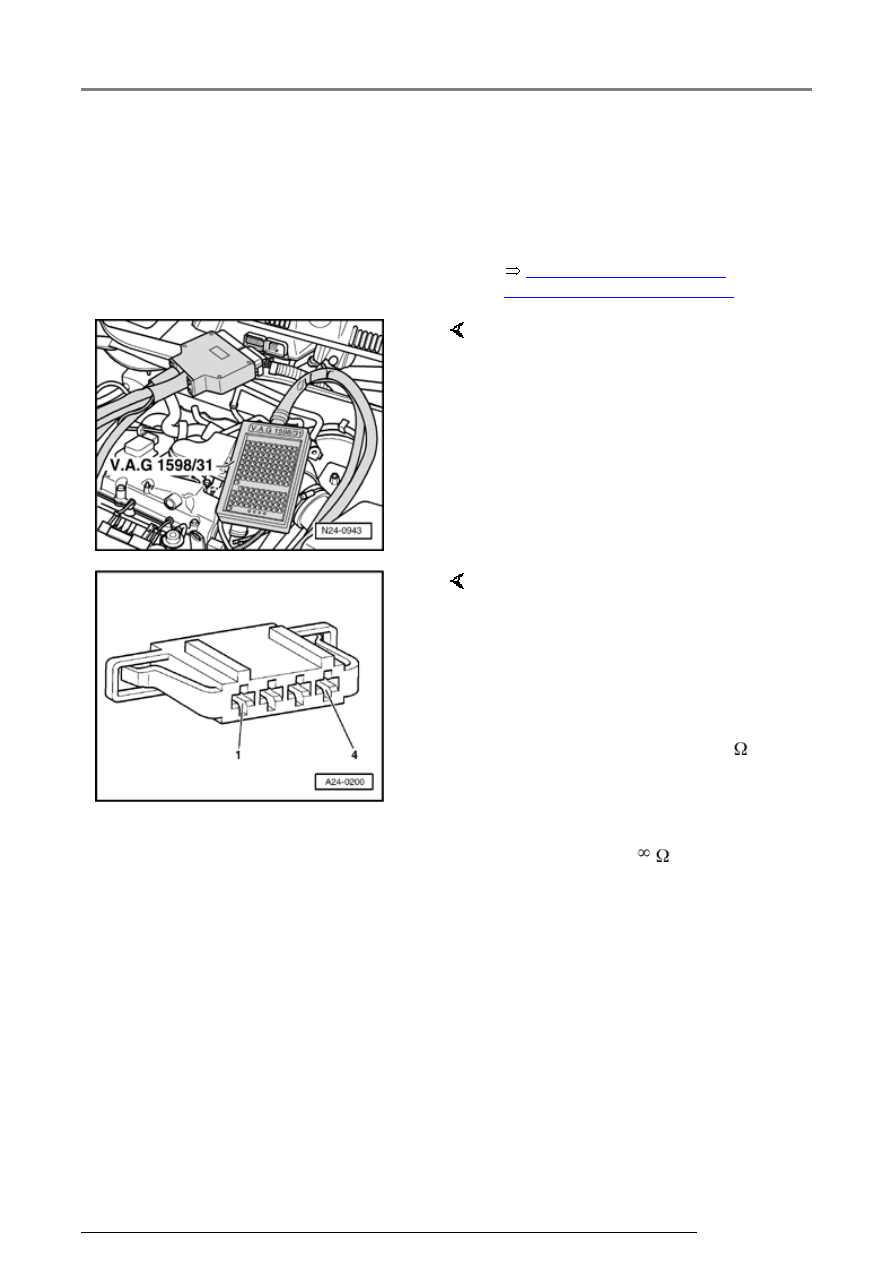

-  Connect VAG 1598/31 test box to

control module wiring harness.
Engine Control Module (ECM) -
J220- remains disconnected.



-  Check wiring for open circuit

between test box and 4-pin
connector referring to Electrical
Wiring Diagrams.

   Terminal 3 and socket 55

   Terminal 4 and socket 56

   Wire resistance: max. 1.5



-  Additionally check wiring for short

to one another, to vehicle Ground
(GND) and to battery positive.

   Specification:



Additional signals, checking

24-212





   If there is no Diagnostic Trouble Code (DTC) in

the wiring and the resistance measurement
values are OK.:





-  Replace Motronic Engine Control Module (ECM)

-J220-



Page 24-173

 .





-  Check DTC memory, repair malfunctions if

necessary and then erase DTC memory



Page

01-23

 .





-  Erase learned values and adapt Motronic

Engine Control Module (ECM) -J220- again



Page 24-182

 .





-  Read readiness code



Page 01-146

 . If DTC

memory has been erased or Motronic Engine
Control Module (ECM) -J220- was disconnected
from battery positive (B+), readiness code must
be generated again



Page 01-149

 .

Additional signals, checking

24-213







Transmission Range signal,
checking





   Vehicles with an automatic transmission



   The Motronic Engine Control Module (ECM)

-J220- receives the following information
from the transmission control module:



   Driving range selected (selector lever in

2/3/4/R/D)



   or



   No transmission range selected (selector

lever in P or N)

Additional signals, checking
