91-30







Removing





CAUTION!







Before beginning repairs on the
electrical system:









Obtain anti-theft radio security
code.









Switch off all electrical
consumers.









Switch ignition off and remove
ignition key.





Note:

Use of separate tools T10057 is
illustrated here. Procedure is
essentially the same for tool JC4225
where all release prongs are
integrated into a frame.


Notes:

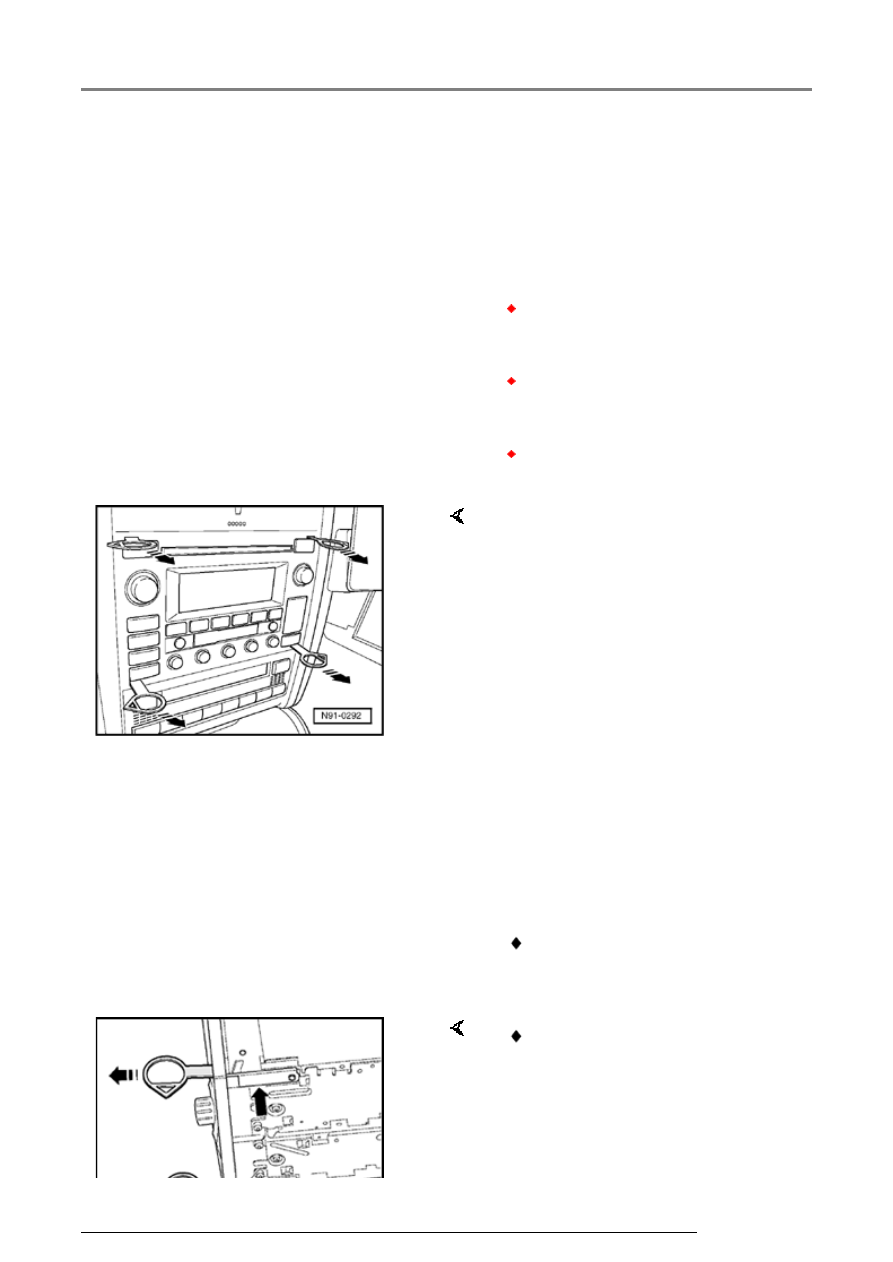

-  Insert tool into openings on face

of radio -arrows- until they are felt
to engage.

-  Pull radio from instrument panel

opening using handles on tool
T10057 or frame of tool JC4225.

-  Disconnect electrical connectors

and antenna cable from radio.

 Radio must be pulled straight out

from opening. Do not twist or tilt
tools while removing.




 To remove tool from radio,

release locking tabs -arrow- on
side of radio when removed.


Radio, Premium VI and Premium VI - Monsoon

13/2/2005

91-31





   Installing





-  Reconnect electrical connectors and antenna

cable at rear of radio.





-  Insert radio into instrument panel opening and

push straight in until locking tabs engage.





CAUTION!







When installing radio unit, do not press on
display or control buttons in order to engage
locking tabs. Damage will result.







-  Input anti-theft security code



Page 91-34

 .





-  Confirm radio coding for sound system functions

using On Board Diagnostic program function 07
"Code Control Module"



Page 01-49

 .



   Note:



   Radio sound system coding must be performed

in order to account for presence of CD Changer
and Monsoon amplifier (if installed) and interior
sound field differences between models.


Radio, Premium VI and Premium VI - Monsoon

13/2/2005

91-32







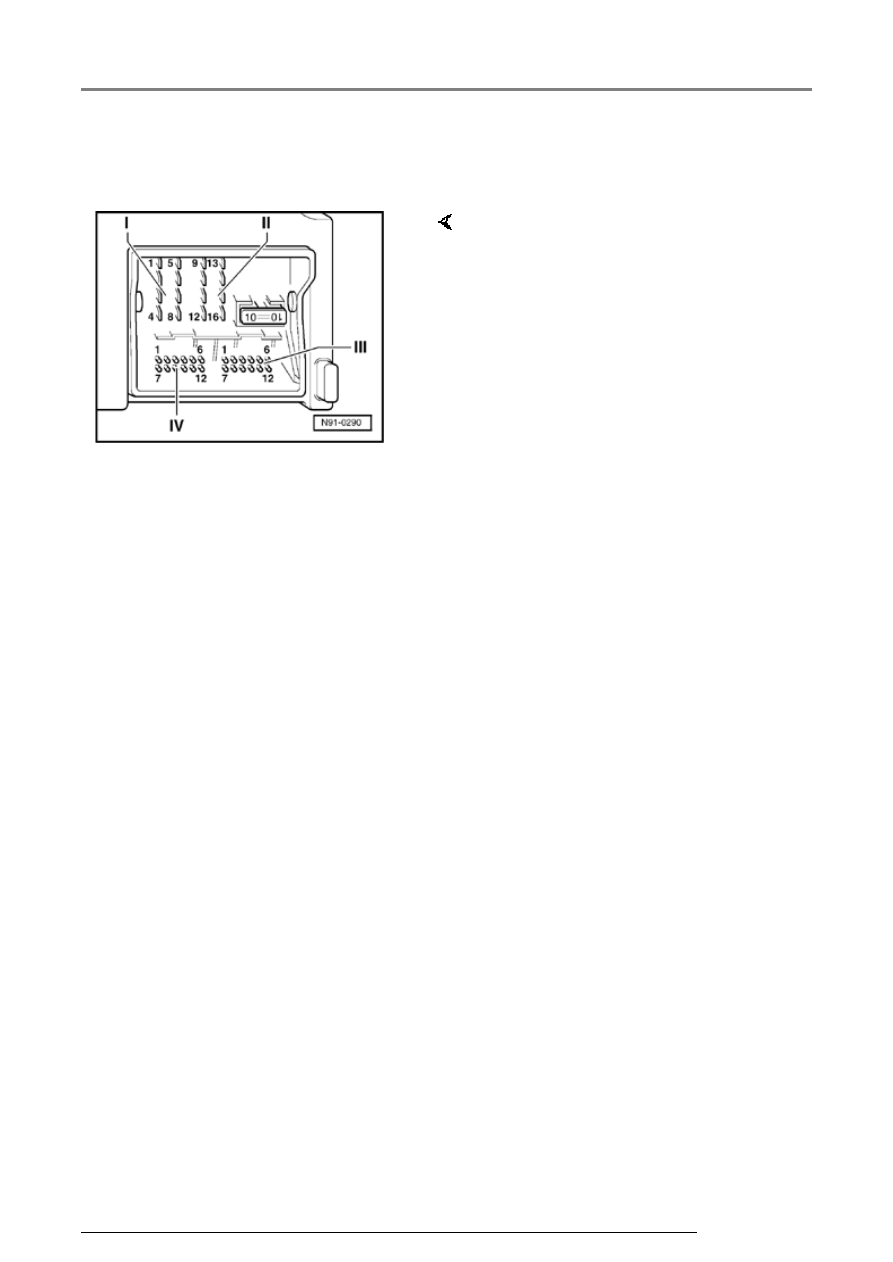

Radio, multi-pin connector
assignments



     8 pin multi-connector I

8 pin multi-connector II

1 - Speaker + right rear

2 - Speaker + right front

3 - Speaker + left front

4 - Speaker + left rear

5 - Speaker - right rear

6 - Speaker - right front

7 - Speaker - left front

8 - Speaker - left rear

9 - CAN-Bus plus

10 - CAN-Bus minus

11 - Mute

12 - Ground (GND)

13 - Radio, Control signal

14 - Contact alarm

15 - Battery positive (B+)

16 - Signal for anti-theft alarm

Radio, Premium VI and Premium VI - Monsoon

13/2/2005

91-33

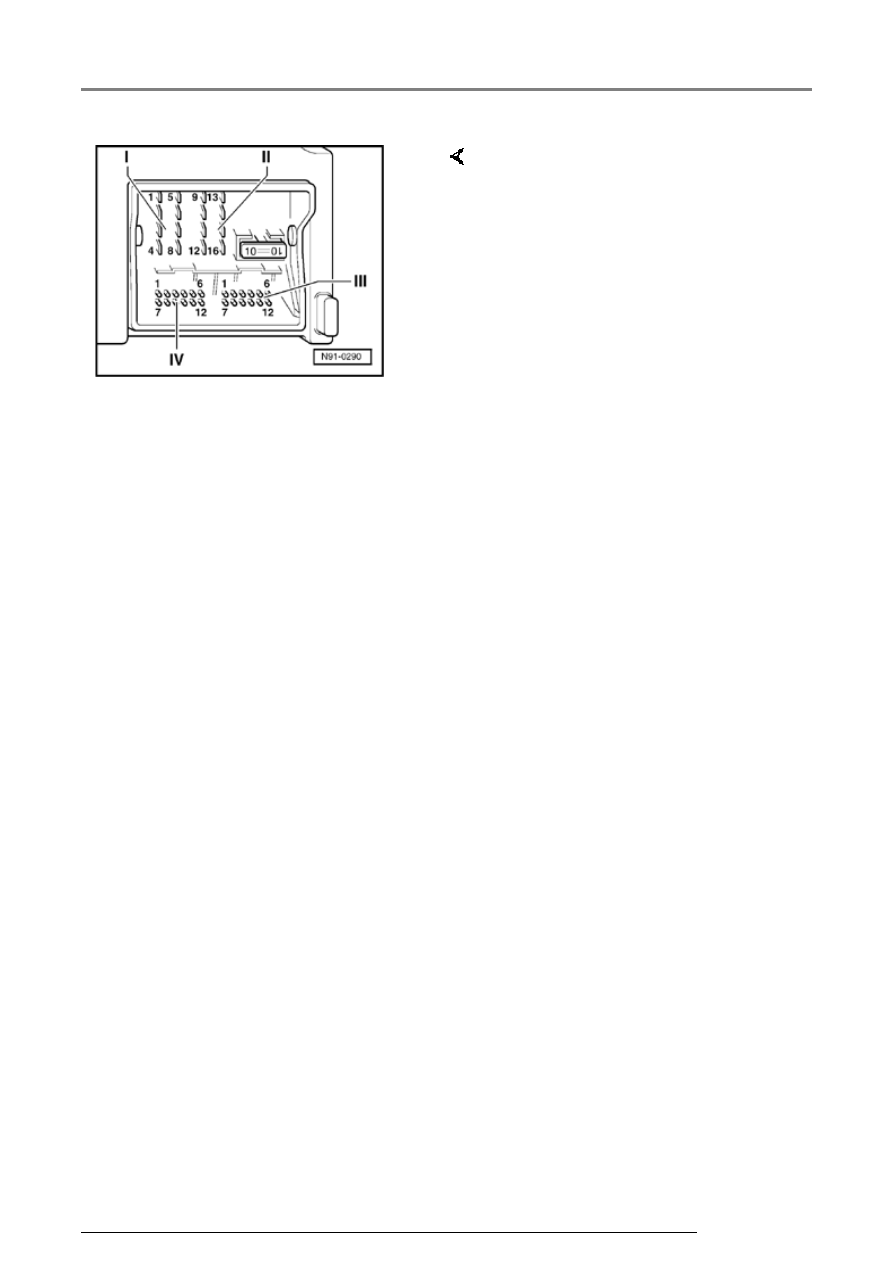

     12 pin multi-connector III*

12 pin multi-connector IV

*)

 Where applicable



1-5 Open

6 - Signal for telephone minus (-)

7-11 Open

12 - Signal for telephone plus (+)

1 - Open

2 - CD Changer - left and right
channel, Ground (GND)

3 - Open

4 - CD Changer - Positive (B+)
supply

5 - Open

6 - CD Changer - DATA OUT

7 - Open

8 - CD Changer - left channel, CD/L

9 - CD Changer - right channel,
CD/L

10 - CD Changer - Control signal

11 - CD Changer - DATA IN

12 - CD Changer - CLOCK

Radio, Premium VI and Premium VI - Monsoon

13/2/2005
