Volkswagen Jetta / Bora: Electrical System Manual - part 68

Renewing rear interior and reading light

bulbs (vehicles with ATAS)

Note

♦

If a rear interior and reading light bulb is renewed, the ATAS

must be deactivated

⇒ page 277

 .

♦

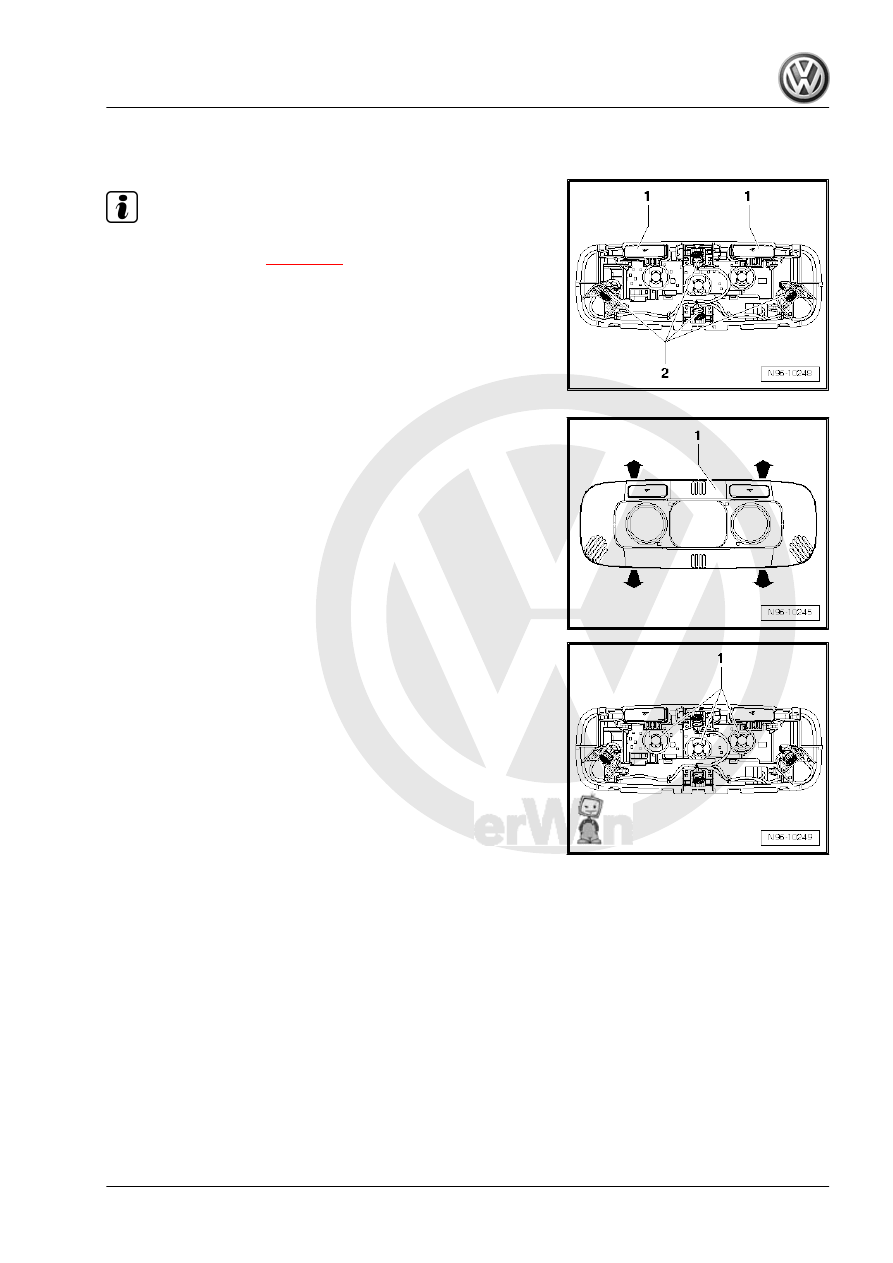

The anti-theft alarm ultrasonic sensor -G209- , comprising four

individual sensors -2-, leads and a control element on the back

of the interior and reading light, must not be moved from its

predefined position.

Removing:
– Switch off the ignition and all electrical consumers.

– Pull the entire complete trim -1- (including lens and reflectors)

vertically downwards and out from the interior and reading

light.

– Pull the glass base bulb to be removed (12 V, 5 W) -1- from

the holder.

Installing:
Install in reverse order of removal.

6.5

Removing and installing front passenger

side illuminated vanity mirror -W14- and

driver side illuminated vanity mirror -

W20-

Special tools and workshop equipment required

Jetta 2005 ➤ , Bora 2006 ➤

6. Lights and switches in roof trim

269

Note

♦

When removing and installing components in visual area (con‐

nectors, covers, trims etc.) apply a commercial adhesive tape

where a lever tool is applied ( removal wedge -VAS 3409- ,

srewdriver).

♦

The removal and installation of both lights is the same so that

only one light is described.

Removing:
– Switch off the ignition and all electrical consumers.

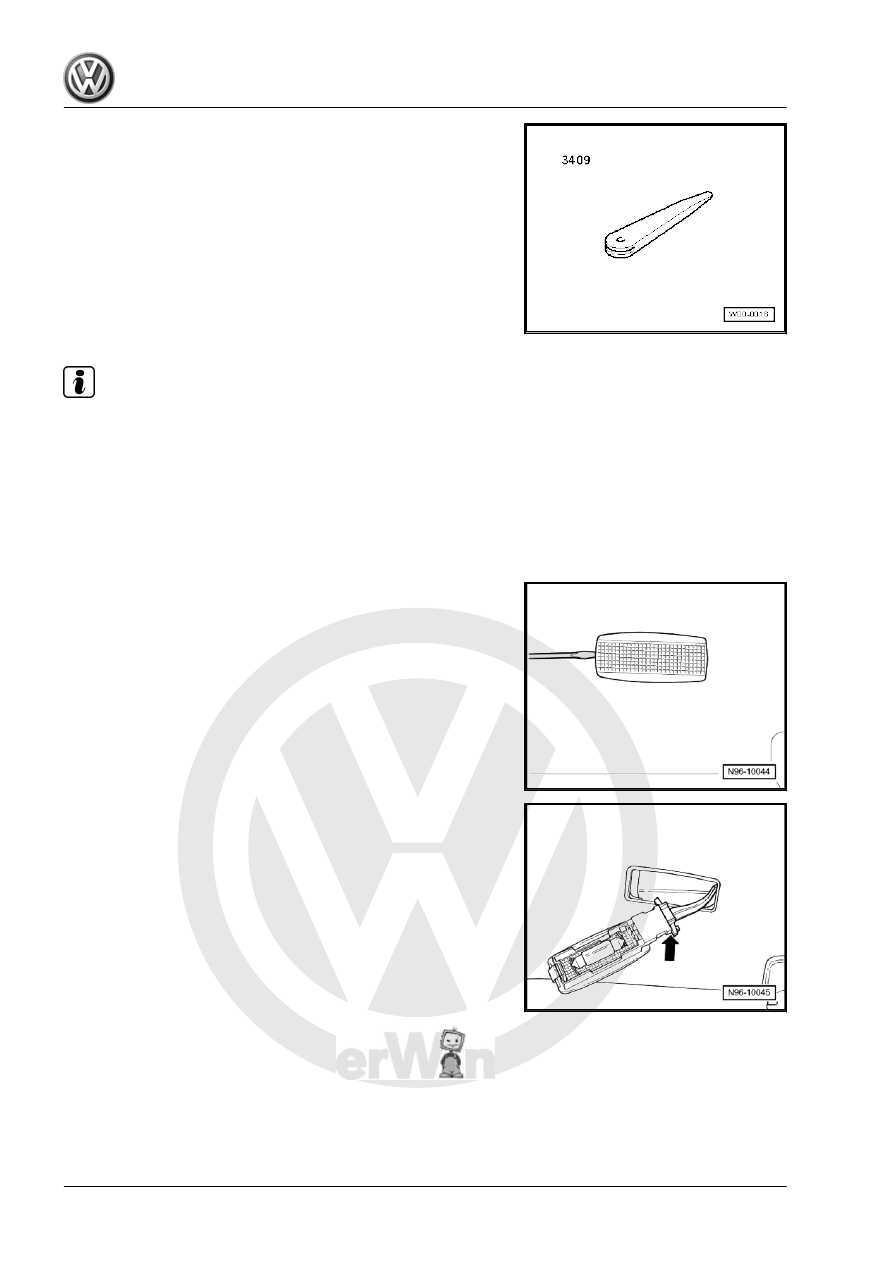

– Lever light carefully out of the roof trim using removal wedge

-VAS 3409- or a screwdriver.

– Disconnect connector -arrow-.
Renew bulb:

Jetta 2005 ➤ , Bora 2006 ➤

270

festoon bulb -2- out of the socket.

– Renew festoon bulb (12 V, 5 W).
Installing:
Install in reverse order of removal.

6.6

Removing and installing garage door

operating unit -E284-

Note

♦

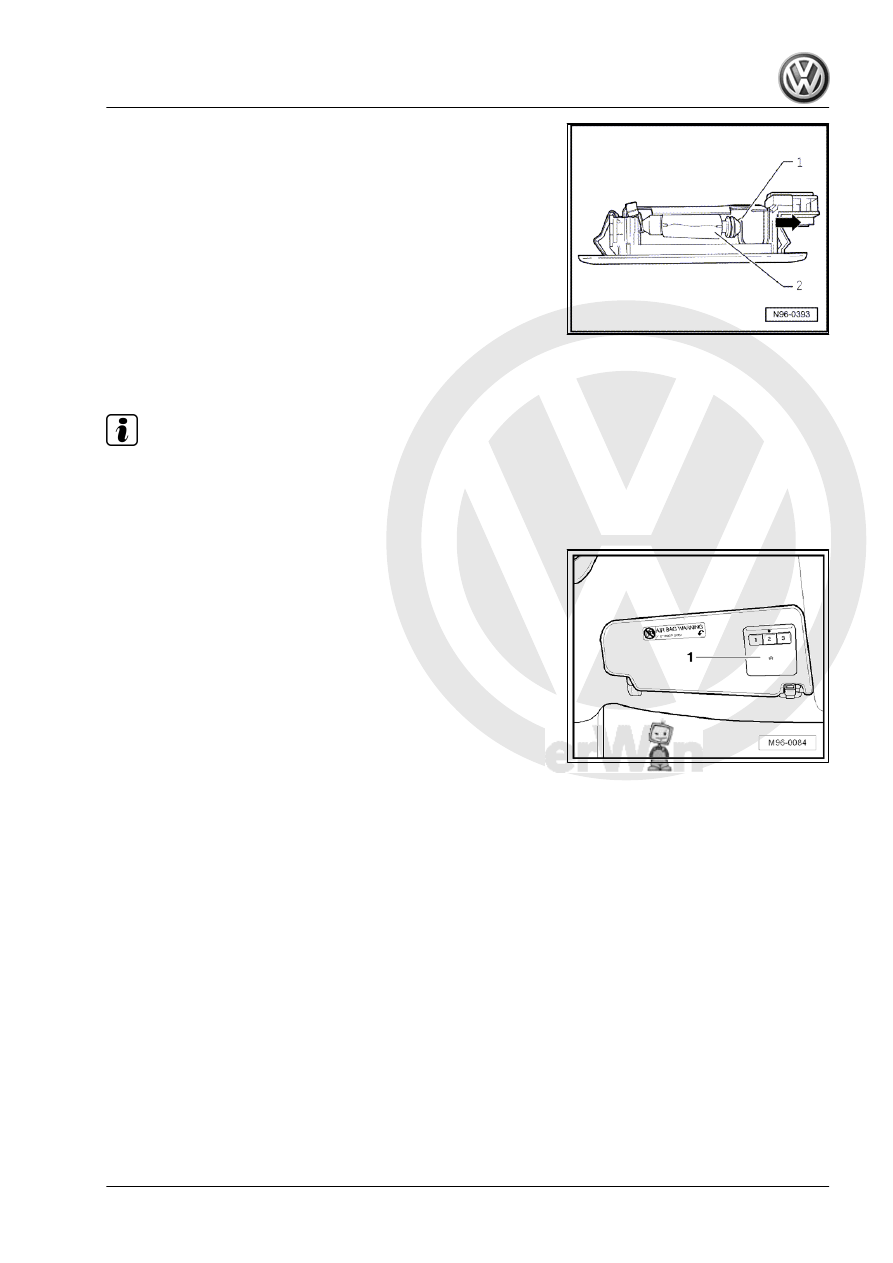

The garage door operating unit -E284- is located in the sun

visor on the driver side.

♦

The sun visor and the garage door operating unit -E284- may

only be replaced together.

– Remove the sun visor on the driver side with garage door op‐

erating unit -E284- -1- ⇒  General body repairs, interior; Rep.

Gr.  68 ; Removing and installing sun visor

Jetta 2005 ➤ , Bora 2006 ➤

6. Lights and switches in roof trim

271

Lights and switches in centre console

7.1

Removing and installing TCS and ESP

button -E256-

Removing:
– Switch off the ignition and all electrical consumers.

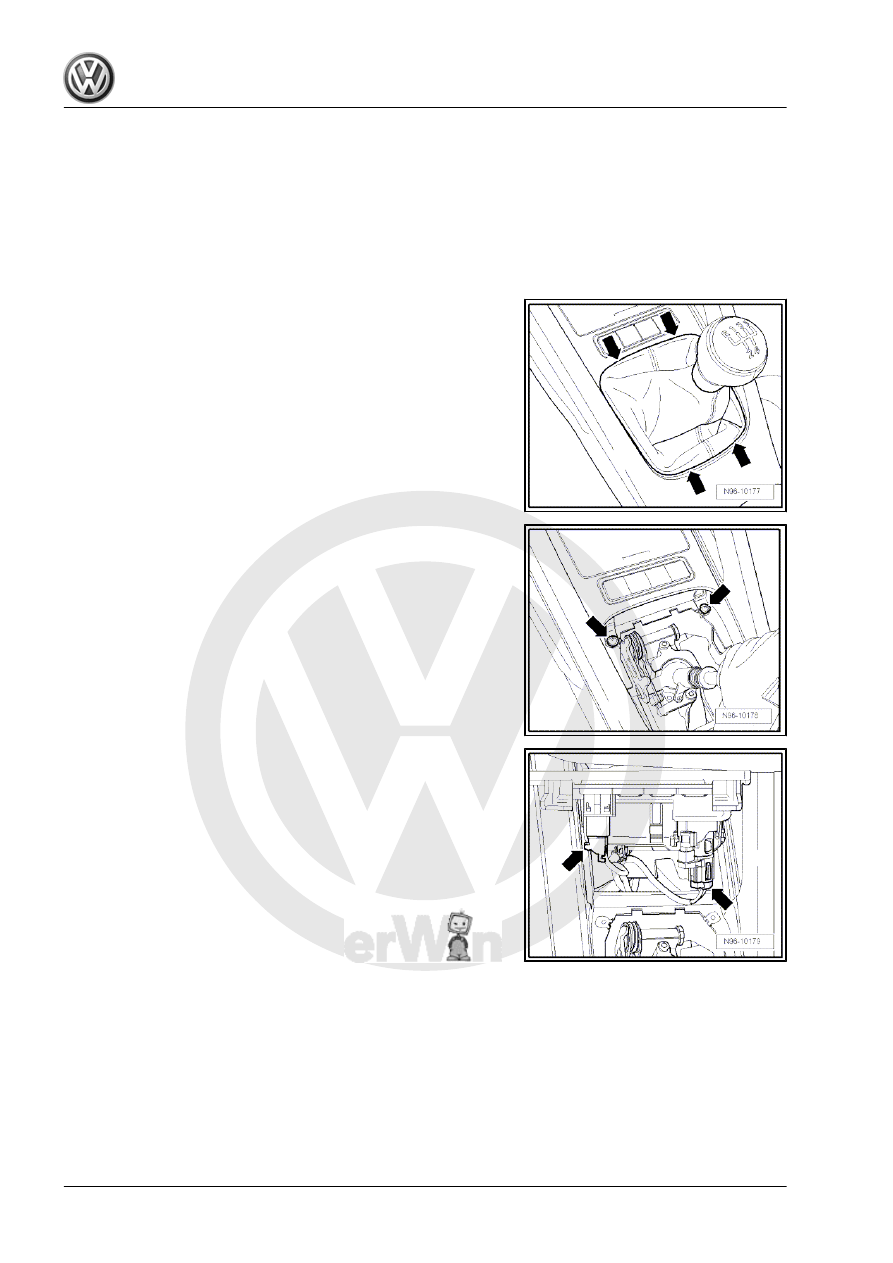

– Take bellow carefully off centre console -arrows-.

– Unbolt securing bolts -arrow-.
– Take mounting frame with ashtray out of the centre console.

– Remove connectors -arrows-.

Jetta 2005 ➤ , Bora 2006 ➤

272
