6.2.4

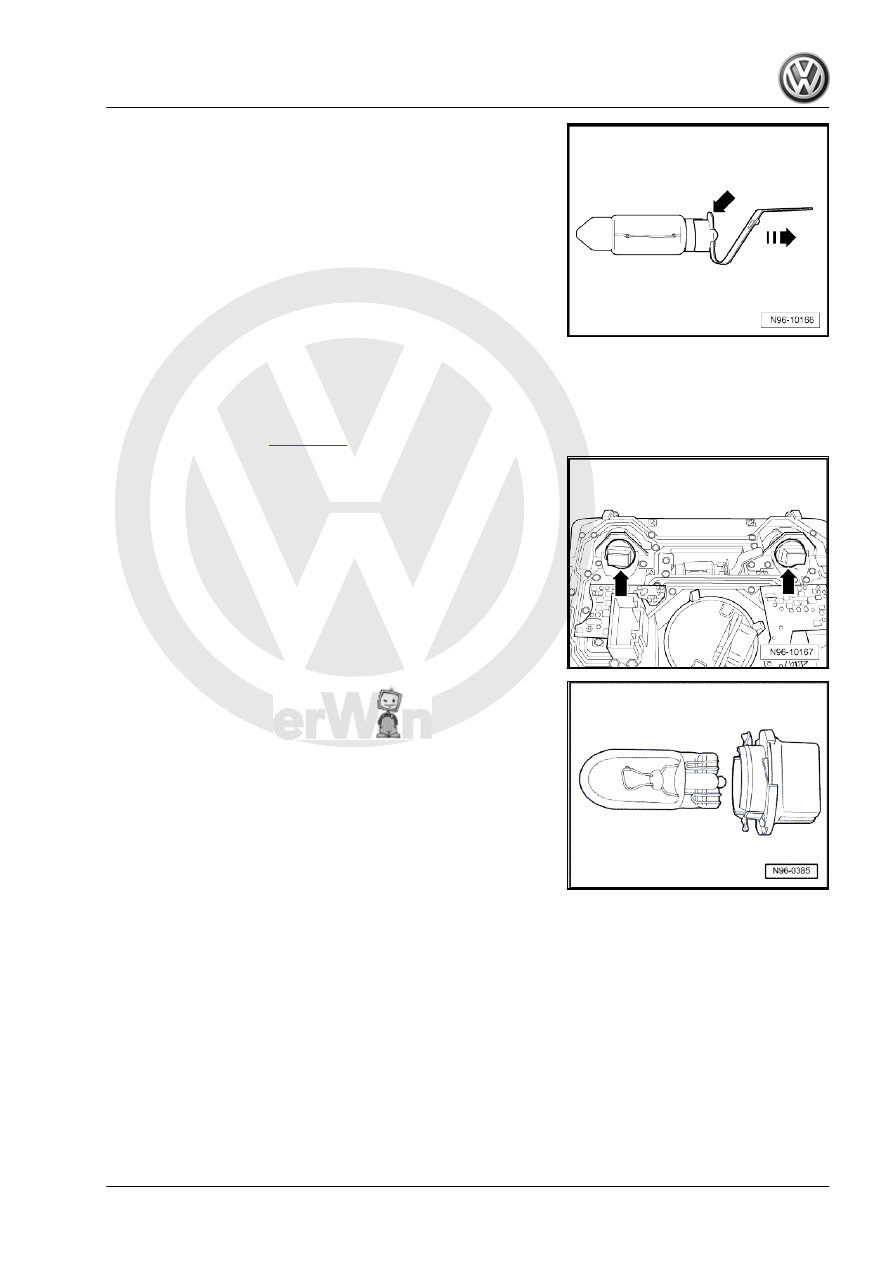

Left centre reading light -W39- and right

centre reading light -W40-

Removing:
– Remove interior light

⇒ page 261

 .

– Turn bulb holder -arrows- of the defective reading light for 90°

to the left.

– Take the holder with the bulb out of the reading light.

– Pull glas base bulb carefully out of the holder.
– Renew glas base bulb (12 V, 5 W).
Installing:
Install in reverse order of removal.

6.3

Rear interior and reading light (vehicles

without ATAS)

The following components are integrated in the rear interior light

and reading light:
♦ Rear left footwell light -W45-
♦ Rear left reading light -W11-
♦ Rear right reading light -W12-

Jetta 2005 ➤ , Bora 2006 ➤

6. Lights and switches in roof trim

265

The interior light and reading light as well as the switches for the

interior light and reading light are connected together and can not

be separated. When repairing, renew the complete component.

6.3.1

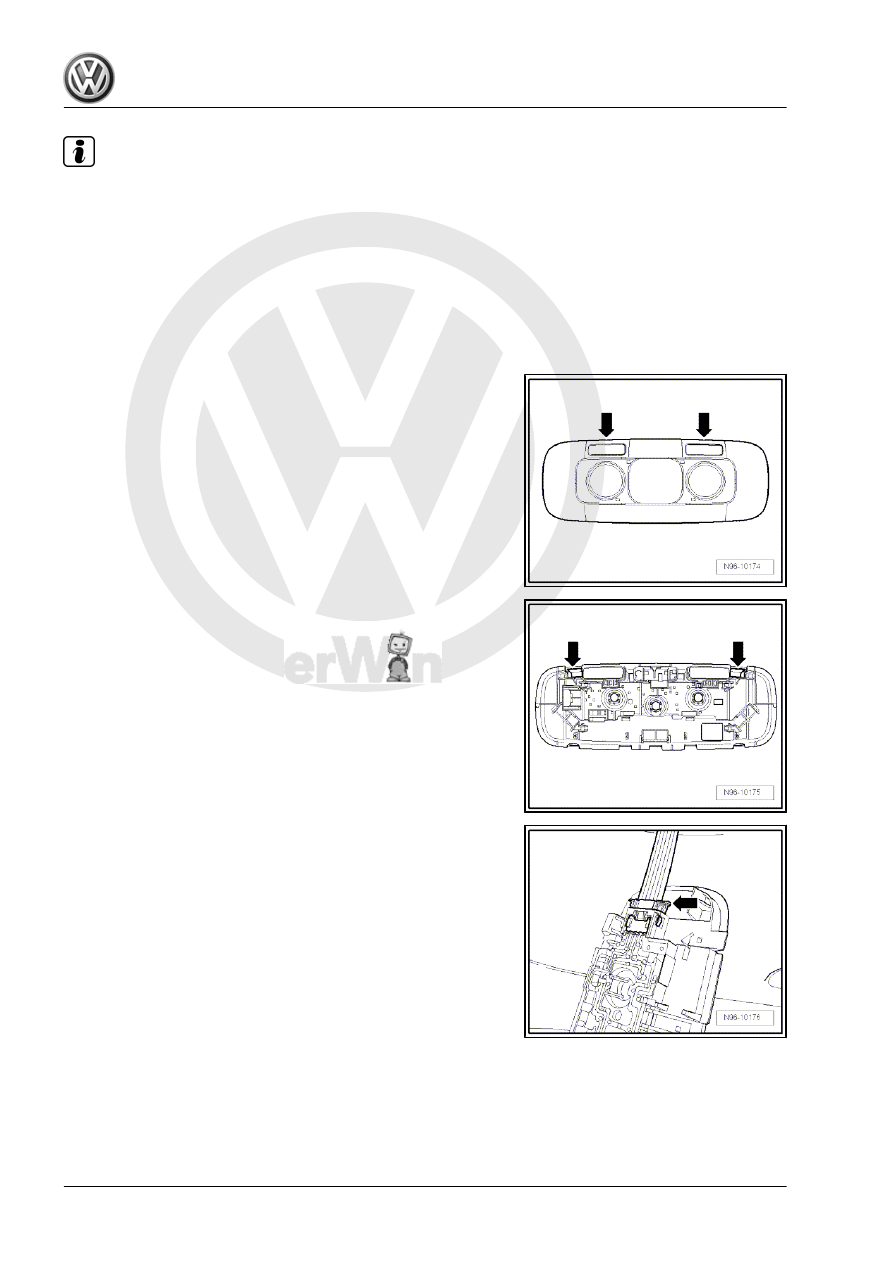

Removing and installing rear interior

and reading light (vehicles without

ATAS)

Removing:
– Switch off the ignition and all electrical consumers.
– Release locking lugs -arrows- and take trim with lens off inte‐

rior light and reading light.

– Release locking lugs -arrows- and remove interior light and

reading light from the headliner.

– Disconnect connector -arrow-.
Installing:
Install in reverse order of removal.

Jetta 2005 ➤ , Bora 2006 ➤

266

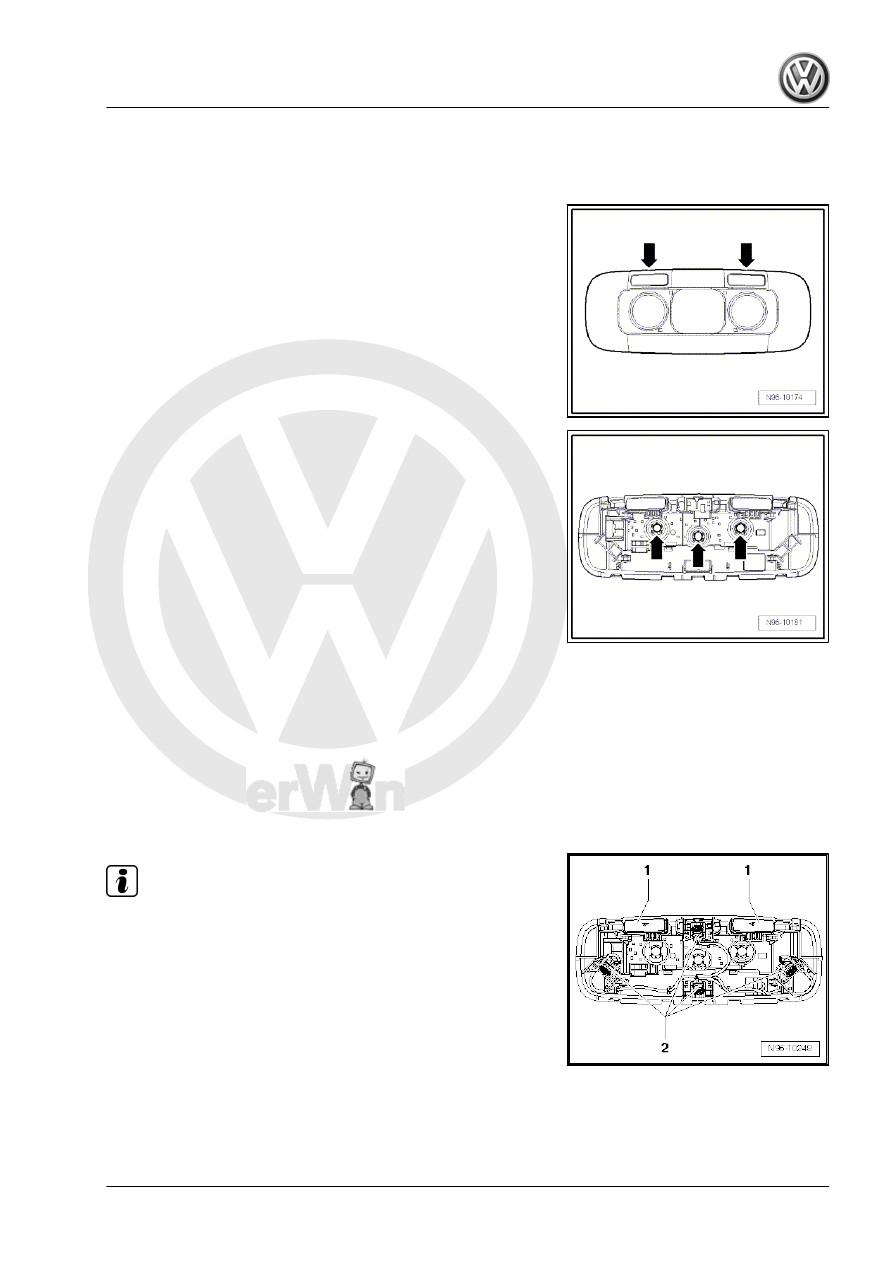

Renewing rear interior and reading light

bulbs (vehicles without ATAS)

Removing:
– Release locking lugs -arrows- and take trim with lens off inte‐

rior light and reading light.

– Pull glas base bulb carefully out of the holder -arrows-.
– Renew defective glas base bulb (12 V, 5 W).
Installing:
Install in reverse order of removal.

6.4

Rear interior and reading light (vehicles

with ATAS)

The following components are integrated in the rear interior light

and reading light:
♦ Rear left footwell light -W45-
♦ Rear left reading light -W11-
♦ Rear right reading light -W12-
♦ Anti-theft alarm ultrasonic sensor -G209-

Note

♦

The switches -1- of the reading lights are integrated in the rear

interior and reading light and cannot be renewed separately.

♦

The anti-theft alarm ultrasonic sensor -G209- -2- cannot be

renewed separately.

♦

The anti-theft alarm ultrasonic sensor -G209- , comprising four

individual sensors -2-, leads and a control element on the back

of the interior and reading light, must not be moved from its

predefined position.

Jetta 2005 ➤ , Bora 2006 ➤

6. Lights and switches in roof trim

267

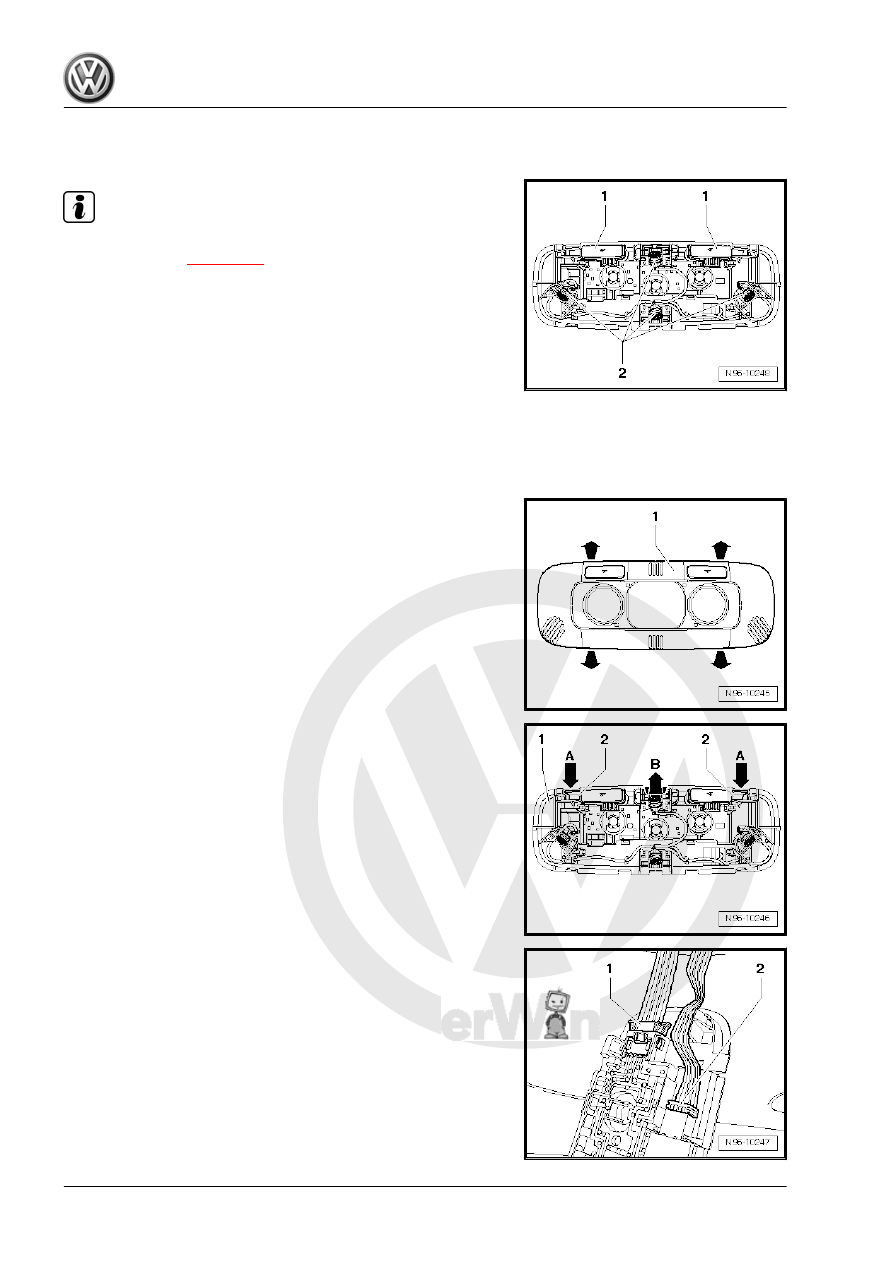

Removing and installing rear interior

and reading light (vehicles with ATAS)

Note

♦

If a rear interior and reading light is removed, the ATAS must

be deactivated

⇒ page 277

 .

♦

The switches -1- of the reading lights are integrated in the rear

interior and reading light and cannot be renewed separately.

♦

The anti-theft alarm ultrasonic sensor -G209- -2- cannot be

renewed separately.

♦

The anti-theft alarm ultrasonic sensor -G209- , comprising four

individual sensors -2-, leads and a control element on the back

of the interior and reading light, must not be moved from its

predefined position.

Removing:
– Switch off the ignition and all electrical consumers.

– Pull the entire complete trim -1- (including lens and reflectors)

-arrows- vertically downwards and out from the interior and

reading light.

– Press both locking tabs -2- in -direction of arrow A- and take

the complete interior and reading light -1- in

-direction of arrow B- off the headliner.

– Unlock connectors -1- and -2- and pull both connectors off.
Installing:
Install in reverse order of removal.

Jetta 2005 ➤ , Bora 2006 ➤
