Removing and installing headlights

1.2.1

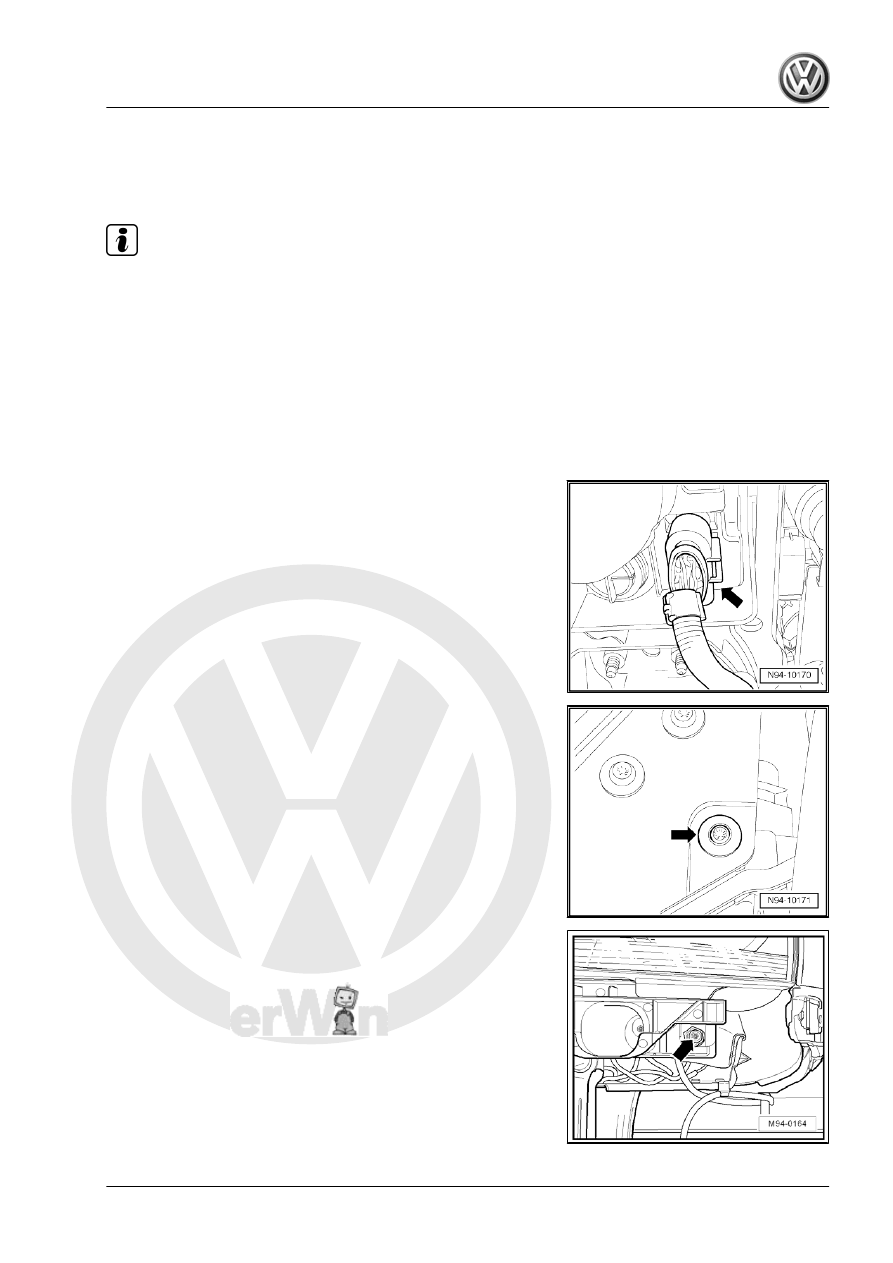

Removing headlights

Note

♦

It is not necessary to disconnect the battery earth strap.

♦

The diagrams show how the left headlight is removed and in‐

stalled.

♦

If a headlight is removed, it should always be adjusted ⇒ Main‐

tenance ; Booklet  20.1 .

♦

If a headlight with gas discharge lamps is removed, a basic

setting must be performed to adjust the headlights ⇒ Mainte‐

nance ; Booklet  20.1 .

– Switch off ignition and all electrical consumers and pull out

ignition key.

– Release multi-pin connector -arrow- and pull off multi-pin con‐

nector.

Front bumper

– Unscrew securing screw -arrow- on upper headlight.

– Unscrew securing screw -arrow- on lower left headlight.

Jetta 2005 ➤ , Bora 2006 ➤

1. Headlight

181

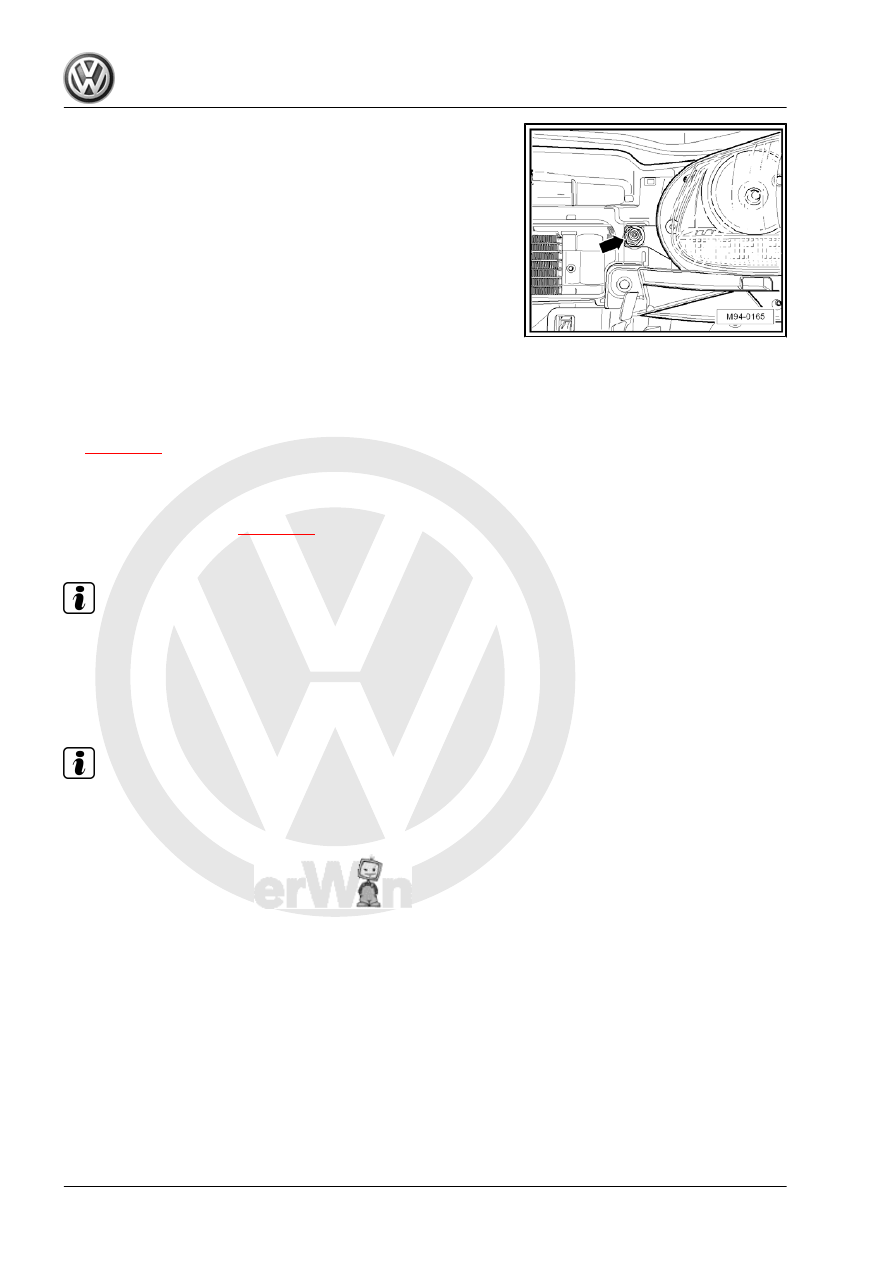

1.2.2

Installing headlights

Installation is performed in the reverse order of installation; when

doing this, note the following:
– Tighten all securing bolts to specified torque setting

⇒ page 238

 .

– Check headlight installation position is central, i.e. shutlines

are equal around headlight.

If the shutlines around the headlight are uneven, the installation

position must be adjusted

⇒ page 182

 .

– Check function of headlight.

Note

If a headlight is removed, it should always be adjusted.

– Check headlight setting and adjust headlight as necessary

⇒ Maintenance ; Booklet  20.1

1.3

Adjusting headlight installation position

Note

♦

To adjust the headlight installation position, the front bumper

must not be removed.

♦

The diagrams show the left headlight.

If it transpires during checking of the installation position that the

shutlines between headlight and body are uneven, the installation

position must be adjusted.
– Switch off ignition and all electrical consumers and pull out

ignition key.

66 ; Strips and trim .

Jetta 2005 ➤ , Bora 2006 ➤

182

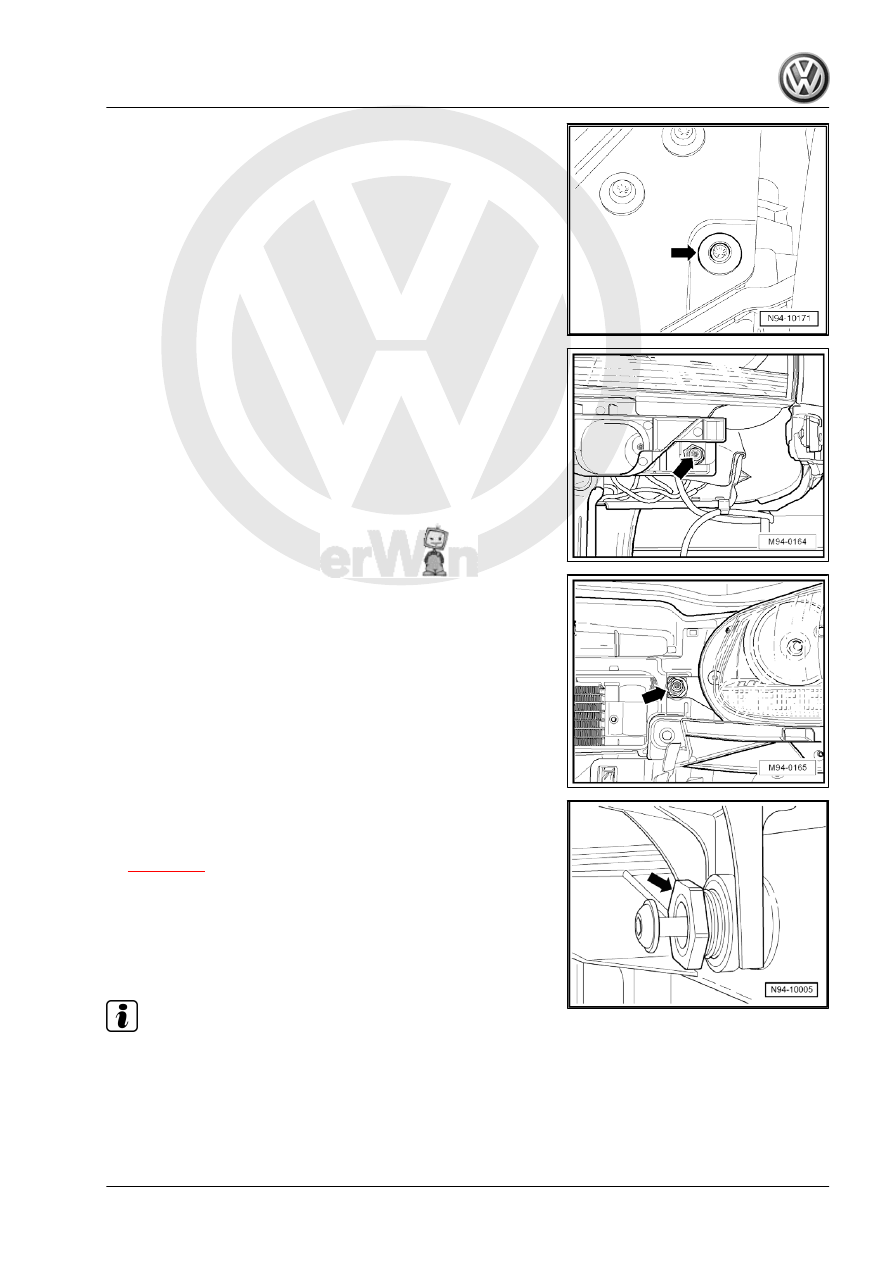

– Unscrew securing screw -arrow- on lower left headlight.

– Unscrew securing screw -arrow- on lower right headlight.

– Adjust shutlines to body by pushing in or pulling out alignment

bush -arrow- on lower left or lower right headlight.

– Tighten threaded connections to specified torque settings

⇒ page 238

 .

– Check and, if necessary, readjust headlight to ensure gaps are

even all round.

– Install radiator ⇒  General Body Repairs, Exterior; Rep. Gr.

66 ; Strips and trim; Removing and installing radiator .

– Check function of headlight.

Note

If a headlight is removed or adapted to the body it should always

be adjusted after installing or adapting it.

– Check headlight setting and adjust headlight as necessary

⇒ Maintenance ; Booklet  20.1

Jetta 2005 ➤ , Bora 2006 ➤

1. Headlight

183

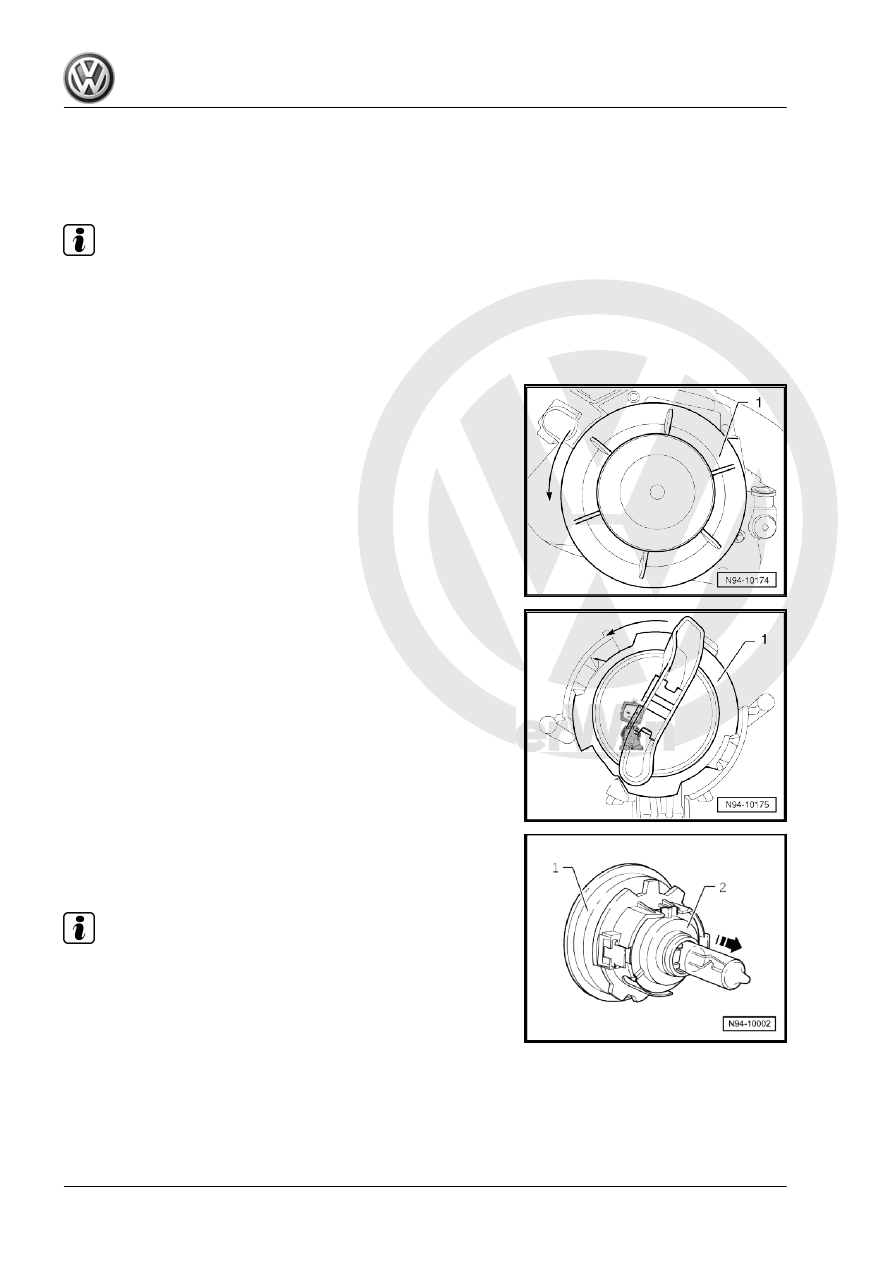

Renewing headlight bulbs

1.4.1

Renewing dipped beam headlight bulb

Note

The diagrams show renewal of the dipped beam headlight bulb

for the left headlight.

Removing:
– Switch off ignition and all electrical consumers and pull out

ignition key.

– Turn cover cap -1- in -direction of arrow- and remove.

– Turn bulb holder with dipped beam headlight bulb -1- in

-direction of arrow- and remove from headlight.

– Pull dipped beam headlight bulb -2- in -direction of arrow- out

of bulb holder -1-.

Installing:

Note

♦

When installing cap, ensure that it is seated correctly. The in‐

gress of water will lead to permanent damage of the headlight.

♦

Do not touch bulb glass when fitting bulbs. Fingers leave

traces of grease on the glass, which evaporate when the bulb

is switched on and cause the glass to cloud over.

Jetta 2005 ➤ , Bora 2006 ➤

184
