Volkswagen Jetta / Bora: Electrical System Manual - part 23

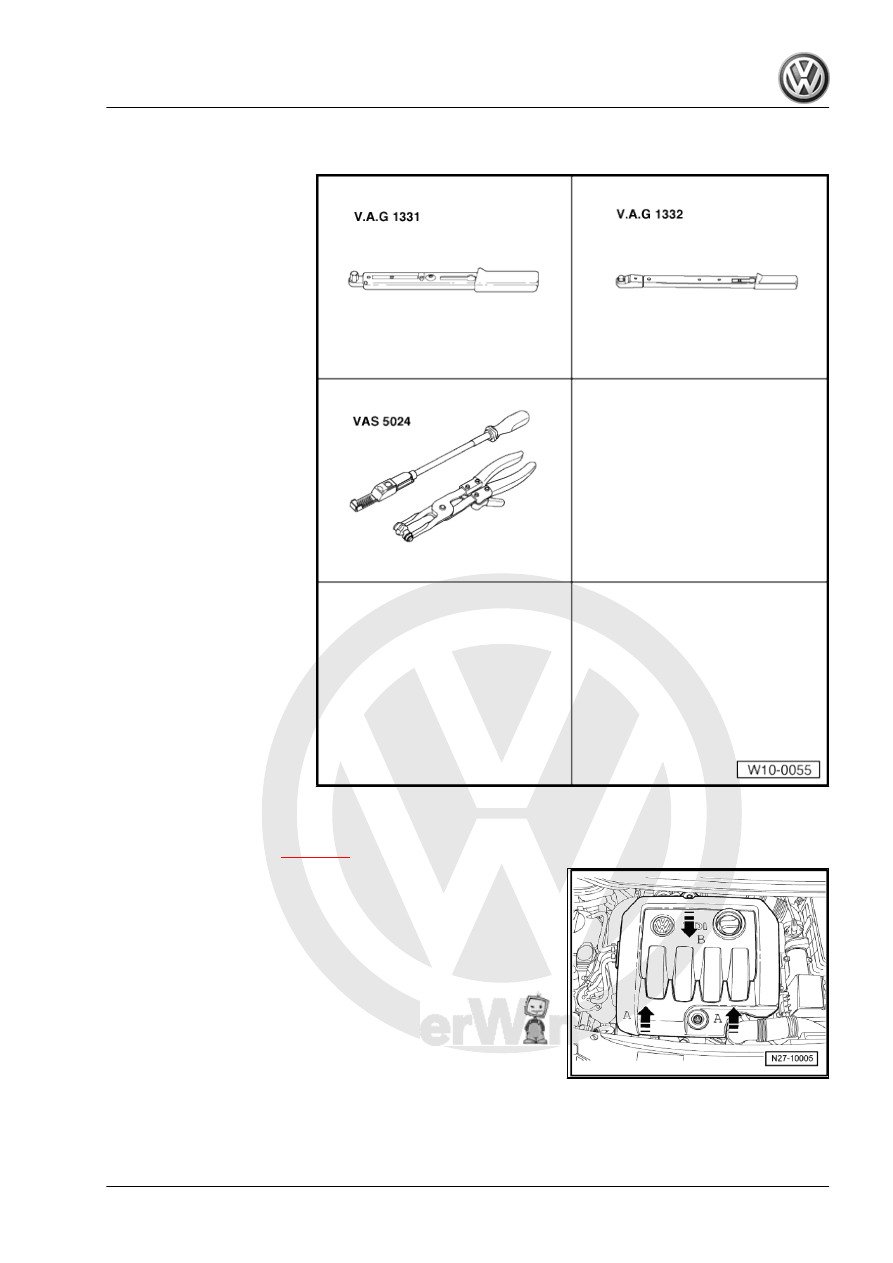

Vehicles with 1.9 l TDI engine

Special tools and workshop

equipment required
♦ Torque wrench -V.A.G

1331-

♦ Torque wrench -V.A.G

1332-

♦ Spring-type clip pliers -VAS

5024-

Removing:
– Disconnect the battery

⇒ page 29

 .

– Pull engine cover upwards -arrows A- and forwards

-arrow B-.

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

89

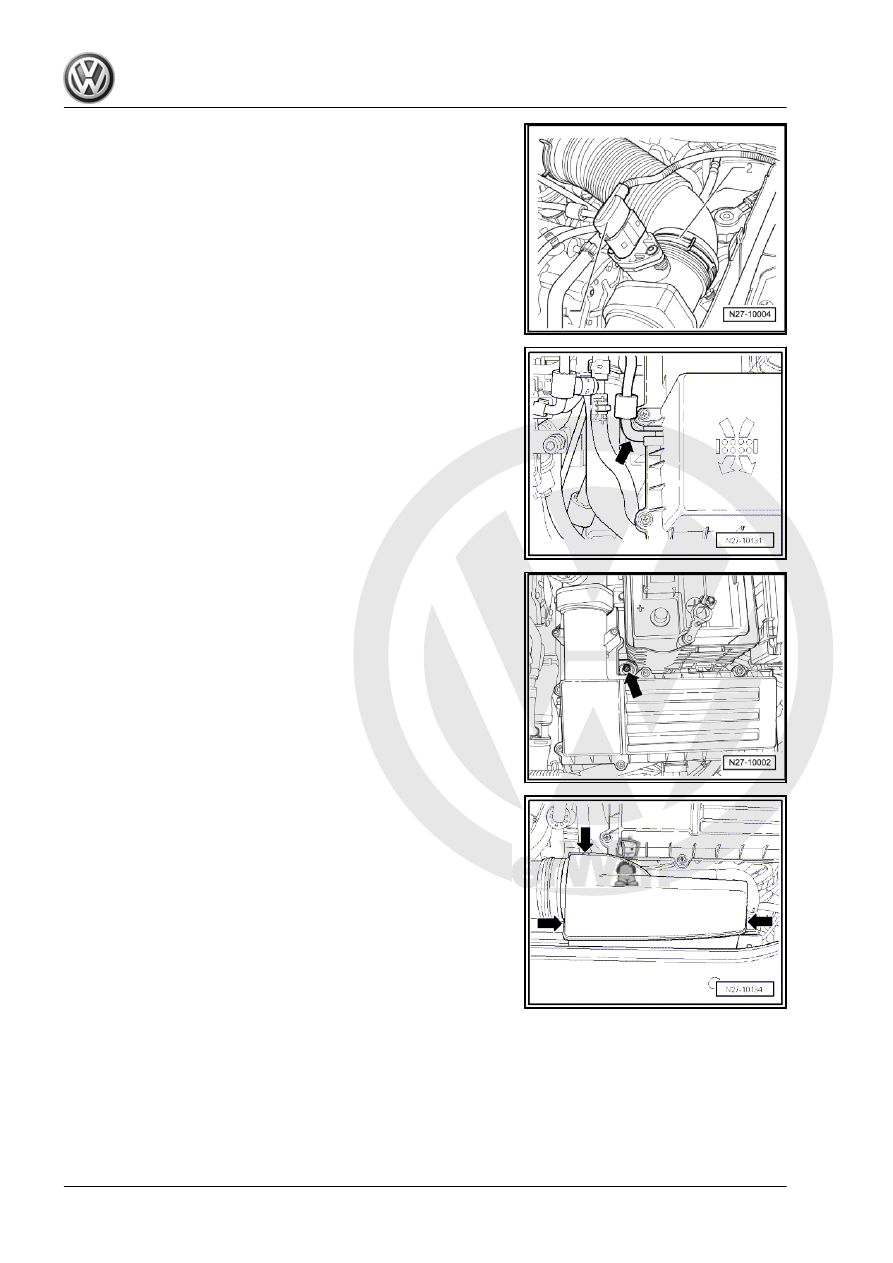

spring type clip pliers -VAS 5024- .

– Pull the vacuum hose -arrow- off air filter housing.

– Unscrew air filter housing securing bolt -arrow-.

– Unlock lugs -arrows- and take cover off.

Jetta 2005 ➤ , Bora 2006 ➤

90

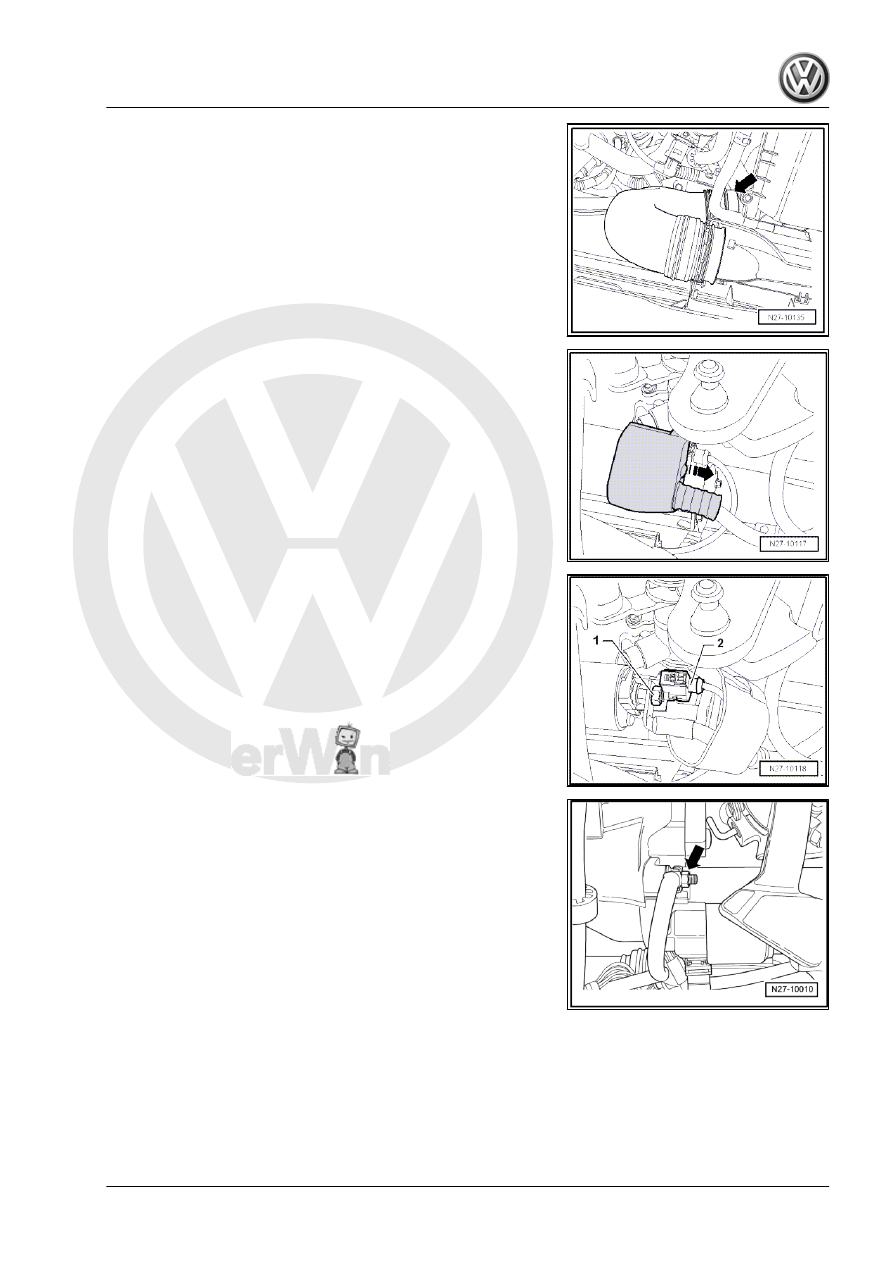

– Push down protective cap -direction of arrow- from solenoid

switch.

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

– Unscrew earth wire from starter securing bolt -arrow-.

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

91

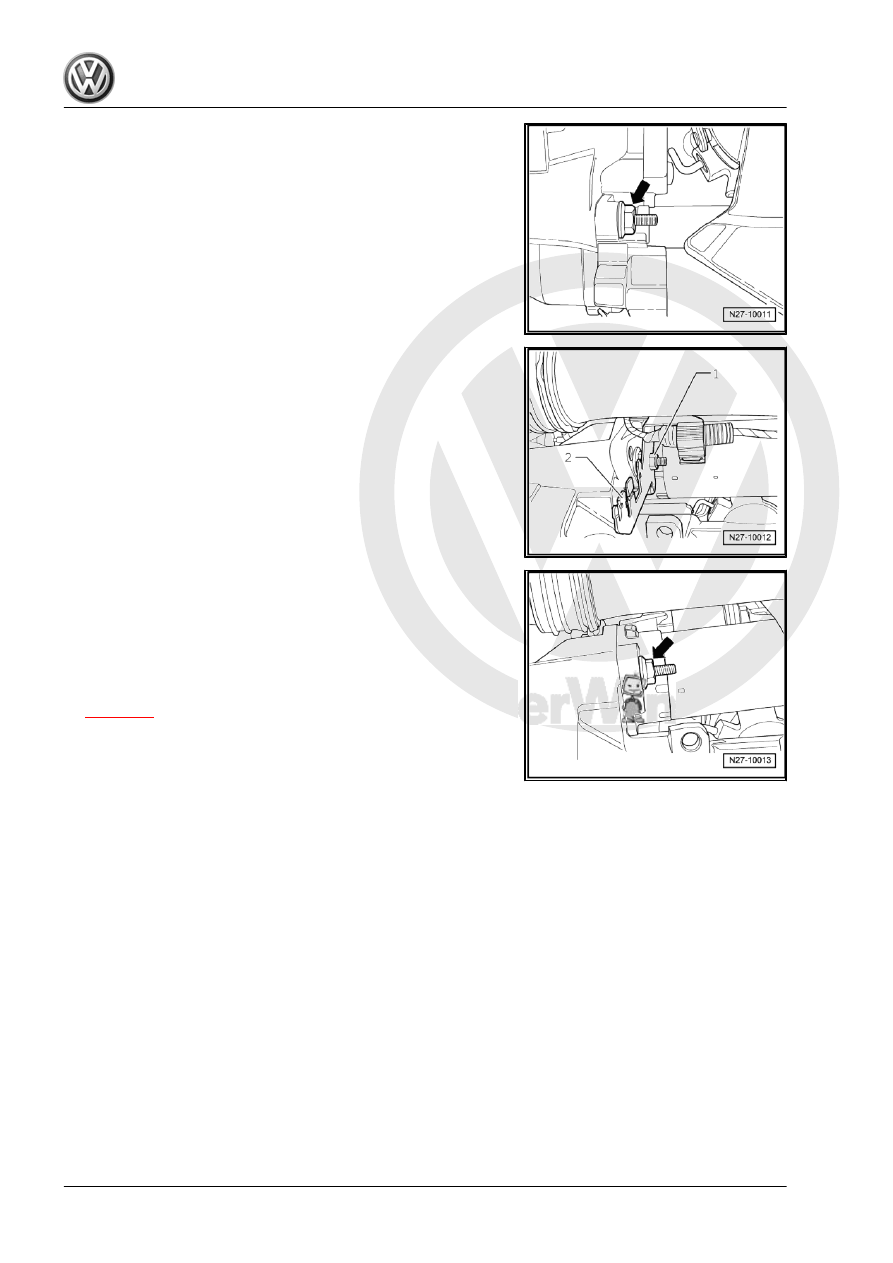

Rep. Gr.  50 ; Body front; Noise insulation .

– Unscrew nut -1- from lower starter securing bolt.
– Remove wiring retainer -2-.

– Unscrew starter securing bolt -arrow-.
– Remove starter.
Installing:
Installation is carried out in the reverse order. When installing,

note the following:
– Tighten threaded connections to specified torque settings

⇒ page 97

 .

Jetta 2005 ➤ , Bora 2006 ➤

92
