minal 50 -2-.

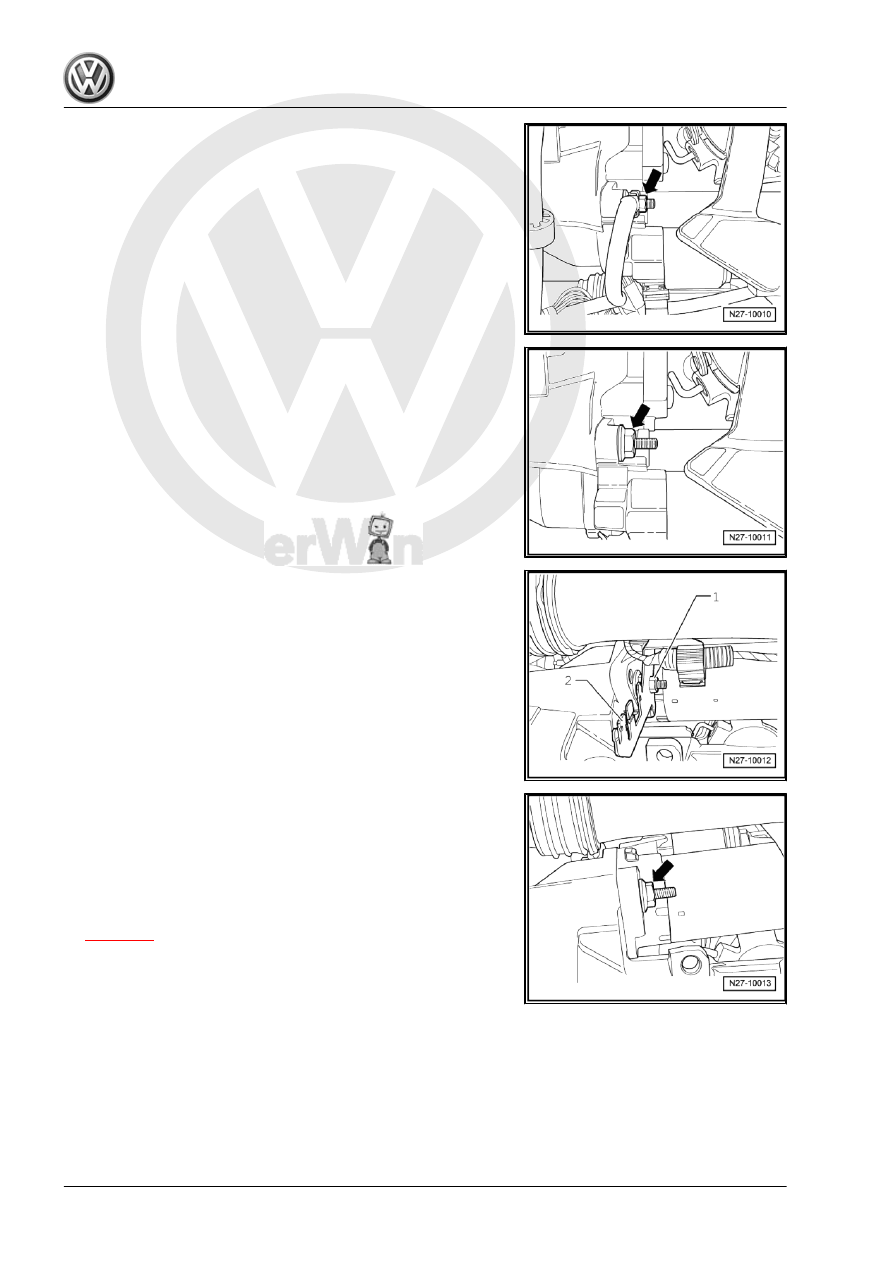

– Unscrew earth wire from starter securing bolt -arrow-.

– Unscrew starter securing bolt -arrow-.
– Remove noise insulation ⇒  General Body Repairs, Exterior;

Rep. Gr.  50 ; Body front; Noise insulation .

– Unscrew securing nut -1- from lower starter securing bolt.
– Remove wiring retainer -2-.

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

85

note the following:
– Tighten threaded connections to specified torque settings

⇒ page 97

 .

7.4.4

Vehicles with 2.5 l engine

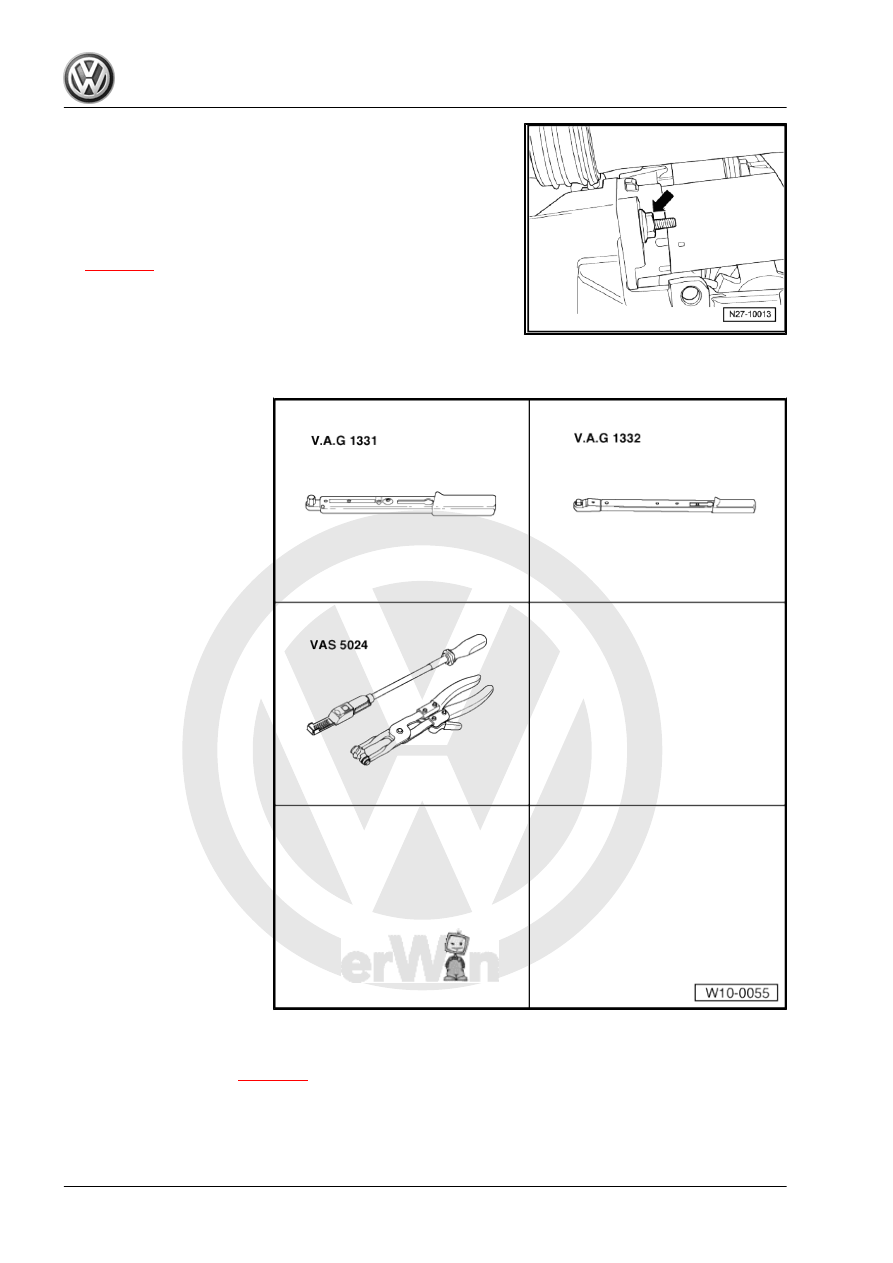

Special tools and workshop

equipment required
♦ Torque wrench -V.A.G

1331-

♦ Torque wrench -V.A.G

1332-

♦ Spring-type clip pliers -VAS

5024-

Removing:
– Disconnect the battery

⇒ page 29

 .

Jetta 2005 ➤ , Bora 2006 ➤

86

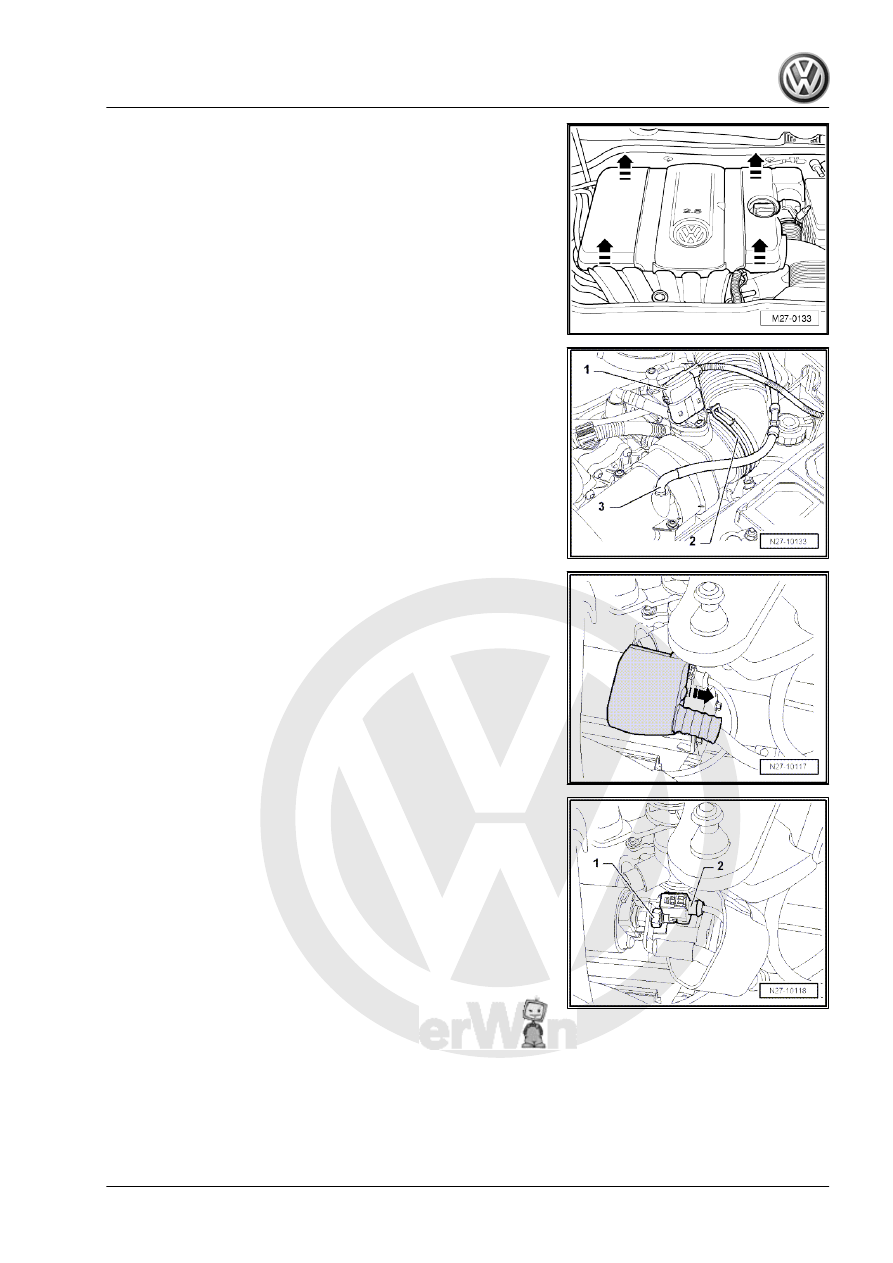

– Separate connector -1-, release spring-type clip -2- with spring

type clip pliers -VAS 5024- and pull off vacuum hose -3-.

– Push down protective cap -direction of arrow- from solenoid

switch.

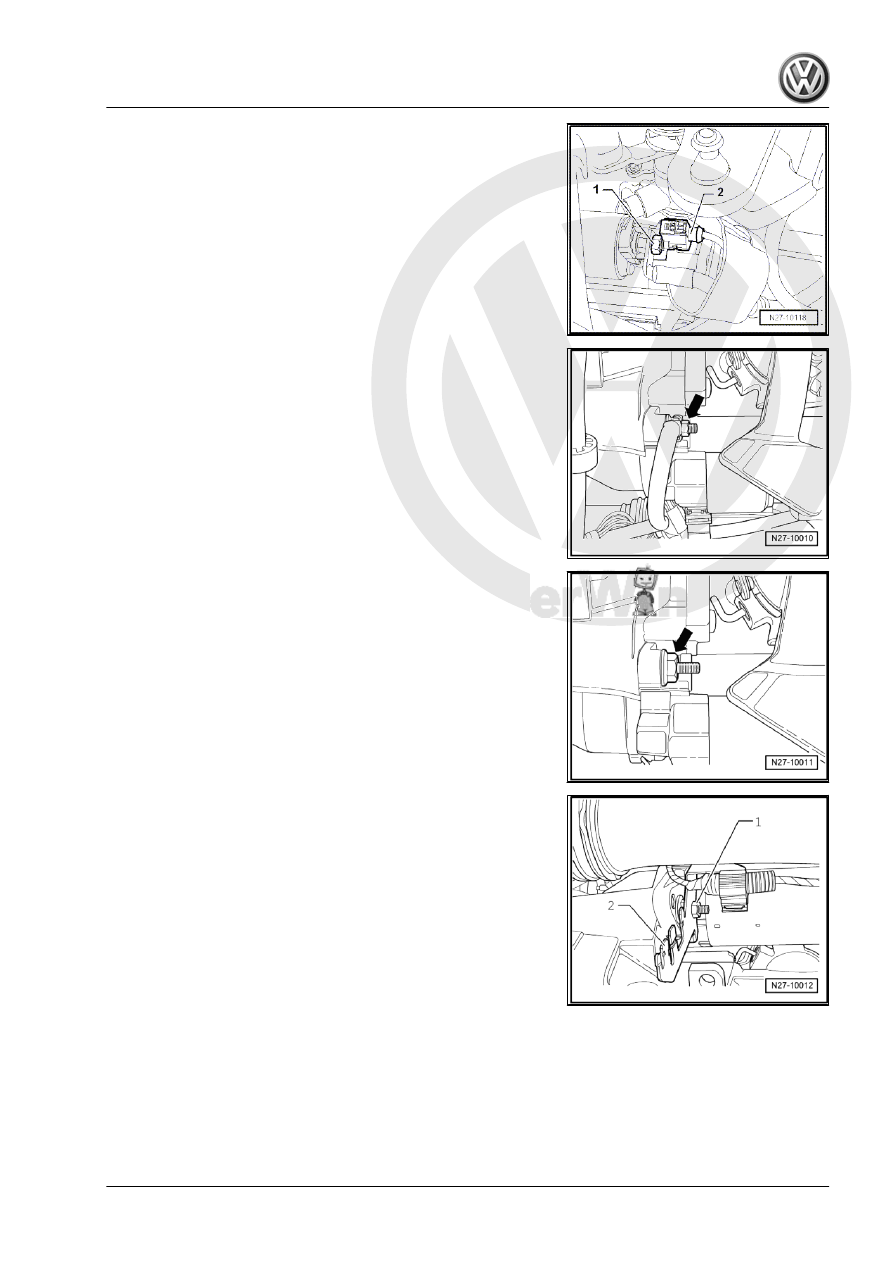

– Unscrew positive wire -1- and disconnect connector from ter‐

minal 50 -2-.

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

87

– Unscrew starter securing bolt -arrow-.
– Remove noise insulation ⇒  General Body Repairs, Exterior;

Rep. Gr.  50 ; Body front; Noise insulation .

– Unscrew nut -1- from lower starter securing bolt.
– Remove wiring retainer -2-.

– Unscrew starter securing bolt -arrow-.
– Remove starter.
Installing:
Installation is carried out in the reverse order. When installing,

note the following:
– Tighten threaded connections to specified torque settings

⇒ page 97

 .

Jetta 2005 ➤ , Bora 2006 ➤

88
