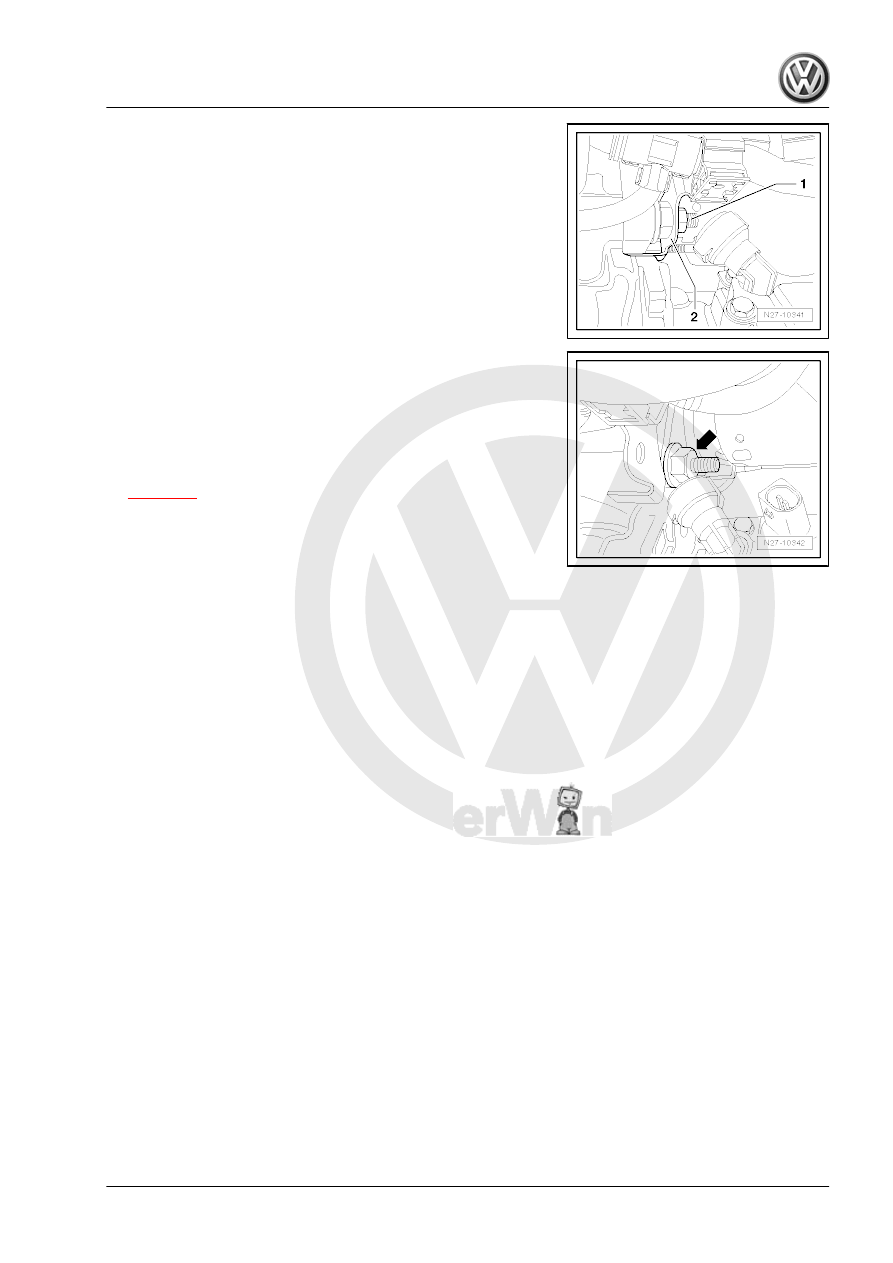

– Remove lower securing bolt of starter -arrow-.
– Remove starter from vehicle downwards.
Installing:
Installation is carried out in the reverse order. When installing,

note the following:
– Tighten threaded connections to specified torque settings

⇒ page 97

 .

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

65

Vehicles with 2.0 l FSI turbo engine

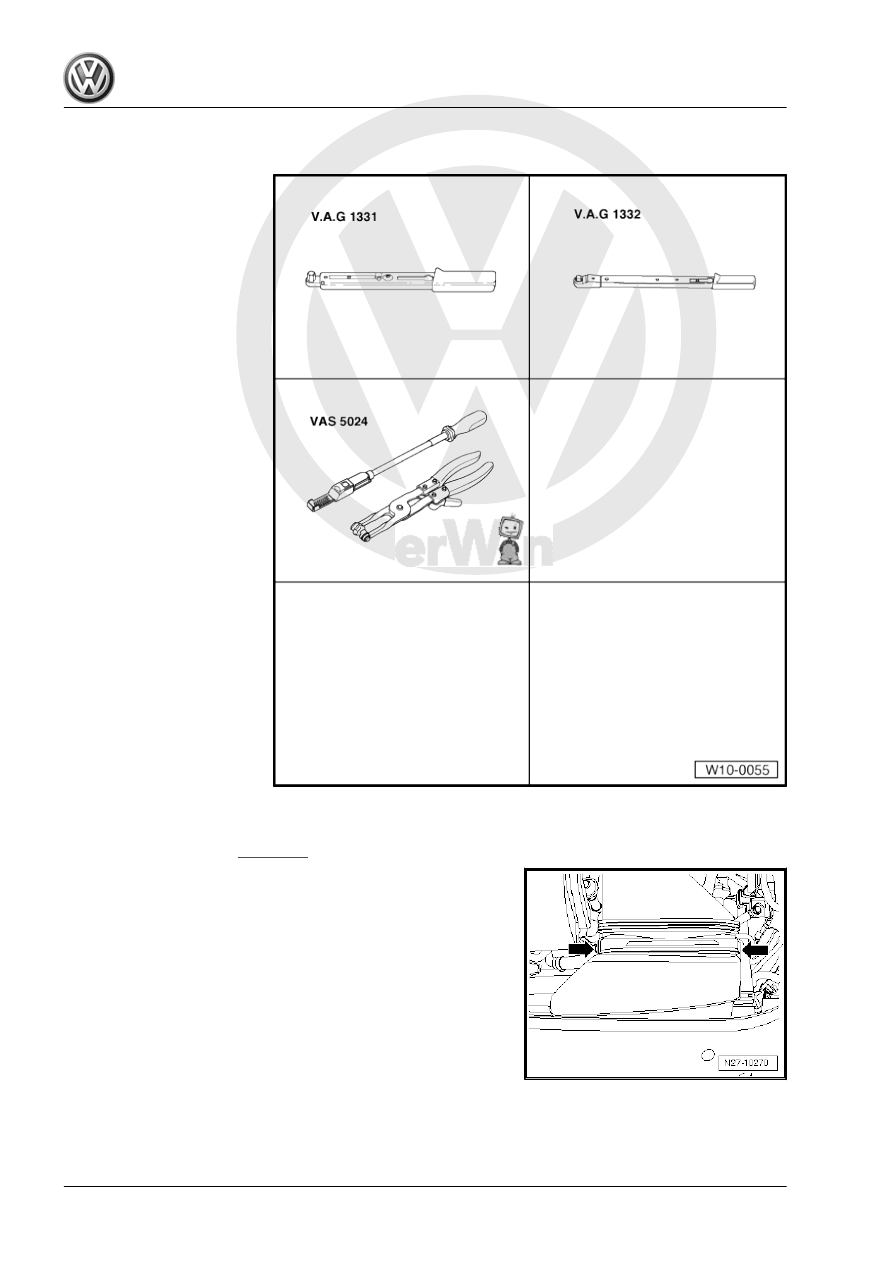

Special tools and workshop

equipment required
♦ Torque wrench -V.A.G

1331-

♦ Torque wrench -V.A.G

1332-

♦ Spring-type clip pliers -VAS

5024-

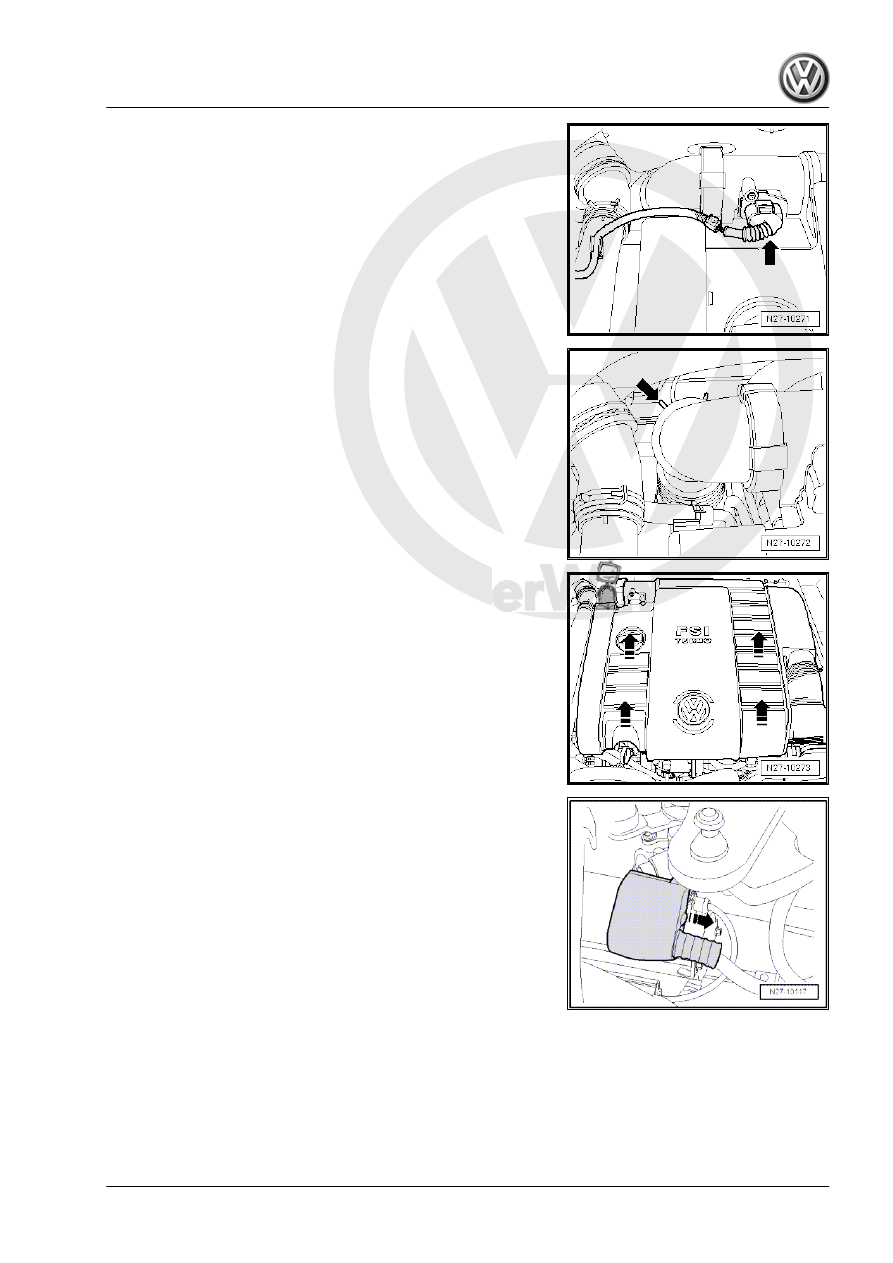

Removing:
– Disconnect the battery

⇒ page 29

 .

– Unbolt securing bolts -arrow-.

Jetta 2005 ➤ , Bora 2006 ➤

66

– Loosen spring-type clips -1- using spring type clip pliers -VAS

5024- .

– Pull engine cover off upwards -arrows-.

– Push down protective cap in -direction of arrow- from solenoid

switch.

Jetta 2005 ➤ , Bora 2006 ➤

7. Starter

67

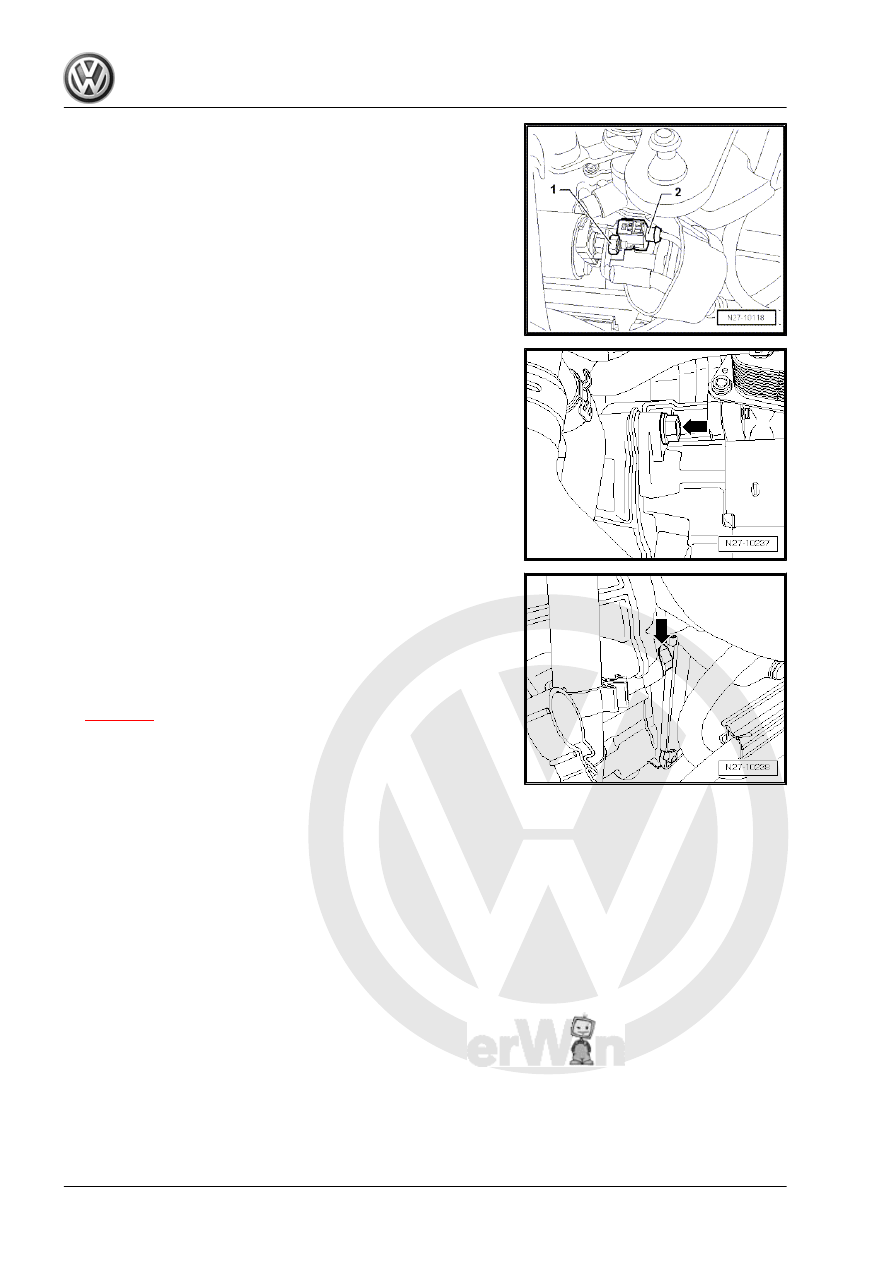

minal 50 -2-.

– Remove upper securing bolt of starter -arrow-.

– Remove lower securing bolt of starter -arrow-.
– Remove starter from vehicle upwards.
Installing:
Installation is carried out in the reverse order. When installing,

note the following:
– Tighten threaded connections to specified torque settings

⇒ page 97

 .
