the next change.
3 - No brake disc wear indicator is visible.
Replace the brake discs.
Remove and install the front brake discs.

4.25.6

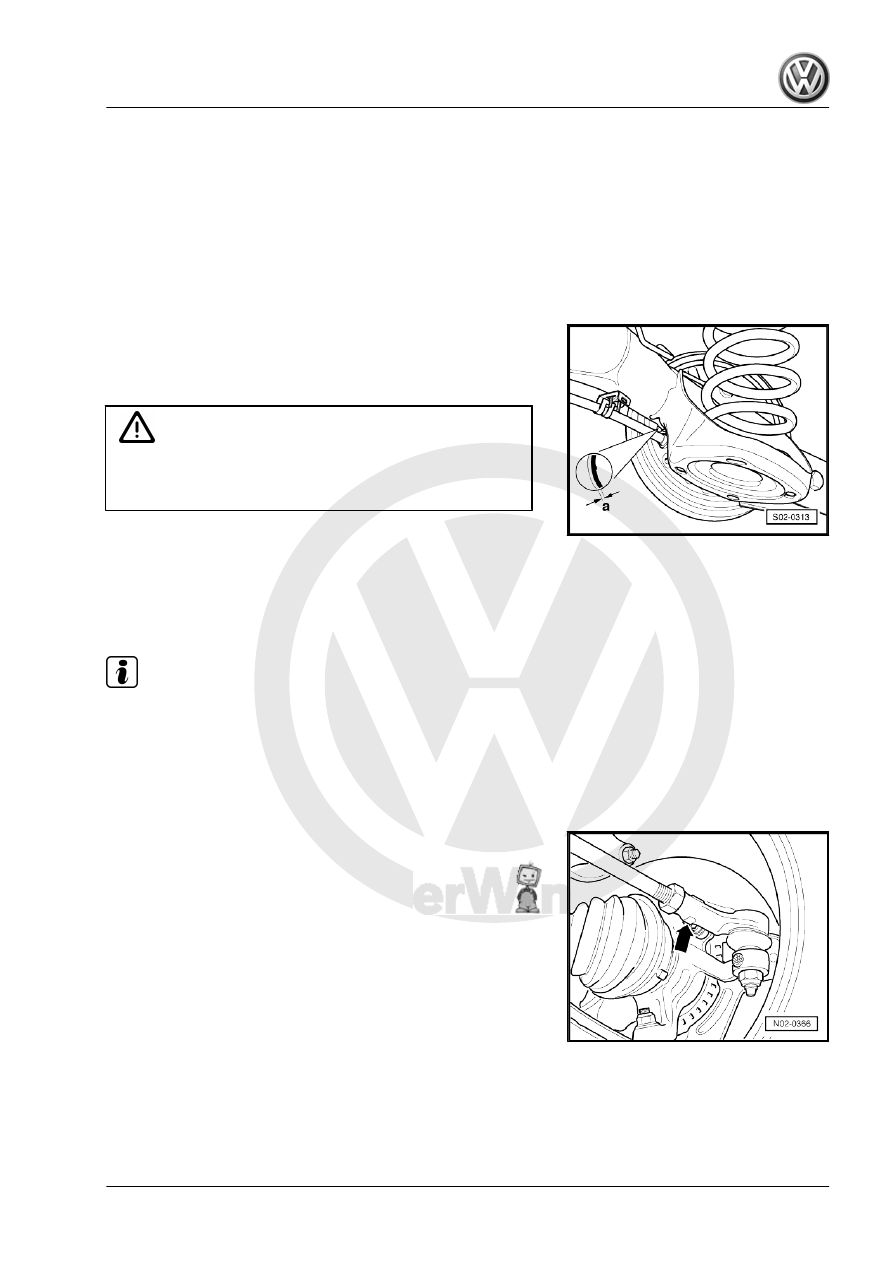

Rear brake lining: check thickness

– Check the brake lining thickness through the inspection eye‐

let-a- or, for clearer verification, remove the rear brake drum⇒

Brake system; Rep. Gr.  46 ; Brakes - Mechanical systems .

Wear limit: 2.5 mm (lining thickness only) or rivet height.

WARNING

If  the  wear  limit  has  been  reached,  replace  the  linings  (re‐

placement measure). The client should be informed!⇒  Brake

system; Rep. Gr.  46 ; Brakes - Mechanical systems

4.26

Lower body section protection - make a

visual inspection for damage

During a visual inspection, you must check the floor, the wheel

housing and the lower longitudinal members!

Note

The existing faults must be eliminated (repair measure). This may

prevent oxidation and perforating corrosion.

4.27

Steering bar tips - check clearance, fas‐

tening and sealing bellows

Carry out work sequence as follows:
– With the vehicle lifted (with wheels hanging freely), check the

bars' side movements for clearances -arrow-.

– Check the fastening.
– Check the sealing bellows for damage and proper adjustment.

FOX 2004 ➤

4. Service descriptions

73

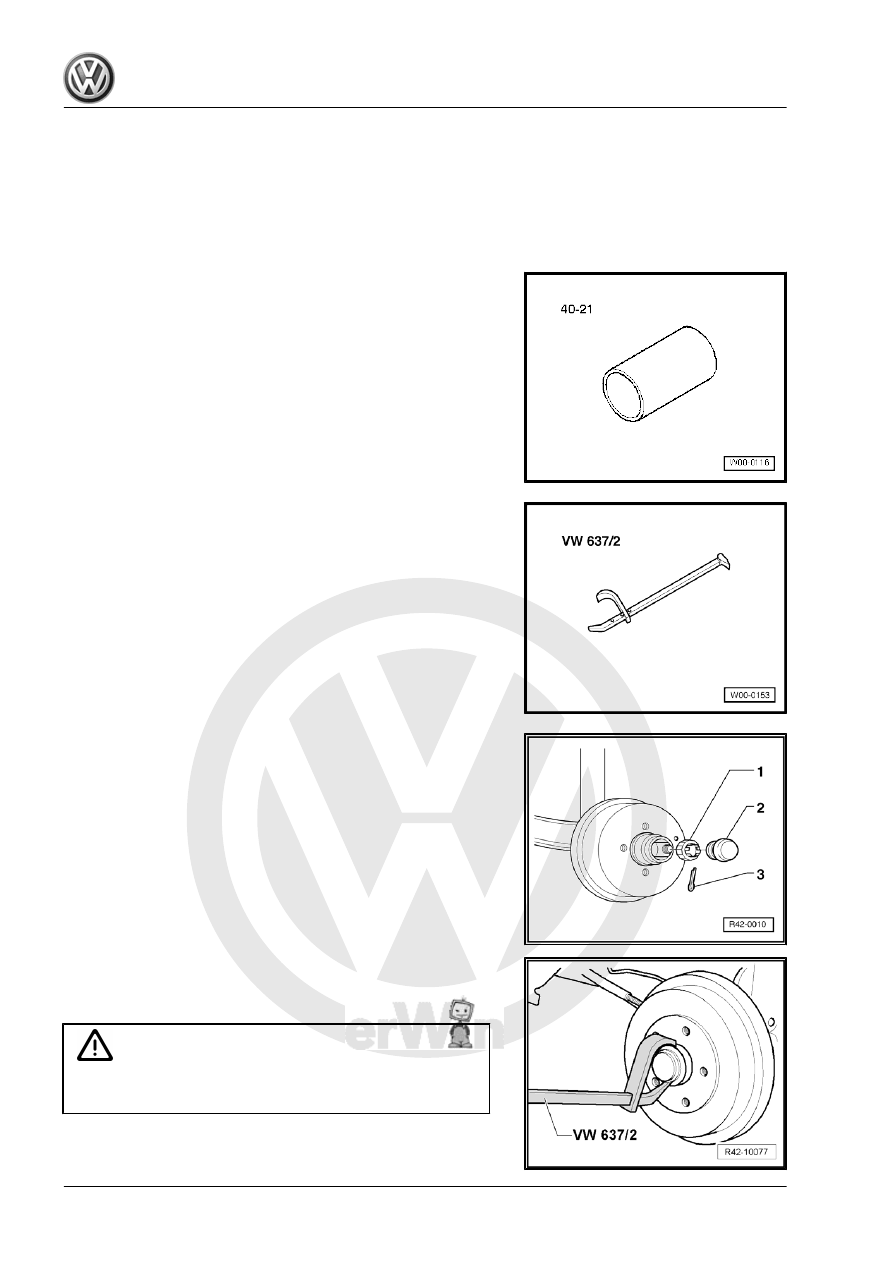

Rear wheels: adjust the roller bearing

clearance (only for vehicles without ABS

and equipped with the engines: AQZ,

BAH, ASY, BLH, and CFZA from

07/01/2007.

Special tools and workshop equipment required
♦ Supporting tube -40-21-

♦ Hub nut protector puller -VW 637/2- .

Rear wheel hub
1 - Ring gear.
2 - Wheel hub protector, must be replaced after removal.
3 - Cotter pin, must be replaced after removal.
Removal of the wheel is necessary only for vehicles with alloy

rims.

– Remove wheel hub protector -2-, with the extractor of the hub

nut protectors -VW 637/2- .

– Remove cotter pin -3- and ring gear -1-.

Caution

It is necessary that the washer presents a radial motion exactly

according to the following procedure.

FOX 2004 ➤

74

    4. Service descriptions

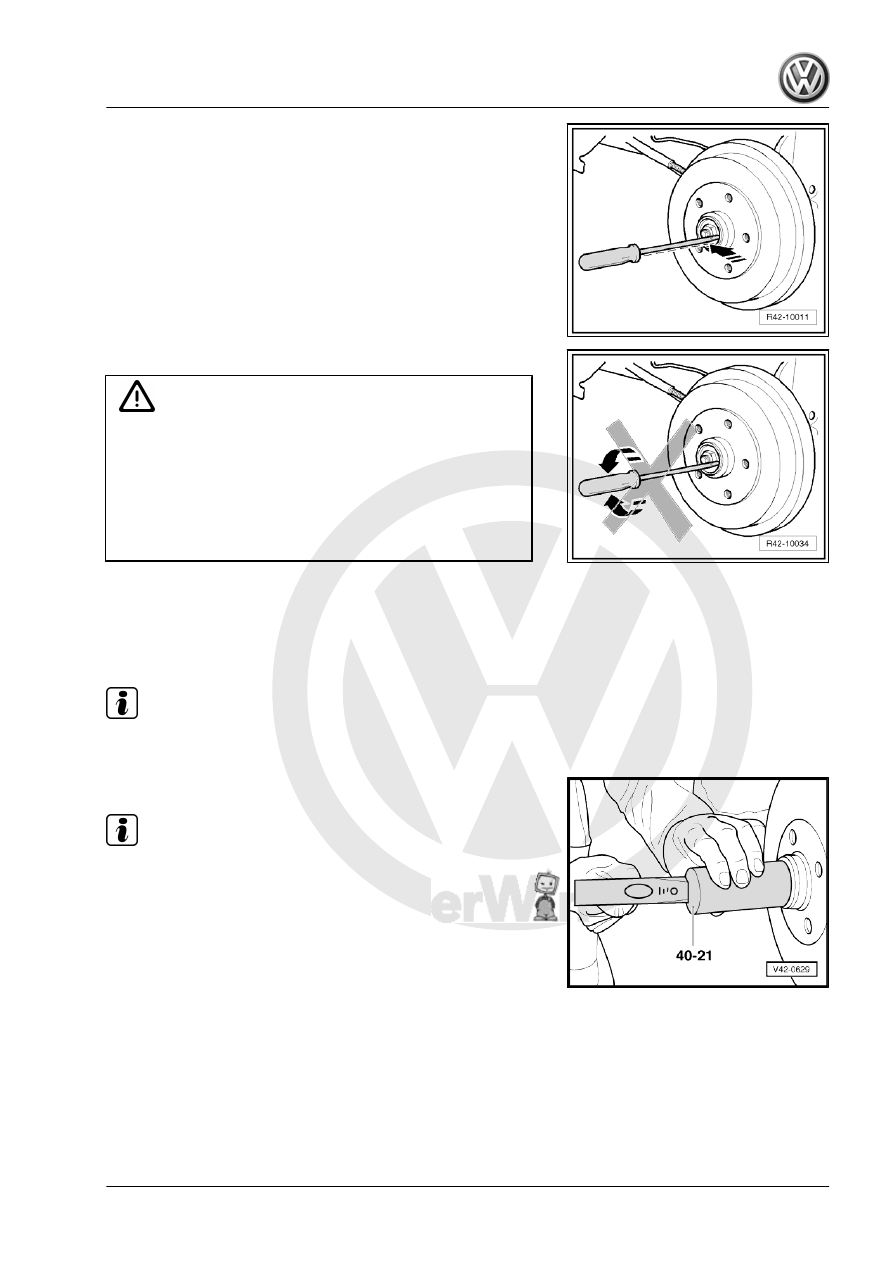

the washer -arrow-, and simultaneously check its radial move‐

ment with light pressure of your index applied on a screwdriv‐

er.

– Never turn -arrows- or leverage the screwdriver.

WARNING

The screwdriver should touch only the washer and never the

outer roller bearing of the wheel.
Never rotate or leverage with the screwdriver, assuring that the

screwdriver does not touch the brake drum hub on no account.
If the notes above are not strictly followed, the adjustment of

bearing end clearance will be jeopardized (it can lead to noises

and breakage of bearings).

– Install the ring gear in order to allow assembling the cotter pin.
– Check the regulation again.
– The washer must move radially with a slight pressure of your

index applied on a screwdriver.

Note

After removed, the cotter pin must be replaced.

– Install wheel hub protector with the Support tube -40-21-

Note

The wheel hub cover must be replaced with every removal

FOX 2004 ➤

4. Service descriptions

75

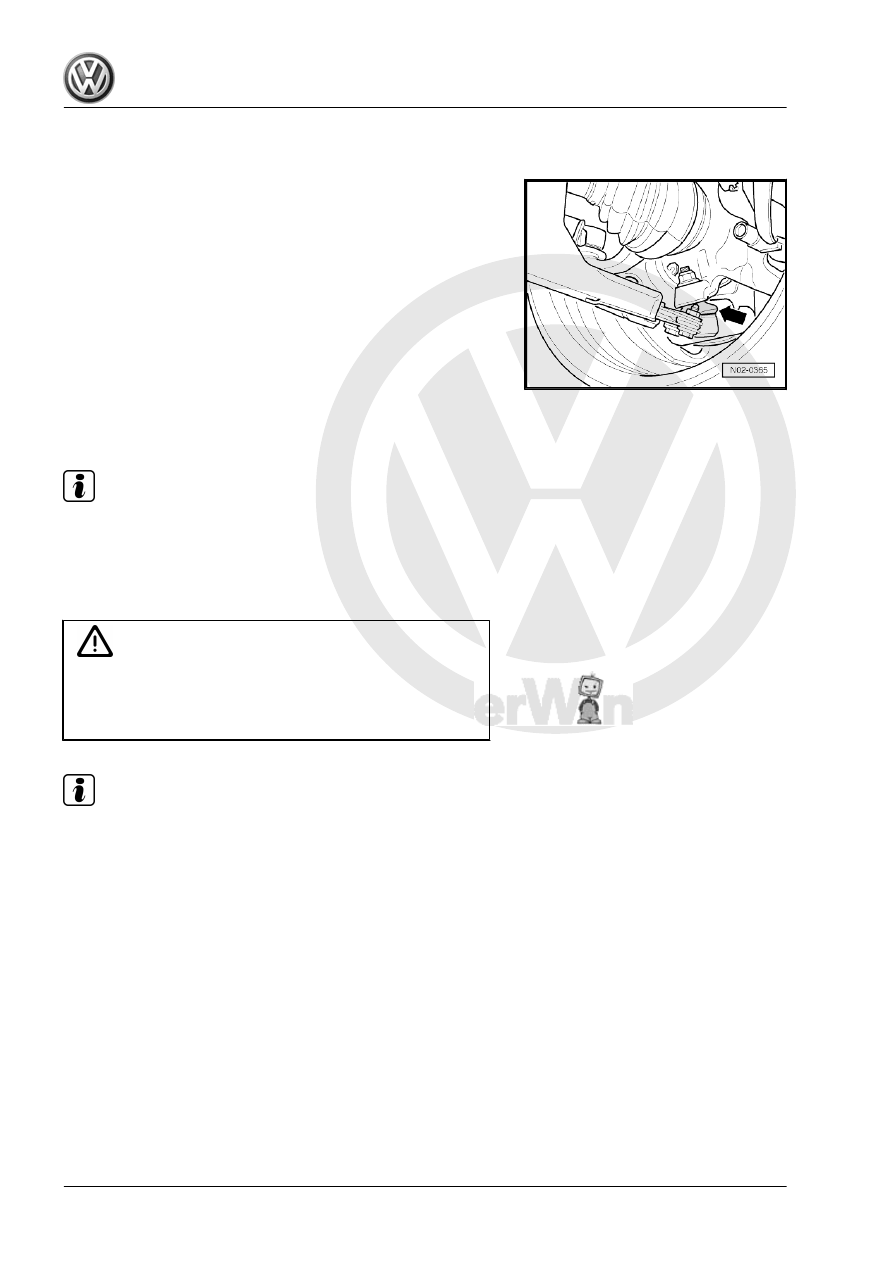

Suspension arm joints - visual inspec‐

tion

– Check the sealing bellows in the suspension arm joints

-arrow- for damage and leaks.

4.30

Cooling system - check the antifreeze

additive and the coolant level

Note

♦

All engines are supplied with radiator antifreeze additive and

anti-corrosion G 12 - according to TL VW 774 F (lilac color).

Make sure that only G 12 is replenished.

♦

Do not mix with the G 11 antifreeze additive, blue or green

colors.

WARNING

The coolant additive G 12 cannot be mixed with other additives.

When they are mixed, severe damage is caused to the engine.

If a mix is detected (brown color), the coolant must be imme‐

diately replaced (repair measure).

Note

♦

The G 12 as permanent filling (does not require replacement)

is adequate for cast iron and aluminum engines, and protects

the engine against freezing, damage from corrosion, lime‐

stone build-up and overheating.

♦

The G 12 raises the boiling point to 275°F and provides better

heat dissipation.

♦

The coolant ratio must be at least 40% (antifreeze protection

to - 77ºF) and it must not exceed 60% (antifreeze protection

to - 104ºF), otherwise the antifreeze protection is reduced and

also the cooling operation is worsened.

4.30.1

Check the antifreeze protection and re‐

plenish the cooling system, if necessary

Special tools and workshop equipment required
