Currently, no repairs can be made to

gears and shafts

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

1. Currently, no repairs can be made to gears and shafts

113



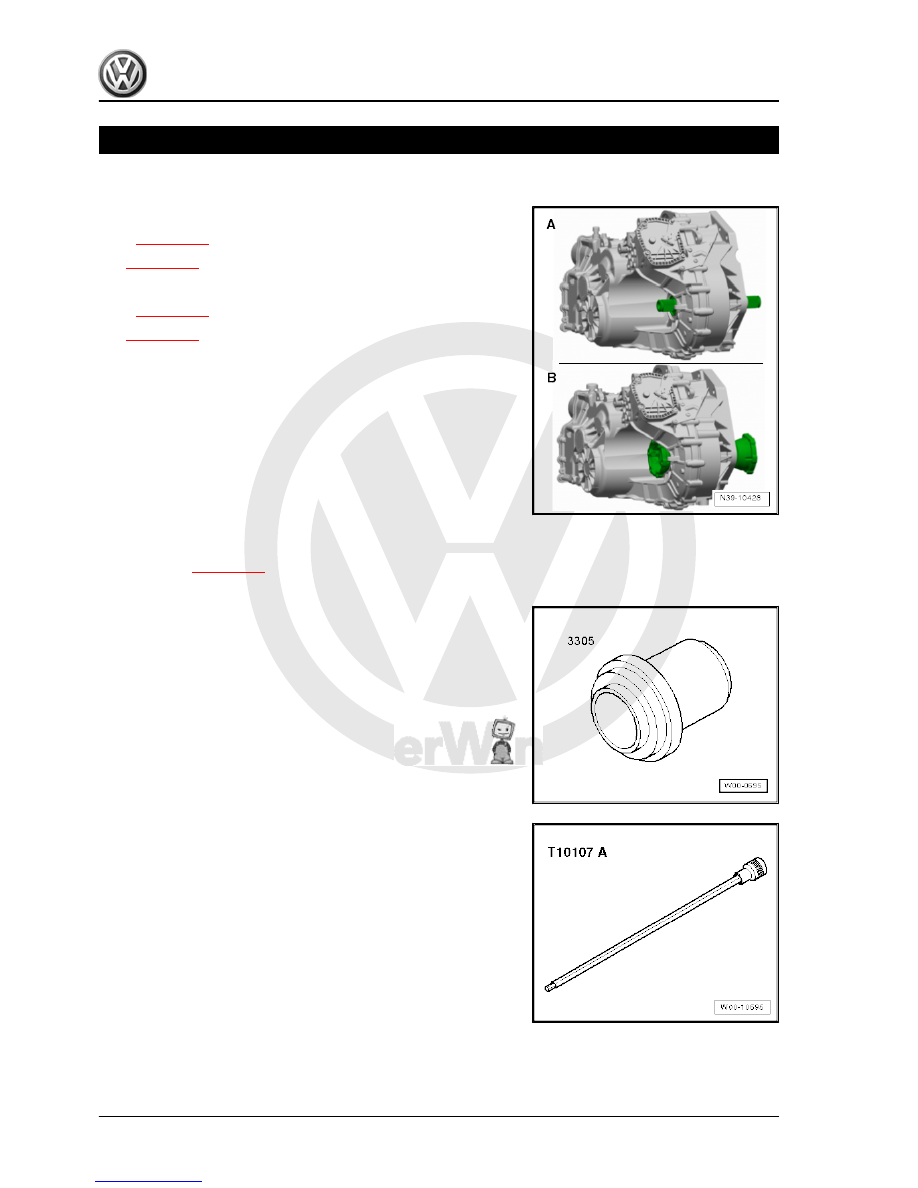

Oil seals

Gearbox with stub shafts -A-.
Right

⇒ page 114

Left

⇒ page 116

Gearbox with flange shafts -B-.
Right

⇒ page 118

Left

⇒ page 120

1.1

Renewing oil seal for right stub shaft

Left-hand side

⇒ page 116

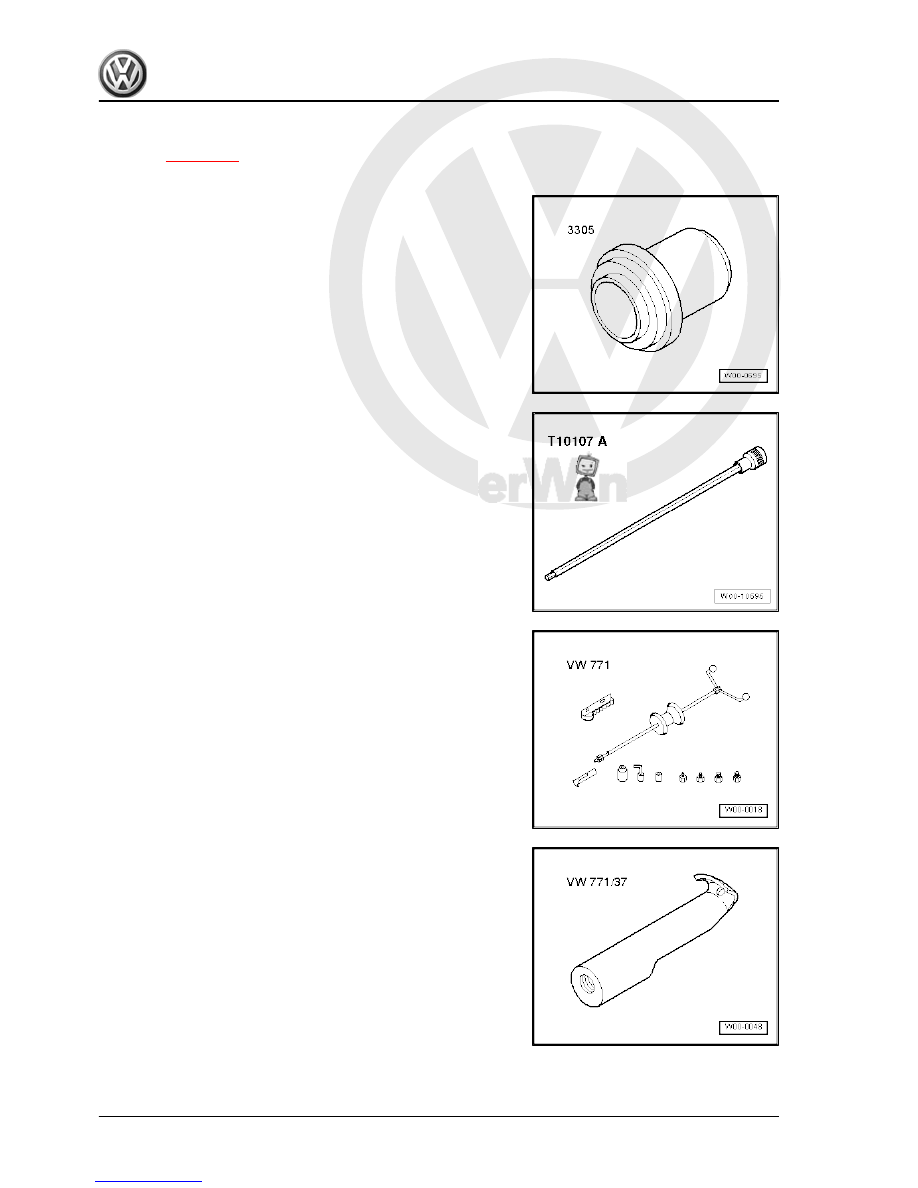

Special tools and workshop equipment required
♦ Thrust piece -3305-

♦ Hexagon key -T10107 A- or socket and extended bit -V.A.G

1669-

♦ Torque wrench -V.A.G 1331-
♦ Torque wrench -V.A.G 1332-

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

114



♦

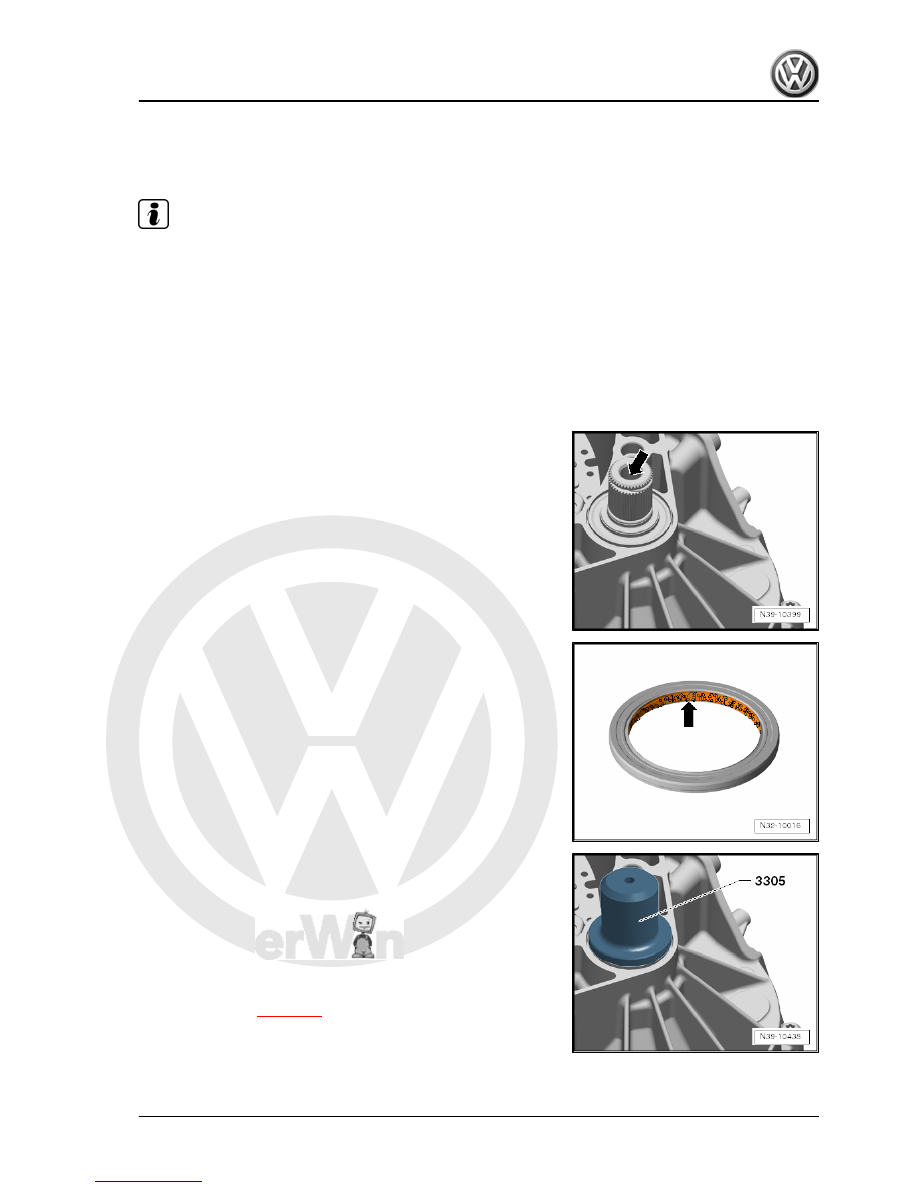

Do not remove both drive shafts from gearbox at the same

time. If you do so, it will no longer be possible to hold the op‐

posite front wheel fixed for removing or installing the bolts of

the stub shafts.

♦

Do not remove both stub shafts from gearbox at the same time.

If the differential bevel gears turn, it is difficult to reinstall the

securing bolts for the stub shafts.

drive shafts .

– Place drip tray under gearbox.
– Remove bolt -arrow- in stub shaft with socket -T10107 A- or

socket -V.A.G 1669- .

– Pull out stub shaft.
– Pry seal out using assembly lever.
– Lightly oil outer circumference of new oil seal.

– Half fill space between sealing lip and dust lip with sealing

grease -G 052 128- -arrow-.

– Drive in new seal to stop, being careful not to cant seal.
If necessary, it is possible to press a new dust ring onto the stub

drive shafts .

– Renew gear oil

⇒ page 30

 .

sembly overview - noise insulation .

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

1. Oil seals

115



Right side

⇒ page 114

 .

Special tools and workshop equipment required
♦ Thrust piece -3305-

♦ Hexagon key -T10107 A- or socket and extended bit -V.A.G

1669-

♦ Multipurpose tool -771-

♦ Puller hooks -771/37-

♦ Torque wrench -V.A.G 1331-

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

116
