Volkswagen Golf Variant, Jetta. Manual - part 28

M12 - 80 Nm

❑ If 18 mm insert -T10179-

is used: 65 Nm.

M10 - 40 Nm
- Arrows point towards dowel

sleeves

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

4. Removing and installing gearbox

109

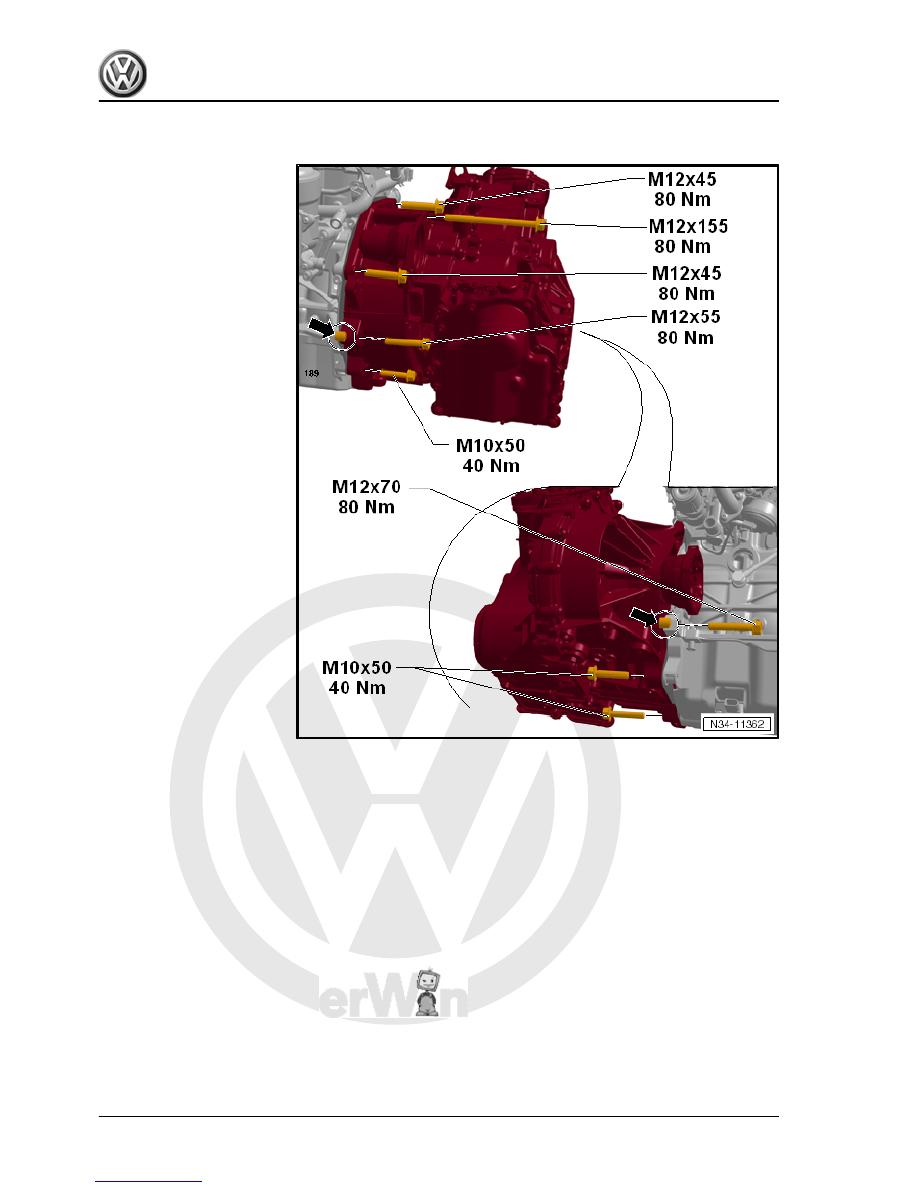

M12 - 80 Nm

❑ If 18 mm insert -T10179-

is used: 65 Nm.

M10 - 40 Nm
- Arrows point towards dowel

sleeves

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

110



to assembly stand

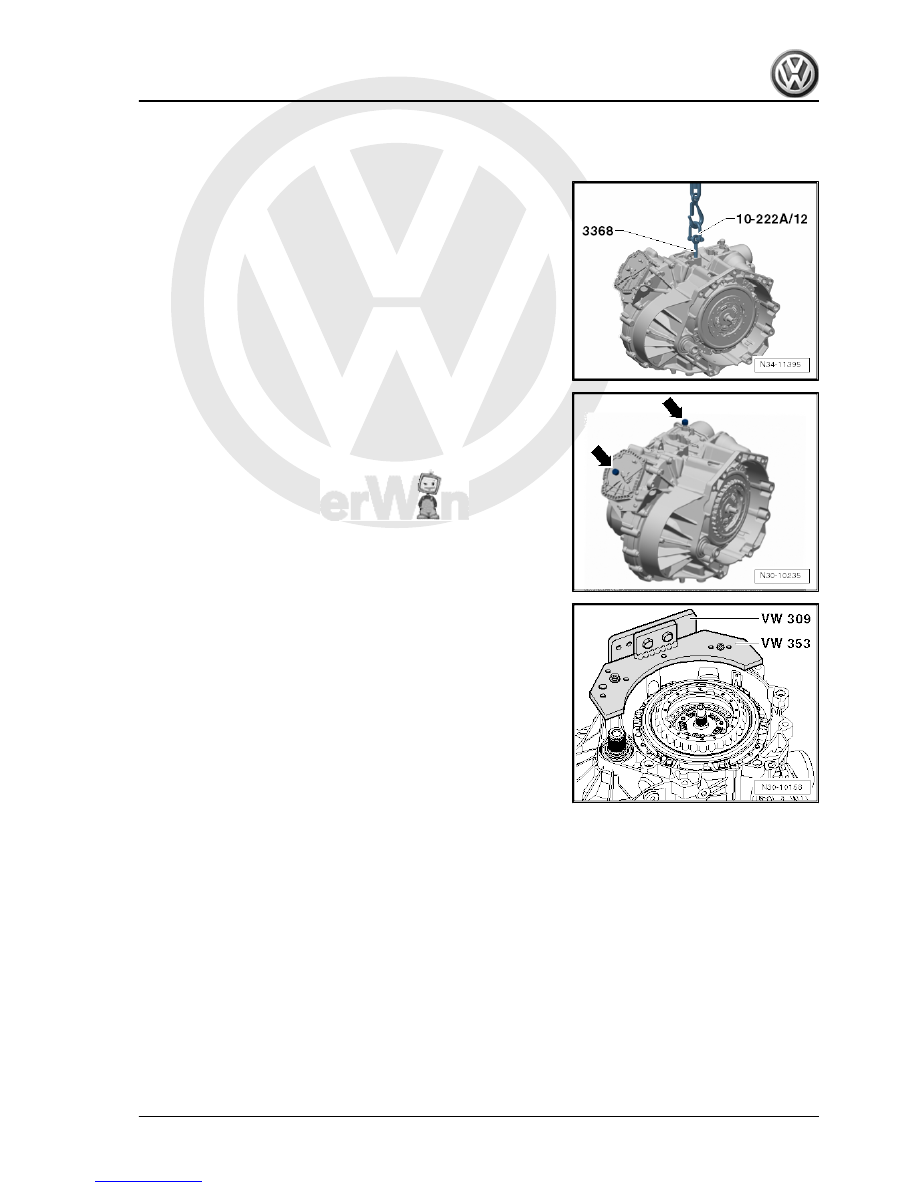

Transporting gearbox

– Pull off both breather caps -arrows- and close using suitable

plugs to achieve an oil-tight seal.

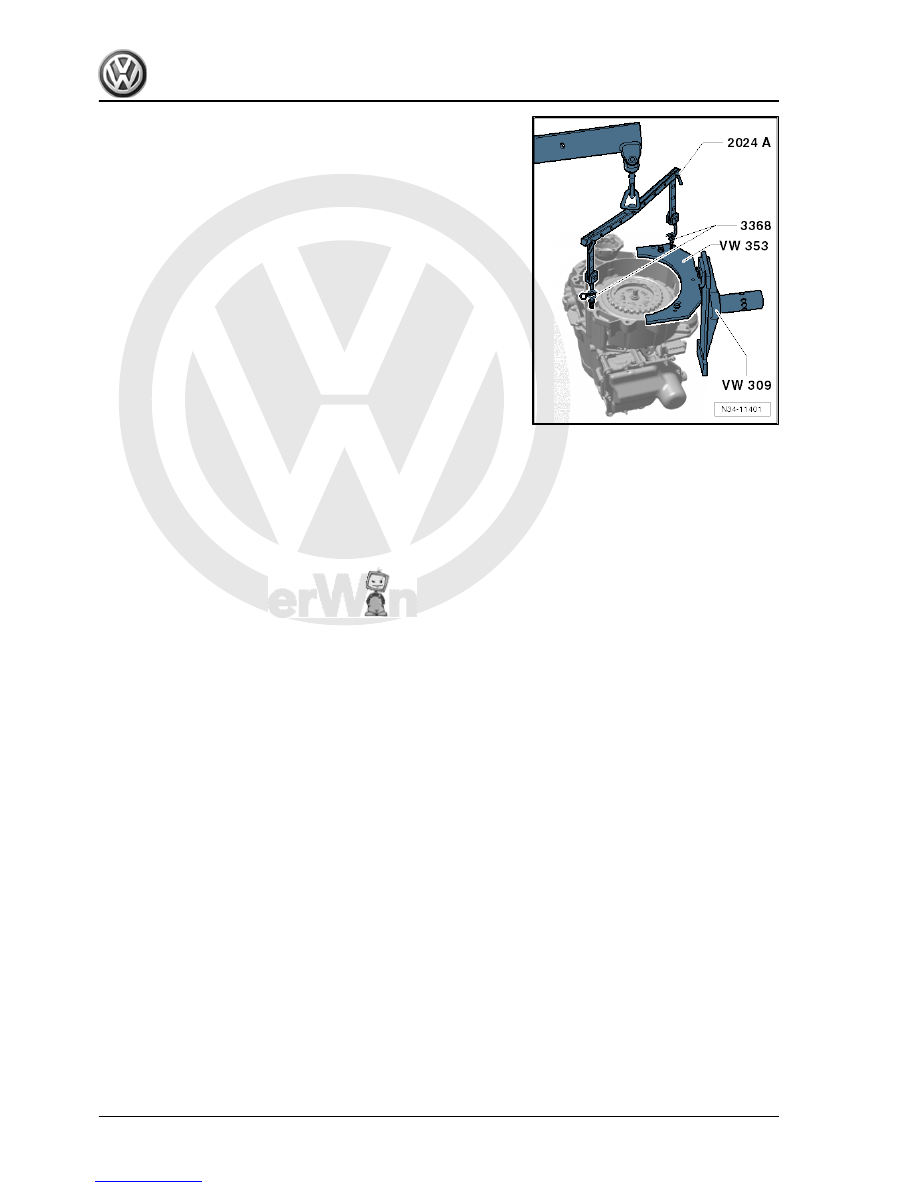

Secure gearbox on gearbox support -VW 353-

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

5. Transporting gearbox and securing to assembly stand

111



Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

112
