Volkswagen Golf Variant, Jetta. Manual - part 15

3. Mechatronic unit for dual clutch gearbox J743

57



Caution

• Housing rib and groove of lever must be flush with one

another. Do not insert tool as far as stop.

– Apply a bit of force to tip of lever when turning.
This stops lever from slipping out when turning.

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

58



Do not take out assembly lever -T10407- . It must remain inserted

between engaging lever and gearbox housing for the entire proc‐

ess.

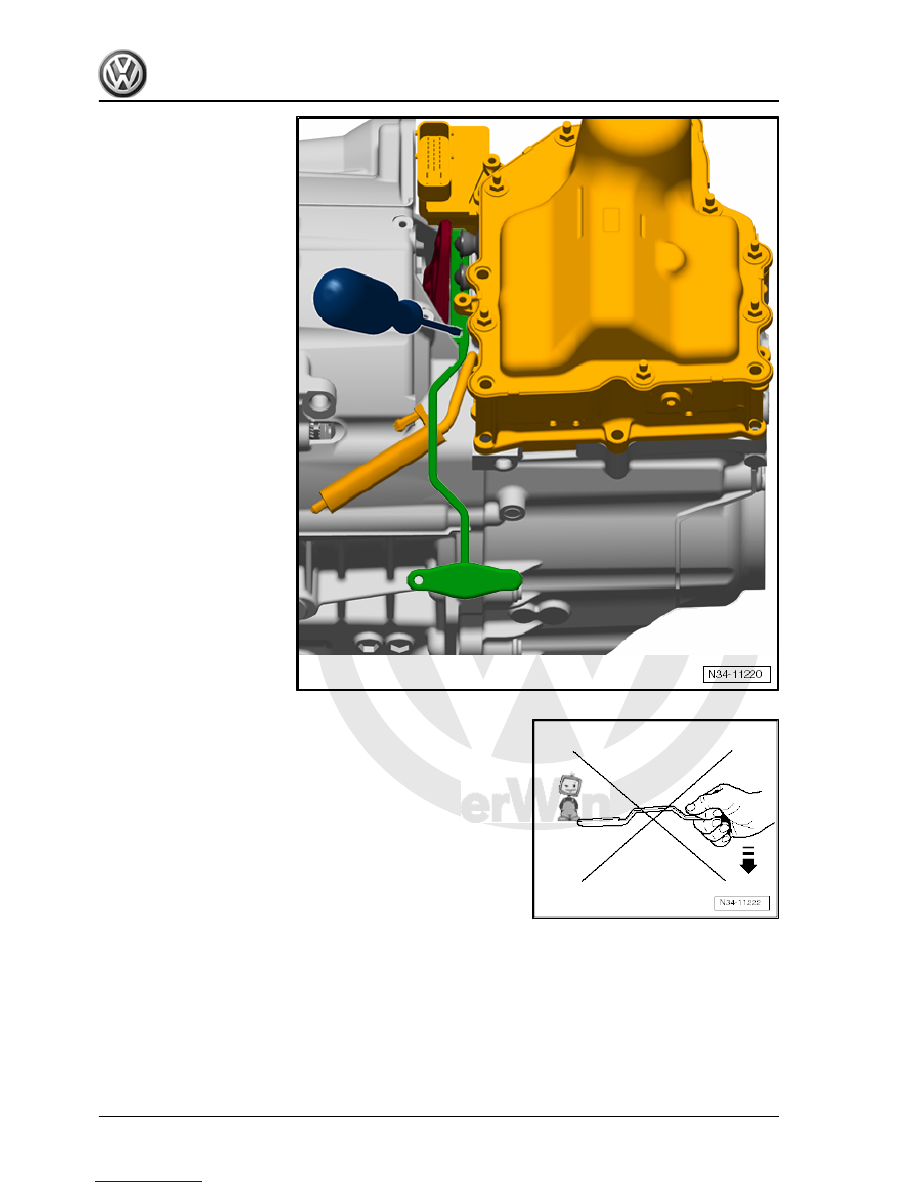

– If necessary, press assembly lever -T10407- against gearbox

using a screwdriver.

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

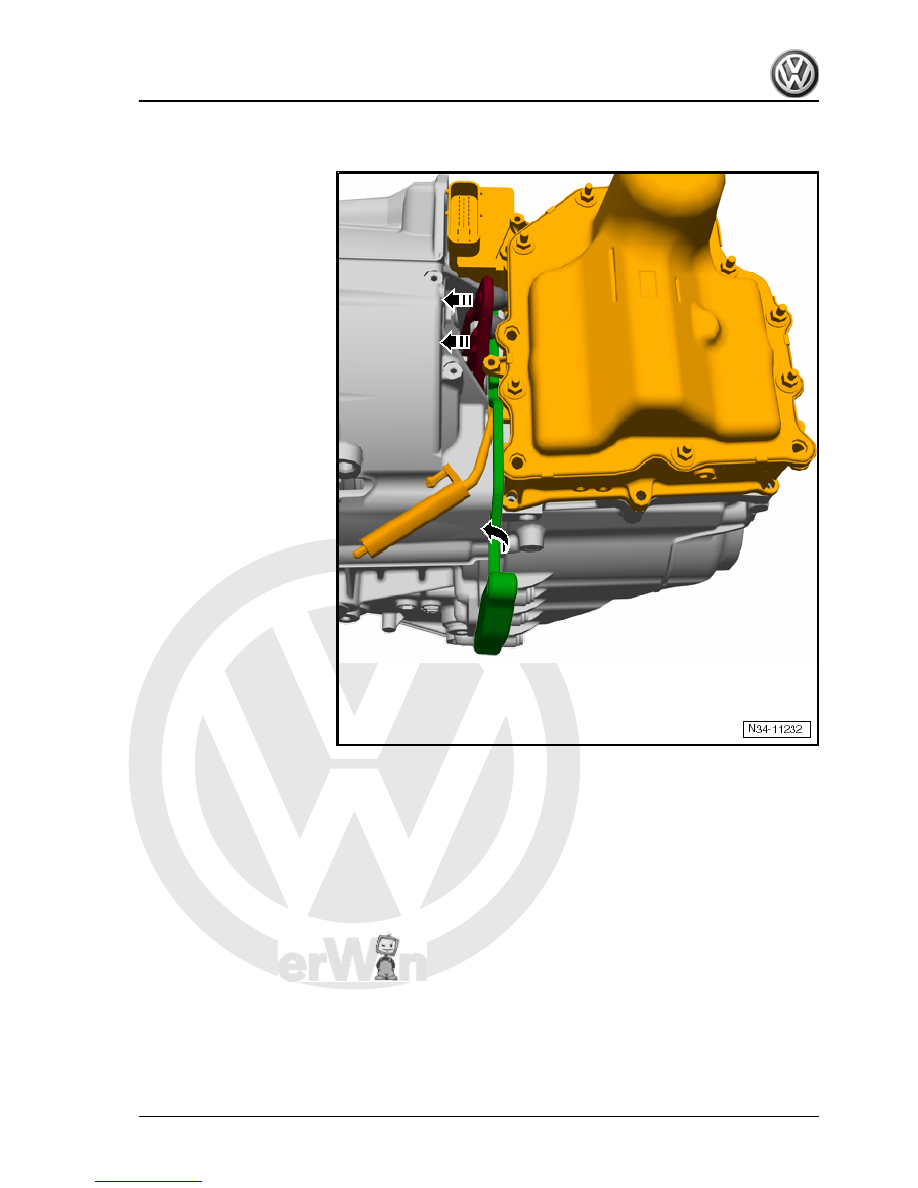

3. Mechatronic unit for dual clutch gearbox J743

59



Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

60
