2. Selector mechanism

49



box -J743-

Safety note on mechatronic unit for dual clutch gearbox -J743-

⇒ page 50

Overview - mechatronic unit

⇒ page 51

Remove mechatronic unit for dual clutch gearbox -J743-

⇒ page 52

 .

Move mechatronic unit for dual clutch gearbox -J743- into “re‐

moval position” by hand

⇒ page 62

 .

Install mechatronic unit for dual clutch gearbox -J743-

⇒ page 65

 .

View of selector forks with mechatronic unit removed

⇒ page 72

3.1

Safety note on mechatronic unit for dual clutch gearbox -J743-

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

50



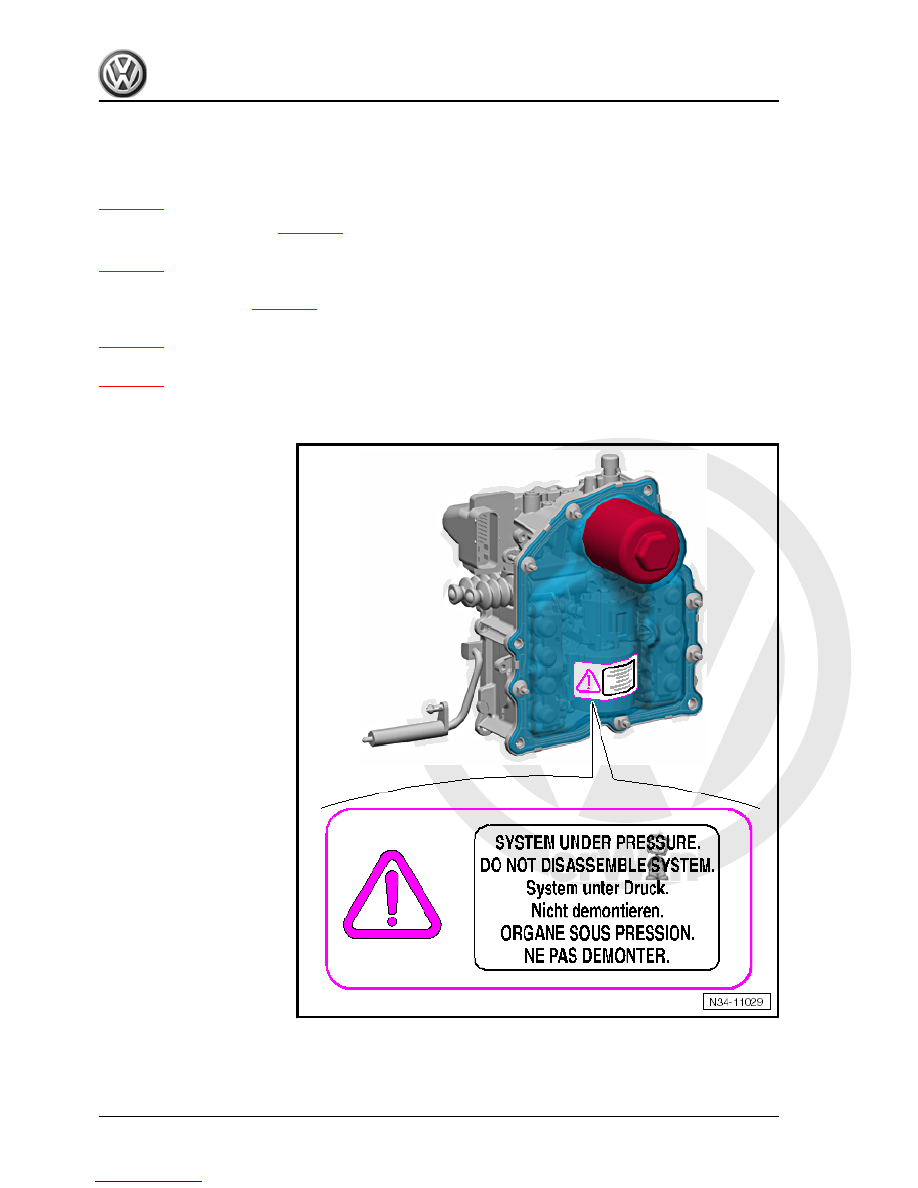

der pressure and is not allowed to be opened.

3.2

Overview - mechatronic unit

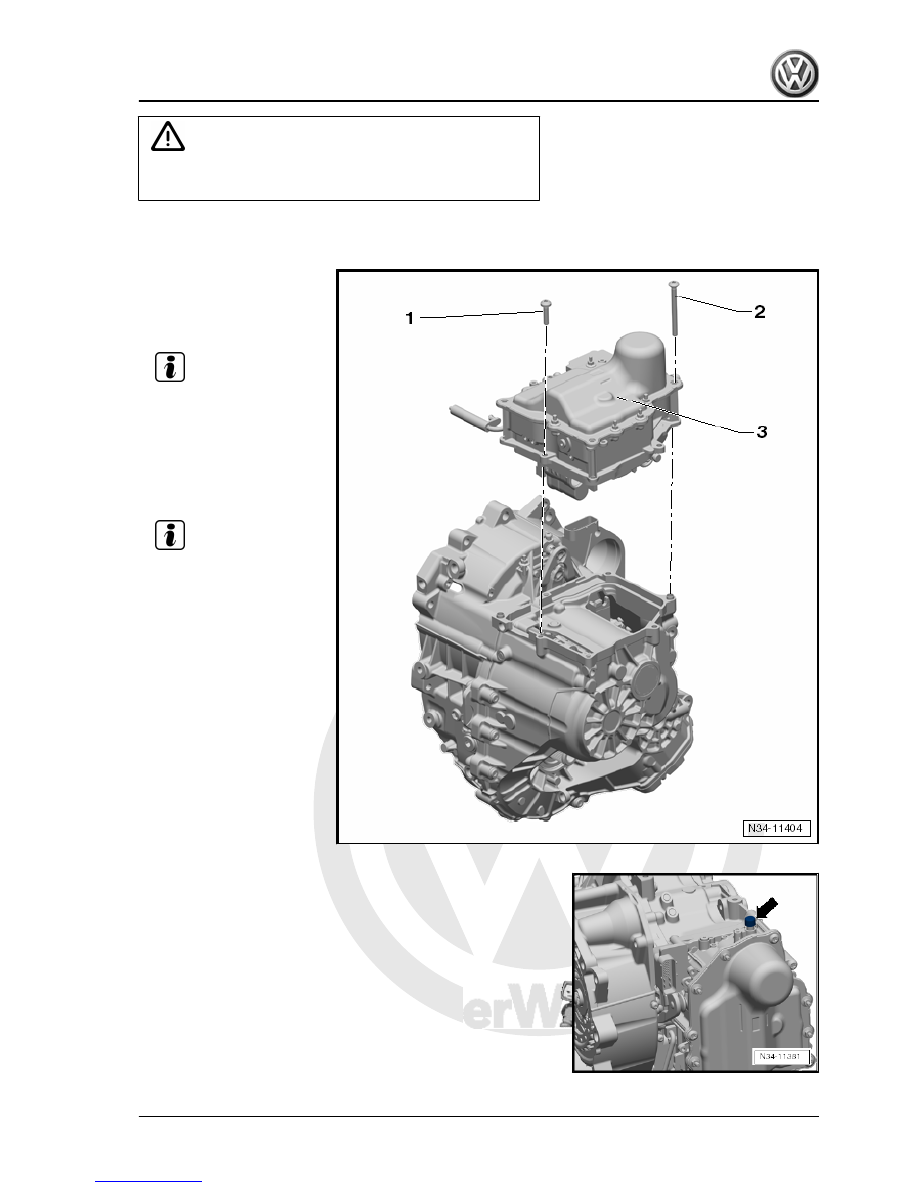

1 - Bolt

❑ 10 Nm
❑ M8 x 35
❑ Always renew

Note

2 - Bolt

❑ 10 Nm
❑ M8 x 90
❑ Always renew

3 - Mechatronic unit for dual

clutch gearbox -J743-

Note

Take care with the breather when handling the mechatronic unit.
– When doing any work on the mechatronic unit, please remove

cap -arrow- from breather and seal with a suitable plug.

Protective cover -0AM 325 120- is well suited.

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

3. Mechatronic unit for dual clutch gearbox J743

51



clutch gearbox -J743- with gearbox in‐

stalled

This description only applies to installed gearboxes. If gearbox

has been removed, first remove clutch then mechatronic unit.
♦ Move mechatronic unit for dual clutch gearbox -J743- into “re‐

moval position” by hand

⇒ page 62

 .

Special tools and workshop equipment required

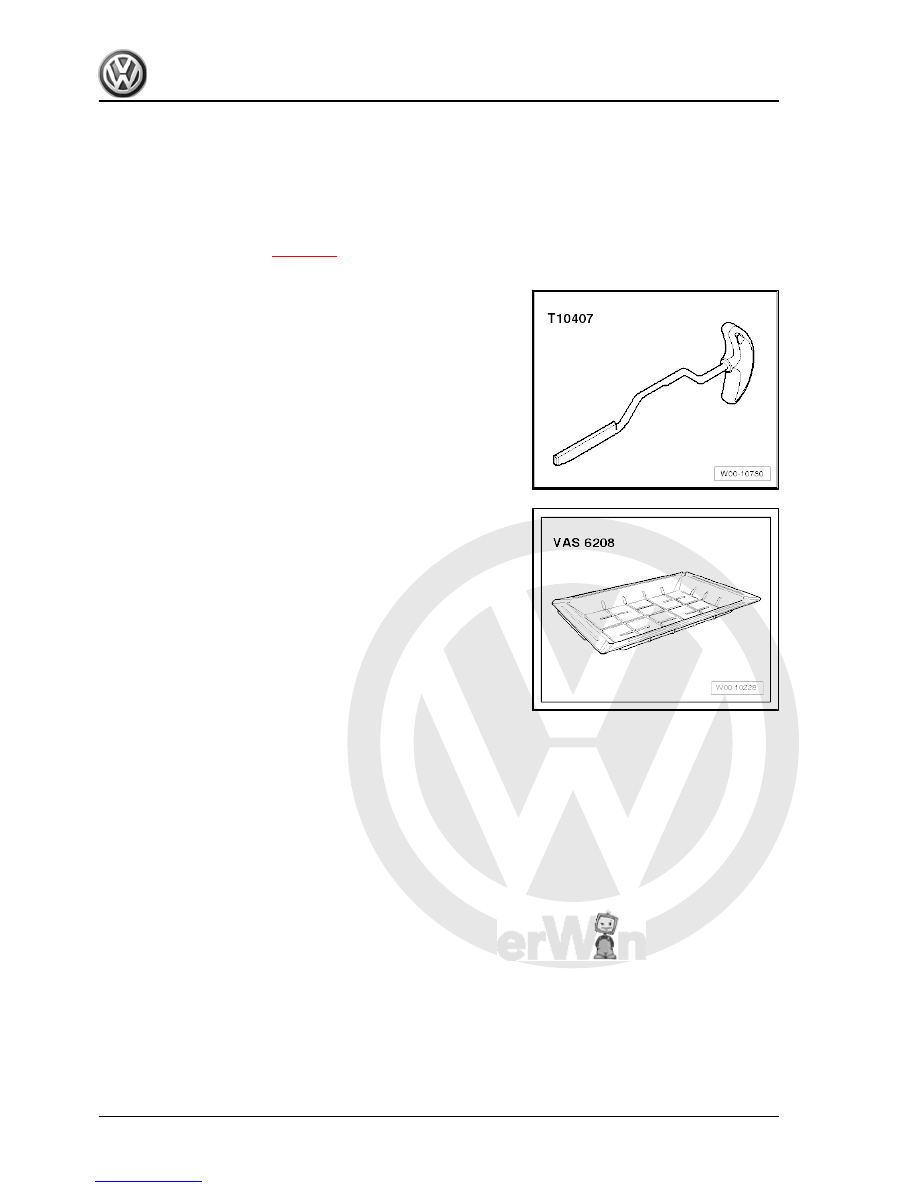

♦ Assembly lever -T10407-

♦ Drip tray for workshop hoist -VAS 6208-

♦ Vehicle diagnostic tester
Perform the following steps:
In order to remove the mechatronic unit, sufficient space must be

available in front of the gearbox. Depending on the vehicle, parts

must be removed which do not have anything to do directly with

the gearbox. For example, the air filter housing and, if present,

charge air lines or coolant lines.
Any retainers fitted on the cover of the mechatronic unit must also

be removed.
The vehicle diagnostic tester brings the mechatronic unit into the

correct position for removal. All gear actuators are moved “into

neutral”.
In this position, insert assembly lever -T10407- between release

lever and gearbox housing. This makes it possible to remove load

from plungers of mechatronic unit so that they may be removed

by hand from cups of engaging levers.
Mechatronic unit can be removed and inserted. When installing,

make sure clutch plungers are correctly seated in cups of engag‐

ing levers.
Therefore, please follow description below step by step.
