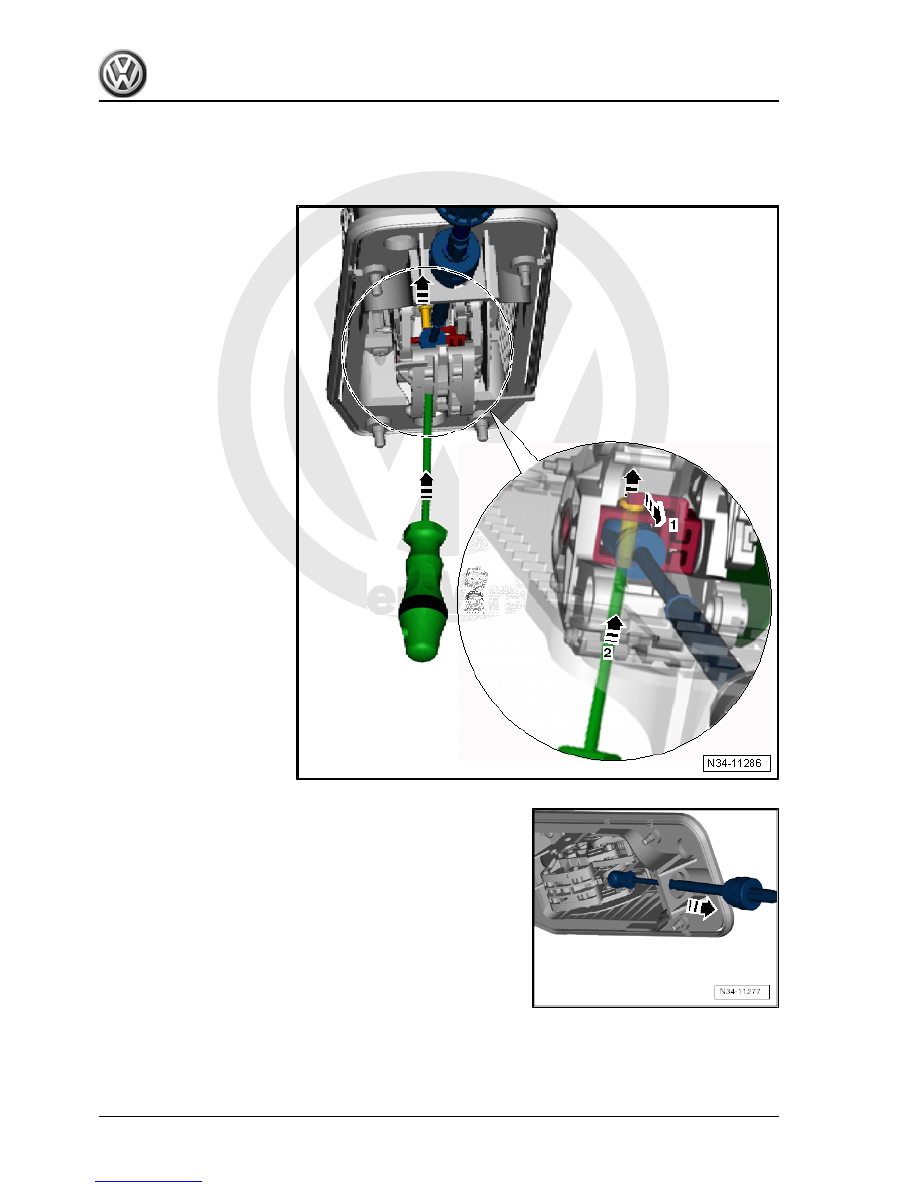

– Please insert -screwdriver- from underneath whilst pushing

securing tab forwards.

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

2. Selector mechanism

37

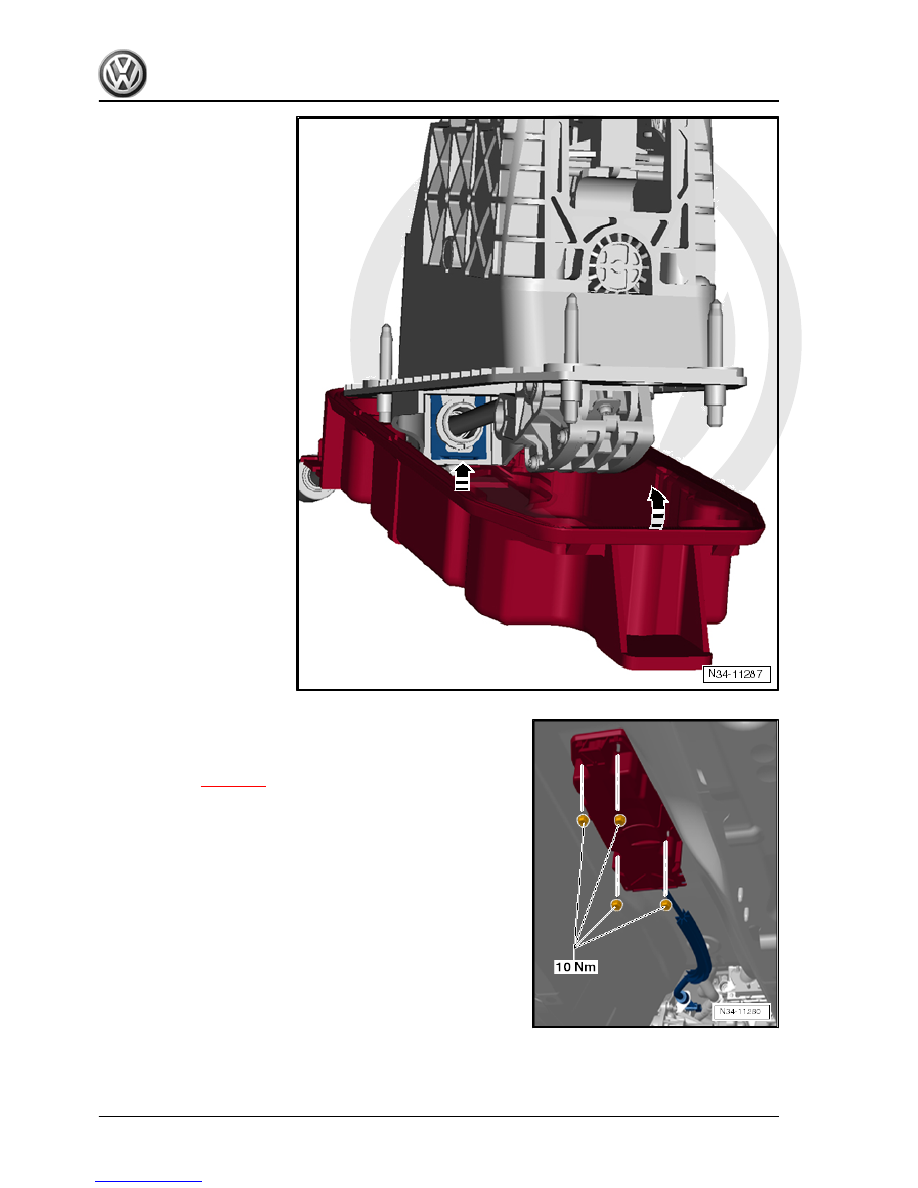

ble support bracket on gearbox. Do not secure with securing

clips yet. Do not clip in ball head.

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

38



If the sheet metal is bent downwards, it may cause noises. The

cable will vibrate against the sheet metal.
– Observe sheet metal. Press it back up in the tunnel during

installation.

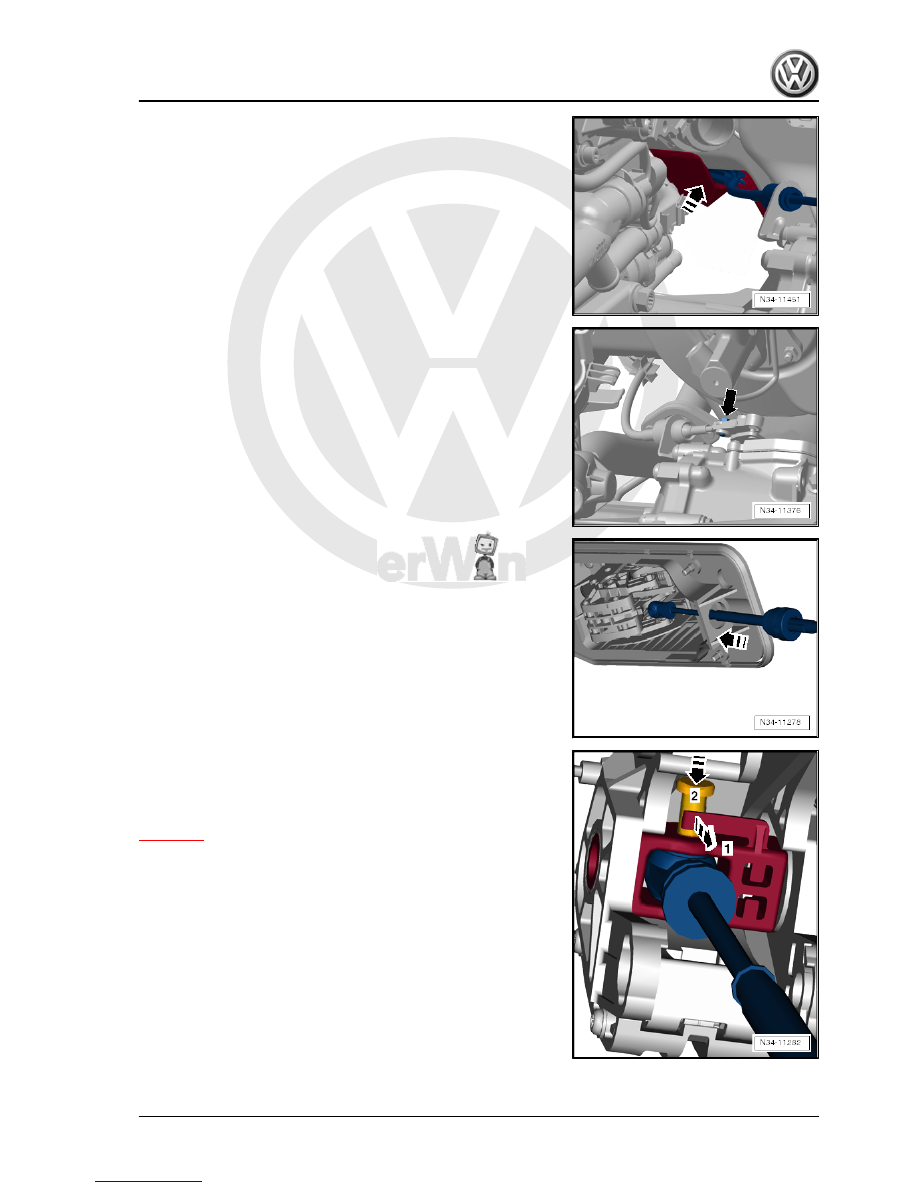

Loosen adjustment screw -arrow-.

– Put selector housing onto cable.

– Insert selector lever cable into selector mechanism.

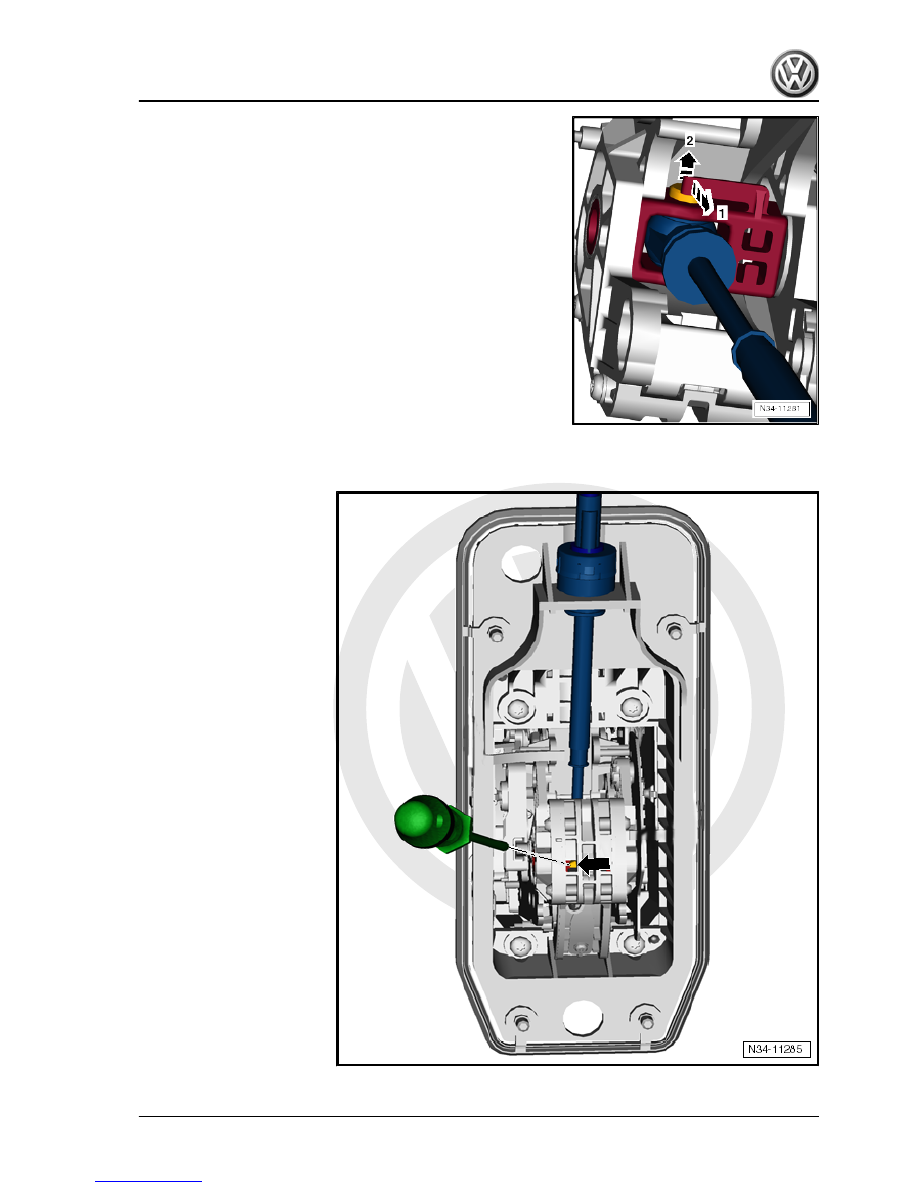

– Insert cable into bearing and insert pin from above, down‐

wards through eye.

When you have checked freedom of movement of cable

⇒ page 43

 , insert locking plate.

– Attach cable with new locking plate on cable support bracket

of selector mechanism.

Golf Variant 2007 ➤ , Golf Variant 2010 ➤ , Jetta 2005 ➤ , Jetta 2011 ➤

2. Selector mechanism

39



tem .

– Check cable

⇒ page 43

 .
