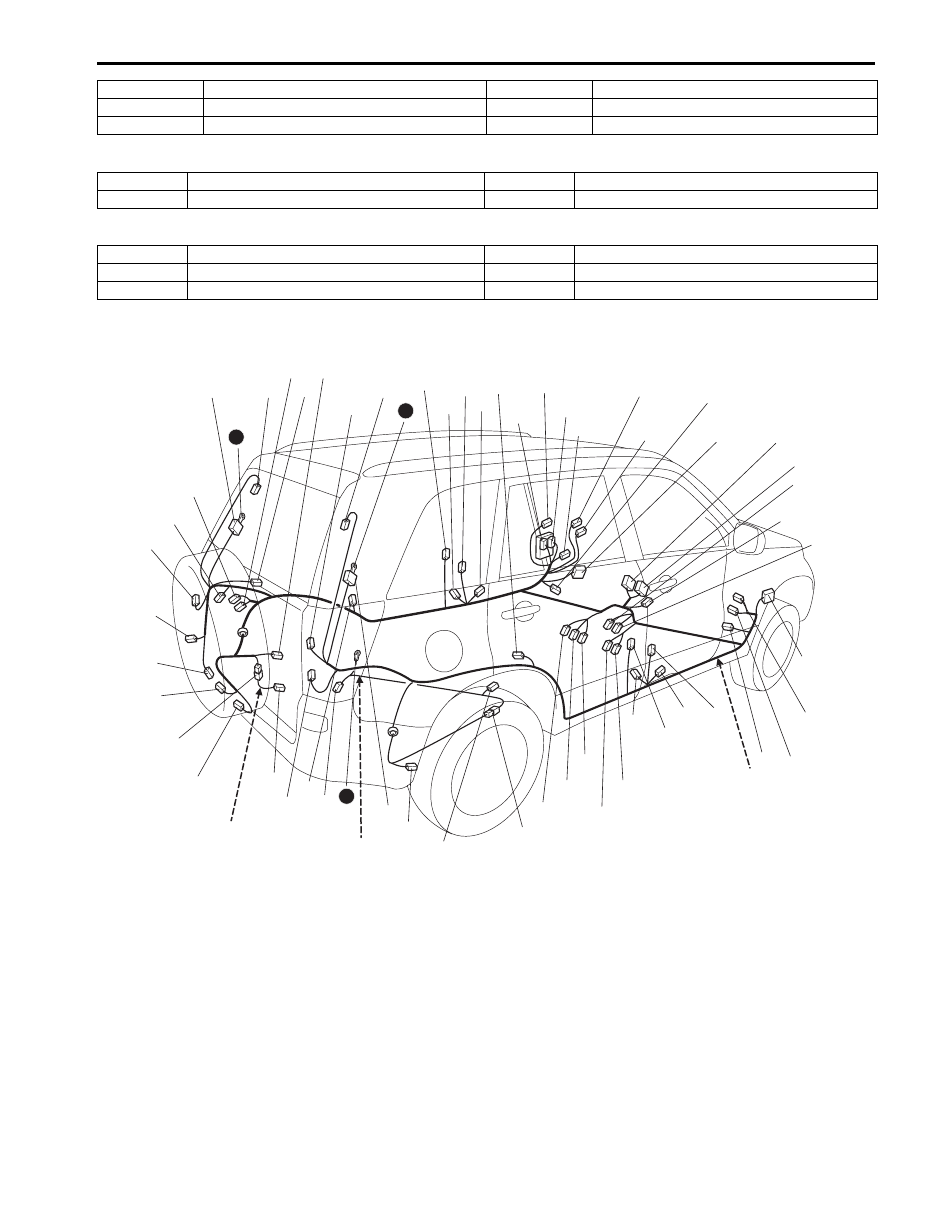

9A-30 Wiring Systems:
Floor
S5JB0A910A004

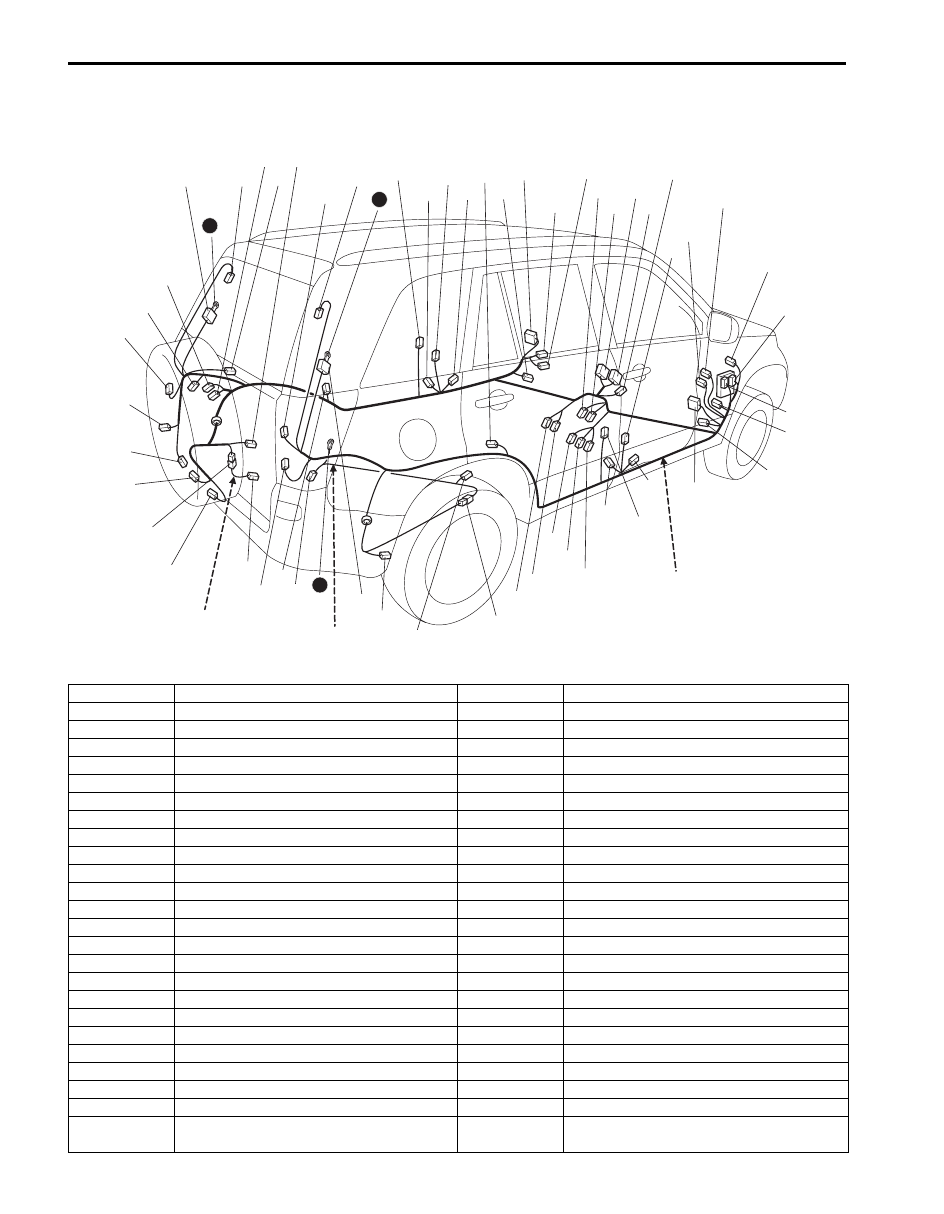

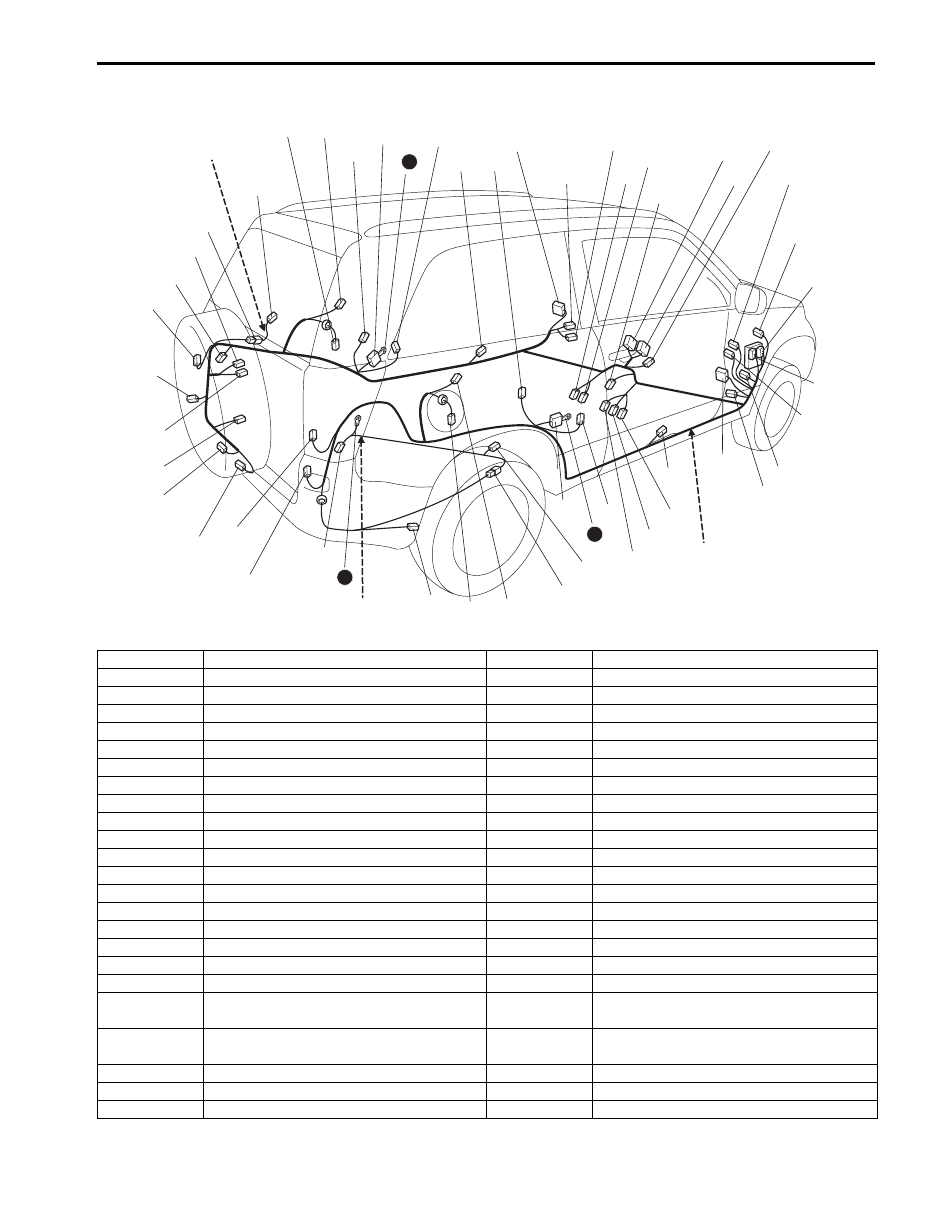

L: Floor harness, Rear height sensor wire / R: Fuel pump wire (RHD, 5dr)
L: Floor harness
{
L15
R10
{
L17
L66
L18
L21
L16
L44
L33
L06
L05
L11
L10
L12
L25
L04
L32
L45
L59
L30
L38
L19
L47
L41
L48
L26
L43
L54
L49
L53
L23
L35
L36
L22
L14
R02
R03
L40
L20
L67
L52
L34
Fuel pump wire
L31
(TO J09)
L37
(TO J27)
L42
(TO O01)
L28
(TO G72)
L29
(TO G55)
L08
(TO G07)
L09
(TO G08)
L01
(TO E80)
L07
(TO J01)
L13
(TO J16)
L03
(TO E79)
L27
(TO G72)
Rear height sensor wire
L
L57
L56
18
19
21
I5JB0A910915-03
No./Color
Connective position
No./Color
Connective position
L01/N
Main harness (To E80)
L29/YEL
Instrument panel harness (To G55)
L03/YEL
Main harness (To E79)
L30/YEL
Side air-bag inflator (L)
L04/BLK
Turn signal relay
L31/GRY
Front door wire (Passenger side) (To J09)
L05/N
J/B
L32/YEL (8ch) A/B SDM
L06/N
J/B
L33/YEL (8ch) A/B SDM
L07/GRY
Front door wire (Driver side) (To J01)
L34/N
Front door switch (Passenger side)
L08/N
Instrument panel harness (To G07)
L35/YEL
Side air- bag sensor (L)
L09/BLU
Instrument panel harness (To G08)
L36/BLK
Pretensioner (Passenger side)
L10/N
Front door switch (Driver side)
L37/N
Rear door wire (L) (To J21)
L11/YEL
Side air-bag sensor (R)
L38/GRY
Wheel speed sensor (RL)
L12/BLK
Pretensioner (Driver side)
L40/N
Rear door switch (L)
L13/N
Rear door wire (R) (To J16)
L41/BLK
Side curtain air-bag (L)
L14/N
Wheel speed sensor (RR)
L42/N
Rear end door wire (To O01)
L15/GRY
Fuel pump wire (To R01)
L43/N
Rear combination lamp (L)
L16/N
Rear door switch (R)
L44/N
Keyless entry receiver
L17/GRY
Rear height sensor harness (To L66)
L45/BRN
Inside antenna
L18/BLK
Side curtain air-bag (R)
L47/N
ACC socket #1
L19/GRY
Luggage compartment light
L48/N
ACC socket #1
L20/N
Rear combination lamp (R)
L49/BRN
Luggage antenna
L21/BLK
Diode #3
L52/N
Licence plate light #1
L22/N
J/C
L53/N
Licence plate light #2
L23/N
J/C
L54/N
Rear end door switch
L25/YEL
Side air-bag inflator (R)
L56/N
Seat belt switch (Without seat heater)
L26/N (IF
EQPD)
Trailer
L57/N
Seat heater & Seat belt switch (Driver
side)
