Suzuki Grand Vitara JB416 / JB420. Manual - part 340
9A-26 Wiring Systems:
Door, Roof
S5JB0A910A003

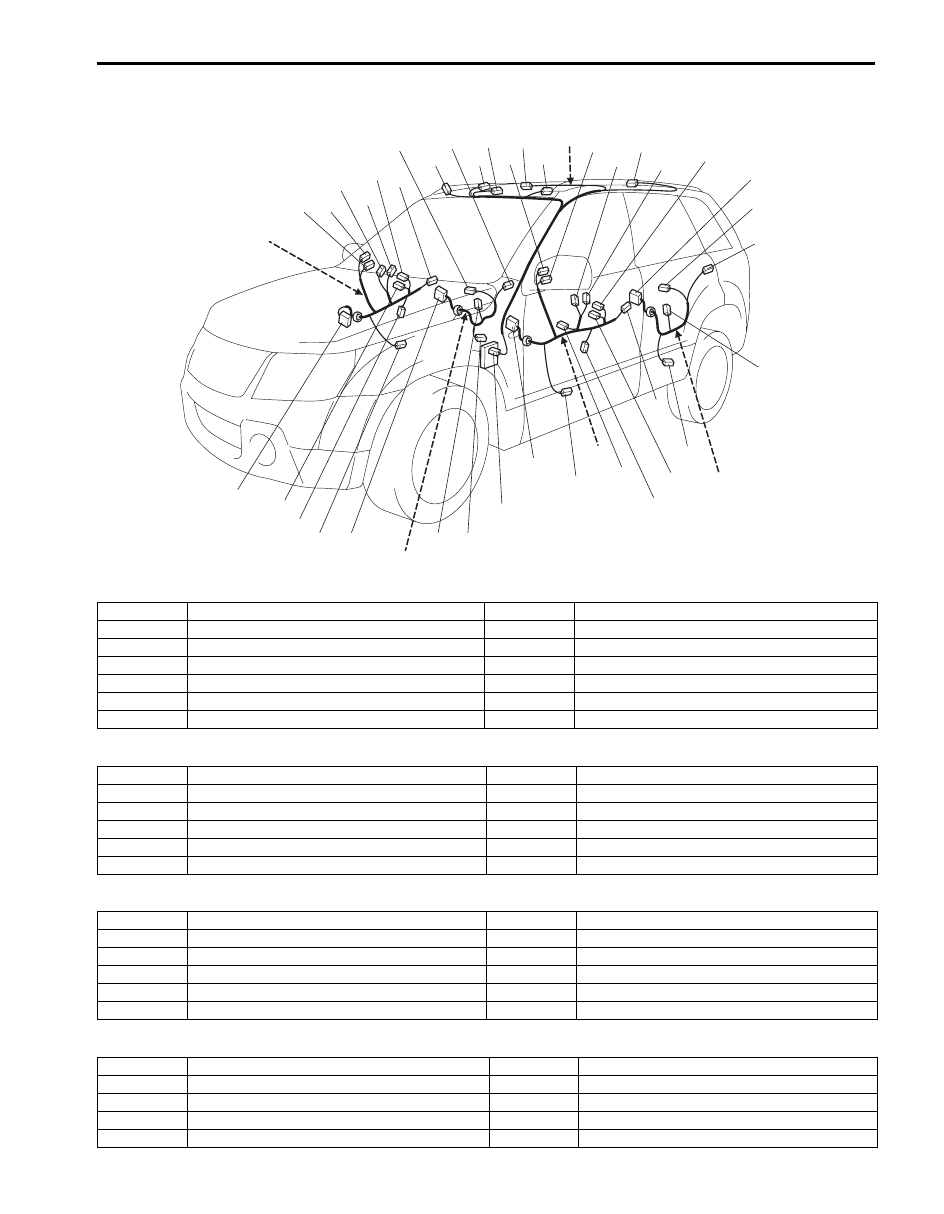

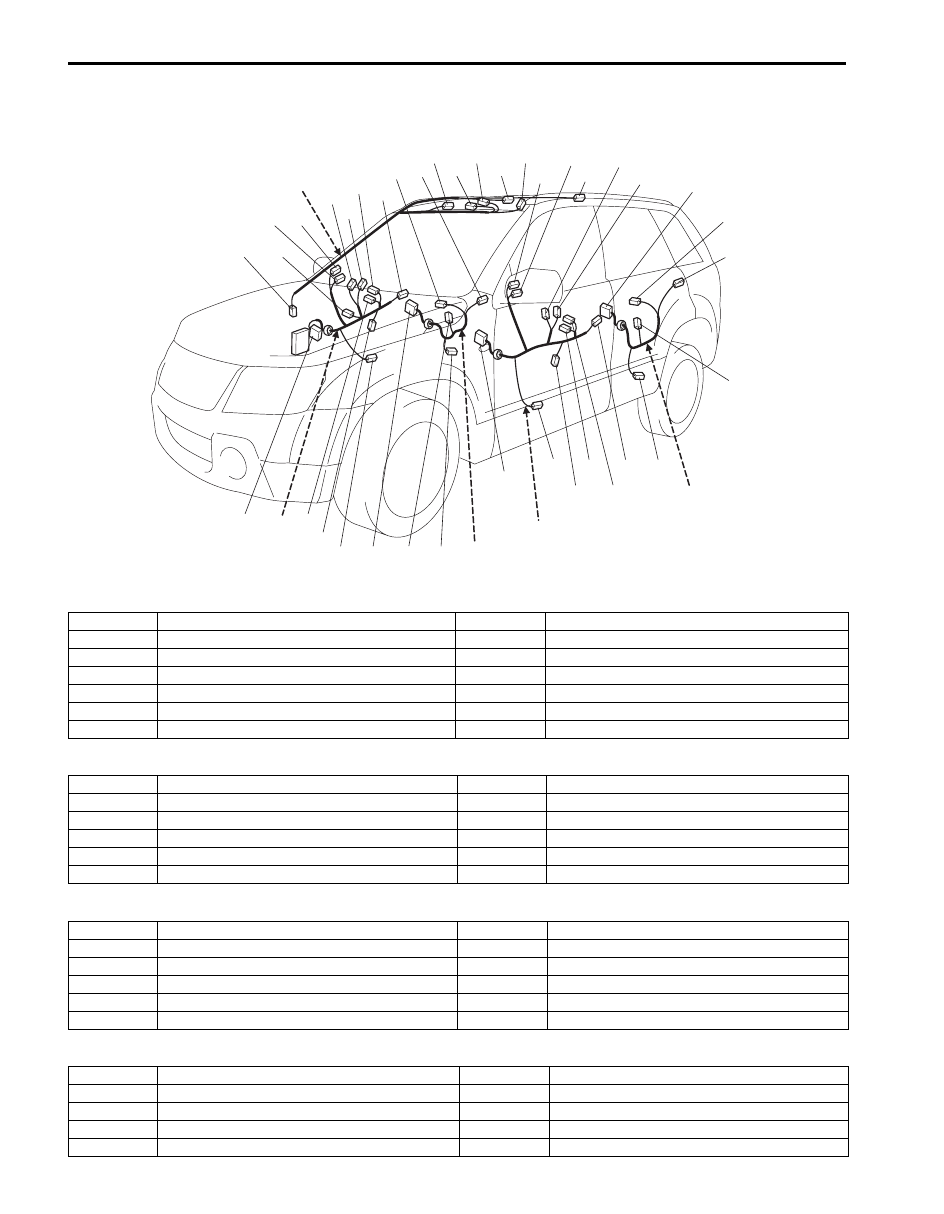

J: Front and rear door wire, rear door joint wire / K: Roof wire (RHD, 5dr)
J: Front door wire (Drive side)
J: Front door wire (Passenger side)
J: Rear door wire
K: Roof wire
J02
J08
J31
J27
J06
J19
J03
J07
K01
K04
K06
K02
K07
K05
K03
J10
J24
J25
J01
(TO L07)
J16
(TO L13)
J26
J05
J04
J17
J18
J20
J11
J12
J15
J32
J14
J28
J13
J22
J23
Rear door wire
Rear door wire
Front door wire
J29
J09
(TO L31)
J21
(TO L37)
K
J
I5JB0A910911-03
No./Color
Connective position
No./Color
Connective position
J01/GRY
Floor harness (To L07)
J07/N
Power mirror switch (Driver side)
J02/BLK
Tweeter (R)
J08/GRY
Power window main switch
J03/N
Power mirror motor (R)
J26/N
Door antenna (Driver side)
J04/N
Front speaker (R)
J27/N
Request switch (Driver side)
J05/BLK
Front power window motor (Driver side)
J31/N
Curtsy lamp (Driver side)
J06/N
Front door lock motor (Driver side)
No./Color
Connective position
No./Color
Connective position
J09/GRY
Floor harness (To L31)
J14/BLK
Front power window motor (Passenger side)
J10/BLK
Tweeter (L)
J15/N
Power window sub switch
J11/N
Power mirror motor (L)
J28/N
Door antenna (Passenger side)
J12/N
Front speaker (L)
J29/N
Request switch (Passenger side)
J13/N
Front door lock motor (Passenger side)
J32/N
Curtsy lamp (Passenger side)
No./Color
Connective position
No./Color
Connective position
J16/N
Floor harness (To L13)
J21/N
Floor harness (To L37)
J17/N
Rear speaker (R)
J22/N
Rear speaker (L)
J18/BLK
Rear power window motor (R)
J23/BLK
Rear power window motor (L)
J19/N
Rear power window sub switch (R)
J24/N
Rear power window sub switch (L)
J20/N
Rear door lock motor (R)
J25/N
Rear door lock motor (L)
No./Color
Connective position
No./Color
Connective position
K01/N
J/B
K05/N
Vanity lamp (Passenger side)
K02/N
Interior light
K06/N
Sliding roof unit
K03/N
Rear interior light
K07/N
Console (Sliding roof switch & console lamp)
K04/N
Vanity lamp (Driver side)
