8B-76 Air Bag System: DTC B1322 / B1326: Left / Right Side-Air Bag Initiator Circuit Resistance Low S5JB0A8204031 Wiring Diagram CAUTION !
Be sure to observe instructions under CAUTION in “Air Bag Diagnostic System Check Flow”.

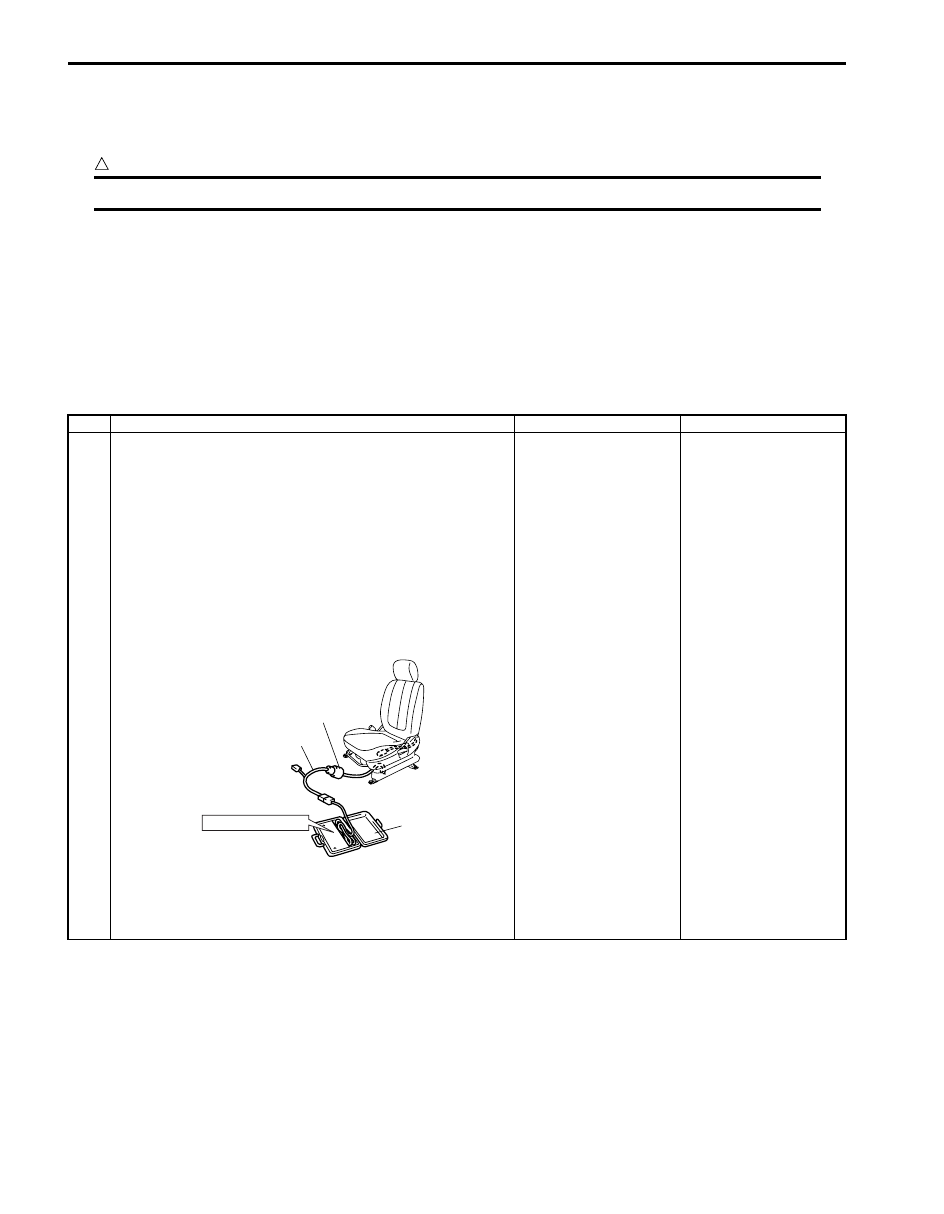

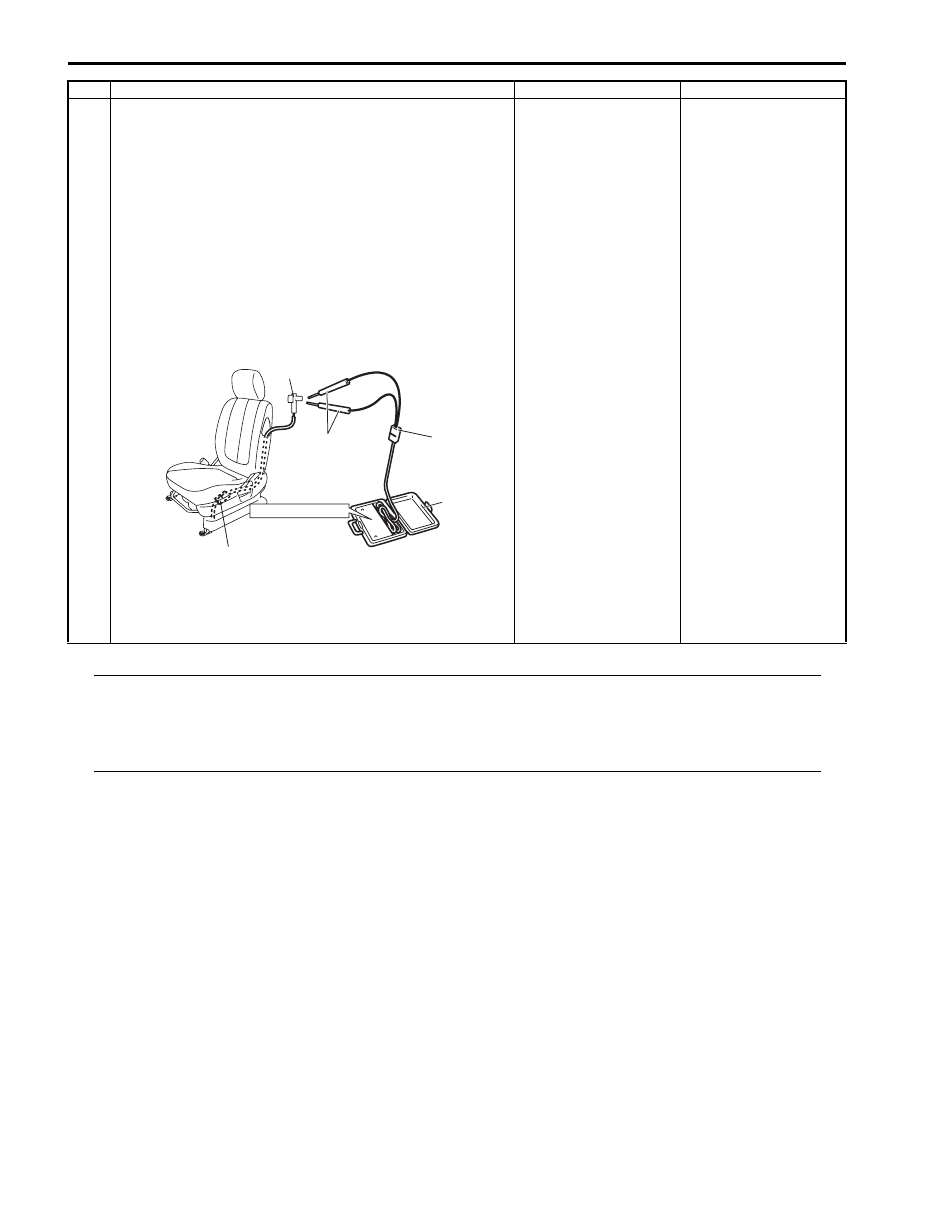

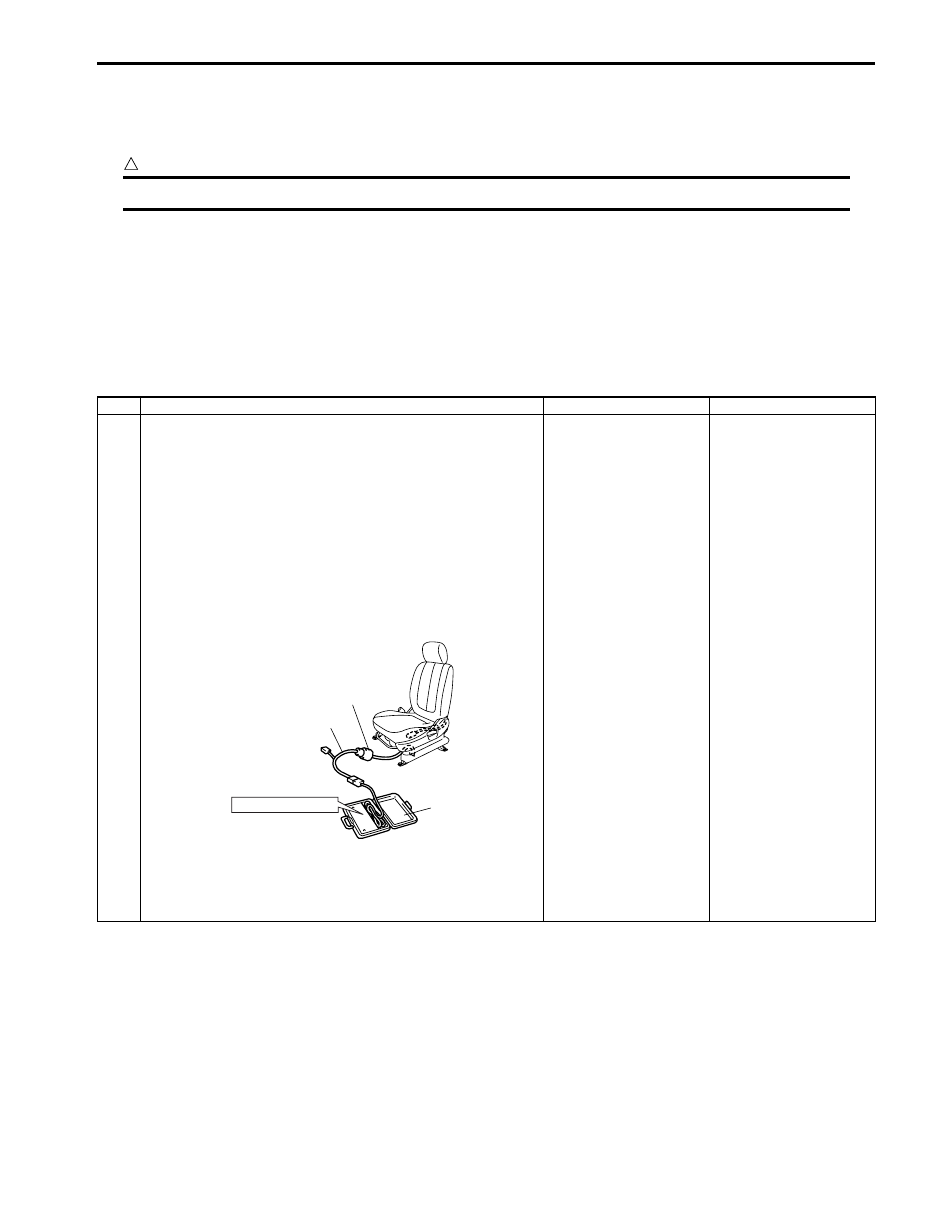

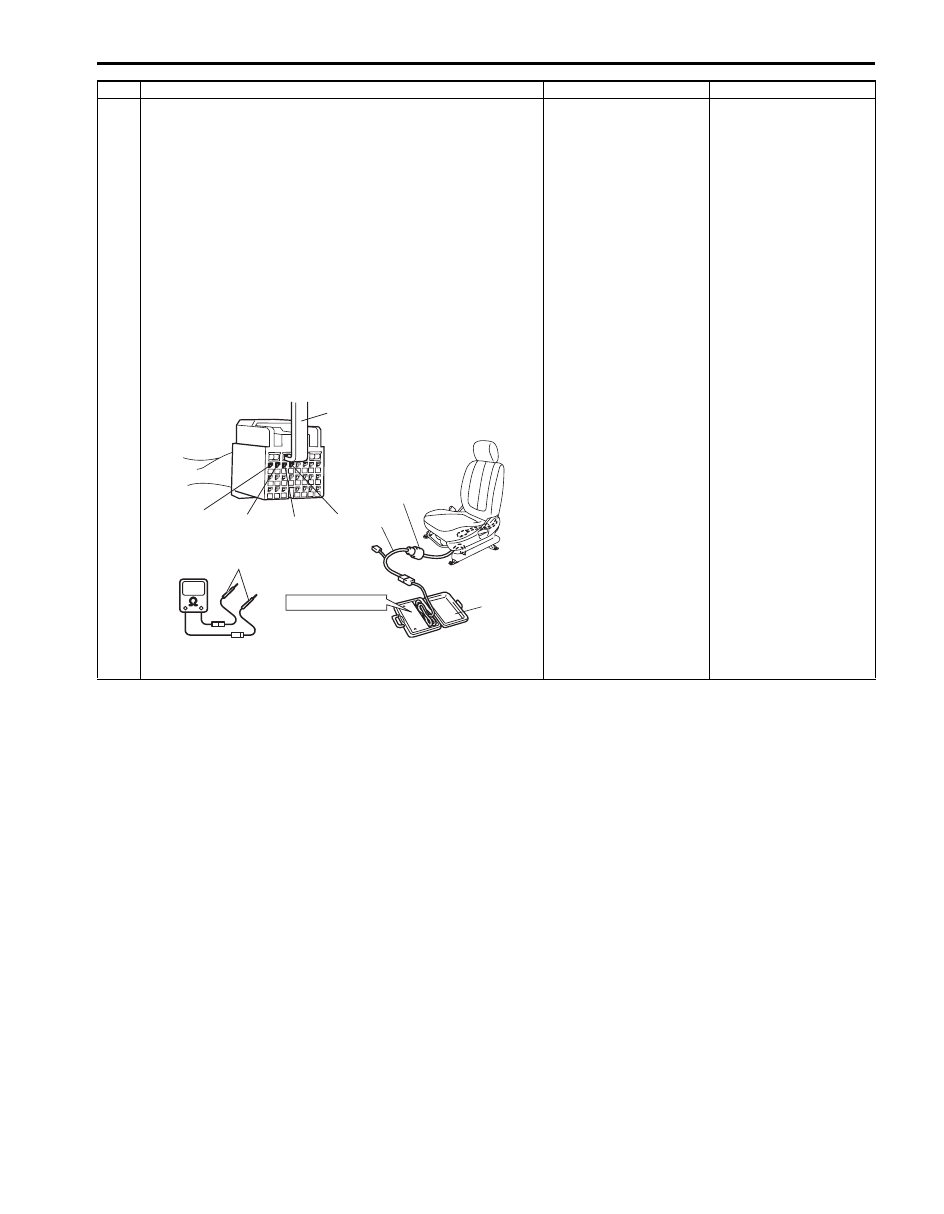

DTC Will Set when Flow Test Description DTC Troubleshooting Step Action Yes No 1 1) With ignition switch OFF, disconnect side-air bag (inflator) module connector under front seat cushion. 2) Check proper connection to left or right side-air bag (inflator) module at terminals in “L25” or “L30” connector. 3) If OK, then connect special tools (B) and (C) to side-air bag (inflator) module connector disconnected at the Step Special tool 4) Check SDM DTC. With ignition switch ON, is DTC B1322 or B1326 still Go to Step 2. Go to Step 3. “L25”, “L30” (C) (B) STEERING WHEEL I4RS0A820032-01 |
