Scania 16 litre engine. Work Description - part 34

0235w14b.mkr

©

133

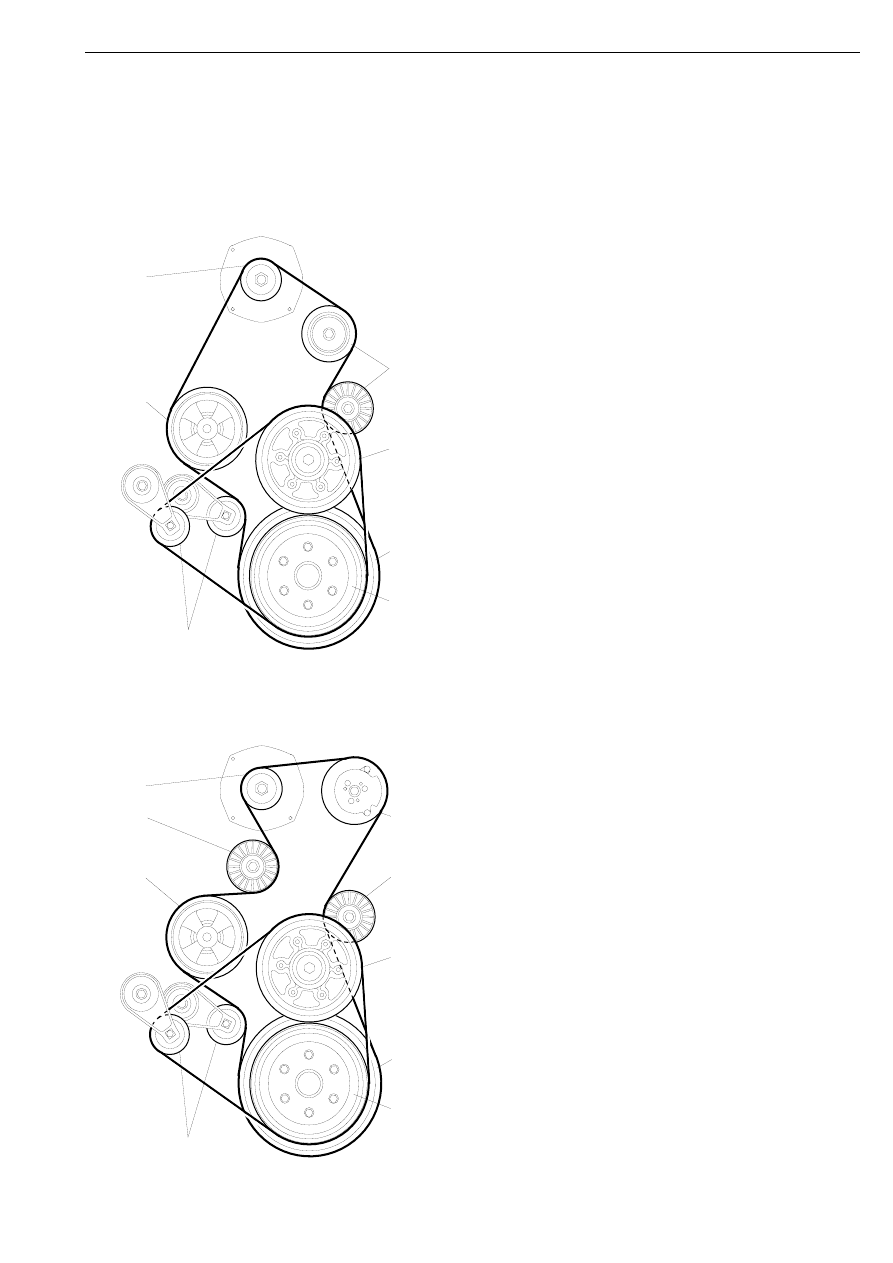

Belt transmission

Engines without AC

6

1

2

3

4

5

7

114 960

1

Fan drive

2

Crankshaft, inner belt pulley

3

Crankshaft, outer belt pulley

4

Automatic belt tensioner

5

Coolant pump

6

Idler roller

7

Alternator

Belt transmission

Engines with AC

114 961

8

6

1

2

3

4

5

6

7

1

Fan drive

2

Crankshaft, inner belt pulley

3

Crankshaft, outer belt pulley

4

Automatic belt tensioner

5

Coolant pump

6

Idler roller

7

Alternator

8

AC compressor

ã

Scania CV AB 2001, Sweden

1 712 968

01:06-02

Issue 1

en

Replacing 16 litre engine

on vehicles with T-cab

Work Description

2

ã

 Scania CV AB 2001, Sweden

01:06-02

Contents

Work Description

General ..................................................................... 3
Removal.................................................................... 4
Fitting ....................................................................... 8

Contents

01:06-02

ã

3

Work Description

General

General tightening torques

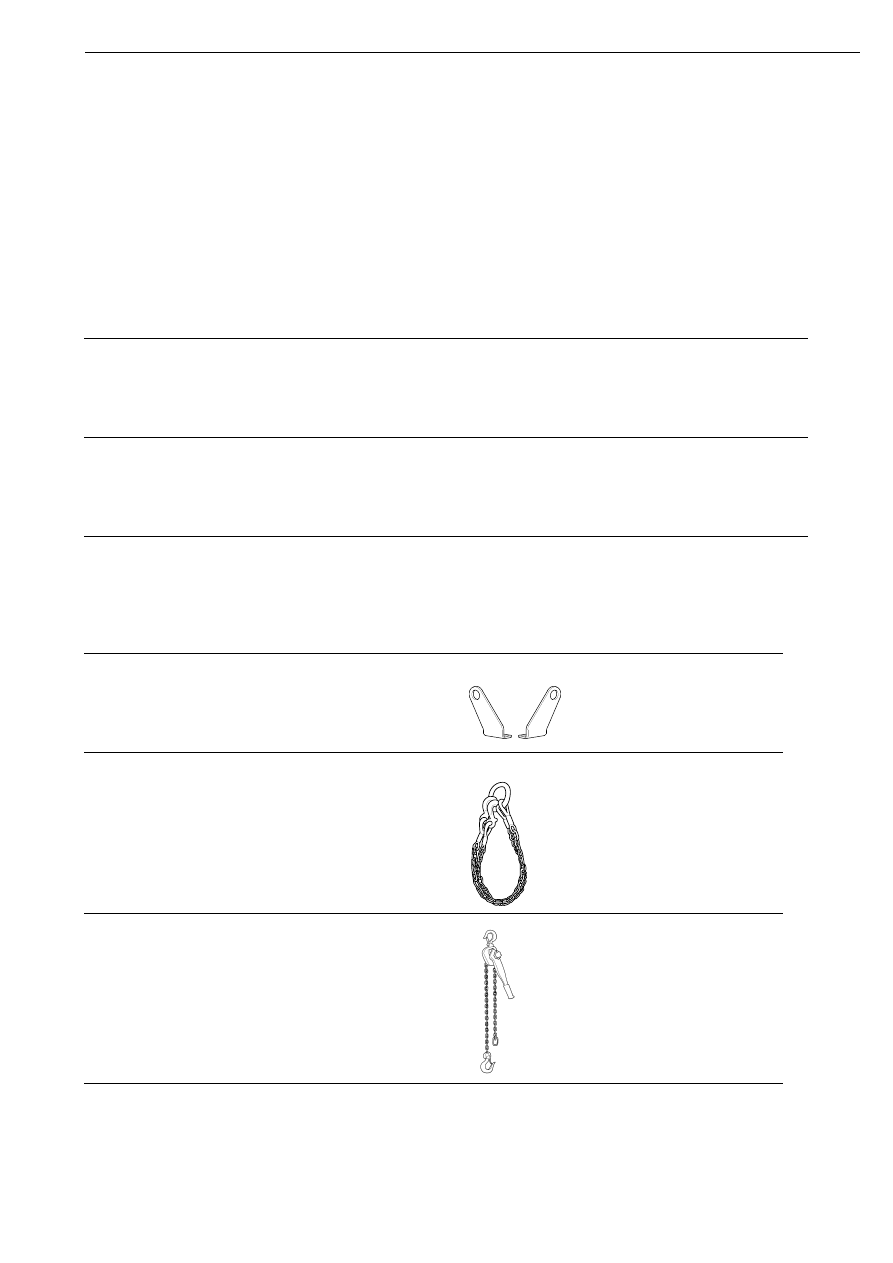

Special tools

Type of bolt

Tightening torques

Flange bolt M6

8.6 Nm

Flange bolt M8

26 Nm

Flange bolt M10

50 Nm

Flange bolt M12

92 Nm

Stud in casting M8

13 Nm

Stud in casting M10

25 Nm

Number

Description

Illustration

Tool board

99 398

Lifting eyes

D3

98 094

Lifting chain

D4

587 308

Lever block

B

99 398

114 638

98 094

109 836

114 070

General
