Scania 16 litre engine. Work Description - part 33

0150w13b.mkr

©

129

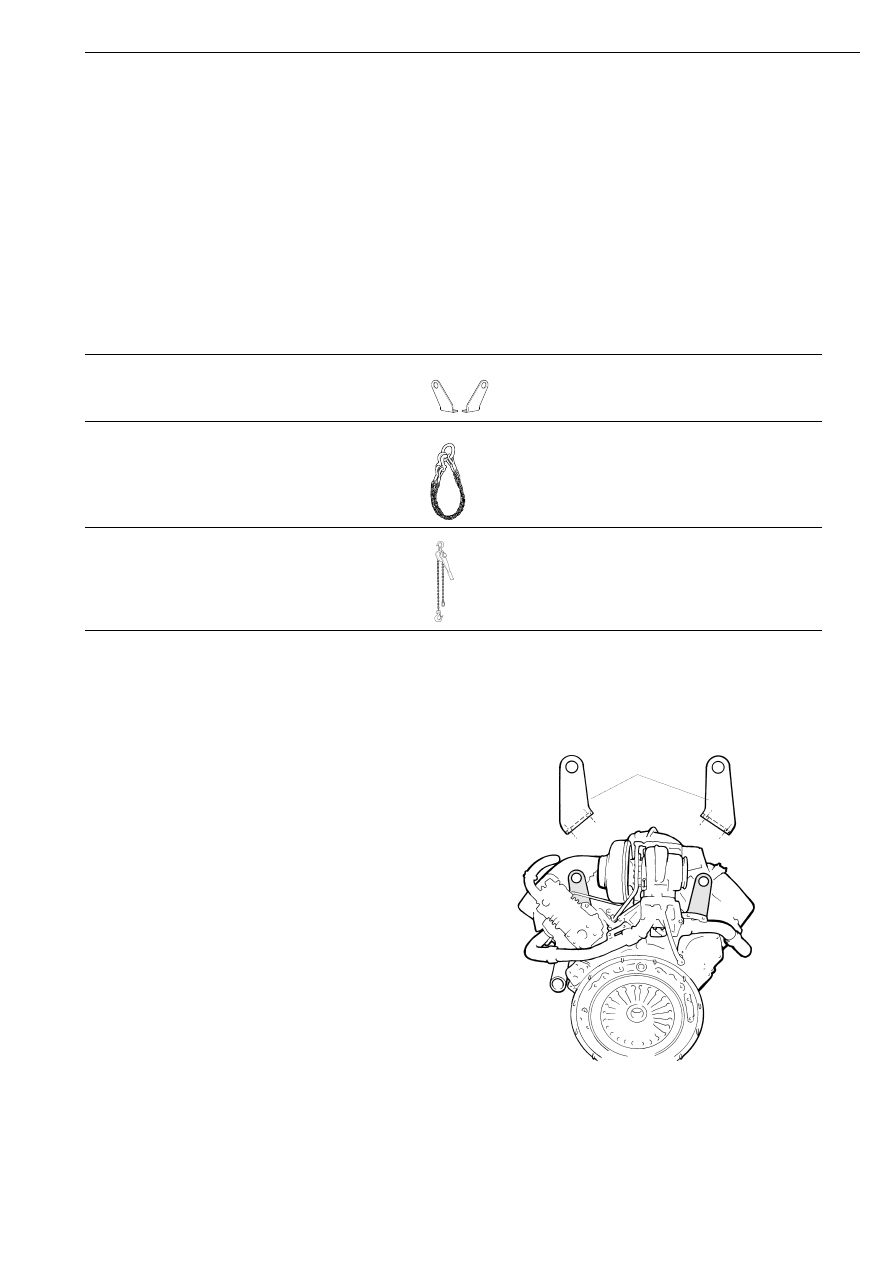

Engine suspension

Renewing the vibration
insulator

Special tools

1

Remove the cable duct to the engine speed
sensor on the flywheel.

2

Remove the exhaust brake and exhaust
bellows after the turbocharger.

3

Screw on lifting eyes 99 398 to the engine
using flange bolt M12x30.

4

Disconnect the filter housing for the
crankcase ventilation and place to one side
so that it is free from the lifting chain.

5

Fasten the lifting chain 99 094 to the rear
lifting eyes.

6

Fasten the lever block 587 308 to the front
lifting eye.

7

Undo the bolts holding together the
vibration insulator and the bracket.

8

Lift up the engine.

9

Remove the vibration insulator.

10 Fit a new vibration insulator.

Number

Designation

Illustration

99 398

Lifting eyes

98 094

Lifting chain

587 308

Lever block

99 398

114 638

98 094

109 836

114 070

114 718

99 398

Engine suspension

130

©

0150w13b.mkr

11 Lower the engine and tighten the bolts.

12 Remove the lifting chain and lever block.

13 Fit the filter housing for the crankcase

ventilation.

14 Remove the lifting eyes.

15 Fit the exhaust brake and exhaust bellows

after the turbocharger.

16 Fit the cable duct to the engine speed sensor

on the flywheel.

Engine suspension

0150w13b.mkr

©

131

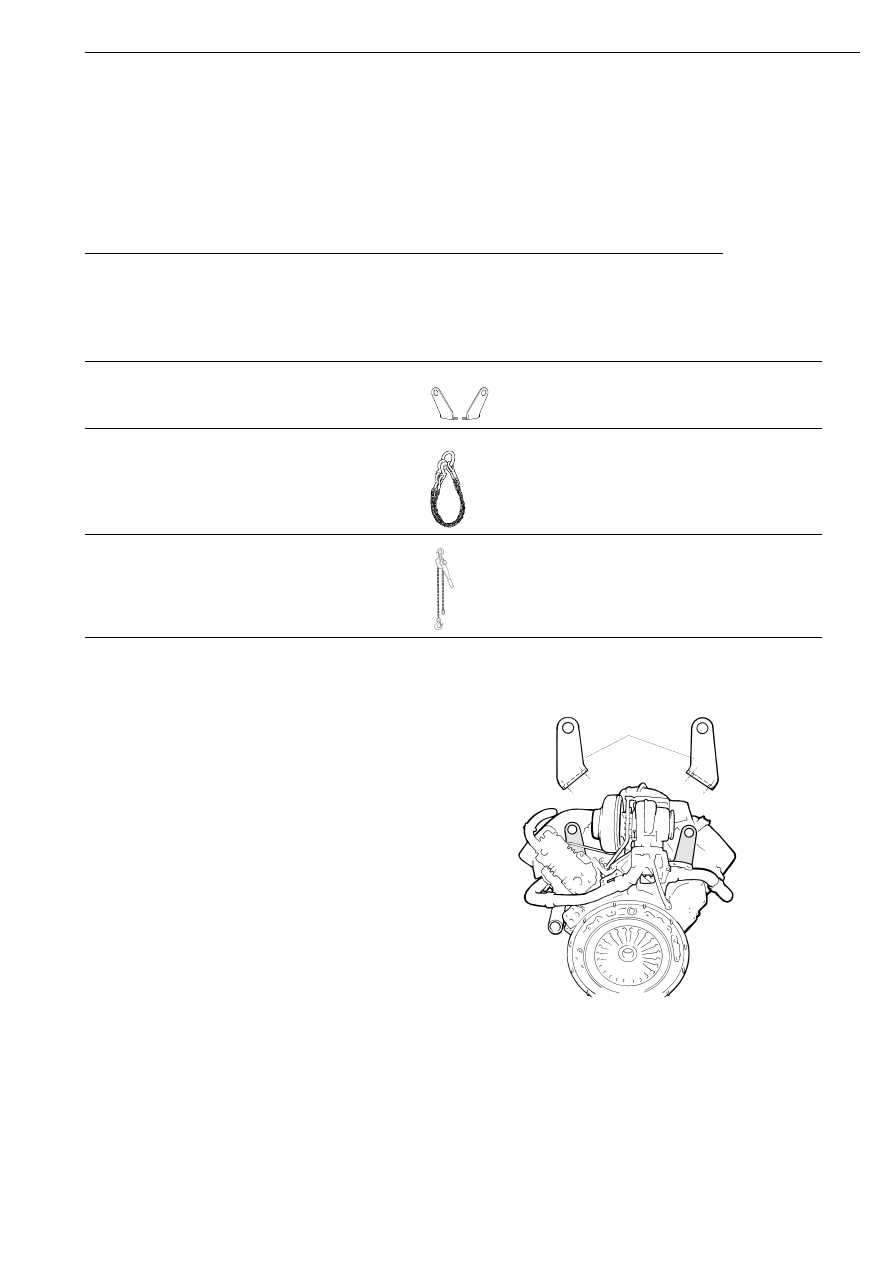

Renewing the engine bracket fitted to the engine

Tightening torque

Special tools

1

Remove the cable duct to the engine speed
sensor on the flywheel.

2

Remove the exhaust brake and exhaust
bellows after the turbocharger.

3

Screw on lifting eyes 99 398 to the engine
using flange bolt M12x30.

4

Disconnect the filter housing for the
crankcase ventilation and place to one side
so that it is free from the lifting chain.

5

Fasten the lifting chain 99 094 to the rear
lifting eyes.

6

Fasten the lever block 587 308 to the front
lifting eye.

7

Undo the bolts holding together the
vibration insulator and the bracket.

8

Lift up the engine.

9

Undo the bolts and remove the engine
bracket from the engine.

Screw for engine bracket

130 Nm + 90

°

Number

Designation

Illustration

99 398

Lifting eyes

98 094

Lifting chain

587 308

Lever block

99 398

114 638

98 094

109 836

114 070

114 718

99 398

Engine suspension

132

©

0150w13b.mkr

10 Fit a new bracket and torque tighten the

bolts to the engine to 130 Nm +90°.

11 Lower the engine and fit it. Tighten the bolts

to the vibration insulator.

12 Remove the lifting chain and lever block.

13 Fit the filter housing for the crankcase

ventilation.

14 Remove the lifting eyes.

15 Fit the exhaust brake and exhaust bellows

after the turbocharger.

16 Fit the cable duct to the engine speed sensor

on the flywheel.

Engine suspension
