Dacia SuperNova (engine E7J). Manual - part 190

89C

ELECTRIC DIAGRAMS

89C - 12

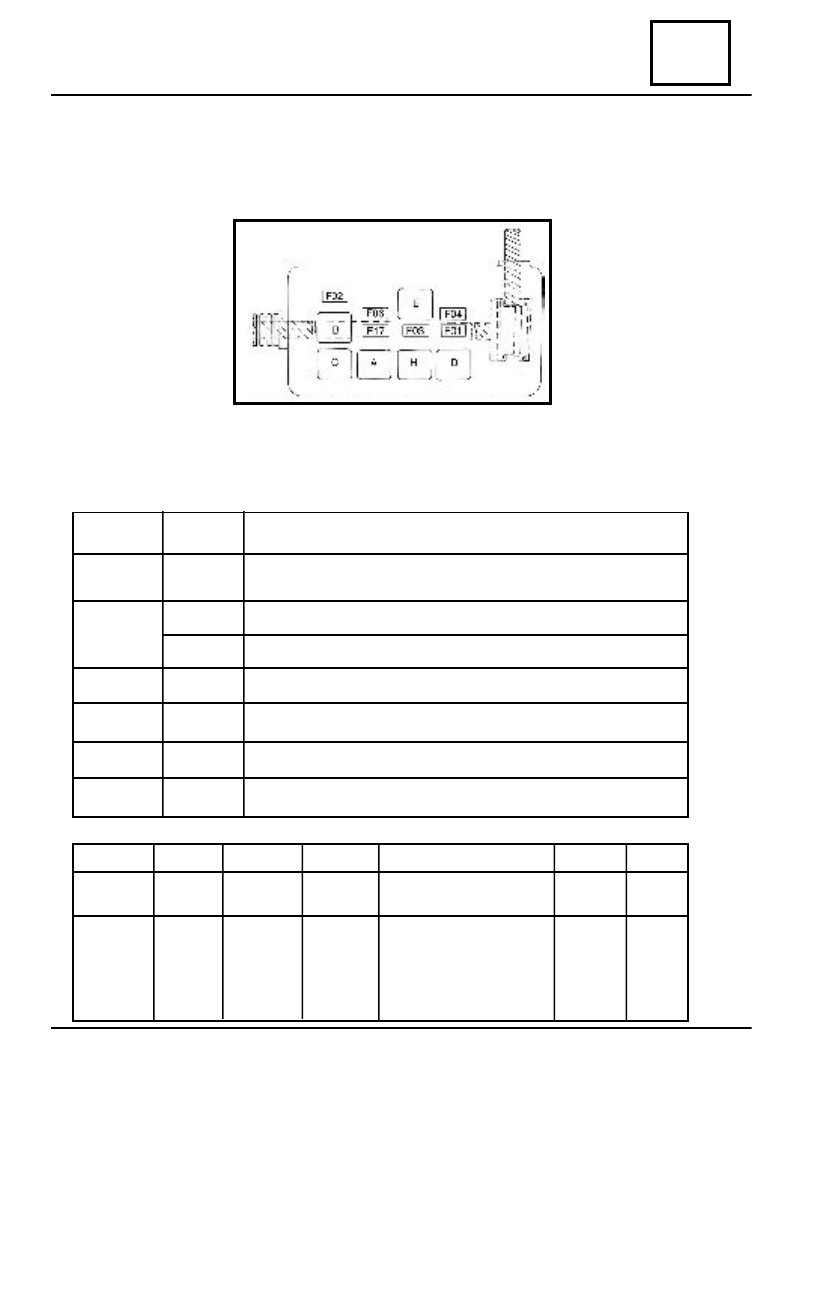

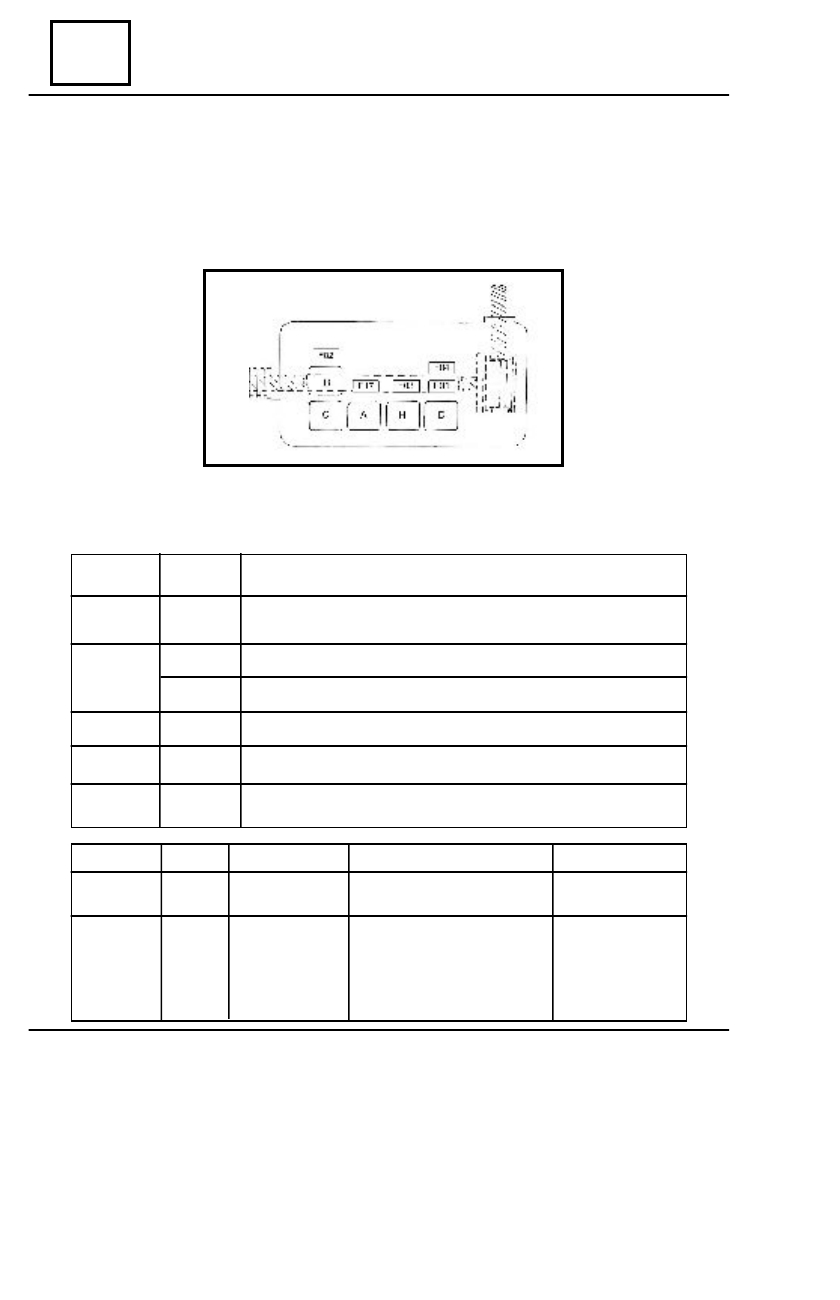

The fuse box placed in the engine compartment is attached in front of the left shock absorber

column and contains relays and fusible protecting the following electric circuits:

A. for equipping E0, E1, E2

( EURO 2000)

RELAY

RELAY TYPE

CONTROLLED
CIRCUIT

15A

Fog
headlamps

30A

Injectors, canister purging valve,
oxygen sensor heating
resistance, injection computer.

30A

Fuel pump
Ignition coil

30A

Cooling blower
(vehicle without
AC)

FUSE

NUMBER

F01

F02

F03

F04

F17

FUSE

TYPE

30A

25A

7,5A

15A

PROTECTED CIRCUIT

Injectors, oxygen sensor resistance heating, canister

purging valve, injection computer, fuel pump, ignition coil.

Cooling blower ( vehicles without AC)

Injection computer ( + DC)

Injection computer( (+IC)

Fog headlights

FUSE BOX FROM ENGINE COMPARTMENT

89C

ELECTRIC DIAGRAMS

89C - 13

The fuse box placed in the engine compartment is attached in front of the left shock absorber

column and contains relays and fusible protecting the following electric circuits:

FUSE

NUMBER

F01

F02

F03

F04

F17

F06

FUSE

TYPE

30A

40A

7,5A

15A

7,5A

PROTECTED CIRCUIT

Injectors, oxygen sensor resistance heating, canister

purging valve, injection computer, fuel pump, ignition coil.

Cooling blower ( vehicles with AC)

Injection computer ( + DC)

Injection computer( (+IC)

Fog headlights

AC compressor

RELAY

RELAY TYPE

CONTROLLED
CIRCUIT

15A

Fog
headlamps

40A

Cooling
blower- 1/st
speed(vehicles
with AC)

30A

Injectors, canister purging
valve, oxygen sensor
heating resistance,
injection computer.

30A

AC
compressor

30A

Fuel
pump
Ignition
coil

B. For equipping E2(0), E3

( EURO 2000)

30A

Cooling
blower- 2/
nd speed
(vehicle
with AC)

COCKPIT FUSE BOX

89C

ELECTRIC DIAGRAMS

89C - 14

Connect. Denomination

Page

101

ELECTRIC LIGHTER

89-129

103 HA ALTERNATOR

89-102

103 HB ALTERNATOR EXCITATION

89-102

104

ANTI-THEFT MECHANISM

89-109

105

ACOUSTIC WARNING

89-117

113

WINDSCREEN WIPER TIMER

89-105

120

UCE INJECTION( for vehicles without AC)

89-82

120

UCE INJECTION( for vehicles with AC)

89-84

121

FOG LAMPS SWITCH

89-124

122

FOG HEADLAMPS SWITCH

89-124

123

LOCKING DOORS SWITCH

89-126

124

BLOWER SWITCH

89-122

125

HAZARD SWITCH

89-126

128

REAR WINDOW DEFROSTING SWITCH

89-125

138

RIGHT REAR DOOR ACTUATOR

89-131

139

LEFT REAR DOOR ACTUATOR

89-131

140

LEFT FRONT DOOR ACTUATOR

89-130

141

RIGHT FRONT DOOR ACTUATOR

89-130

145

WINDSCREEN WIPER-WASHING SWITCH

89-105

146

DETONATION SENSOR

89-94

147

ATMOSPHERIC PRESSURE SENSOR

89-95

149

RPM SENSOR

89-92

155

REVERSE DRIVING CONTACT

89-91

156

HANDBRAKE CONTACT

89-138

160

STOP CONTACT

89-115

163 GA STARTER

89-102

163 AB STARTER EXCITATION

89-103

166

RIGHT LICENSE PLATE LAMP

89-139

167

RIGHT LICENSE PLATE LAMP

89-139

168

DOCUMENTS COMPARTMENT LIGHTING LAMP

89-129

171

AC COMPRESSOR CLUTCH

89-100

172

RIGHT REAR LAMP

89-136

173

LEFT REAR LAMP

89-136

175

LEFT FOG LAMP

89-138

176

RIGHT FOG HEADLIGHT

89-115

177

LEFT FOG HEADLIGHT

89-116

180

LEFT FRONT DOOR CONTACT

89-138

181

RIGHT FRONT DOOR CONTACT

89-138

184

RIGHT FRONT PARKING LAMP

89-116

185

LEFT FRONT PARKING LAMP

89-116

188

COOLING FAN MOTOR ( for vehicles without AC)

89-101

189

RIGHT REAR LOUD SPEAKER

89-135

190

LEFT REAR LOUD SPEAKER

89-135

191

RIGHT FRONT DOOR LOUD SPEAKER

89-132

192

LEFT FRONT DOOR LOUD SPEAKER

89-132

193

INJECTOR 1

89-97

194

INJECTOR 2

89-98

195

INJECTOR 3

89-98

(EURO 2000)

WIRE FUNCTIONS INDEX IN CONNECTORS AND COUPLINGS

89C

ELECTRIC DIAGRAMS

89C - 15

196

INJECTOR 4

89-99

199

FUEL LEVEL TRANSMITTER AND ELECTRIC PUMP

89-137

200

REAR WINDOW DEFROSTING

89-140

205

OIL PRESSURE CONTACT

89-97

209

CLIGHTS, TURNING LIGHTS, HORN SWITCH

89-106

210

ELECTRONIC CLOCK

89-120

212

WINDSCREEN WIPER MOTOR

89-115

216

RIGHT FRONT BRAKE PAD

89-119

217

LEFT FRONT BRAKE PAD

89-119

221

WINDSCREEN WASHING PUMP

89-117

222

VALVE POTENTIOMETER

89-97

225

DIAGNOSTIC SOCKET

89-127

226

RIGHT HEADLAMP

89-117

227

LEFT HEADLAMP

89-117

242

DOWNSTREAM OXYGEN SENSOR

89-104

244

WATER TEMPERATURE SENSOR

89-92

247

INSTRUMENT PANEL

89-127

250

SPEED TRANSDUCER

89-109

255

RIGHT FRONT TURNING LAMP

89-118

256

LEFT FRONT TURNING LAMP

89-118

260

COCKPIT FUSE AND RELAYS BOX

89-111

261

RADIO

89-120

262

COOLING MOTOR FAN (for vehicles with AC)

89-100

267

RIGHT SIDE SIGNALING LAMP

89-118

268

LEFT SIDE SIGNALING LAMP

89-119

272

INJECTION AIR TEMPERATURE SENSOR

89-96

298

CLIMATE CONTROL LIGHTING

89-123

319

AC STARTING BUTTON

89-123

321

MOTOR FAN RESISTANCE ( for vehicles with AC)

89-101

329

RIGHT FRONT CEILING LAMP

89-137

371

CANISTER PURGING VALVE

89-94

427

UCE ANTI-INTRUSION

89-134

438

ENGINE HOOD CONTACT

89-110

442

SIREN

89-110

454

RIGHT VOLUMETRIC SENSOR(Rx)

89-133

454

LEFT VOLUMETRIC SENSOR (Tx)

89-133

474

AC RELAY (on board)

89-121

503

UCE DECODER

89-107

560

HATCHBACK CONTACT

89-140

597

ENGINE RELAYS AND FUSE BOX ( for vehicles without AC)

89-87

597

ENGINE RELAYS AND FUSE BOX ( for vehicles with AC)

89-89

600

CLIMATE CONTROL BLOWER

89-122

639

STOP-S3 LAMP (on roof)

89-139

639

STOP[ -S3 LAMP (in aileron)

89-139

649

STEP-BY-STEP ENGINE

89-96

654

ANTI-STARTING BUSHING

89-108

778

IGNITION COIL

89-93

857

FLASH RELAY

89-108

887

SUPSTREAM OXYGEN SENSOR

89-93

927

CHOCK SENSOR

89-95

993

ANTI-INTRUSION INDICATOR LED

89-133

WIRE FUNCTIONS INDEX IN CONNECTORS AND COUPLINGS
