89C

ELECTRIC DIAGRAMS

89C - 4

COUPLING LIST

R53 =BATTERY MASS WIRING/MASS STRIPE (A) COUPLING
R89 = FRONT WIRING/ BRAKE PADS WEAR (B) COUPLING

R107 = FRONT WIRING/ DASHBOARD (C) COUPLING
R153 = REAR WIRING/LEFT FRONT DOOR (D) COUPLING
R154 = REAR WIRING/RIGHT FRONT DOOR (E) COUPLING
R155 = REAR WIRING/LEFT REAR DOOR(F) COUPLING
R156 = REAR WIRING/RIGHT REAR DOOR(G) COUPLING
R157 = REAR WIRING/HATCHBACK(H) COUPLING
R212 = FRONT WIRING/ ENGINE (J) COUPLING
R265 = FRONT WIRING/REAR (K) COUPLING
R318 = FRONT WIRING/DASHBOARD(M) COUPLING

MASS LIST

M6

= REAR WINDOW DEFROSTING MASS

MA = RIGHT FRONT  BODY MASS
MB = LEFT FRONT BODY MASS
ME = ELECTRIC MASS AT WINDSCREEN WIPER ATTACHMENT
MH = ENGINE ELECTRIC MASS
ML = LEFT FRONT LONGITUDINAL GIRDER ELECTRIC MASS
M M = ELECTRIC MASS AT THE STEERING COLUMN
MZ = LEFT REAR BODY MASS
MYH= LEFT HATCHBACK MASS

( EURO 2000)

COUPLINGS LIST. MASS INDEX

89C

ELECTRIC DIAGRAMS

89C - 5

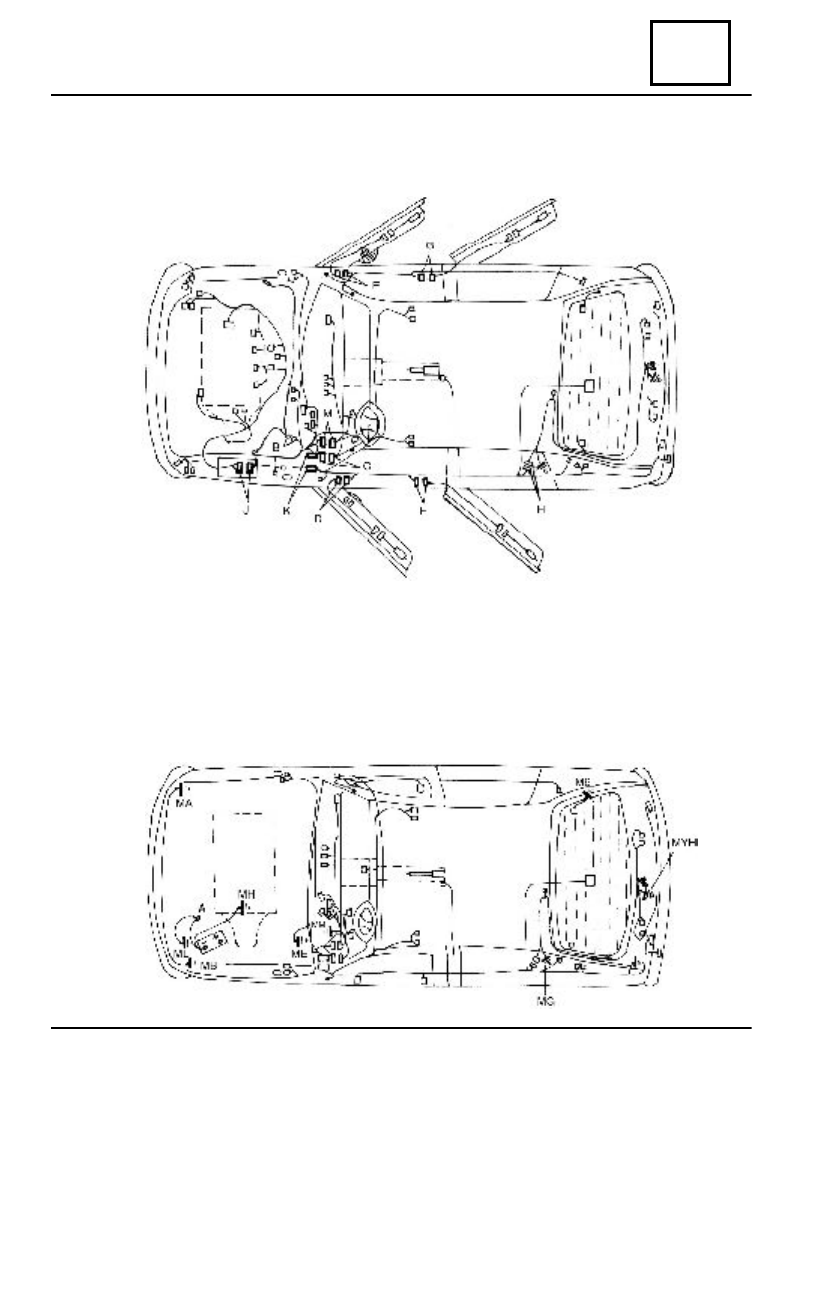

LOCATION OF ELECTRIC COUPLING ON THE VEHICLE

MASS ATTACHMENTS ON THE VEHICLE

LOCATION OF ELECTRIC COUPLING ON THE VEHICLE

MASS ATTACHMENTS ON THE VEHICLE

89C

ELECTRIC DIAGRAMS

89C - 6

Windscreen wiper timer
FLASH relay
Climate control lighting
AC starting button
AC relay ( on board)
Right front door actuator
Right rear door actuator
Right front door loud speaker
Right rear loudspeaker
Fuel level transmitt

er and electric pump

Trunk lighting lamp
Left rear loud speaker
Left rear door actuator
Left front door actuator
Left front door loud speaker
Right front door contact
Right volumetric sensor
Left volumetric sensor
Right front ceiling lamp
Handbrake  contact
Anti-starting bushing
Anti-intrusion indicator LED
Left front door contact
UCE decoder
Siren
Vehicle speed transducer
Engine hood contact
Doors closing switch
UCE anti-intrusion
Downstream oxygen sensor

( EURO 2000)

Injector 1
Injector 2
Injector 3
Injector 4
Atmospheric pressure sensor
Detonation sensor
Starter
Injection air temperature sensor
Valve potentiometer
Step-by step engine
Alternator
Ignition coil
Canister purging valve
AC pressure sensor(pressure controller)
Diagnostic socket
AC compressor clutch
Upstream oxygen sensor
Cooling blower and AC
Blower resistance for AC
Oil pressure contact
Injection computer
RPM sensor
Reverse driving contact
AC compressor clutch control relay (E)
Water temperature sensor
Blower lower speed control relay (B)
Engine compartment fuse and relays box
Motor fan control relay ( C)
Fog headlamps control relay(A)
Fuel pump control relay (H)
Actuators relay(D)
Chock sensor

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32

33
34
35
36
37
38
39
40
41
42
44
45
46
47
48
49
50
51
53
54
55
56
57
58
59
60
61
62
63
64

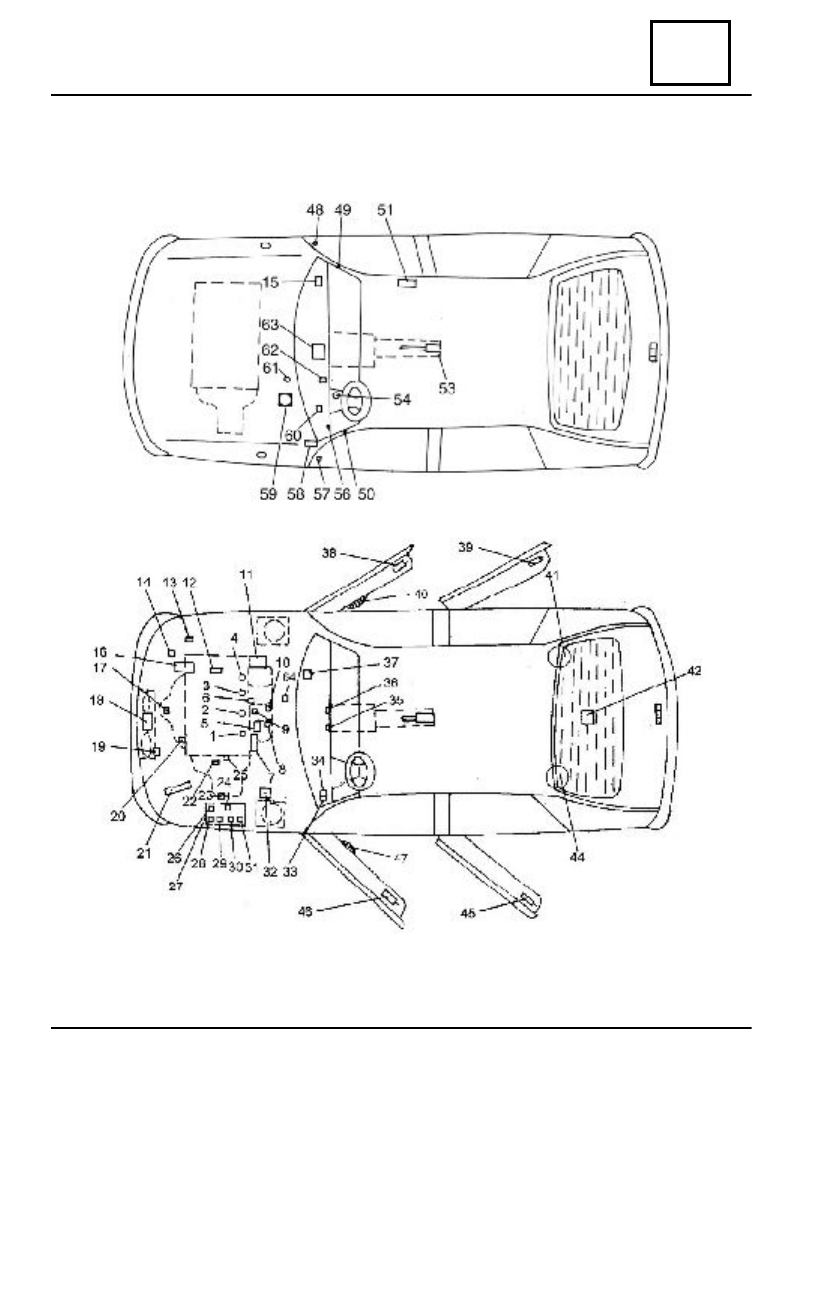

LOCATION OF ELECTRIC COUPLING ON THE VEHICLE

89C

ELECTRIC DIAGRAMS

89C - 7

LOCATION OF ELECTRIC COUPLING ON THE VEHICLE
