Dacia SuperNova (engine E7J). Manual - part 186
89B
ELECTRIC DIAGRAMS
89B - 88
CONNECTIONS
B41
01

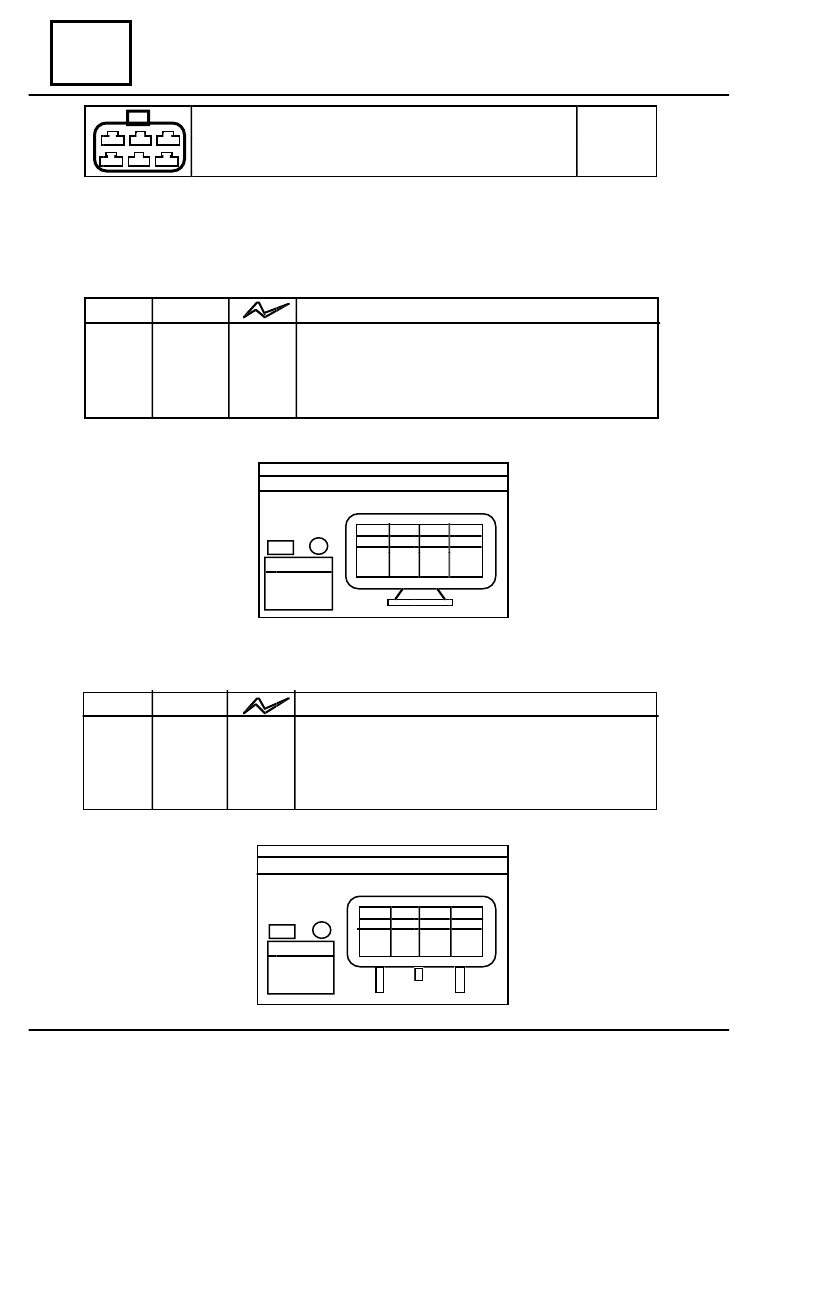

HATCHBACK WIRING CONNECTION
Position Sectioning
Destination
1
0,35
13A
CONTROL + CEILING LAMPS LIGHTING > HATCHBACK CONTACT
2
0,35
65A
CONTROL + STOP LIGHTS (ON HOOD)
2
0,35
65A
CONTROL + STOP LIGHTS (ON AILERON)
3
0,35
L
+ PARKING LIGHTS > FUSE OUTLET F05
4
2,0
15B
CONTROL + REAR WINDOW DEFROSTING

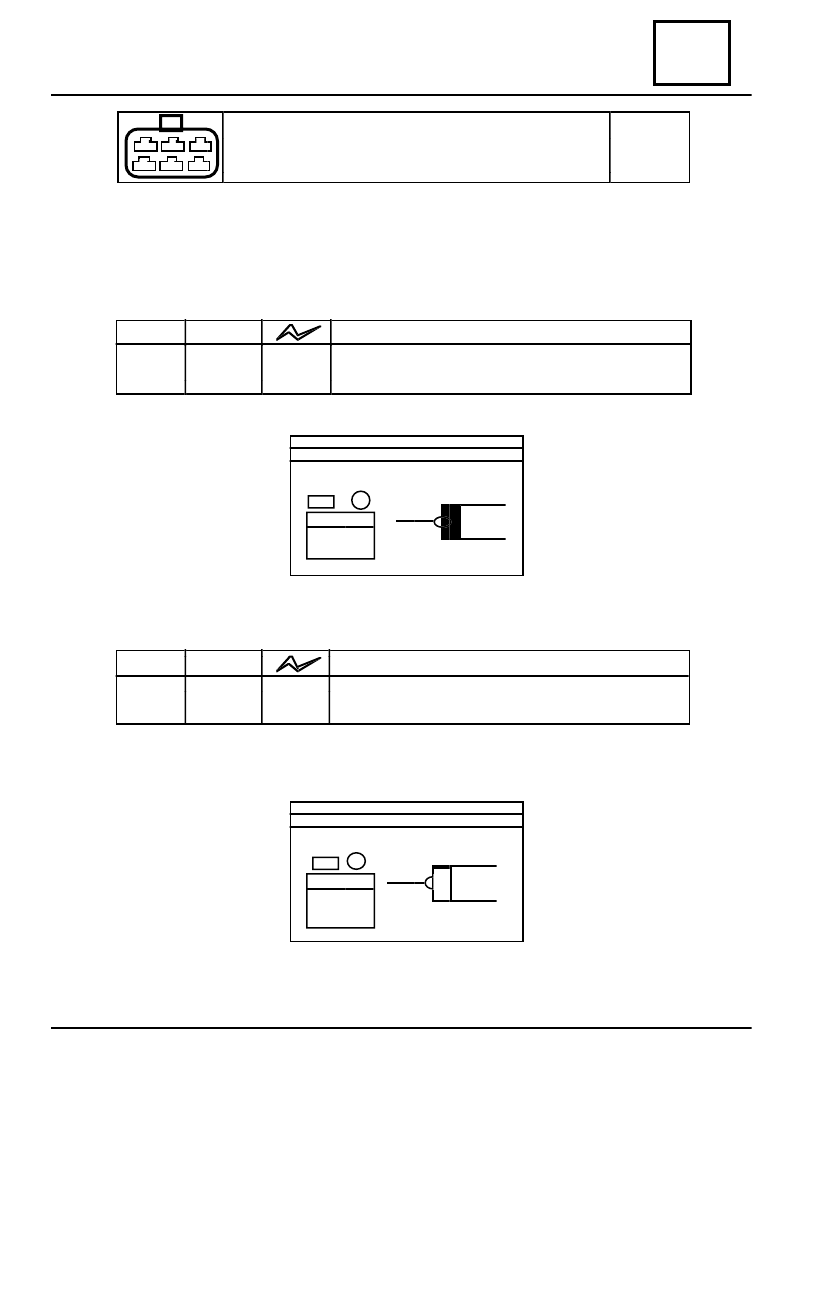

HATCHBACK / REAR WIRING CONNECTION
REAR WIRING CONNECTION
Position Sectioning
Destination
1
0,5
13A
CEILING LAMPS LIGHTING CONTROL > HATCHBACK CONTACT
UCE ANTI-INT RUSION CONTROL > HATCHBACK CONTACT
2
0,5
65A
CONTROL + STOP LIGHTS
3
0,35
L
+ PARKING LIGHTS > FUSE OUTLET F05
4
2,0
15B
CONTROL + REAR WINDOW DEFROSTING
NO
R 157
1
2
3
4
13A 6 5 A
L
15B
X
X
X
X
NO
R 157
4
3
2
1
15B
L 6 5 A 1 3 A
X X
X
X
X
CONNECTORS AND CONNECTIONS WIRES FUNCTION
