Dacia SuperNova (engine E7J). Manual - part 100

LOWER INTERNAL ACCESSORIES

57

57 - 10

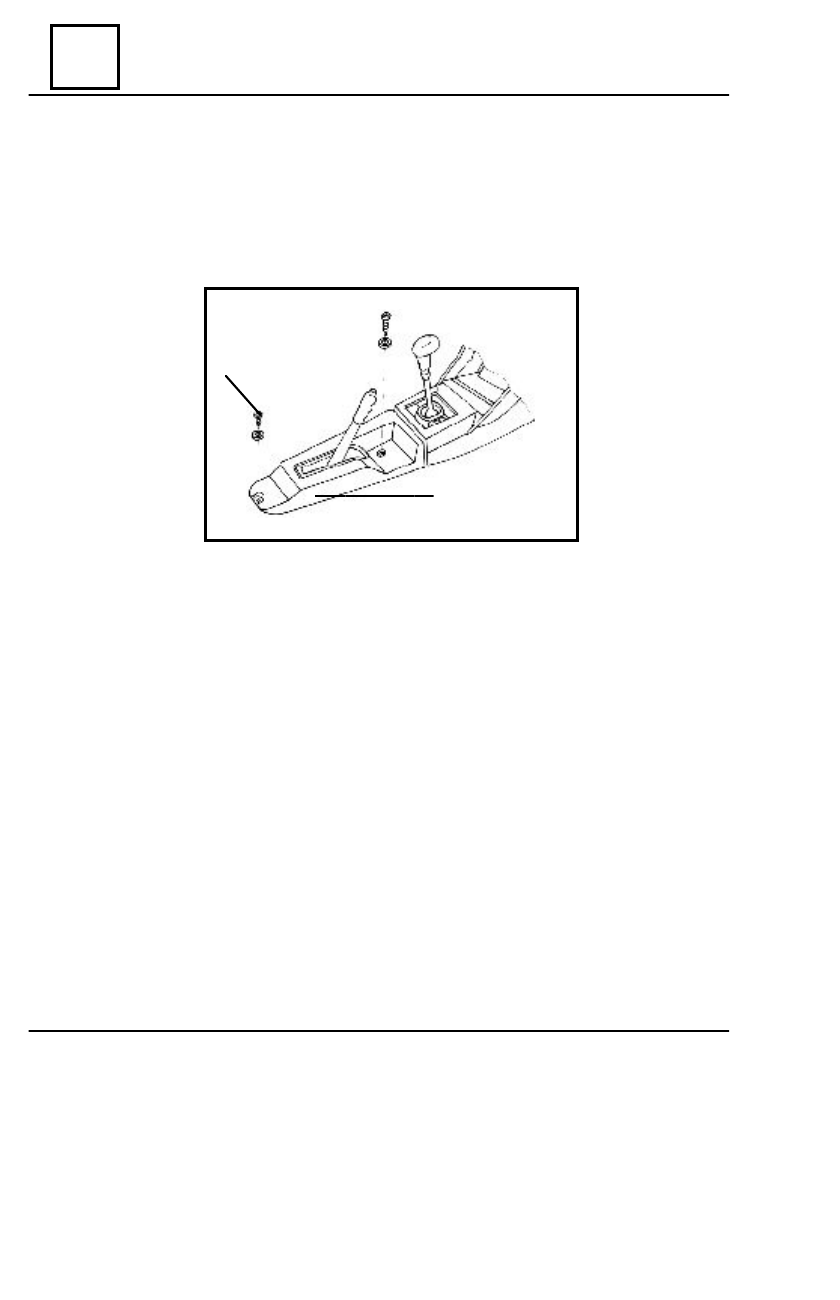

HANDBRAKE CASE

DISMOUNTING

Dismount the attachment screws (1) of the handbrake case (2) on the central floor.
Remove the handbrake case off the cockpit.

REMOUNTING

Perform in the reverse order the dismounting operations.

1

2

SAFETY ELEMENTS

59

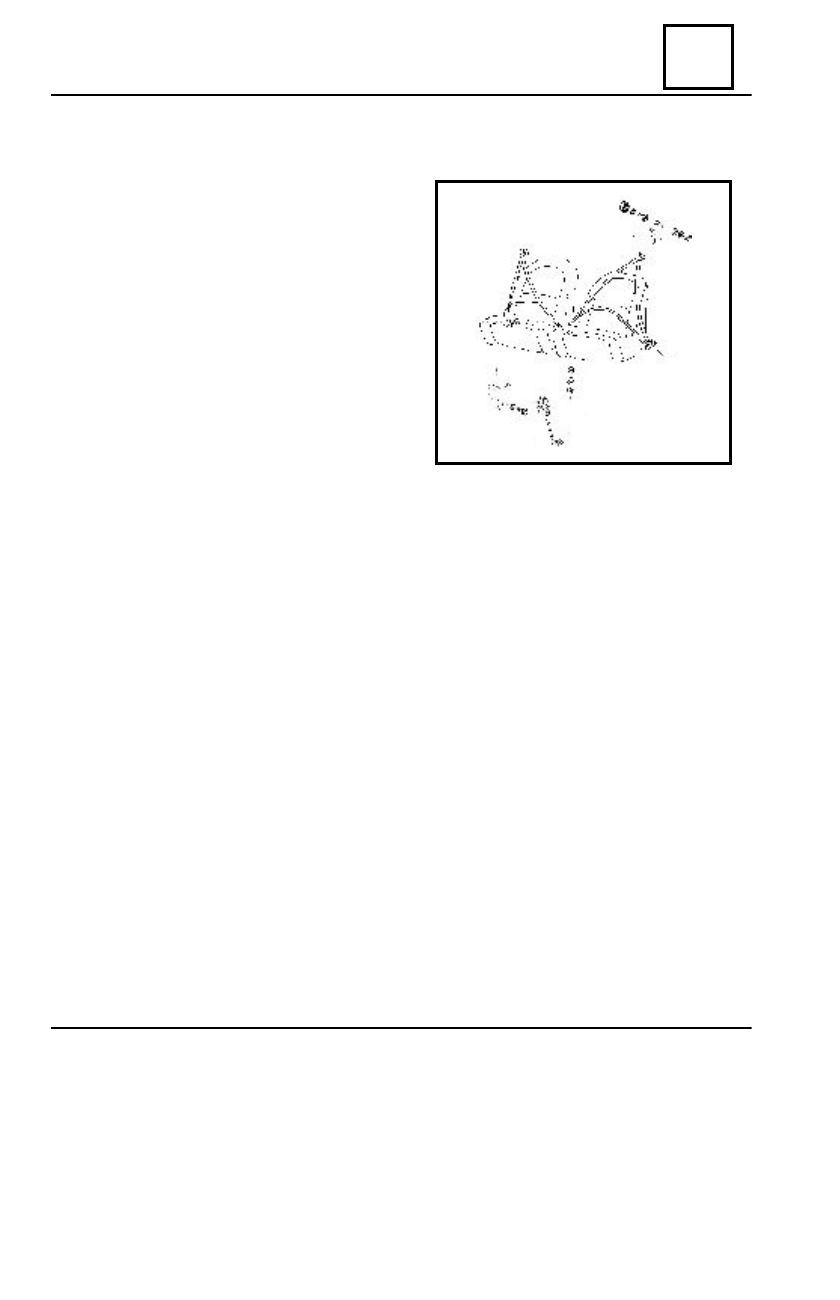

FRONT SAFETY BELTS

DISMOUNTING
Dismount the protectors (1) of the attachments

front safety belts screws on the upper middle
pillar.

Dismount the attachments front safety belts

screws (6) on the lower middle pillar lining.

Dismount the  attachment screws (4) of the

lock attachment (5) on the tunnel lining.

REMOUNTING
Perform the dismounting operations in the

reverse order.

59 - 1

3

5

4

6

SAFETY ELEMENTS

59

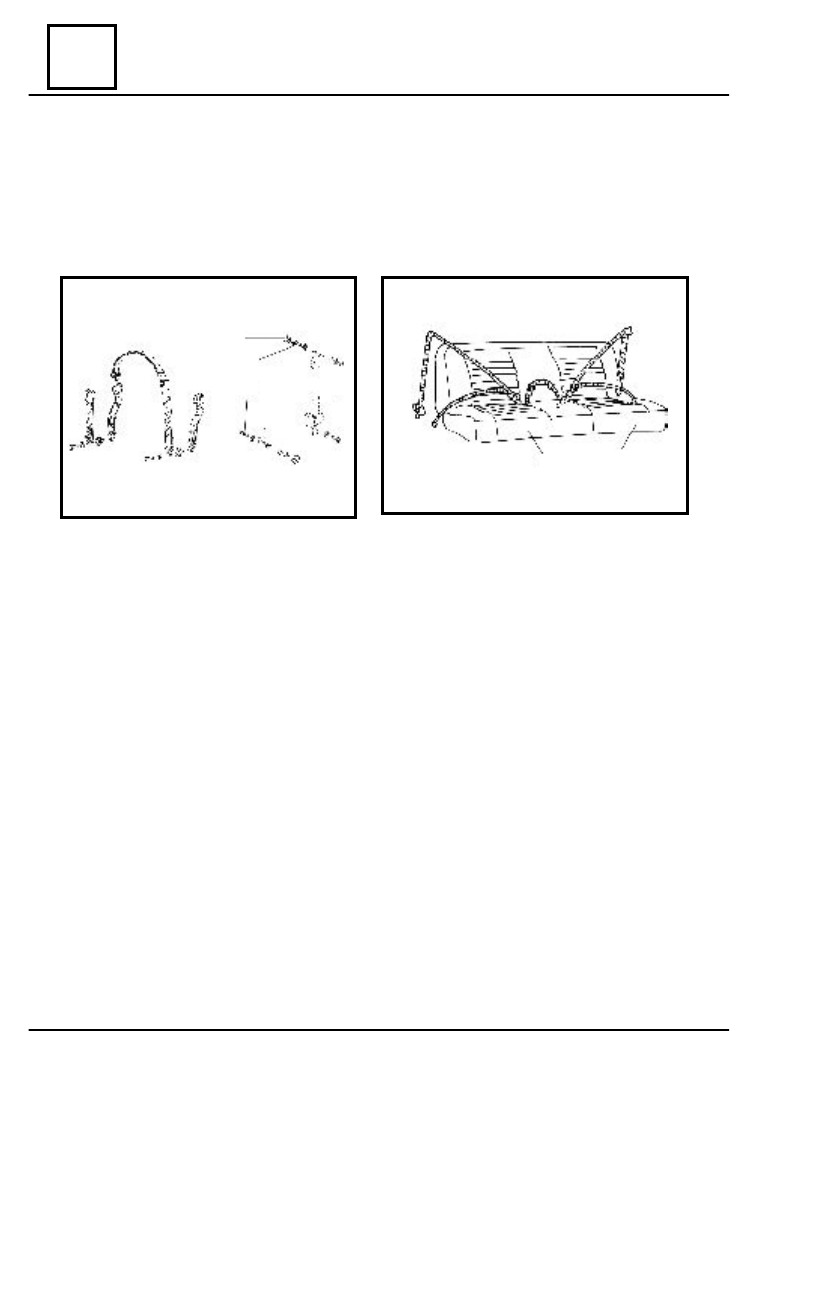

REAR SAFETY BELTS

DISMOUNTING
Fold the seats (5) and (6) and remove them from supports.
Dismount the protectors (1) of the attachment rear safety belt screws (2) on the rear side panels.
Dismount the attachment screws (3) on the lining lateral frame.
Dismount the attachment screws (4) of the rear belts lock on central floor

REMOUNTING
Perform the dismounting operations in  the reverse order.
The safety belts attachment screws are to be tighten at a moment of 2.7 daNm.

1

2

4

3

5

6

59 - 2

HEATING

61

61 - 1

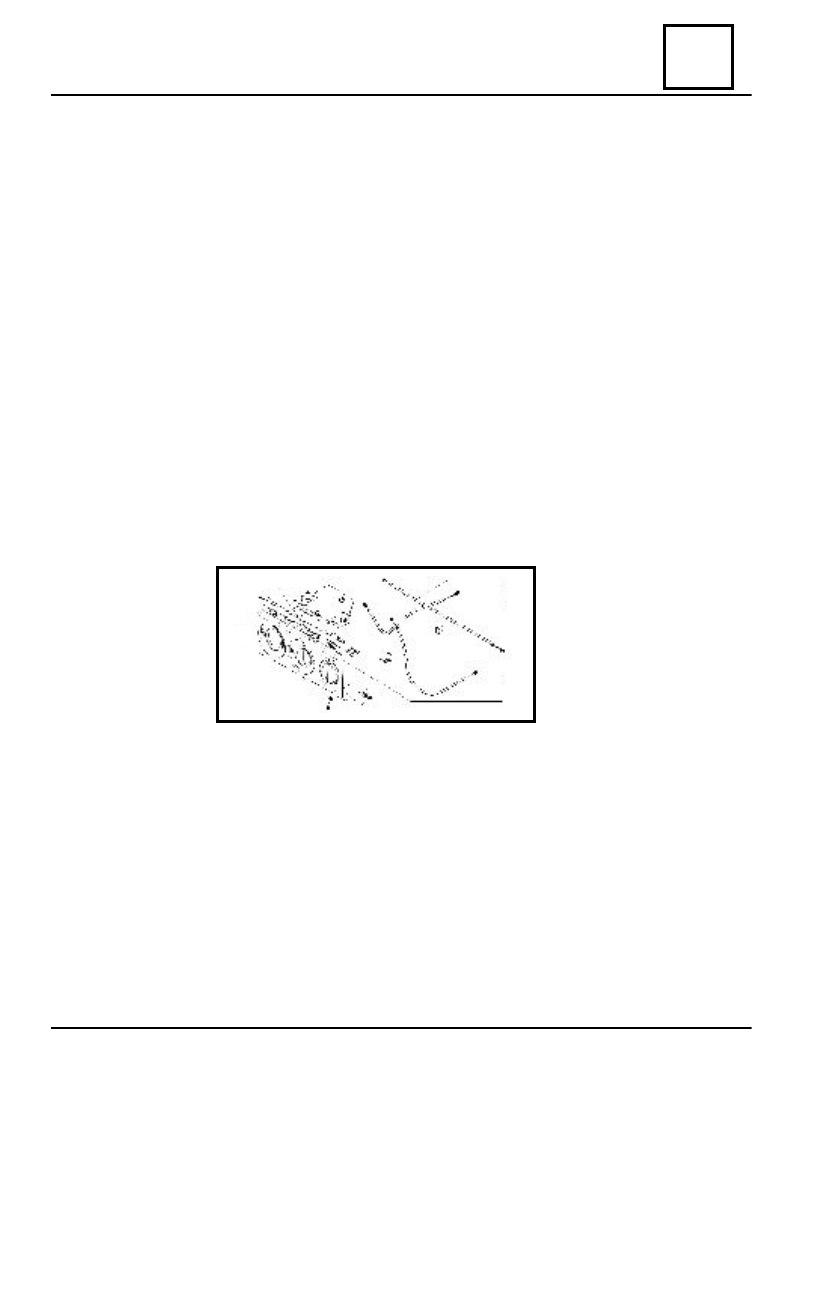

DISMOUNTING
Disconnect the battery.
Dismount the documents compartment.
Dismount the attachment clip of the mixing flow flap control cable, (8) (from the climate

control unit).

Remove the right aeration grill (from the right side of the central console).
Dismount the attachment clip of the distribution flow flap control cable, (7)(from the climate

control unit).

Dismount the attachment metal screws  (5) of the climate control assembly  (6) on the central

console of the dashboard.

Remove the climate control assembly from its seat.
Disconnect the connection box of the climate control switch.
Disconnect the connection box of the instrument panel lighting.
Dismount the attachment clip of the recycling flow flap control cable (9) and remove it from its seat.
Remove: the mixing flow flap control cable  (8) from the heating control button  (2) and the

distribution flow flap control cable (7) from the distribution control button (3), by releasing the
clips attachment screws.

Remove the climate control switch (4) out of its seat by detaching from clips.
Dismount the four lighting bulbs.

REMOUNTING
Perform in the reverse order the dismounting operations, taking into account the following

recommendations:

- the flow flaps control cables are  first fixed to the  board with the jacket, in axial contact

with the limiting support and then pass the panel button and the similar flow flap on the
corresponding position, then clamp the cable to the unit support;

- check if the levers from the climate unit and from the distribution box, have the adequate

strokes to ensure  the close-opening of the flow flaps;

- if yes, mount the assembly (6) on the central console, the documents compartment and

the aeration grill ;

- if not, set the sleeve length of each control cable to the mounting bracket of the climate

unit and the distribution box.

- the maximum moment for the full flow flaps opening  is 1,9 Nm.

CLIMATE CONTROL ASSEMBLY

9

8

7

6

1

2

3

4

5
