20

CLUTCH

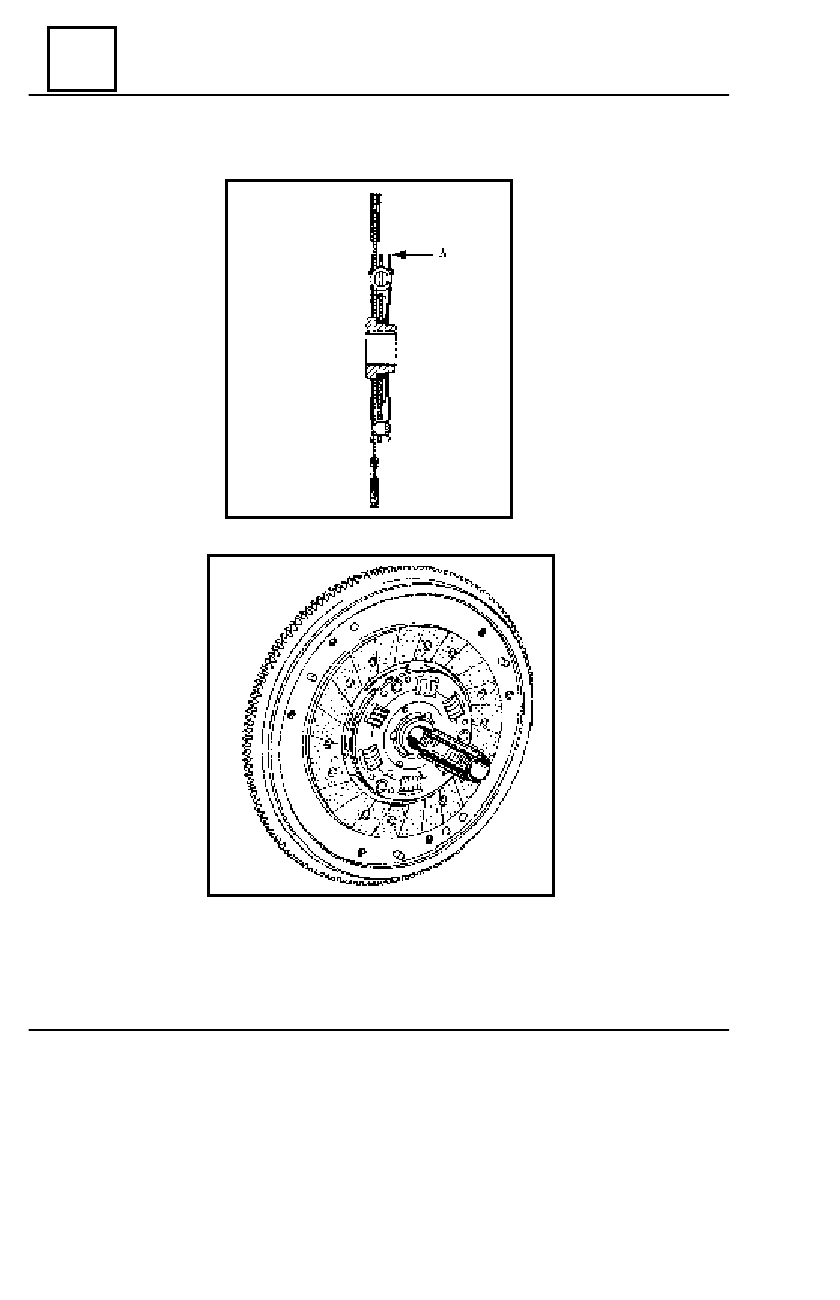

The clutch disc is mounted with the A damping flange towards the gearbox

The clutch disc is centered with the AMB 1518 centering device

The clutch mechanism is mounted;
The fixing screws are progressively put on the thread of the mechanism, then they are tight-

ened to the couple;

The MOT 582 flywheel-stopping sector is taken off.

CLUTCH DISC MECHANISM

20 - 10

CV   JH3 - 050

21

MANUAL GEARBOX

21 - 1

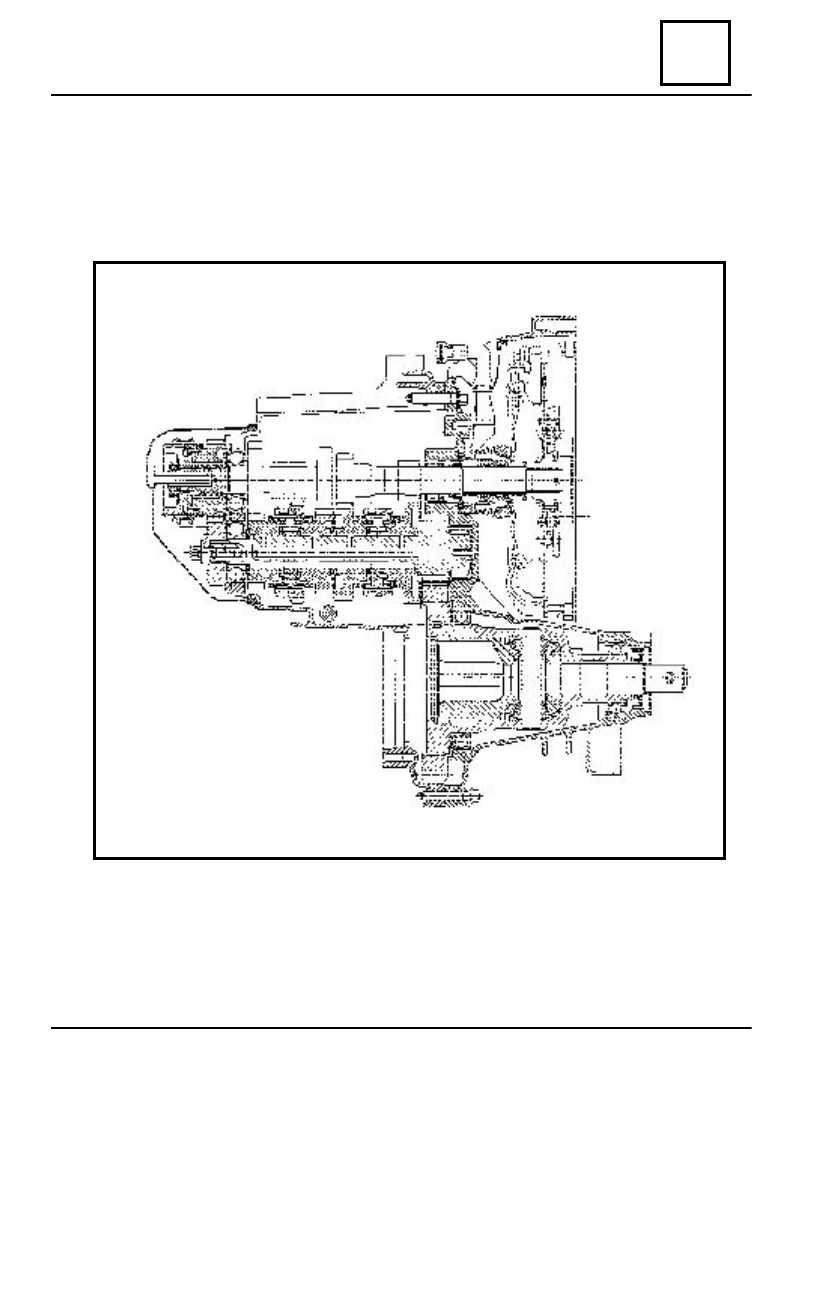

SECTIONS

CV   JH3 - 050

21

MANUAL GEARBOX

21 - 2

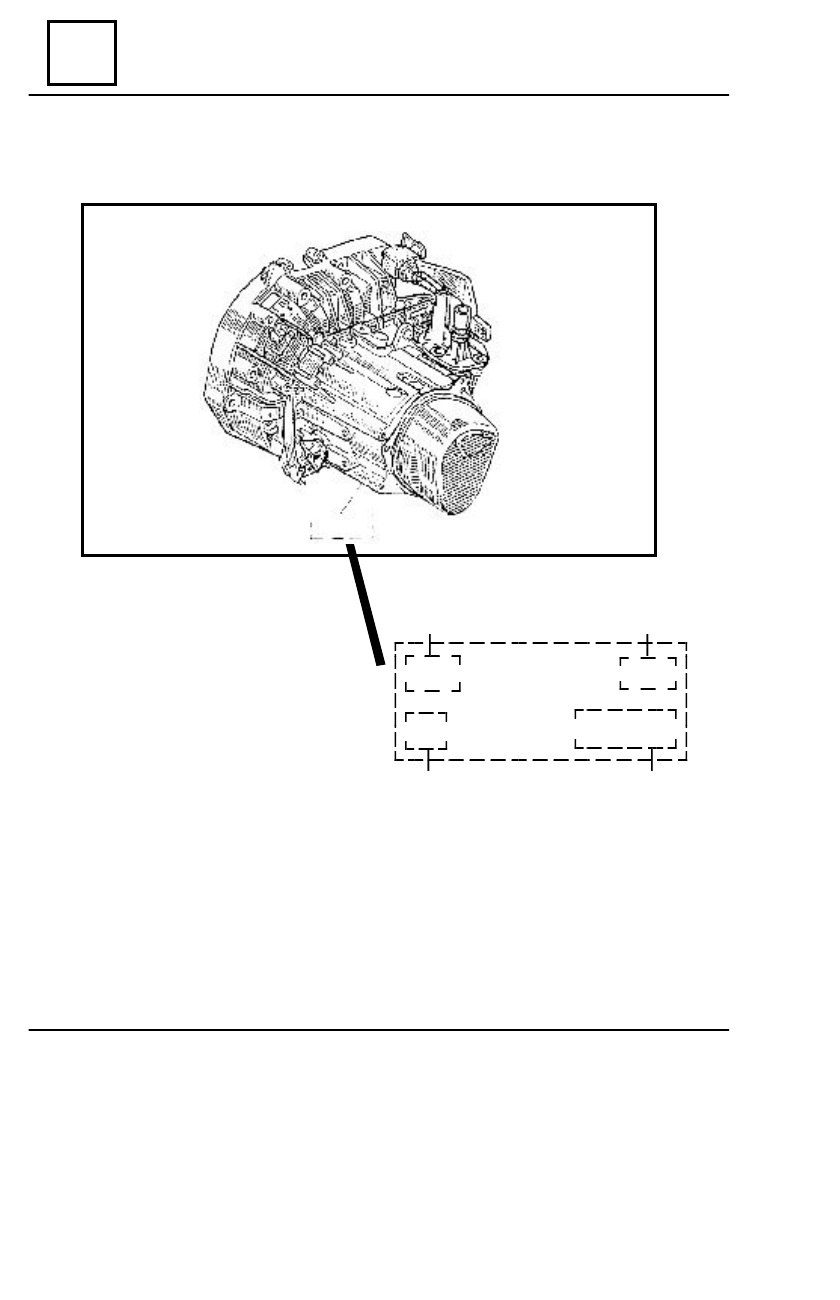

IDENTIFICATION

A - type of gearbox
B - index of gearbox
C - manufacturer’s number
D - manufacturing factory

000

000

0

000000

A







       B

D







          C

CV   JH3 - 050

21

MANUAL GEARBOX

21 - 3

TIGHTENING MOMENTS

DESCRIPTION

Attachment screws of the mechanism crankcase on the clutch –
differential case
Secondary shaft screw
Primary shaft nut
Back cap fixing screws
Oil draining plug
Reverse driving contact
Screws for fixing the bellows – left transmission cap assembly
Screws for fixing gearbox on engine case (M10 – 90)
Screws for fixing gearbox on engine case (M10 – 35)
Screws for fixing gearbox on engine
LOCTOU fixing screw
Screws for fixing the RPM sensor on the clutch case
Screws for fixing the control axle assembly
Screws for fixing hydraulic receiver on clutch case

MOMENT

(daNm)

2,5

7

19

2,5
2,5
2,5
2,5
4,4
2,1
4,4
0,5

 0,8

2

2,1
