CLUTCH

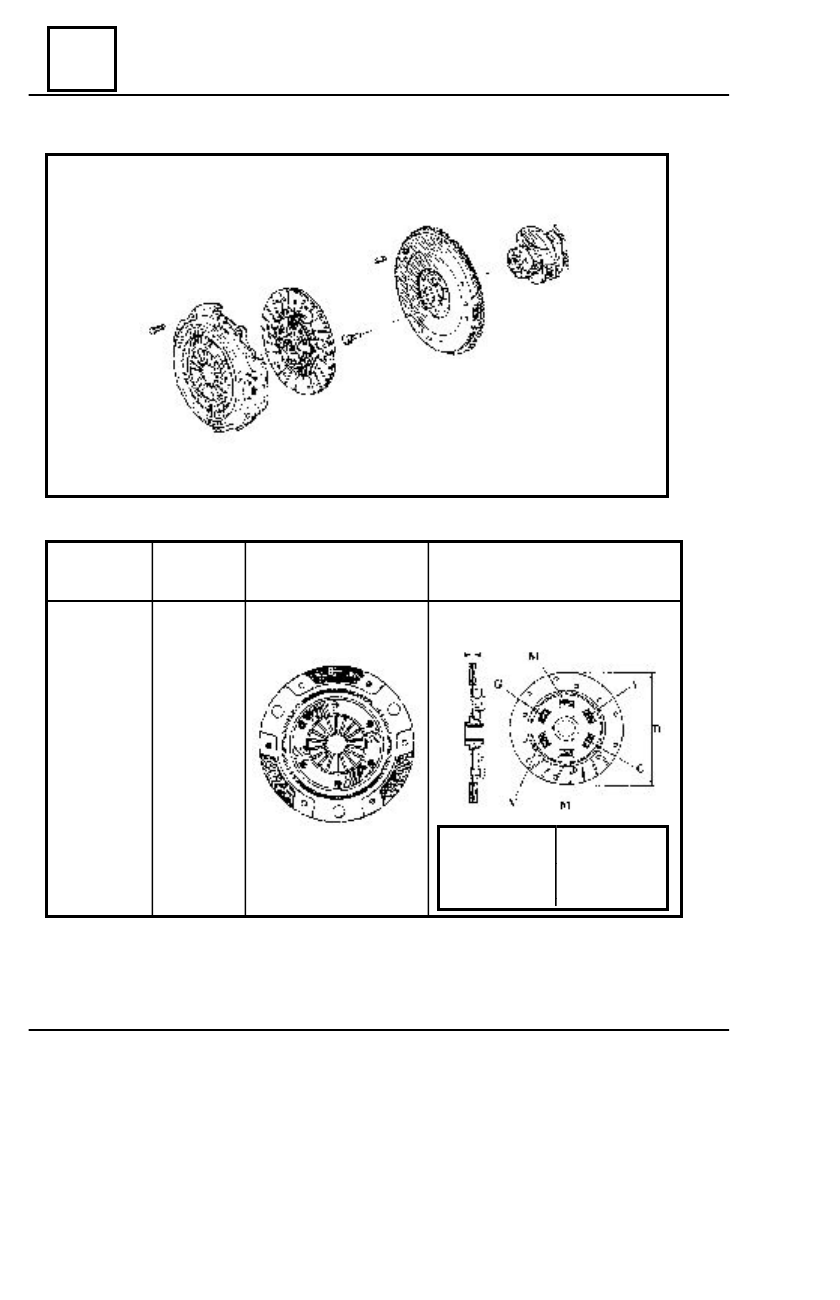

IDENTIFICATION

TYPE  OF    TYPE OF

     MECHANISM

                 DISC

   VEHICLE        ENGINE

SupeRNova

    E7J

E

215 CP OE 3500

26 groves
V = green
G = gray

M = violet
D = 215 mm
E  =    7 mm

20 - 2

20

CLUTCH

D I A G N O STIC

LEGEND / KEY

Is checked

Operations
performed

  The pedal of the clutch
  opposes no resistance

Incident
noticed

   The state of the

hydraulic tubing is

checked

  The fixation of the

hydraulic receiver is

checked

The state of the
clutch mecha-
nism is checked
and  it is replaced
if necessary

The faulty parts

are replaced

The faulty parts
are replaced

NON-CONFORMING

NON-CONFORMING

CONFORMING

CONFORMING

20 - 3

20

CLUTCH

The axis of the clutch
pedal is lubricated

The return of the

clutch pedal is

checked

The faulty parts
are replaced

The emitting cylinder
or the hydraulic re-
ceiver are seized up

The sliding of the mov-
ing part of the hydrau-
lic receiver is checked

The faulty parts
are replaced













Clutch pedal is tough /

rigid

NON-CONFORMING

NON-CONFORMING

NON-CONFORMING

CONFORMING

CONFORMING

D I A G N O STIC

20 - 4

20

CLUTCH

The complete return

of the clutch pedal is

checked

 The state of the

hydraulic circuit is

checked

The worn-out or oiled

clutch is checked

 - The worn-out elements are
     replaced
 - The cause of the leakage is
    eliminated.

The state of the
pedal is checked







The state of the clutch

mechanism is checked,

and it is replaced if

necessary





Clutch skidding

The engine has the ten-

dency to accelerate

NECONFORMING

NON-CONFORMING

The faulty parts are

replaced

CONFORMING

CONFORMING

CONFORMING

D I A G N O STIC
