Dacia Solenza (engine E7J). Manual - part 177

89

ELECTRIC DIAGRAMS

89 - 12

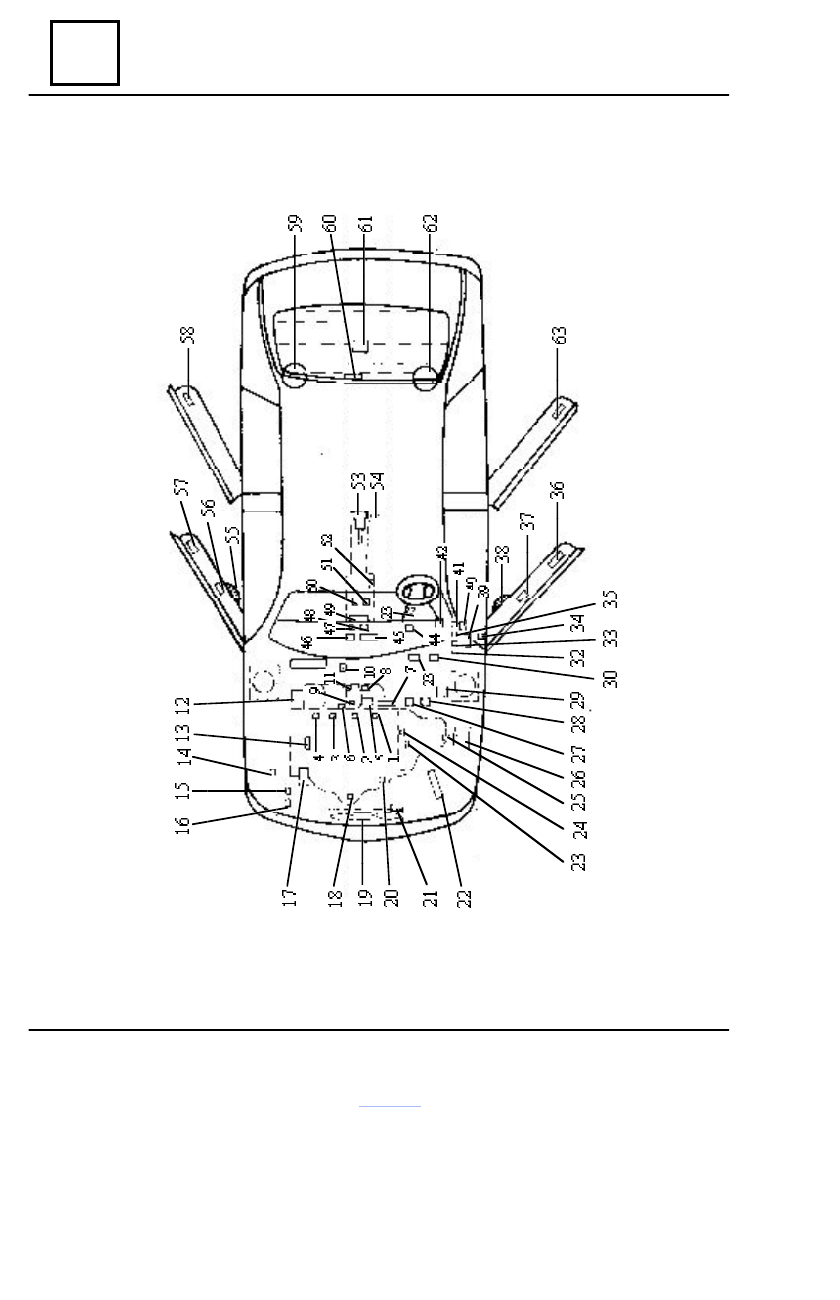

Electric components location on the vehicle

89

ELECTRIC DIAGRAMS

89 - 13

FUNCTIONAL ELECTRIC DIAGRAMS

Functional electric diagrams

89

ELECTRIC DIAGRAMS

89 - 14

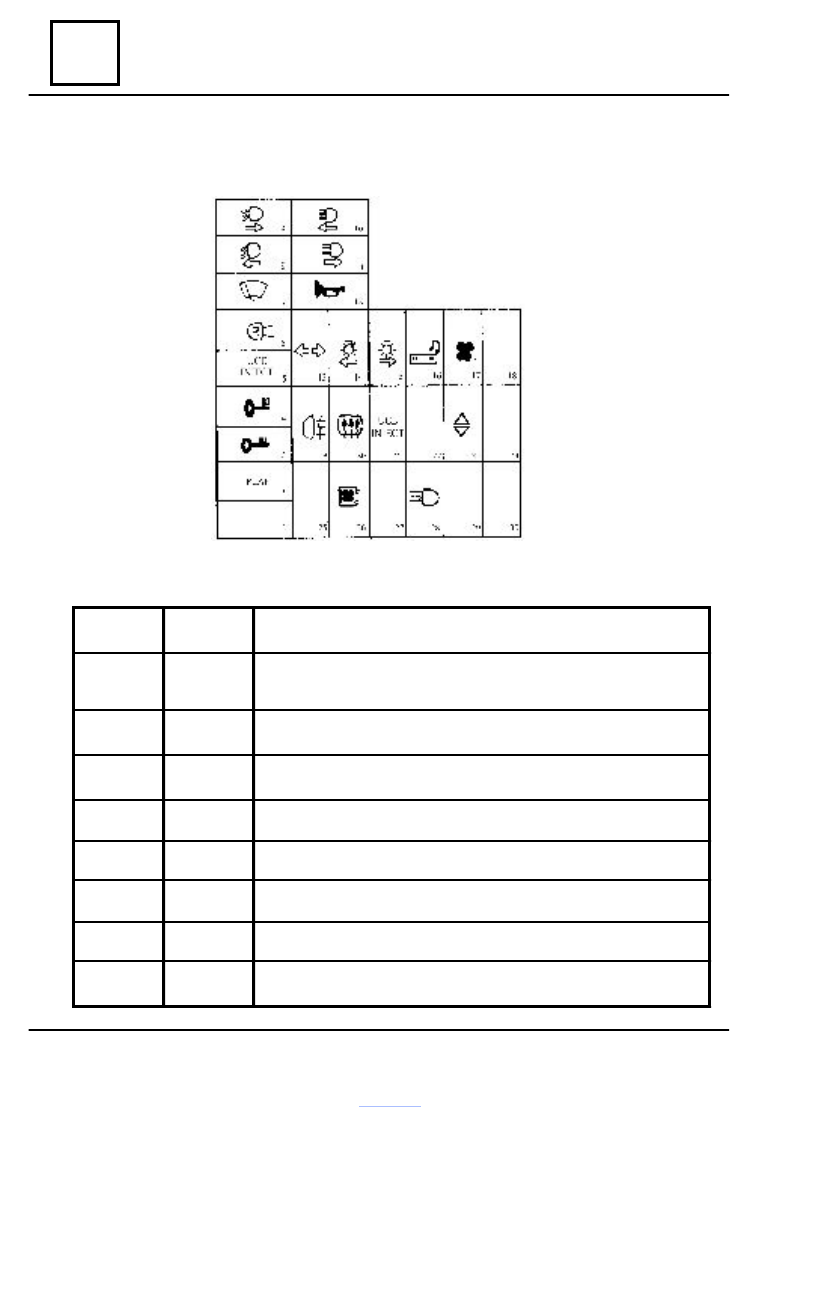

Cockpit fuse box

The cockpit fuse box is placed in driving post left side, being attached on the dashboard lateral

side.

The fuses are protecting the following electric components and circuits:

Diagnostic socket, ceiling light, windscreen wiper motor (fix point
stopping), FLASH relay (+C)

UCE decoder, anti-starting bushing

,

radio, instrument panel, climate

control panel



(+C)

U.C.E. decoder, diagnostic socket, instrument panel, climate control
panel,



speed limit indicator, contact STOP (+DC)

U.C.E. injection, U.C.E. airbag fuel pump relay/ ignition coil



(+DC)

Reverse driving contact(+DC)

Windscreen wiper switch, windscreen wiper timer.

Left meeting lights, instrument panel (indicator)

Right meeting lights

F02

F03

F04

F05

F06

F07

F08

F09



 FUSE

NUMBER

FUSE
TYPE

PROTECTED

CIRCUIT

10A

25A

15A

15A

  5A

10A

10A

10A

89

ELECTRIC DIAGRAMS

89 - 15

REMARK :
The fusible F26 is used



only for vehicles equipped with air conditioning.

F10

F11

F12

F13

F14

F15

F16

F17

F19

F20

F21

F23

F26

F28

Left road lights, instrument panel (indicator)

Right road lights

Acoustic warning

Signaling direction lights and hazard

Front/rear parking lights, lighting: switches, climate
control, instrument panel, lighter, radio.

Front/rear parking lights

Lighter, radio

Cooling motor fan

Fog lamps, instrument panel (indicator)

Rear window defrosting

U.C.E. injection

Electric left/right window switch

Cooling blower

Fog projectors

10A

10A

10A

  7.5A

10A

10A

15A

30A

5A

25A

5A

30A

30A

25A

Cockpit fuse box
