ELECTRIC DIAGRAMS
89 - 4
INTERPRETATION OF CONNECTORS
WIRES FUNCTION INDEX
The information concerning the function of the wires in connectors and connections
included in chapter 11, are to be interpreted taking into account the explanations based upon
the following example:

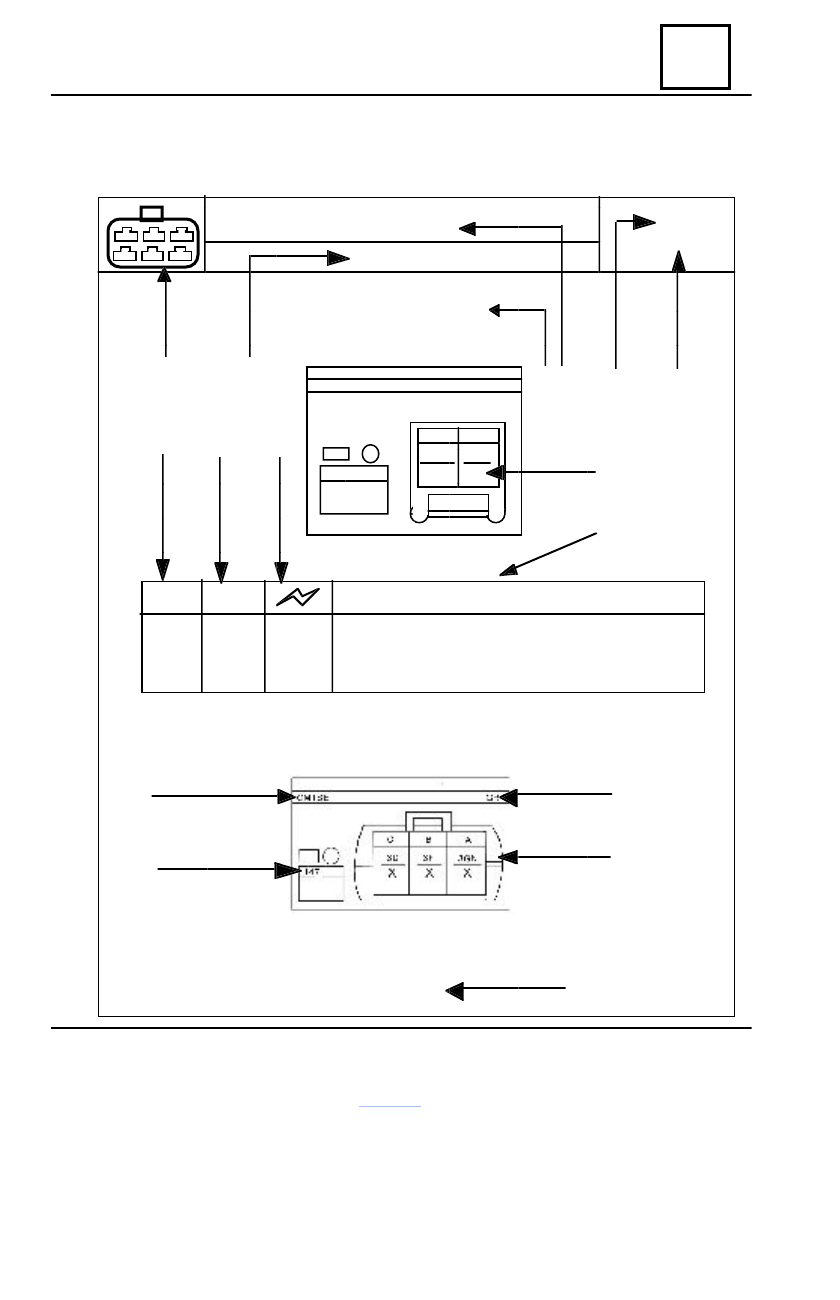

1 = symbol (sign) of the page containing connectors and electric connections
2 = connector destination
3 = name of the wiring on which the respective connector is placed
4 = general criteria of page separation
5 = vehicle class
6 = manufacturing year
7 = connector code
8 = component identification to whom the described connector is to be connected
9 = connector colour
10 = connector symbol
11 = indication of the connector socket
12 = wire sectioning (mm˝)
13 = wire functional code
14 = wire destination
15 = wire colour *
16 = chapter number and connector page number
REMARK:
Concerning position 15, please note that one X is marked, for one wire and two Xs for
two wires. The colour of the wire is to be symbolised only in case the electric routing of the
wire represents one of the fundamental statuses: + permanent (+ IC), + after contact (+ DC),
mass (-) or controls.
The symbols used for the wire colours are the followings:
A = white
AS = blue
GR = grey
N = black
G = yellow
V = green
M = brown
VI = violet
R = red
