86

86 - 6

AUTO RADIO

TAPES PLAYER

This function is completely automatic, immediately after the tape is being inserted in the device

through the door provided for this purpose, the tape being oriented with the opening towards right.

Tape fast forwards
For this purpose, the “sau” key must be pressed. During tape rewinding, the radio may be heard

and on the display the name of the radio station or its frequency will be displayed. The stopping of
the fast forwards is to be performed by pushing on the key next to the one initially pushed. If during
a tape listening, you wish the listening of the other side, push simultaneously the key “si”. This tapes
player is an auto-reverse type, so when finishing listening one side of a tape, automatically the sense
will change and the listening of the other side will continue.

The MSS system is to  be  activated by pushing key “MSS”, enabling the fast forwards of the tape

till the next song, does not matter the playing sense in use. Deactivation of this function is to be
performed by pushing again key <<MSS>>.

Noise reduction – Dolby B function
If you are using recorded tapes with noise reduction type Dolby B, push key <<1>> for an

optimal sound playing, on the display, Dolby symbol will appear.

Tapes player

86

86 - 7

AUTO RADIO

CD PLAYER

CD (compact disc) playing.

Insert the CD, with the recorded face downward, in the door located on the device front part.

The CD lecture is beginning with track number 1.

If the CD has been previously inserted, then you switch on listening to a radio station, in case

you wish to listen again to the CD, push key SRC and select CD. The CD playing will continue
from its last stop.

After listening the last CD track, the playing is continuing beginning with track no.1.

Observations:
- The CD playing may be interrupted by the receipted information if radio has been previously

programmed to operate” Emergency messages reception”.

- If you after inserting the CD, you hear an acoustic signal (bip), check if the CD is not dirty

or damaged.

Track selection
In order to select the desired track, push consequently > or  < till you reach the searched

track. The CD lecture will continue from the selected track.

Fast forwards/backwards
Push key > or < and maintain it pushed, performing in this way, the forwards and consequently

backwards of the track listen in that moment.

CD tracks random playing
In order to activate this function, push key (1). After finishing random playing of all CD

tracks, the lecture will continue until its stop controlling. If key > is pushed, passing to the next
track, random selected, will be  performed. If key  < is pushed, playing  again of the existent track
will be performed. In order to return to the normal track playing ( successive playing), key (1) is
to be pushed and to be maintained for few seconds.

CD eject.
After CD playing, if CD ejection is desired, push key (2) EJECT, placed on the left side of

the device front panel.

OBSERVATIONS:
This CD player is reading only CD audio parts. If on CD there are also non-audio parts, they

can not be red and on the display the track number followed by the message NO AUDIO will be
displayed.

If a CD without any audio track, is inserted in CD player, this one will be refused and the

message NO AUDIO will be displayed on the screen.

This CD player is  operating only with 12-cm diameter CD.

CD Player

86

86 - 8

AUTO RADIO

            Black connector (A)

Pin

Denomination

White connector (C)

Pin

Denomination

1

+ Right rear speaker

2

-  Right rear speaker

3

+ Right front speaker

4

– Right front speaker

5

+ Left front speaker

6

– Left front speaker

7

+ Left rear speaker

8

– Left rear speaker

1

Free

2

Free

3

Free

4

Battery supply

5

Free

6

Supply + parking

7

Supply + after contact

8

Mass

Connectors

OBSERVATION:
The speakers are connected in parallel on each exit.

Connectors

86

86 - 9

AUTO RADIO

   ROOF ANTENNA HOLDER

DISMOUNTING

Disconnect the battery (-) terminal.
Detach from clips the ceiling lamp using a straight head screwdriver (see chapter 80).
Disconnect the ceiling lamp connector
Dismount the attachment screw of the antenna holder on the roof.
Remove the antenna holder.

REMOUNTING

Correctly position the antenna holder on the roof.
Mount the attachment nut of the antenna holder on the roof.
Connect the ceiling lamp connector
Attach in clips the ceiling lamp in its support.
Connect the battery (-) terminal.
Check the ceiling lamp and radio operation.

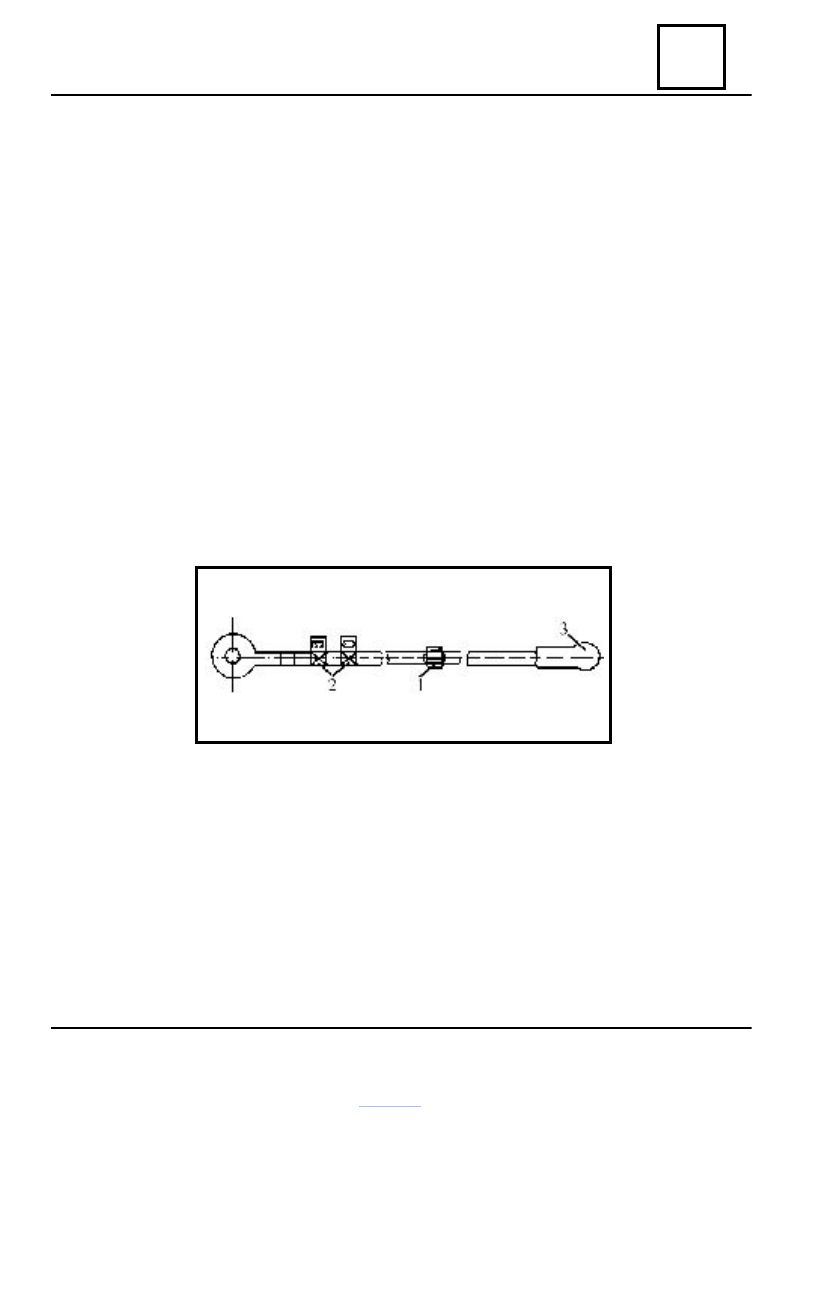

ROOF ANTENNA CABLE

DISMOUNTING

Dismount the upper part dashboard (see chapter 57).
Cut the attachment clip (1) of the roof antenna cable on the driving post cross member (mark

the clip mounting position).

Dismount the covering of the right front upper pillar and detach from clips the roof antenna

cable from covering.

Dismount the sun visors (see chapter 71).
Unstuck the two Aplix pills (2) from the roof.
Carefully remove the antenna cable (pull the end that was connected to the antenna holder).

Mark the mounting position of the antenna cable.

Roof antenna
