WINDSCREEN WIPER

85

85 - 2

Connector

1

5

Drive mechanism

Pin

Denomination

1

Mass

2

Stopping at fix point

3

+ Battery

4

Low speed control

5

High speed control

85

WINDSCREEN WIPER

85 - 3

Replace

fuse F 07

Check fuse F07 from cockpit.

Is it good?

Replace the under steering  wheel control  assembly.

Replace the windscreen wiper timer.

Check the windscreen wiper

switch. Is it good?

Check the windscreen wiper

timer. Is it good?

Replace the

windscreen

wiper electric

motor.

.

Is there any 12 V between pins 5
and 1  of  the electric motor connector
of the windscreen  wiper ?

Set the contact on. Switch the

windscreen wiper on high

speed. Is the windscreen

wiper working?

Set the contact off.
Check the continuity and the resistance against the vehicle mass
between:
- exit fuse F07        pin A7 windscreen wiper switch
- pin A2 windscreen wiper switch       pin 5 electric motor
connector of the windscreen wiper;
- pin 1 electric motor connector of the windscreen wiper
vehicle mass.
Are they good?

Defective wiring. Fix it.

Replace the

windscreen

electric motor.

Is there any 12 V between pins 4 and
1 of the electric motor connector of
the windscreen wiper?

Set the contact off.
Check the continuity and the resistance against the vehicle
mass between:
- exit fuse F07       pin A7 windscreen wiper switch
- pin A3 windscreen wiper switch         pin 4 electric motor
connector of the windscreen wiper;
- pin 1 electric motor connector of the windscreen wiper
vehicle mass.  Are  they good?

Switch the windscreen wiper

on low speed. Is the

windscreen wiper working ?

Defective wiring. Fix it.

No

No

No

No

No

No

No

No

No

Yes

Yes

Yes

Yes

Da

1

Yes

Yes

Diagnostic

WINDSCREEN WIPER

85

85 - 4

Set the contact off.
Check the continuity and the resistance against vehicle mass
between:
- exit fuse F02          pin 3 electric motor connector of the
windscreen wiper
- pin 2 electric motor connector of the windscreen wiper       pin 4
timer connector of  the windscreen wiper;
- pin 3 timer connector of the windscreen wiper          pin 6 switch
connector of the windscreen wiper.
Are they good?

Defective wiring. Fix it.

Replace the windscreen

wiper timer.

Is there any 12 V between

pins 9 and 1 of the timer

connector of the

windscreen wiper

?

Set the contact off.
Check the continuity and the resistance against vehicle mass between:
- exit fuse F07        pin A7 switch connector of the windscreen wiper;
- pin A1 switch connector of the windscreen wiper    pin 9 timer
connector of the windscreen wiper;
- pin 1 timer connector of the windscreen wiper      vehicle mass;
- pin 5 timer connector of the windscreen wiper       exit fuse F 07.
Are they good ?

Defective wiring. Fix it.

Replace the windscreen

washing reservoir.

Is there any 12 V between pins 1 and
2 of the electric pump connector of
the windscreen washing?

Set the contact off.
Check the continuity and resistance against vehicle mass between:
- exit fuse F07      pin B4 of the switch connector of the windscreen
wiper.
- pin A4 switch connector of the windscreen wiper       pin 2 electric
pump connector of the windscreen washing;
- pin A4 switch connector of the windscreen wiper       pin 2 timer
connector of the windscreen wiper;
- pin 1 electric pump connector of the windscreen washing       vehicle
mass;
- pin 5 timer connector of the windscreen wiper     exit fuse F07.
Are they good?

Electromotorul

 ºtergãtor parbriz

 “se opreºte la punct

fix”?

Switch the windscreen wiper

on timer position.

Is the windscreen wiper

electric motor working

delayed?

Switch the windscreen

wiper on windscreen

washing position. Is the

windscreen washing

electric pump working?

Cablajul

este defect.

Remediaπi.

1

No

No

No

No

No

No

No

No

Yes

Yes

Yes

Yes

Diagnostic

86

86 - 1

AUTO RADIO

The auto radio may be fitted in the versions: radio-tapes player and radio with CD player.

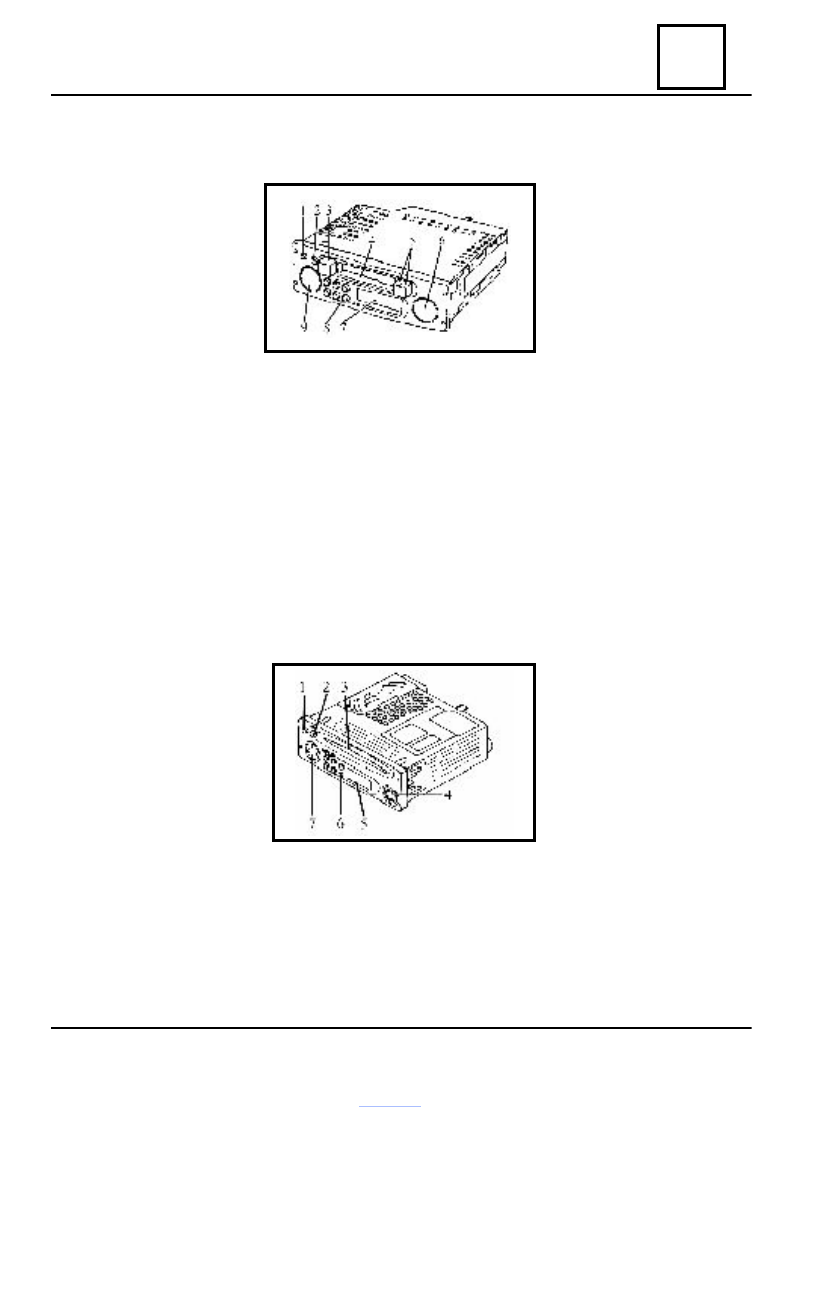

RADIO-TAPES PLAYER  PRESENTATION

1. On/off key
2. Key for tape fast-forwards up to next song
3. Tape eject key
4. Tape inserting door
5. Keys for tape forwards/backwards
6. Multi-purpose key (audio source selection, sound adjustment, radio frequency selection, and
traffic information
7. Display
8. Keys for radio programs memorizing (key 1 is used also for DOLBY function in tape listening)
9. Multi-purpose key (after selecting one function, the adjustments in the areas +, - or > , < are
performed)

CD PLAYER  PRESENTATION

1. On/off key
2. CD eject key
3. CD insert door
4. Multi-purpose key (audio source selection, sound adjustment, radio frequency selection, and
traffic information
5. Display
6. Key for radio programs memorizing (key 1 is also used for CD listening)
7. Multi-purpose key (after selecting one function, the adjustments in the areas +, - or > , < are
performed)
