84

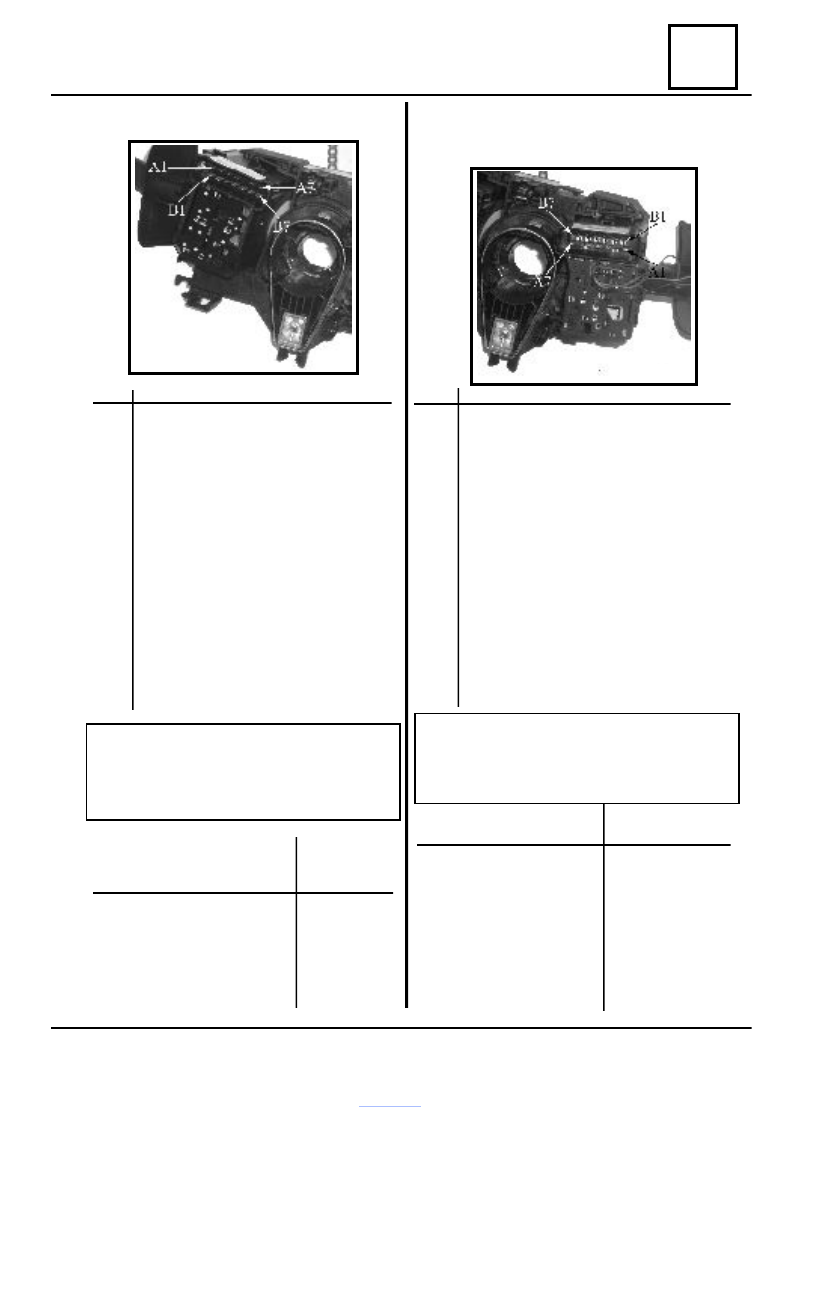

STEERING - CONNECTOR
84 - 5

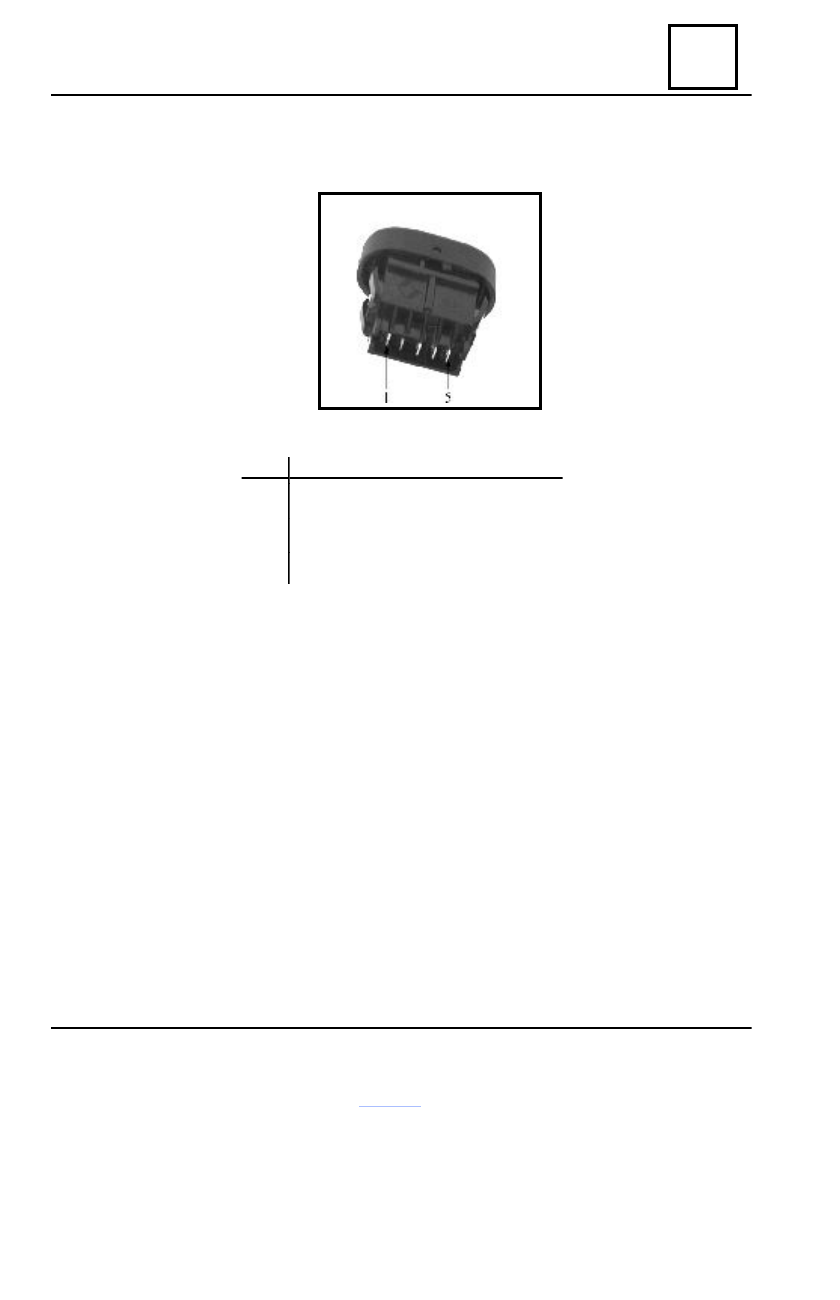

WINDSCREEN WIPER
SWITCH CONNECTOR
Pin
Denomination
A1
Windscreen wiper
A2
High speed control
A3
Low speed control
A4
Windscreen washer pump control
A5
Free
A6
Timer low speed control
A7
Supply + after contact
B1
Free
B2
Free
B3
Free
B4
Supply + after contact
B5
Free
B6
Free
B7
Free
Under steering wheel control

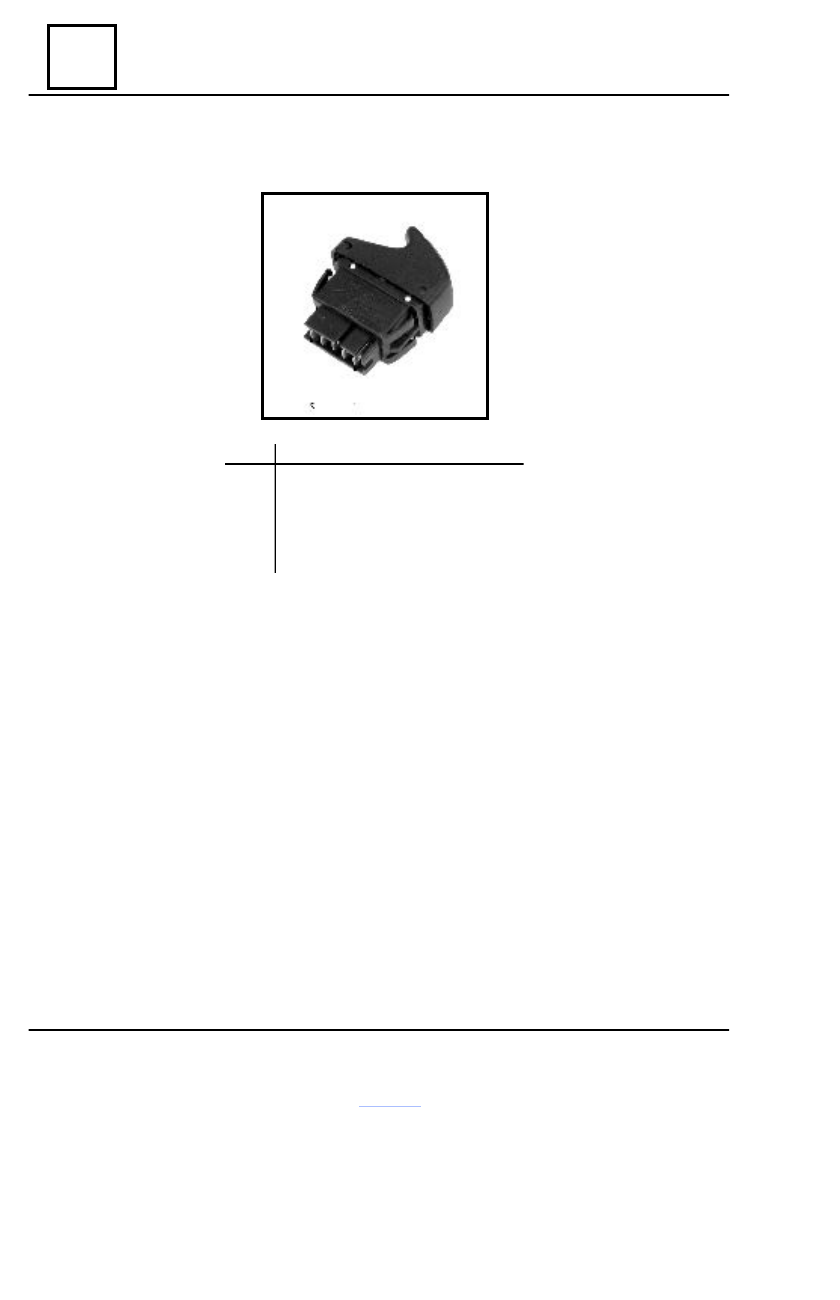

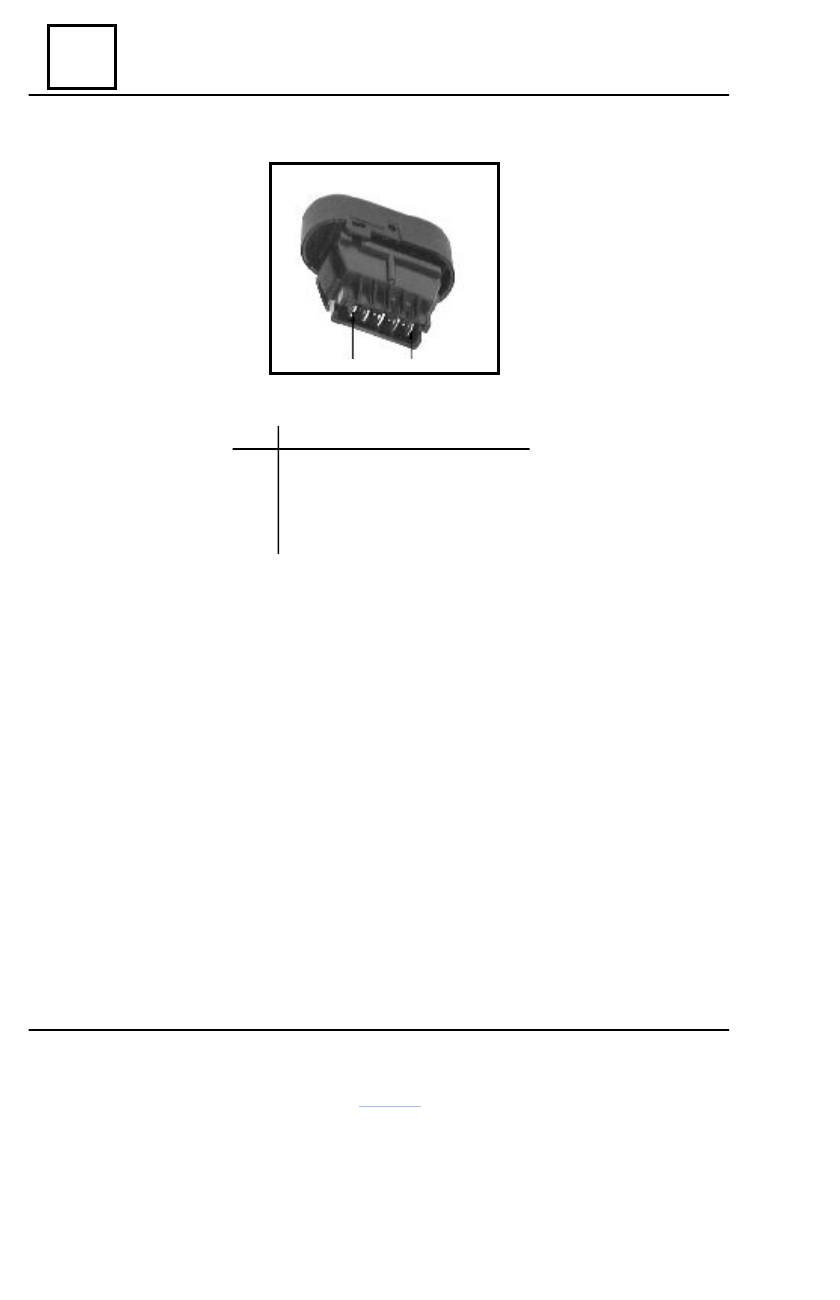

TURNING AND LIGHTING
CONTROL CONNECTOR
REMARK :
The correct operation of t he
windscreen wiper switch may be checked
using an ohmmeter.
Control
Pins
(closed circuit)
Windscreen washer pump
A4/B4
Low speed windscreen wiper
A3/A7
High speed windscreen wiper
A2/A7
Timer windscreen wiper
A1/A7
Timer windscreen wiper
A3/A6
REMARK :
The correct operation of the turning and
lighting control switch may be checked us-
ing a ohmmeter.
Control
Pins
(closed circuit)
Left turning
A6/A7
Right turning
A5/A6
Parking light
B1/B2
Meeting lights
B3/B5
Road lights
B6/B7
Front fog projectors
A1/B2
Rear fog lamps
A3/B2
Acoustic
A4/B6
Pin
Denomination
A1
Front fog projectors
A2
Free
A3
Rear fog lamp
A4
Acoustic warning
A5
Right turning
A6
Signaling relay control
A7
Left turning
B1
Parking lights
B2
Supply +
B3
Supply +
B4
Free
B5
Meeting lights
B6
Supply +
B7
Road lights
