Dacia Solenza (engine E7J). Manual - part 129

74

REAR TABLE

74  - 1

Lateral table

DISMOUNTING

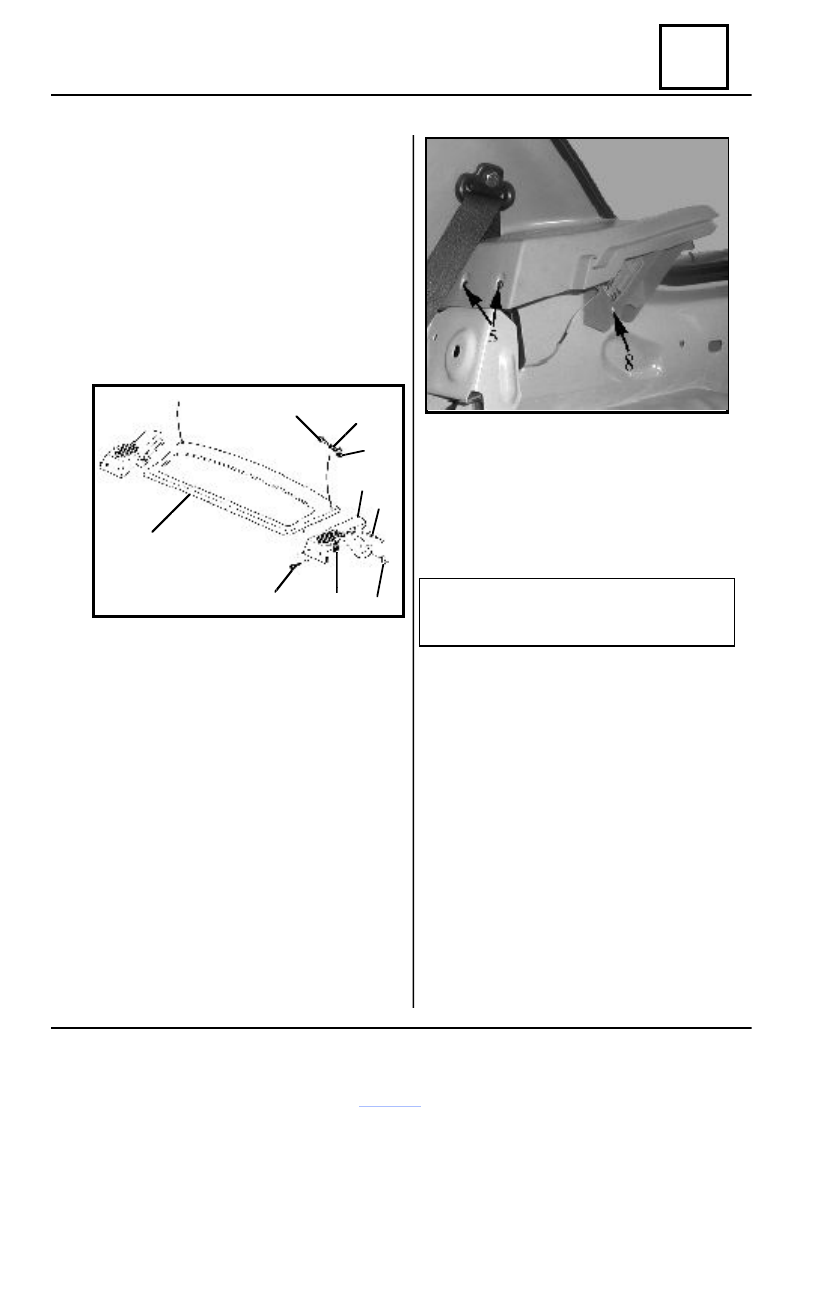

Release the table cord  from button (3)

that is attached on the hatchback by means
of the screw (2) and the nut (4).

Extract the panel (1).
Release the rear table  (1) from the lateral

supports channel.

Disconnect the battery.
Disconnect the rear speaker connector.
Dismount the attachment screws of the

rear bench on its supports.

Recline the bench backrest.
Dismount:
-

screw (8) from the maintaining clip  (7)

attaching the table lateral support on the lat-
eral frame lining;

-

screws (5) from maintaining clips (6)

attaching the table lateral support on the
bench support.

Detach from clips,  the table  lateral sup-

port (9), from rear quarter panel trim.

Dismount the speaker from the table lat-

eral support.

REMOUNTING

Perform the dismounting operations in

the reverse order.

Attention !
The speaker is to be mounted with the

connector towards vehicle’s front part.

Check the operation of the rear speaker.

1

9

8

4

3

2

7

6

5

REAR TABLE

74

74  - 2

DISMOUNTING

Dismount the rear plate.

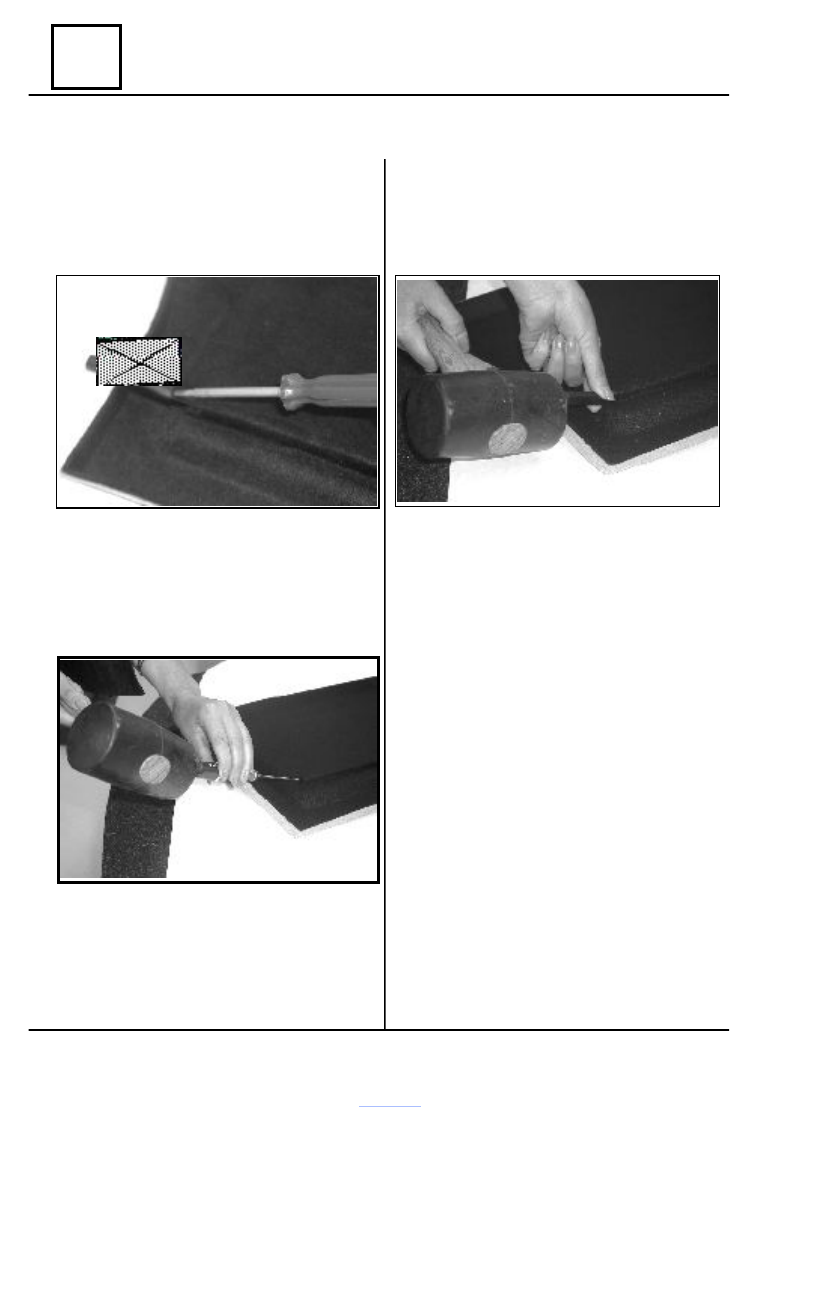

Dismount by measn of a screwdriver, in

the arrow direction, the table pivot.

In case head of the pivot, its remaining is

inserted inside the metallic rod of the table by
means of a screwdriver and a hammer, as per
bellow presented drawing.

REMOUNTING

Perform the dismounting operations in

the reverse order.

PIVOT

Lateral table

74

REAR TABLE

74  - 3

REAR PLATE BUFFER

DSIMOUNTING

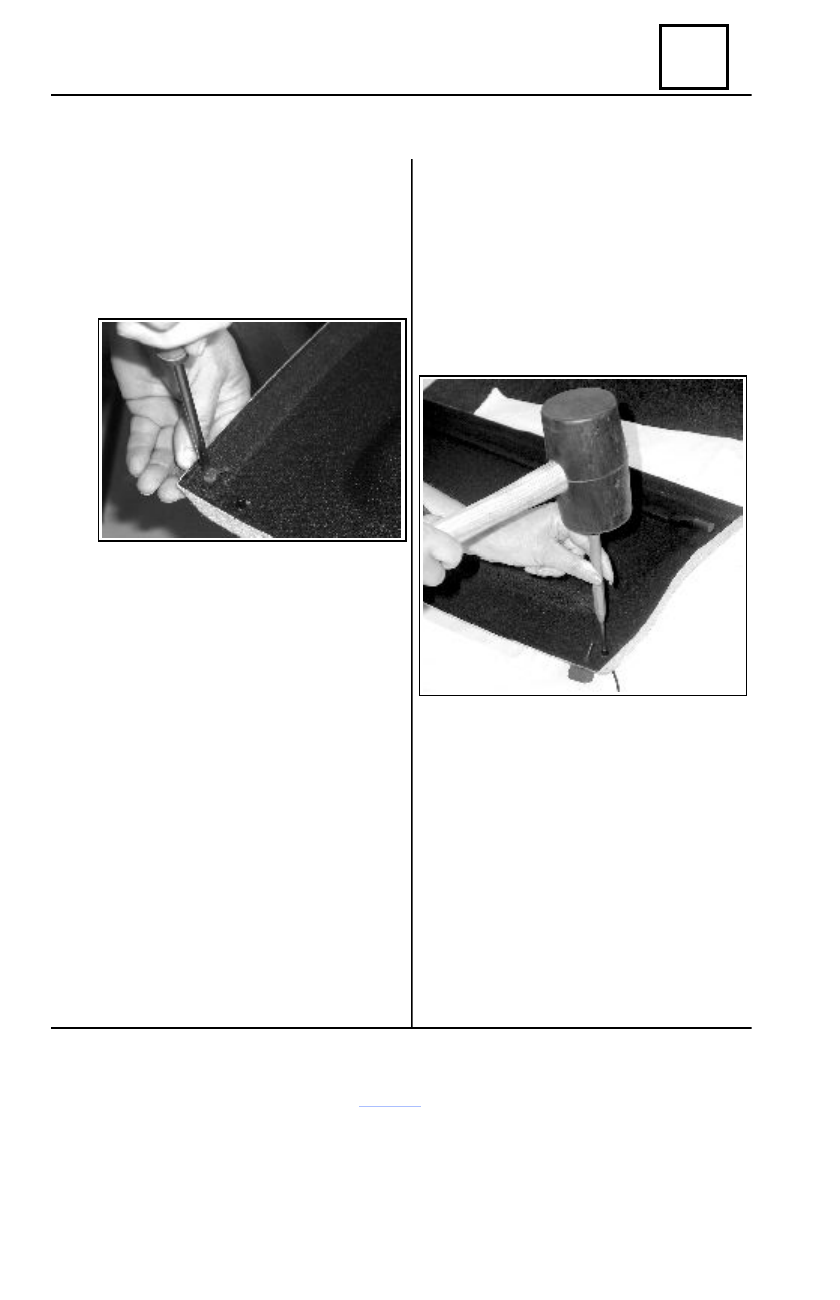

Push the rear plate buffer by means of

a screwdriver according to the bellow
presented drawing

REMOUNTING

Perform the dismounting operations in

the reverse order.

REAR PLATE CORD

DISMOUNTING

Dismount

- rear table,
- the  agraffe of the rear plate cord

together with its cord as per bellow presented
drawing.

REMOUNTING

Perform the dismounting operations in  the

reverse order.

Lateral table

75

75   - 1

FRONT SEATS SLIDES GUIDES

Front seat

75 010

TIGHTENING MOMENTS(daNm)

Front seat attachment screws           2,1

DISMOUNTING

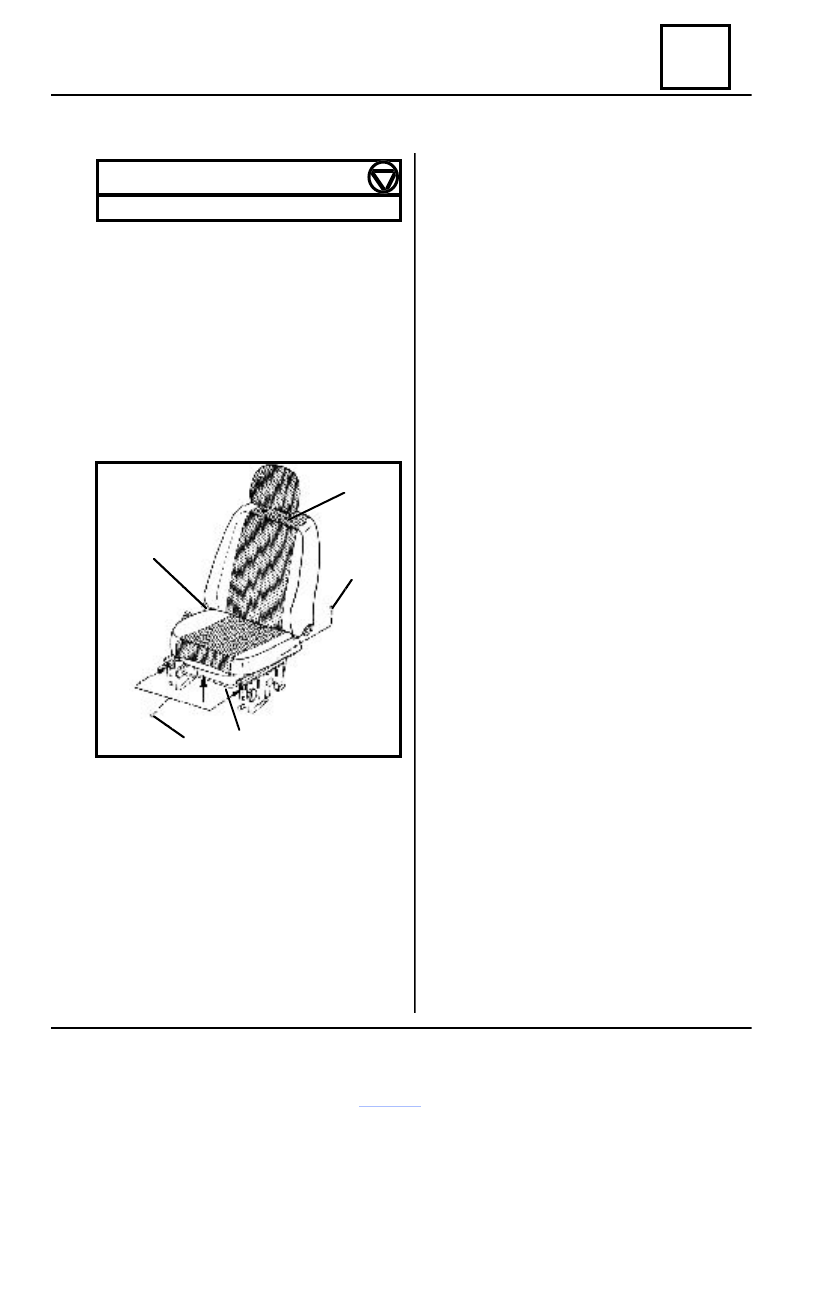

Dismount the attachment screws (1) of the

front seat on the  side and central cross mem-
ber in the front part.

By acting upon the lever (2) in the arrow

direction, bring the seat in front position and
dismount the attachment screws (3) of the front
seat on the side and rear cross-beam in the
rear part.

1

2

3

4

5

Release the front chair.
Remove the headrests by simultaneously

pushing of the buttons (4) attached on the head-
rests sleeves.

REMOUNTING

Perform the dismounting operations in  the

reverse order.

The front seat attachment screws are to be

tighten to the required moment of 2,1 daNm.

ADJUSTMENTS

The front seats, have two possibilities of ad-

justment:

- front or rear longitudinal movement,

which can be performed by lever’s operation
(2);

- seat back reclining up to the horizontal

position, by  rotating the round button (5).
