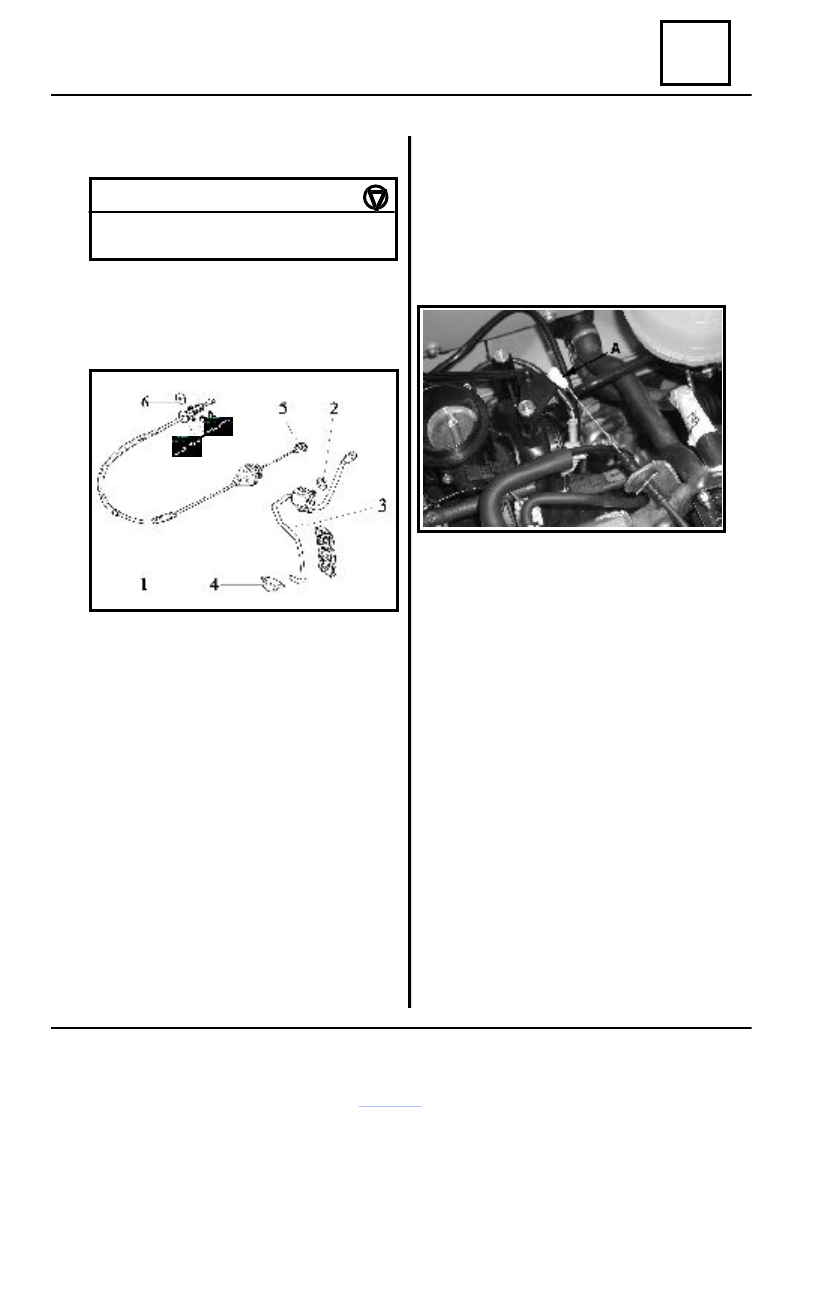

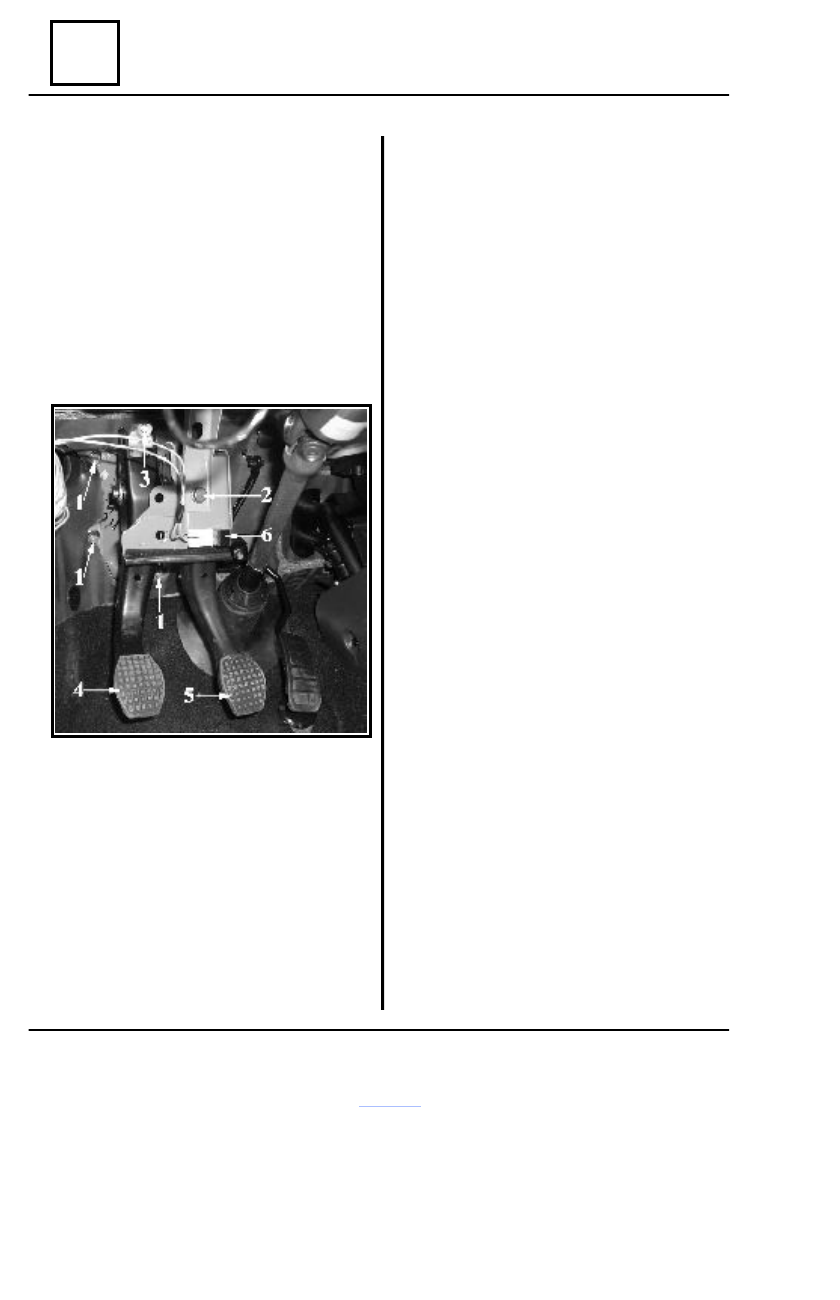

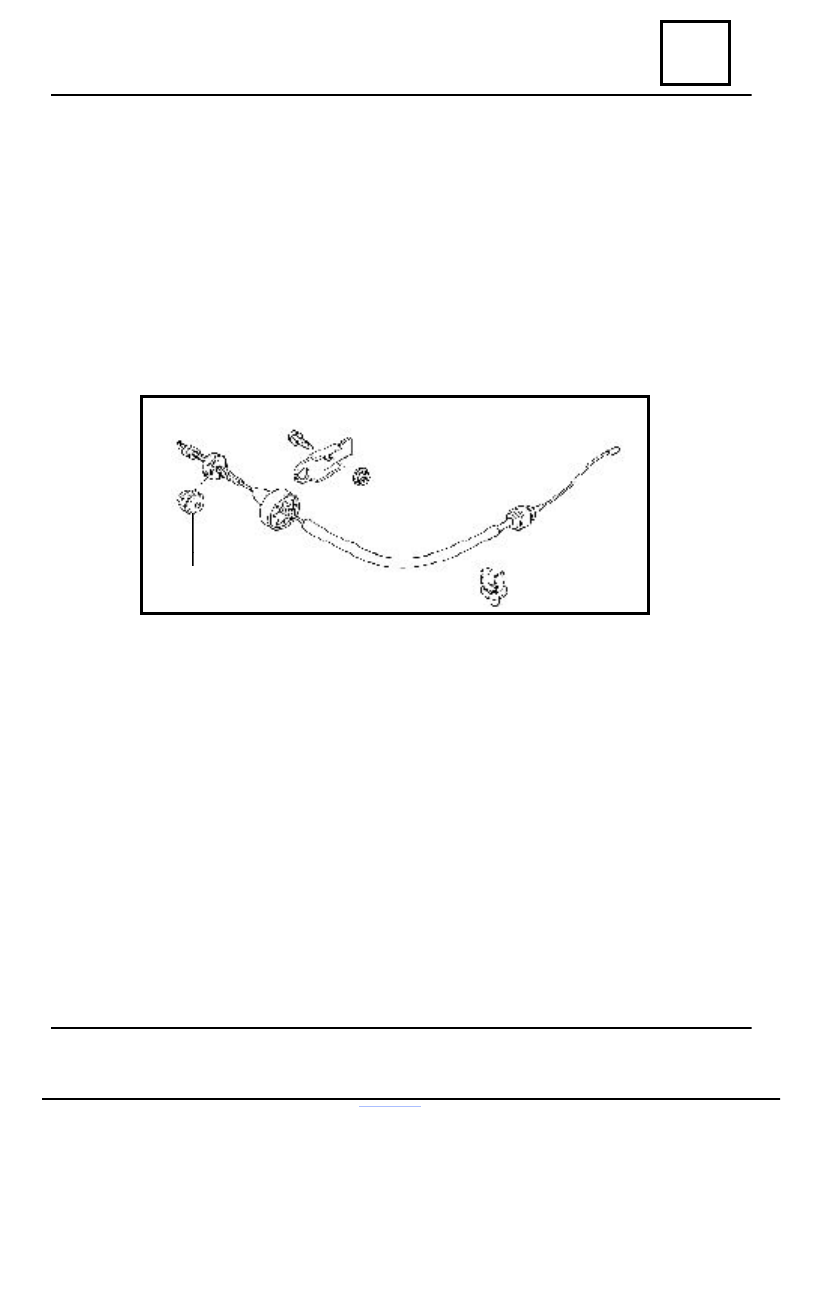

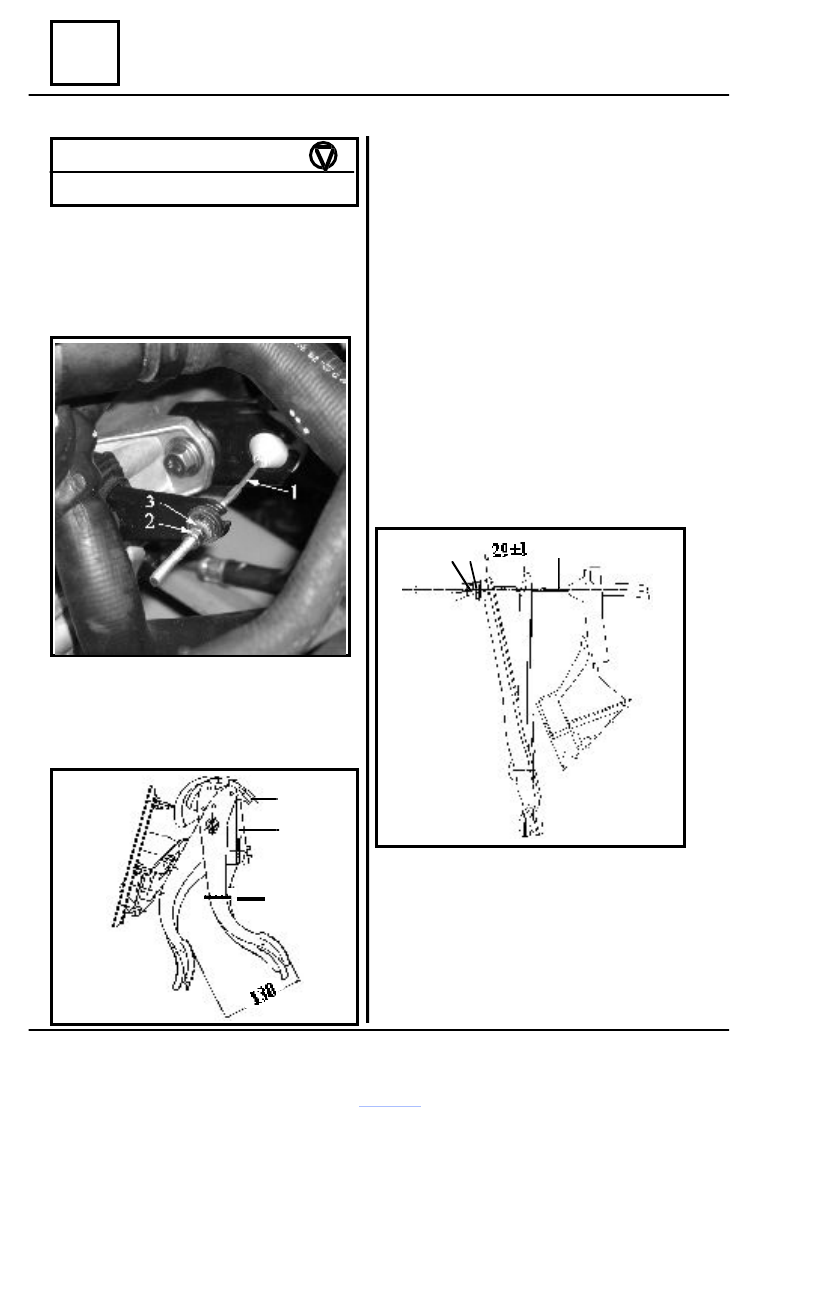

THE MECHANICAL ELEMENTS CONTROLS 37 37 - 18 DISMOUNTING In the engine compartment : - release the clutch cable (1) from the clutch control fork. - detach from carriage body clips the clutch cable. Clutch cable TIGHTENING MOMENTS (Nm) Clutch cable counter nut 8 In the cockpit: - release the clutch cable (1) from the clutch REMOUNTING Perform the dismounting operations in the reverse order. Adjust the clutch control CLUTCH CONTROL ADJUSTMENT In order to adjust the clutch pedal stroke, proceed as follows: - place a gauge to ensure the 15 mm clearance between the pedal and the pedals - tighten the nut (3) on the clutch cable end, until obtaining a stroke of 29 ± 1 mm at - tighten the counter nut (2) to the required moment of 8 Nm. 15 4 1 1 2 3 |
