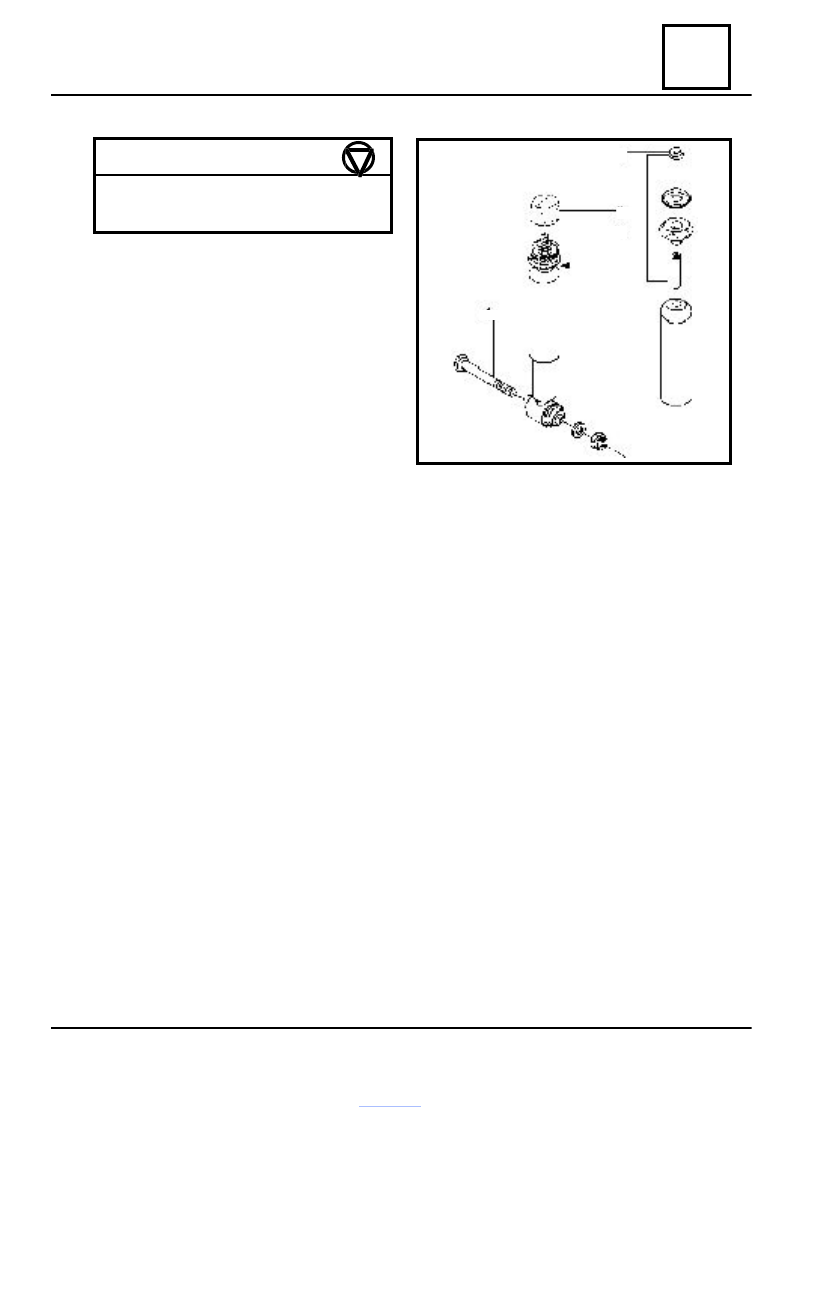

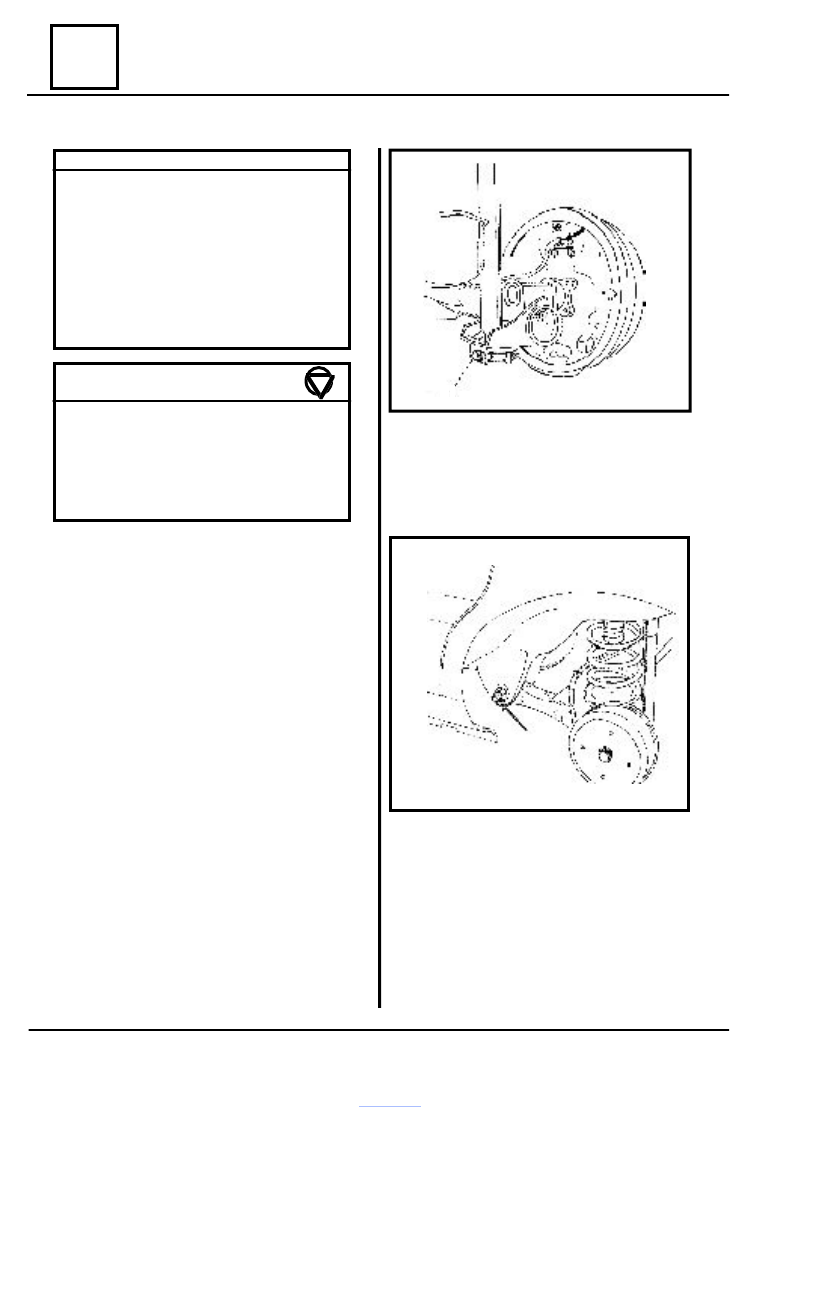

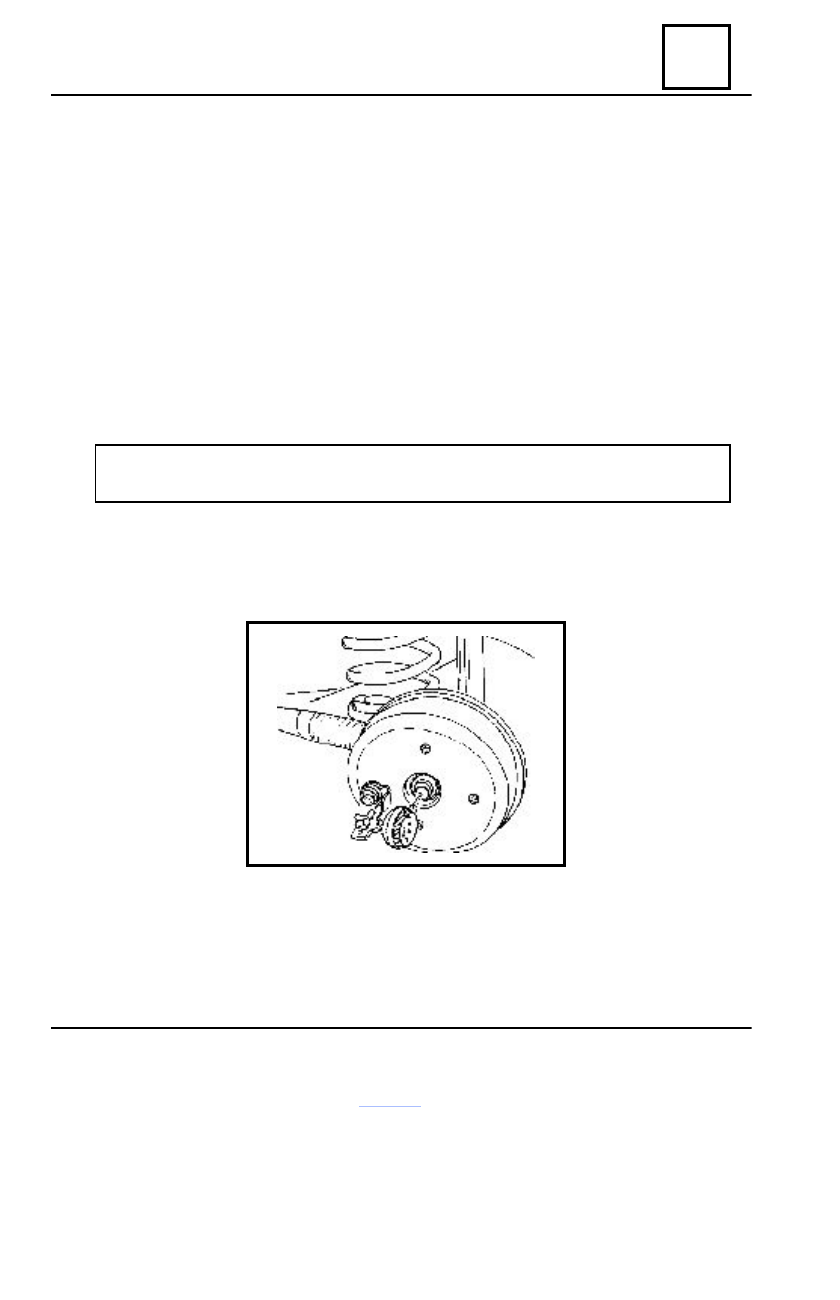

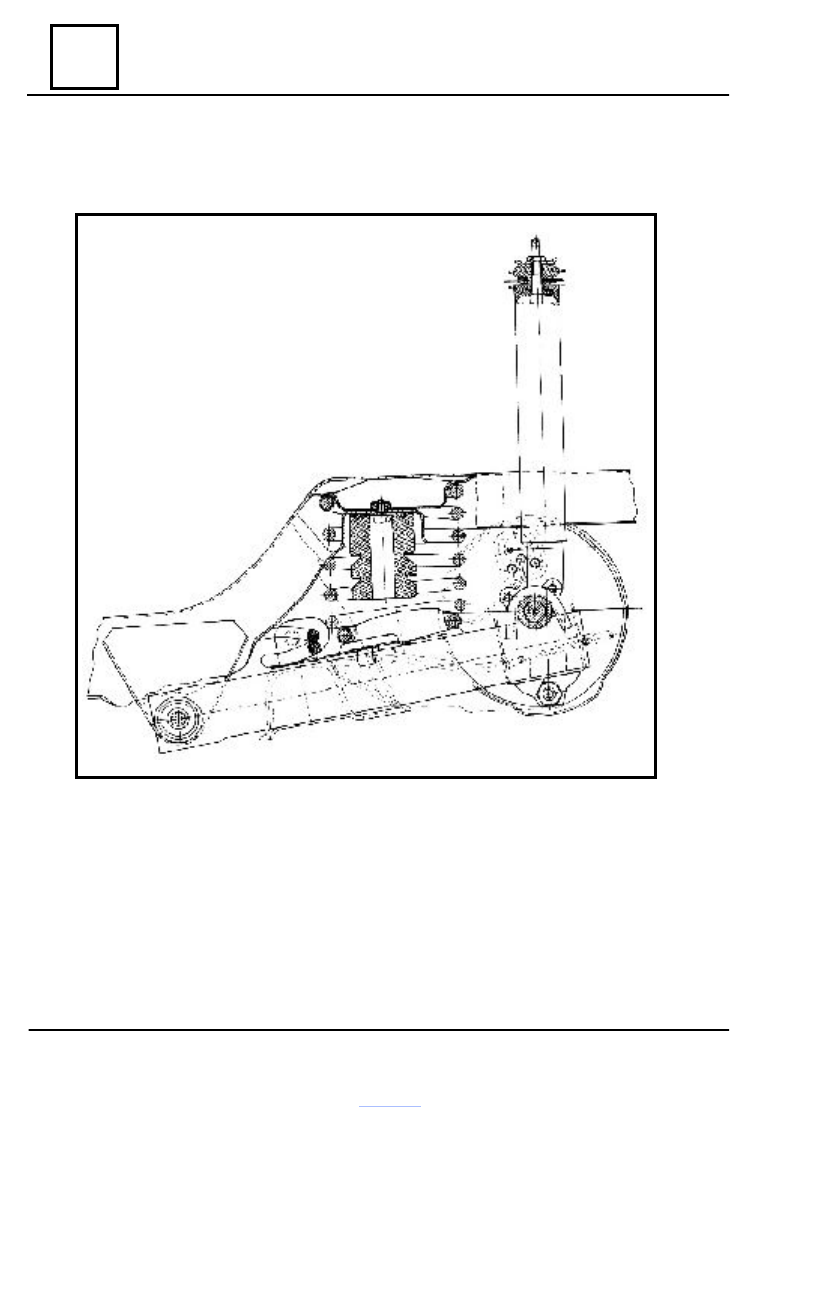

33 REAR AXLES ELEMENTS 33 - 2 Rear axle DISMOUNTING Loosen the rear wheels attachment screws. brake rigid piping from the brake cylinder. Detach the connections of the secondary cable from the hand brake levers and remove Dismount the operating rod support of the brake limiter from the right side axle arm, after Dismount the lower attachment screws (A) of the shock absorber with the rear axle. Push upward the shock absorbers. Dismount the connecting screws (B) between the rear axle arms and the chassis. Dismount completely the rear axle. A B SPECIAL TOOLS R0 441 Hub extractor PF 600 Dismounting pliers for shoes FR03 Shoes protectors FR09 Pliers for maintaining brake FR05A Dynamometer wrench MOT30 Comparing dial gauge R0541A TIGHTENING MOMENTS (daNm) Wheel attachment screw 7.5 Axle attachment nut 12 Shock absorber bottom attachmen t nut 7.5 Rear axle arm elastic bushing axle nut 12.0 1.5 Purging screw 1.0 |
