Dacia Solenza (engine E7J). Manual - part 64

TRANSMISSION

29

29 - 2

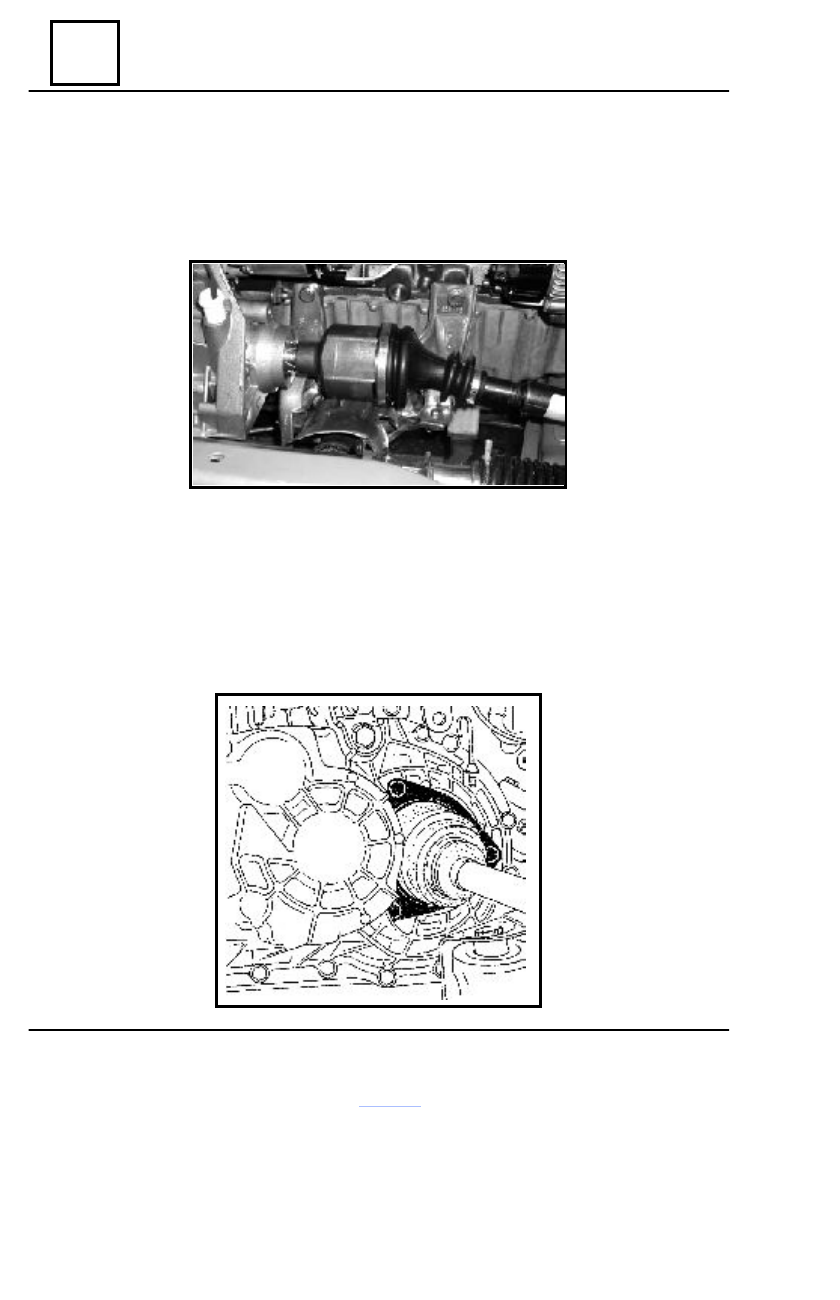

DISMOUNTING – THE SIDE TO THE GEARBOX

The right side
Due to the solution assumed by the manufacturer, the transmission joint (the tulip of the

transmission) with the transmission shaft of the gearbox shall be performed only by mea the
grooves.

The dismounting of the transmission, the side to the  gearbox, shall be performed by axial

displacement - extract the transmission tulip from the transmission shaft.

The left side

Drain the oil of the gearbox.
Dismount :

- the three screws for fixing the bellows – lid assembly on the gearbox;
- the transmission, the side to the gearbox.

Front transversal transmission

TRANSMISSION

29

29 - 3

Front transversal transmission

REMOUNTING

– THE SIDE  TO THE GEARBOX

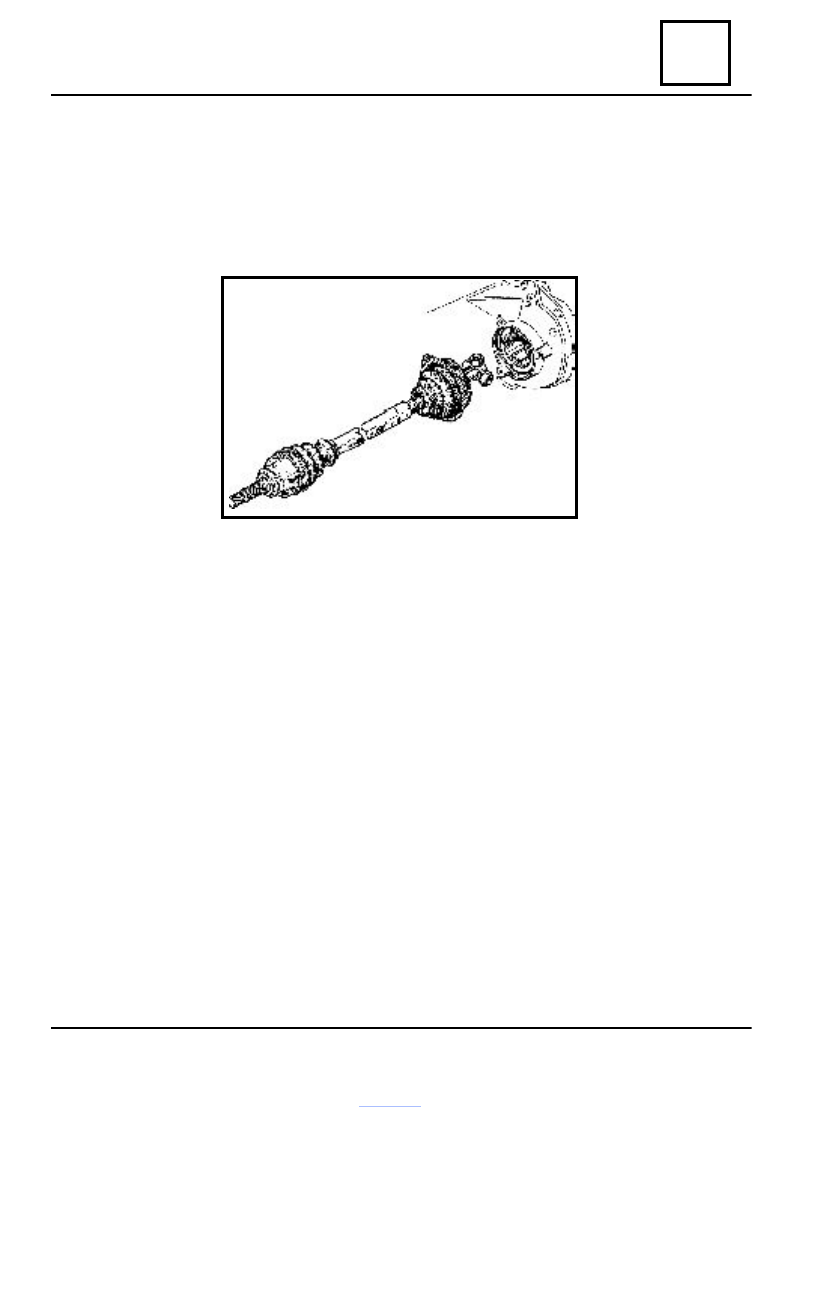

The left side

Engage the transmission GI joint in the gearbox (the transmission position as horizontally as

possible).

Mount the three attachment screws of the bellows lid on the gearbox.

The right side

Grease the tulip frame grooves (the grooves area) and the transmission shaft of the gearbox

with transmission

 oil.

Engage the transmission GI joint (the tulip) on the transmission shaft of the gearbox (the

transmission position must be  as horizontally as possible).

REMOUNTING – THE SIDE TO THE WHEEL

For both sides

Engage the transmission in the steering knuckle, this one being necessary to freely enter, so that

threaded area of the steering knuckle is allowing to remounting the transmission nut.

Perform then the dismounting operations in the reverse order.
Observe the tightening moments.
Remount the brake disk assembly.
Refill the gearbox with oil.
Press several times the brake pedal to enable caliper piston coming in contact with the brake

pads.

TRANSMISSION

29

29 - 4

Bellows - Bearing assembly

      to the gearbox

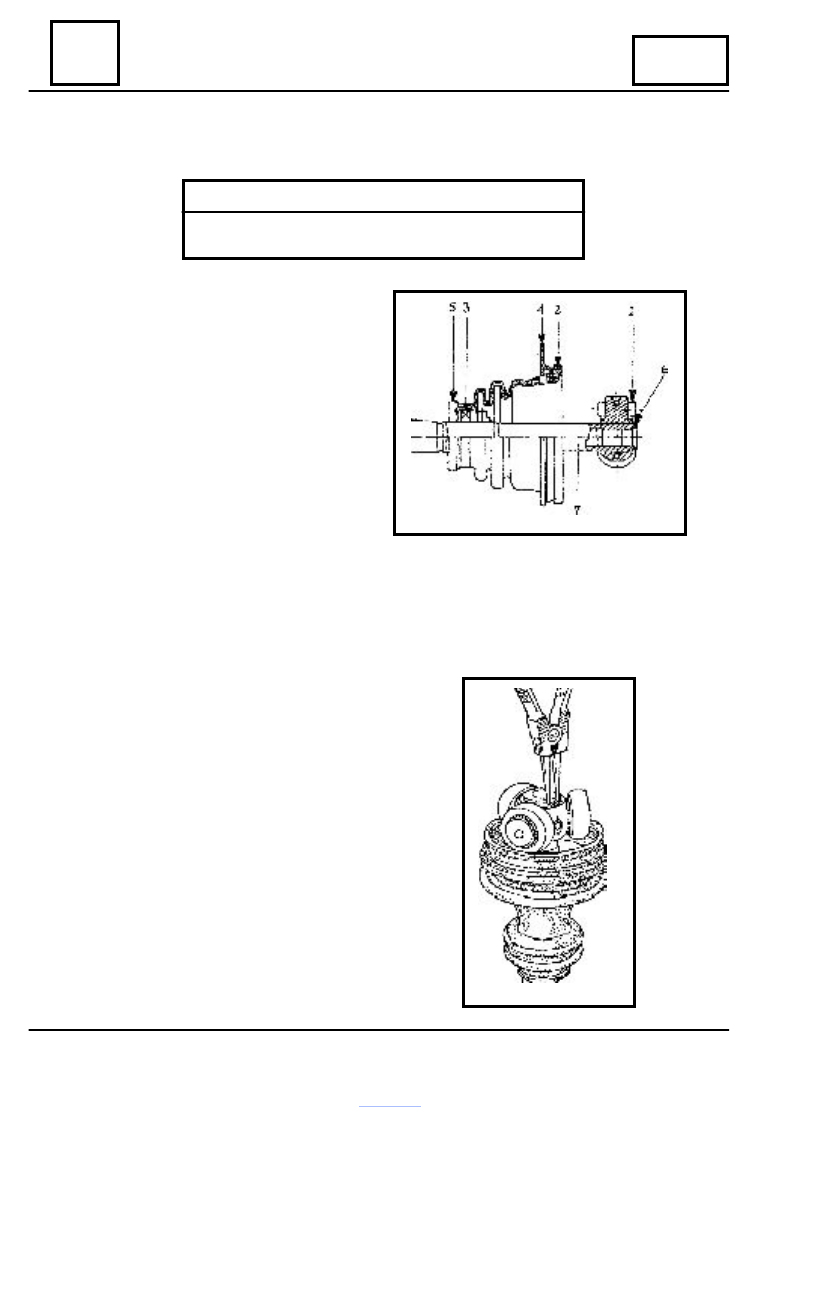

THE JOINT TO THE GEARBOX - GI

SPECIAL TOOLS

 Bearing mounting chuck on the shaft PF 1331

1. Tripod assembled
2. Bellows
3. bearing
4. bellows attachment lid
5. deflector
6. blocking ring
7. transmission shaft

DISMOUNTING

It is forbidden to use thinner for components

parts cleaning.

Dismount the blocking ring from the groove

made on the transmission shaft, using a special
pincers for these types of rings.

Left

transmission

TRANSMISSION

29

29 - 5

Bellows - Bearing assembly

      to the gearbox

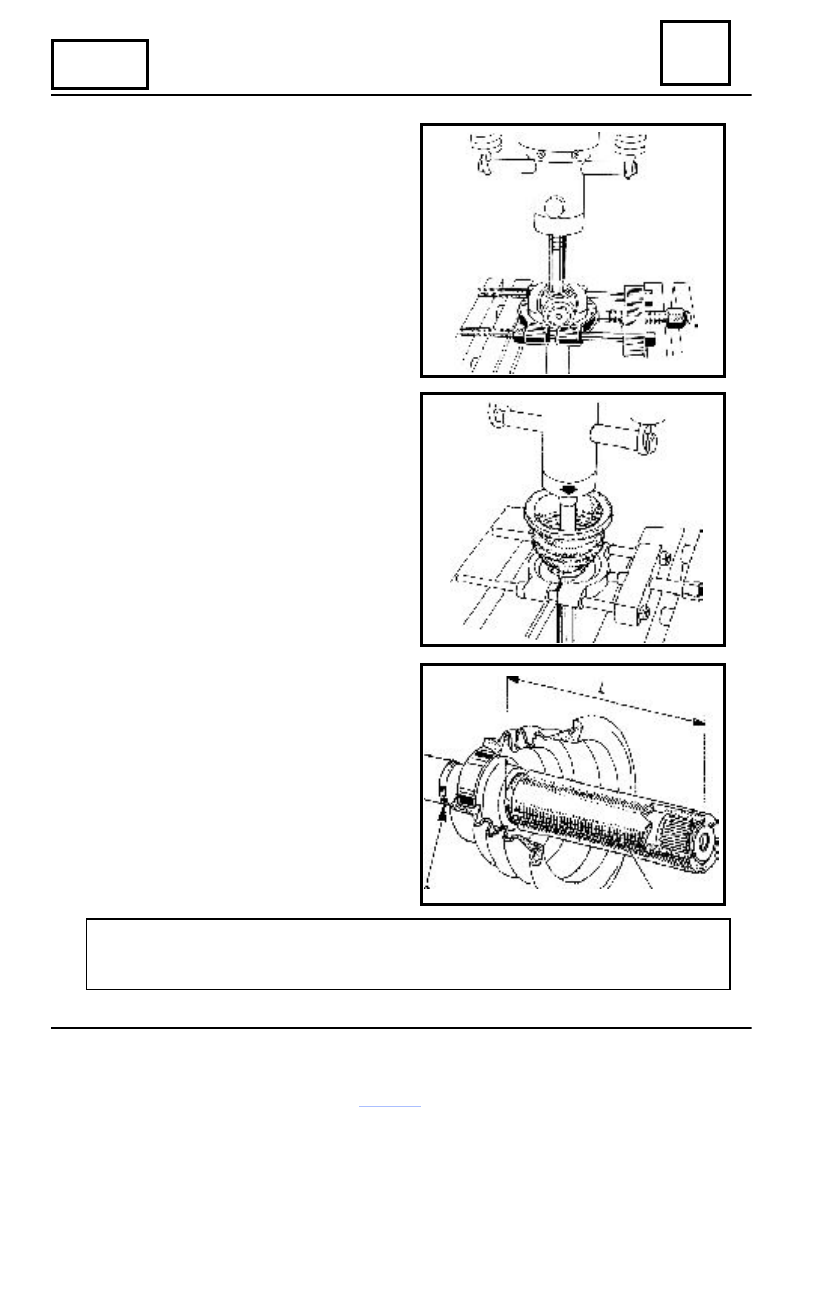

Using a  press, extract the assembled tripod,

sustained it on an extractor, FACOM U 53 G
type, protecting the tripod clogs.

Before extracting, mark the position of the

tripod compared to the transmission shaft end.

Dismount the bellows - deflector bearing in

the same manner like tripod dismounting.

REMOUNTING

In order to be correctly positioned on the

shaft, the bearing must be pressed to achieve
the value  L = 118 ± 0.2 mm between the
backside of the bearing and the shaft extremity.
This value is obtained by means of the PF 1331
device, when mounting, its extremity is at the
level of  the shaft.

IMPORTANT:
In order to avoid the deformation of the bearing, which includes a sealing gasket

(annular oil seal), the pressing effort must be constant (do not hammer).

Left

transmission

G

PF
1331
