The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution

INFOID:0000000005274992

• When installing rubber parts, final tightening must be carried out under unladen condition* with tires

on ground.
*: Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated posi-
tions.

• After installing removed suspension parts, check wheel alignment and adjust if necessary.

PREPARATION

RAX-3

< SERVICE INFORMATION >

[C200]

RAX

PREPARATION

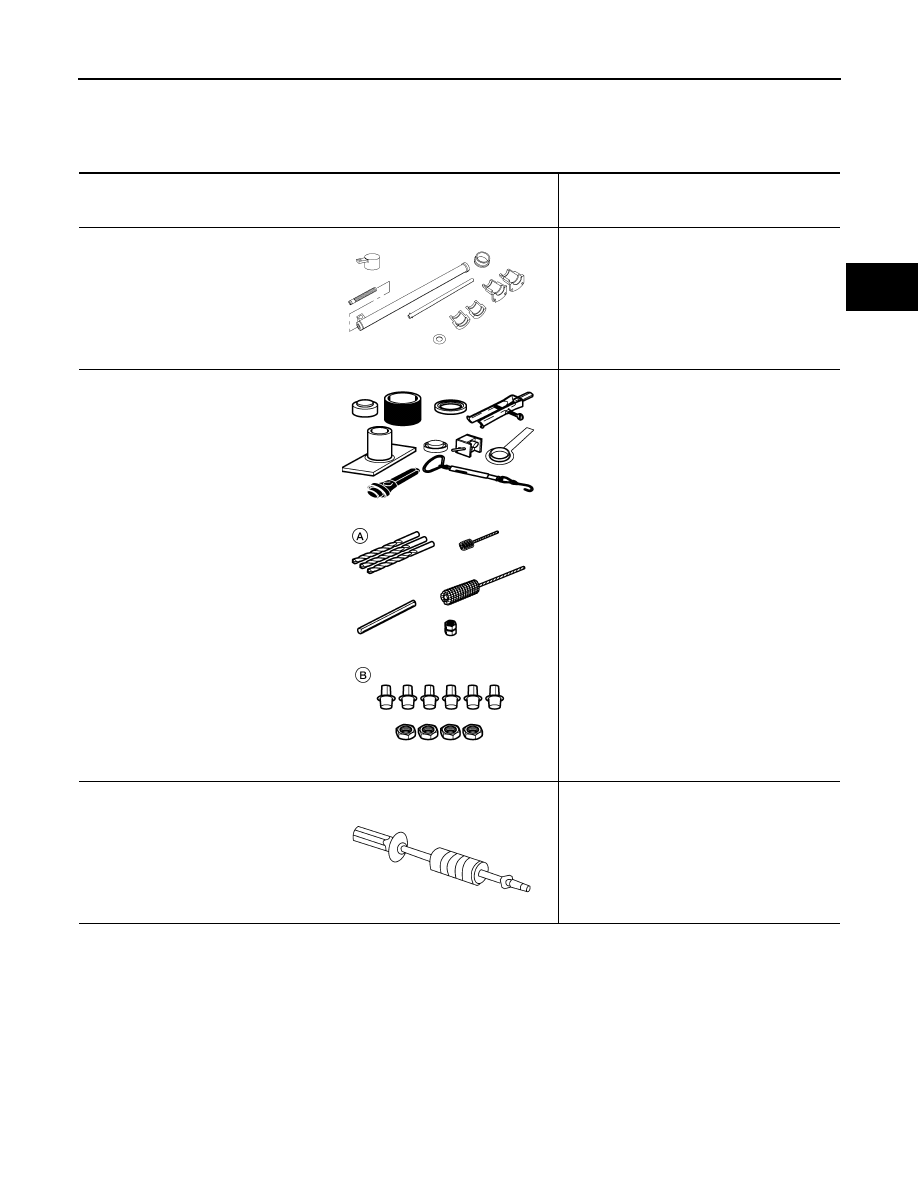

Special Service Tool

INFOID:0000000005274993

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tool

INFOID:0000000005274994

Tool number
(Kent-Moore No.)

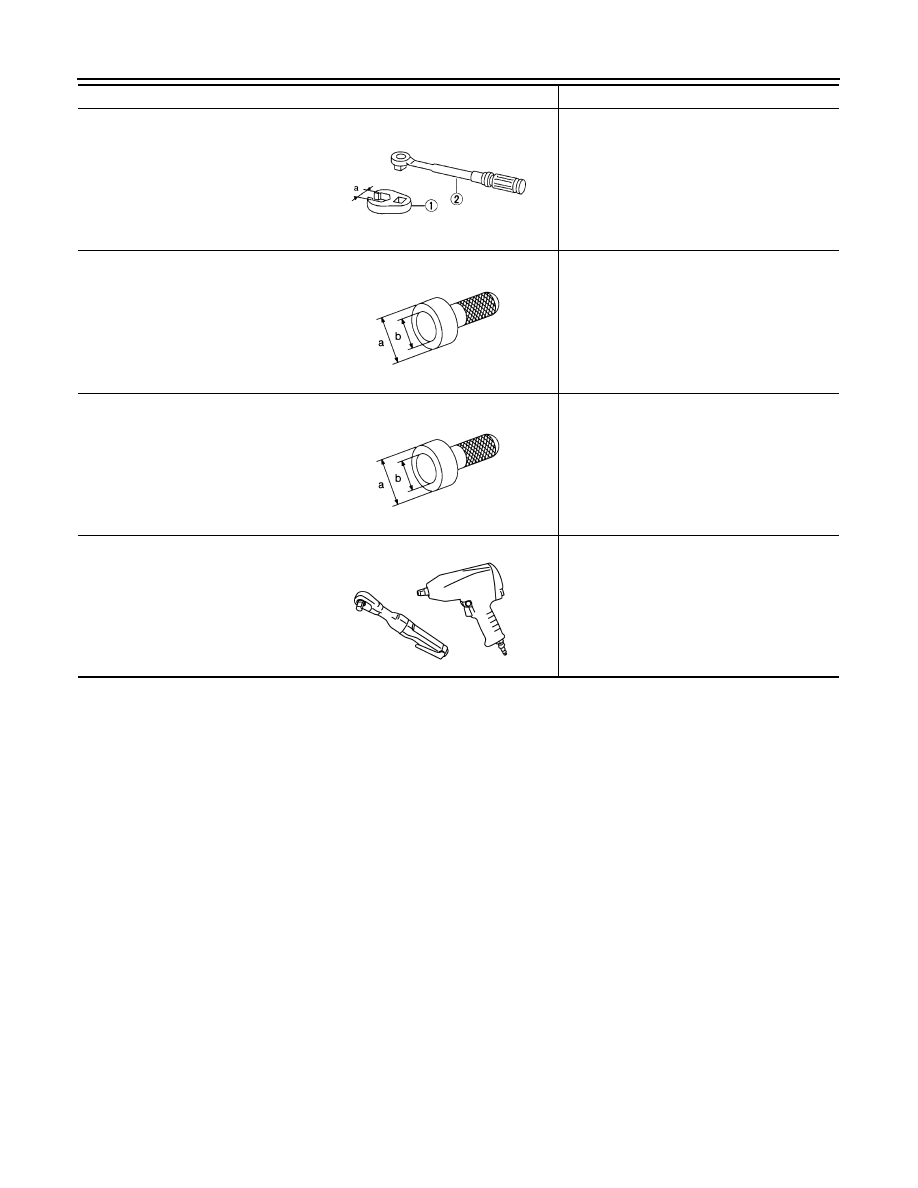

Tool name

Description

KV40106500
(J-45073)
Rear axle bearing remover

Removing wheel bearing, wheel bearing lock
nut and ABS sensor rotor

—

(J-46215)
Rear axle bearing installation kit
A: ABS sensor mount repair kit J-
46215-8
B: Plastic plugs and nuts kit J-46215-4

Installing rear axle bearing

—

(J-23907)
Seal and bushing puller

Removing rear axle seal

LPD022

LDIA0045E

LDIA0047E

LDIA0048E

LDIA0046E

RAX-4

< SERVICE INFORMATION >

[C200]

PREPARATION

Tool name

Description

1 Flare nut crowfoot
2 Torque wrench

Removing and installing each brake piping
a: 10 mm (0.39 in)

Bearing cage oil seal drift

Installing oil seal
a: 74 mm (2.91 in) dia.
b: 68 mm (2.68 in) dia.

Rear axle oil seal drift

Installing oil seal
a: 54.5 mm (2.15 in.)
b: 34.5 mm (1.36 in.)

Power tools

Removing and installing nuts and bolts

S-NT360

NT115

PBIC0190E
