4WD SHIFT INDICATOR LAMP KEEPS FLASHING

DLN-81

< SYMPTOM DIAGNOSIS >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

4WD SHIFT INDICATOR LAMP KEEPS FLASHING

Description

INFOID:0000000005275470

The 4WD shift indicator lamp keeps flashing.

Diagnosis Procedure

INFOID:0000000005275471

1.

CONFIRM THE SYMPTOM

1.

Set 4WD shift switch to “2WD”.

2.

Drive the vehicle straight forward and backward keeping speed under 20 km/h (12 MPH).

Does 4WD shift indicator lamp keep flashing?

YES

>> GO TO 2.

NO

>> Inspection End.

2.

CHECK SYSTEM FOR WAIT DETECTION SWITCH

Perform trouble diagnosis for wait detection switch system. Refer to

DLN-34, "Diagnosis Procedure"

.

Are the inspection results normal?

YES

>> GO TO 3.

NO

>> Repair or replace damaged parts.

3.

CHECK SYSTEM FOR 4LO SWITCH

Perform trouble diagnosis for 4LO switch. Refer to

DLN-28, "Diagnosis Procedure"

.

Are the inspection results normal?

YES

>> GO TO 4.

NO

>> Repair or replace damaged parts.

4.

SYMPTOM CHECK

Check again.
Does the symptom still occur?

YES

>> GO TO 5.

NO

>> Inspection End.

5.

CHECK TRANSFER CONTROL UNIT

Check transfer control unit input/output signal. Refer to

DLN-55, "Reference Value"

.

Are the inspection results normal?

YES

>> GO TO 6.

NO

>> Check transfer control unit pin terminals for damage or loose connection with harness connector.

If any items are damaged, repair or replace damaged parts.

6.

CHECK TRANSFER INNER PARTS

1.

Disassemble transfer assembly. Refer to

DLN-105, "Disassembly and Assembly"

.

2.

Check transfer inner parts.

Are the inspection results normal?

YES

>> Inspection End.

NO

>> Repair or replace damaged parts.

DLN-82

< SYMPTOM DIAGNOSIS >

[TRANSFER: TX15B]

4WD WARNING LAMP FLASHES SLOWLY

4WD WARNING LAMP FLASHES SLOWLY

Description

INFOID:0000000005275472

The 4WD warning lamp flashes slowly while driving (1 time / 2 seconds).  The lamp continues to flash until the
ignition switch is turned OFF.

Diagnosis Procedure

INFOID:0000000005275473

1.

CHECK TIRES

Check the following.  Refer to

WT-50, "Tire"

.

• Tire  size
• Tire wear
• Tire pressure
Are the inspection results normal?

YES

>> GO TO 2.

NO

>> Repair or replace damaged parts.

2.

SYMPTOM CHECK

Check again.

Does the symptom still occur?

YES

>> GO TO 3.

NO

>> Inspection End.

3.

CHECK TRANSFER CONTROL UNIT

Check transfer control unit input/output signal. Refer to

DLN-55, "Reference Value"

.

Are the inspection results normal?

YES

>> Inspection End.

NO

>> Check transfer control unit pin terminals for damage or loose connection with harness connector.

If any items are damaged, repair or replace damaged parts.

ATP SWITCH

DLN-83

< SYMPTOM DIAGNOSIS >

[TRANSFER: TX15B]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

ATP SWITCH

Description

INFOID:0000000005275474

The ATP indicator does not come on when the transfer is in neutral and the A/T lever is in neutral or, the ATP
indicator stays on when the transfer case is not in neutral.

Diagnosis Procedure

INFOID:0000000005275475

Regarding Wiring Diagram information, refer to

DLN-60, "Wiring Diagram"

.

1.

CHECK ATP SWITCH SIGNAL

With CONSULT-III

1.

Start engine.

2.

Select “DATA MONITOR” mode for “ALL MODE AWD/4WD” with CONSULT-III.

3.

Read out the value of “ATP SWITCH”.

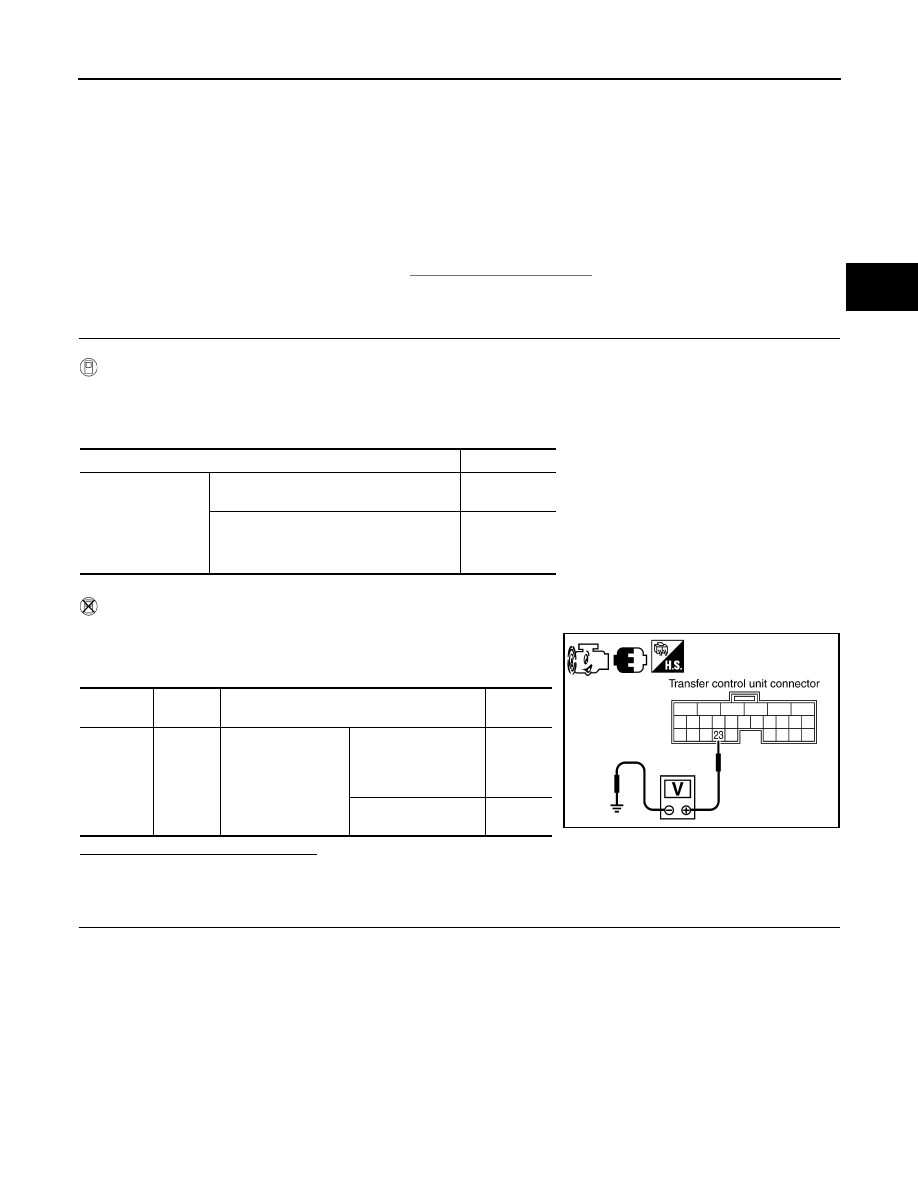

Without CONSULT-III

1.

Start engine.

2.

Check voltage between transfer control unit harness connector
terminal and ground.

Are the inspection results normal?

YES

>> GO TO 5.

NO

>> GO TO 2.

2.

CHECK HARNESS BETWEEN TRANSFER CONTROL UNIT AND ATP SWITCH

1.

Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

2.

Disconnect transfer control unit harness connector and the ATP switch harness connector.

Condition

Display value

• Vehicle stopped
• Engine running
• A/T selector lever

“N” position

• Brake pedal de-

pressed

4WD shift switch: 4H to 4LO or 4LO to 4H
(While actuator motor is operating.)

ON

Except the above

OFF

Connector

Terminal

Condition

Voltage

(Approx.)

M152

23 -

Ground

• Vehicle stopped
• Engine running
• A/T selector lever

“N” position

• Brake pedal de-

pressed

4WD shift switch: 4H
to 4LO or 4LO to 4H
(While actuator motor
is operating.)

0V

Except the above

Battery
voltage

SDIA3375E

DLN-84

< SYMPTOM DIAGNOSIS >

[TRANSFER: TX15B]

ATP SWITCH

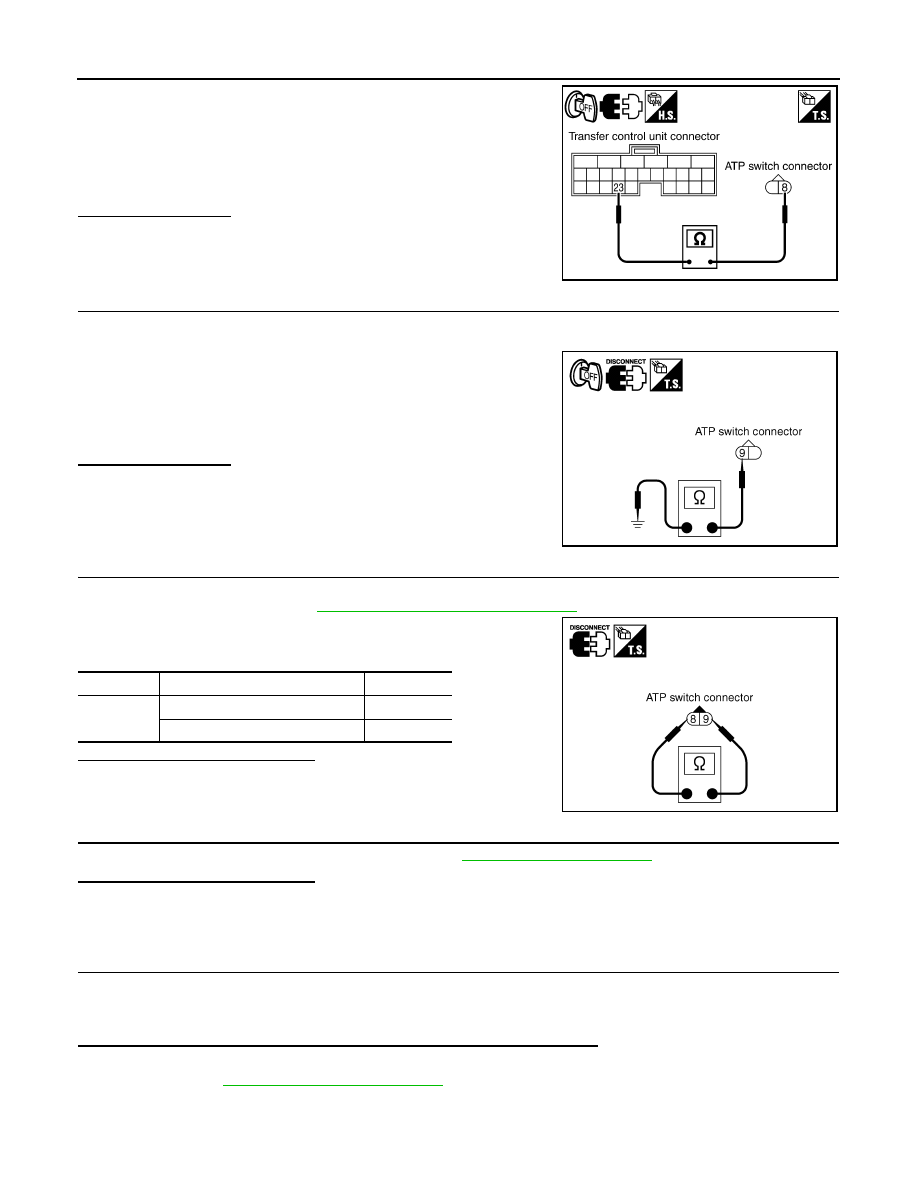

3.

Check continuity between transfer control unit harness connec-
tor M152 terminal 23 and ATP switch harness connector F55
terminal 8.

Also check harness for short to ground and short to power.

Does continuity exist?

YES

>> GO TO 3.

NO

>> Repair or replace damaged parts.

3.

CHECK GROUND CIRCUIT

1.

Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

2.

Disconnect ATP switch harness connector.

3.

Check continuity between ATP switch harness connector F55
terminal 9 and ground.

Also check harness for short to power.

Does continuity exist?

 YES  >> GO TO 4.
 NO

>> Repair open circuit or short to power in harness or con-

nectors.

4.

CHECK ATP SWITCH

1.

Turn ignition switch “OFF”.  (Stay for at least 5 seconds.)

2.

Remove ATP switch. Refer to

DLN-13, "Component Parts Location"

.

3.

Push and release ATP switch and check continuity between ATP
switch terminals 8 and 9.

Are the inspection results normal?

YES

>> GO TO 5.

NO

>> Replace ATP switch.

5.

CHECK TRANSFER CONTROL UNIT

Check transfer control unit input/output signal. Refer to

DLN-55, "Reference Value"

.

Are the inspection results normal?

YES

>> GO TO 6.

NO

>> Check transfer control unit pin terminals for damage or loose connection with harness connector.

If any items are damaged, repair or replace damaged parts.

6.

CHECK ATP WARNING LAMP

1.

Turn ignition switch “ON”. (Do not start engine.)

2.

A/T selector lever “N” position and engage the parking brake.

3.

Switch 4WD shift switch from 4H to 4LO or 4LO to 4H.

Does the ATP warning lamp turn ON while the actuator motor is operating?

YES

>> Inspection End.

NO

>> Refer to

DLN-79, "Diagnosis Procedure"

.

Continuity should exist.

SDIA3376E

Continuity should exist.

SDIA2394E

Terminal

Condition

Continuity

8 - 9

Push ATP switch

Yes

Release ATP switch

No

SDIA2395E
