Nissan Frontier D40. Manual - part 1067

TM-166

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

P0717 INPUT SPEED SENSOR A

OK or NG

OK

>> GO TO 4.

NG

>> GO TO 2.

2.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

TM-210, "Diagnosis Procedure"

.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

DETECT MALFUNCTIONING ITEM

Check the following.
• The A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG

OK

>> Replace the control valve with TCM. Refer to

TM-280, "Removal and Installation"

.

NG

>> Repair or replace damaged parts.

4.

CHECK DTC

Perform “DTC Confirmation Procedure”.
• Refer to

TM-165, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

P0720 OUTPUT SPEED SENSOR

TM-167

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

P0720 OUTPUT SPEED SENSOR

Description

INFOID:0000000005274026

The output speed sensor detects the revolution of the parking gear and emits a pulse signal. The pulse signal
is sent to the TCM which converts it into vehicle speed.

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000005274027

On Board Diagnosis Logic

INFOID:0000000005274028

• This is an OBD-II self-diagnostic item.
• Diagnostic trouble code “P0720” with CONSULT-III or 1st judgment flicker without CONSULT-III is detected

under the following conditions.

- When TCM does not receive the proper voltage signal from the sensor.
- After ignition switch is turned “ON”, irregular signal input from vehicle speed signal before the vehicle starts

moving.

Possible Cause

INFOID:0000000005274029

• Harness or connectors

(The sensor circuit is open or shorted.)

• Output speed sensor
• Vehicle speed signal

DTC Confirmation Procedure

INFOID:0000000005274030

CAUTION:

• Always drive vehicle at a safe speed.
• Be careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-III

1.

Turn ignition switch “ON”. (Do not start engine.)

2.

Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

3.

Drive vehicle and check for an increase of “VHCL/S SE-A/T” value in response to “VHCL/S SE-MTR”
value.
If the check result is NG, go to

TM-168, "Diagnosis Procedure"

.

If the check result is OK, go to following step.

4.

Select “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

5.

Start engine and maintain the following conditions for at least 5 consecutive seconds.
VHCL/S SE-A/T: 30 km/h (19 MPH) or more
ACCELE POSI: More than 1.0/8
SLCT LVR POSI: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
If the check result is NG, go to

TM-168, "Diagnosis Procedure"

.

If the check result is OK, go to following step.

6.

Maintain the following conditions for at least 5 consecutive seconds.
ENGINE SPEED: 3,500 rpm or more
ACCELE POSI: More than 1.0/8
SLCT LVR POSI: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
If the check result is NG, go to

TM-168, "Diagnosis Procedure"

.

Item name

Condition

Display value (km/h)

VHCL/S SE-A/T

During driving

 Approximately matches the speedometer reading.

TM-168

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

P0720 OUTPUT SPEED SENSOR

 WITH GST

Follow the procedure “WITH CONSULT-III”.

Diagnosis Procedure

INFOID:0000000005274031

1.

CHECK INPUT SIGNAL

With CONSULT-III

1.

Turn ignition switch ON.

2.

Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for “TRANSMISSION” with CONSULT-III.

3.

Start the engine.

4.

Read out the value of “VHCL/S SE-A/T” while driving.
Check the value changes according to driving speed.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 2.

2.

CHECK TCM POWER SUPPLY AND GROUND CIRCUIT

Check TCM power supply and ground circuit. Refer to

TM-210, "Diagnosis Procedure"

.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

DETECT MALFUNCTIONING ITEM

Check the following.
• The A/T assembly harness connector pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> GO TO 4.

NG

>> Repair or replace damaged parts.

4.

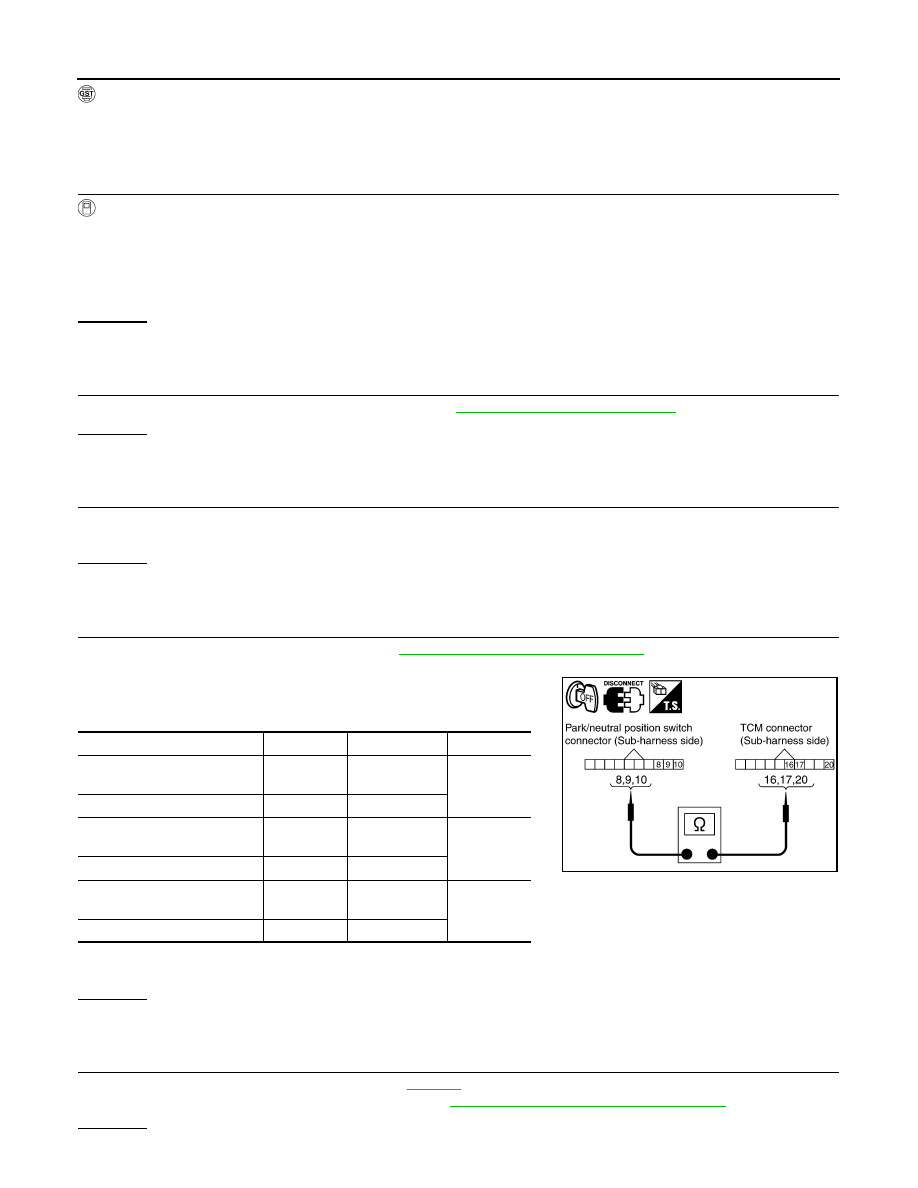

CHECK SUB-HARNESS

1.

Remove control valve with TCM. Refer to

TM-280, "Removal and Installation"

.

2.

Disconnect transmission range switch connector and TCM connector.

3.

Check continuity between transmission range switch connector
terminals and TCM connector terminals.

4.

If OK, check harness for short to ground and short to power.

5.

Reinstall any part removed.

OK or NG

OK

>> GO TO 5.

NG

>> Replace open circuit or short to ground and short to power in harness or connectors.

5.

REPLACE THE OUTPUT SPEED SENSOR AND CHECK DTC

1.

Replace the output speed sensor. Refer to

TM-306

.

2.

Perform “DTC Confirmation Procedure”. Refer to

TM-167, "DTC Confirmation Procedure"

.

OK or NG

Item

 Connector

Terminal

Continuity

Transmission range switch
connector

F505

8

Yes

TCM connector

F503

20

Transmission range switch
connector

F505

9

Yes

TCM connector

F503

17

Transmission range switch
connector

F505

10

Yes

TCM connector

F503

16

SCIA5458E

P0720 OUTPUT SPEED SENSOR

TM-169

< COMPONENT DIAGNOSIS >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

OK

>> INSPECTION END

NG

>> Replace the control valve with TCM. Refer to

TM-280, "Removal and Installation"

.

6.

CHECK DTC

Perform “DTC Confirmation Procedure”.
• Refer to

TM-167, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.
