Nissan Frontier D40. Manual - part 1041

TM-62

< ON-VEHICLE MAINTENANCE >

[6MT: FS6R31A]

M/T OIL

ON-VEHICLE MAINTENANCE

M/T OIL

Changing

INFOID:0000000005273963

DRAINING

1.

Start the engine and let it run to warm up the transmission.

2.

Stop the engine. Remove the transmission drain plug and drain the oil.

3.

Set a gasket on the drain plug and install it to the transmission. Tighten the drain plug to the specified
torque. Refer to

TM-73, "Overhaul"

.

CAUTION:

Do not reuse gasket.

FILLING

1.

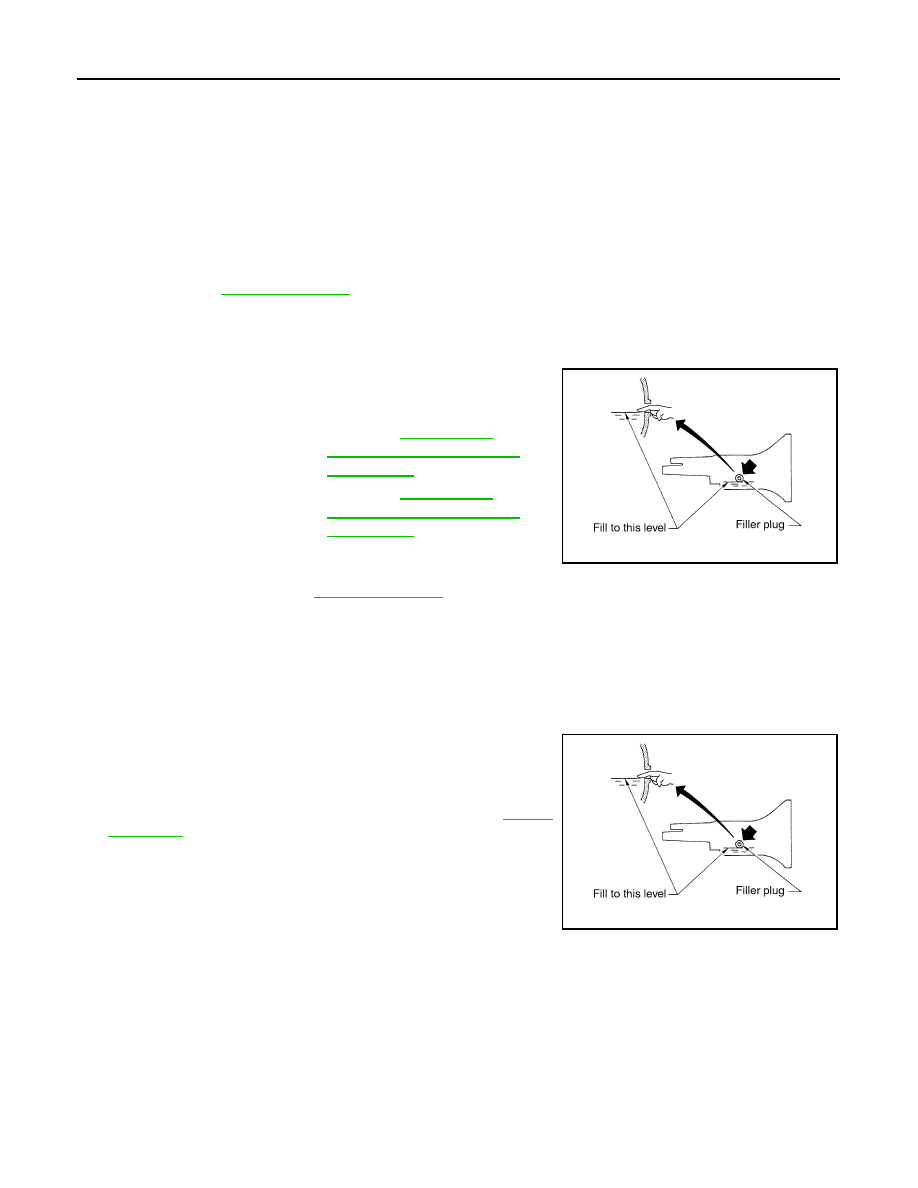

Remove the filler plug. Fill with new oil until oil level reaches the
specified limit near the filler plug hole as shown.

2.

After refilling the oil, check oil level. Set a gasket to the filler
plug, then install it to the transmission. Tighten the filler plug to
the specified torque. Refer to

TM-73, "Overhaul"

.

CAUTION:

Do not reuse gasket.

Checking

INFOID:0000000005273964

OIL LEAKAGE AND OIL LEVEL

1.

Make sure that oil is not leaking from the transmission or around it.

2.

Check oil level from the filler plug hole as shown.

CAUTION:

Do not start engine while checking oil level.

3.

Set a gasket on the filler plug and install it to the transmission.
Tighten the filler plug to the specified torque. Refer to

TM-73,

"Overhaul"

.

CAUTION:

Do not reuse gasket.

Oil grade and viscosity

: Refer to

MA-16, "For

North America: Fluids and
Lubricants"

.

Oil capacity

: Refer to

MA-16, "For

North America: Fluids and
Lubricants"

.

PCIB0268E

PCIB0268E

REAR OIL SEAL

TM-63

< ON-VEHICLE REPAIR >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ON-VEHICLE REPAIR

REAR OIL SEAL

Removal and Installation

INFOID:0000000005273965

REMOVAL

For 2WD Models

1.

Remove rear propeller shaft. Refer to

DLN-153, "Removal and

Installation"

.

2.

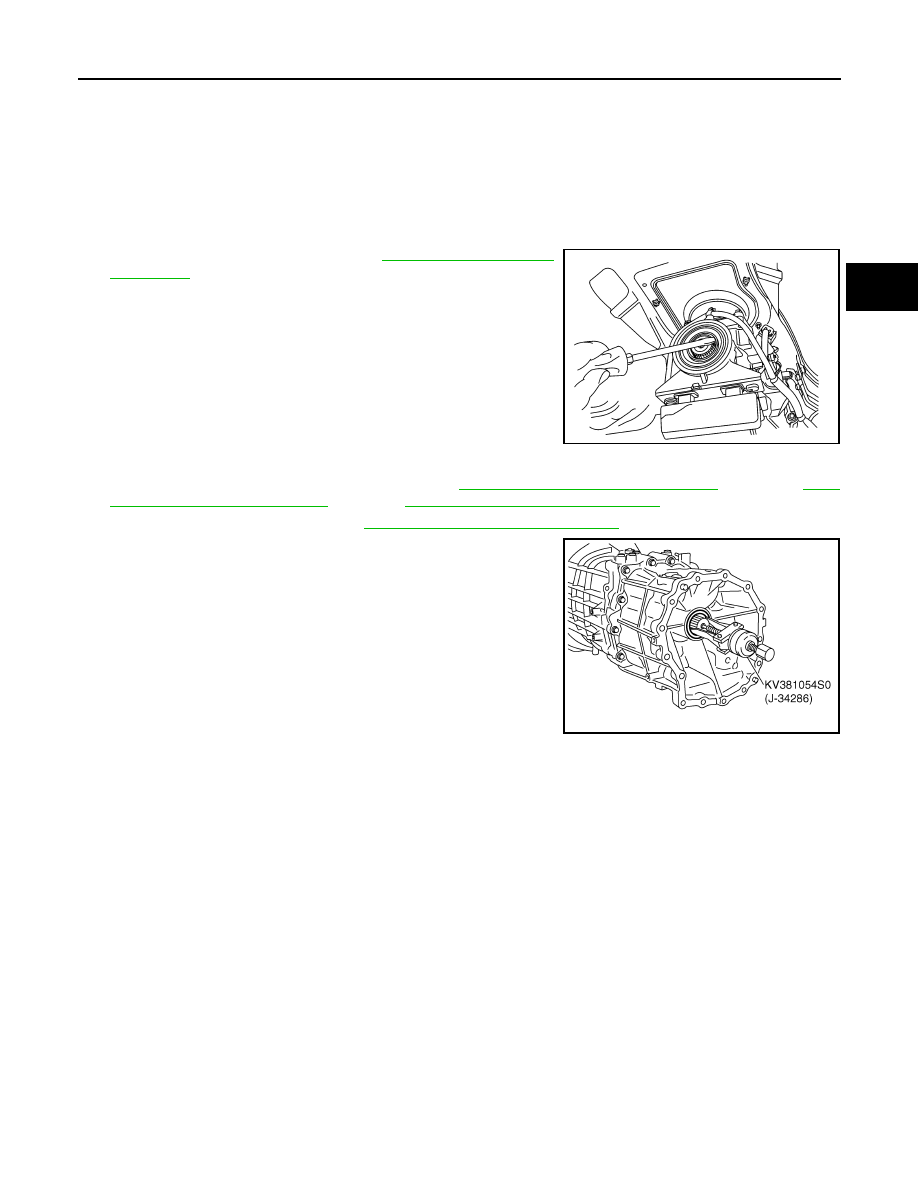

Remove dust seal and rear oil seal using suitable tool.

CAUTION:

Do not damage rear extension.

For 4WD Models

1.

Remove front and rear propeller shafts. Refer to

DLN-135, "Removal and Installation"

 (front) and

DLN-

144, "Removal and Installation"

 (2S1330),

DLN-173, "Removal and Installation"

 (3S1330-2BJ100) (rear).

2.

Remove transfer assembly. Refer to

DLN-103, "Removal and Installation"

.

3.

Remove rear oil seal using Tool.

CAUTION:

Do not damage OD gear case.

INSTALLATION

Installation is the reverse order of removal.

For 2WD Models

LCIA0383E

Tool number

: KV381054S0 (J-34286)

PCIB1218E

TM-64

< ON-VEHICLE REPAIR >

[6MT: FS6R31A]

REAR OIL SEAL

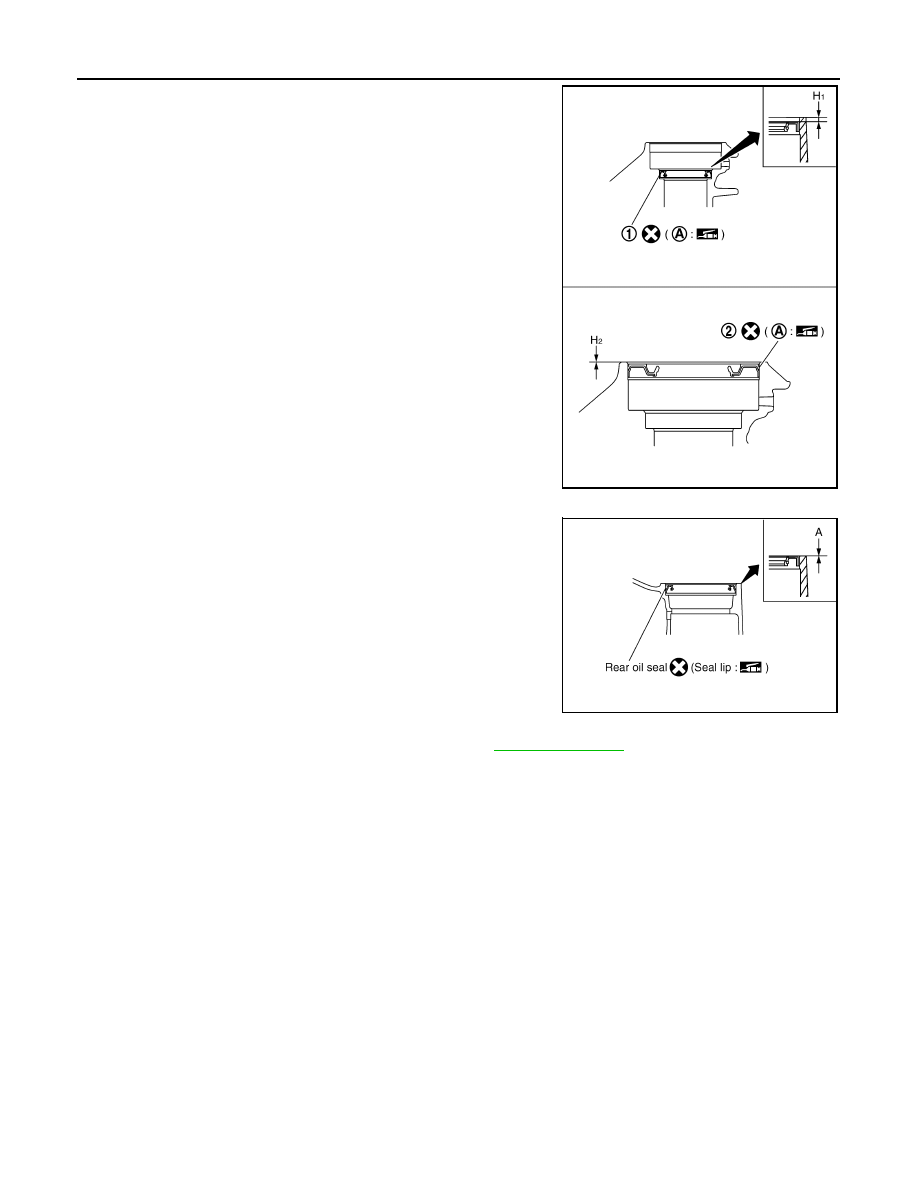

• Drive the new rear oil seal (1) and new dust seal (2) using Tools.

CAUTION:

Do not incline the dust seal and rear oil seal during installa-
tion.
(A): Seal lip

For 4WD Models

• Drive the rear oil seal using Tool.

CAUTION:

Do not incline the rear oil seal during installation.

• Check the transmission oil level after installation. Refer to

TM-62, "Checking"

.

Tool number

: ST33200000 (J-26082)

: KV38100500 (

—

)

Dimension "H1"

: 1.2 - 2.2 mm (0.047 - 0.087 in)

Dimension "H2"

: 0.5 - 1.5 mm (0.020 - 0.059 in)

PCIB1660E

Tool number

: ST33200000 (J-26082)

Dimension "A"

: -0.5 - 0.5 mm (-0.020 - 0.020 in

PCIB1632E

POSITION SWITCH

TM-65

< ON-VEHICLE REPAIR >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

POSITION SWITCH

Checking

INFOID:0000000005273966

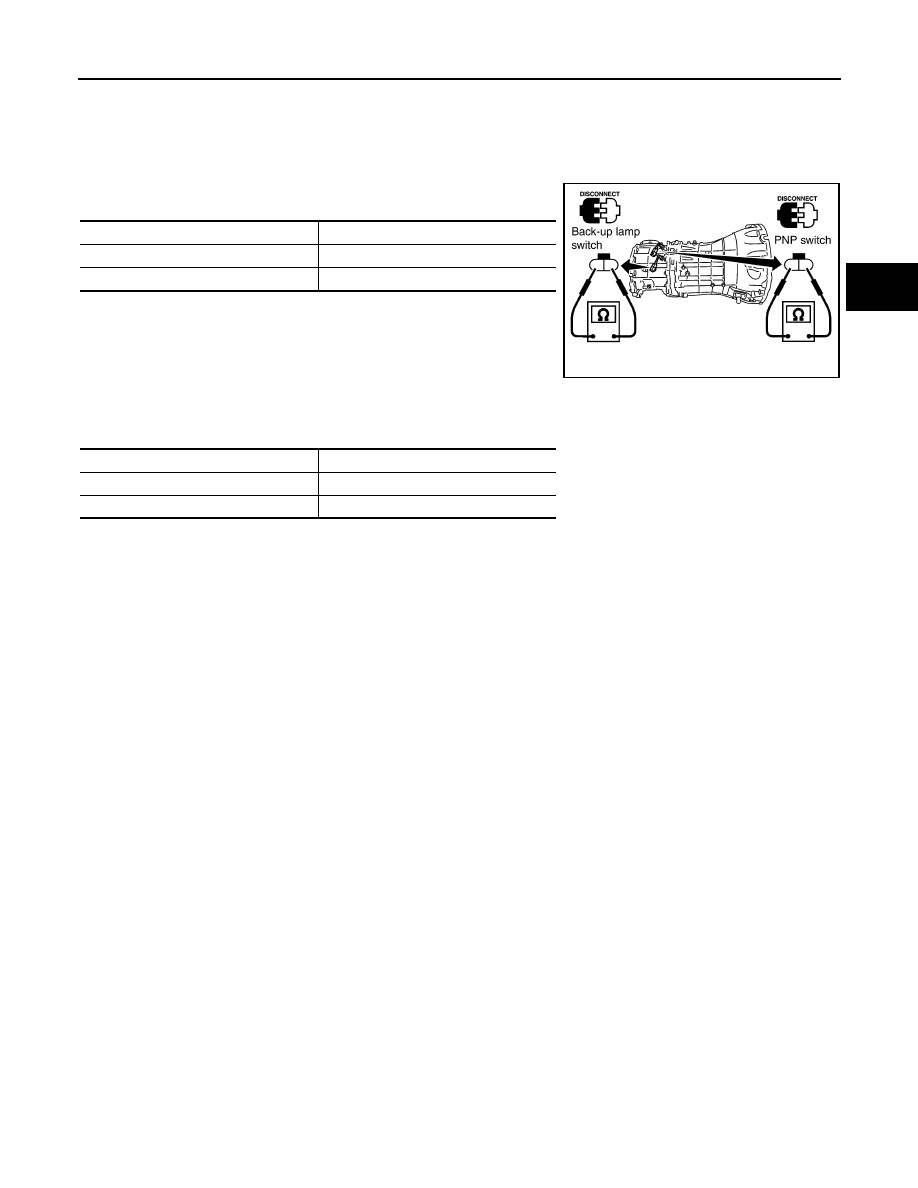

BACK-UP LAMP SWITCH

• Check continuity.

PARK/NEUTRAL POSITION SWITCH

• Check continuity.

Gear position

Continuity

Reverse

Yes

Except reverse

No

PCIB1633E

Gear position

Continuity

Neutral

Yes

Except neutral

No
